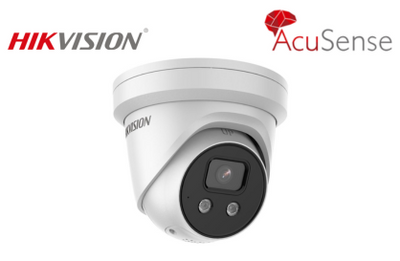

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor:

• 1/2.4" Progressive Scan CMOS

Max. Resolution:

• 3200 × 1800

Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR

Shutter Time:

• 1/3 s to 1/100,000 s

Day & Night:

• IR cut filter

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type:

• Fixed lens, 2.8, 4, and 6 mm optional

Focal Length & FOV:

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Mount:

• M12

Iris Type:

• Fixed

Aperture:

• F1.6

DORI:

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

Supplement Light Type:

• IR

Supplement Light Range:

• Up to 30 m

Smart Supplement Light:

• Yes

IR Wavelength:

• 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.

Video Compression:

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264 (Third stream is supported under certain settings.)

Video Bit Rate:

• 32 Kbps to 16 Mbps

H.264 Type:

• Baseline Profile, Main Profile, High Profile

H.265 Type:

• Main Profile

Bit Rate Control:

• CBR, VBR

Scalable Video Coding (SVC):

• H.264 and H.265 encoding

Region of Interest (ROI):

• 1 fixed region for main stream and sub-stream

Audio

Audio Type:

• Mono sound

Audio Compression:

• G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw)
• 16 Kbps (G.722.1)
• 16 Kbps (G.726)
• 32 to 192 Kbps (MP2L2)
• 8 to 320 Kbps (MP3)
• 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate:

• 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz

Environment Noise Filtering:

• Yes

Network

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View:

• Up to 6 channels

API:

• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host:

• Up to 32 users (3 user levels: administrator, operator, and user)

Security:

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage:

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client:

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in required live view: IE 10, IE 11
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch:

• Yes

Image Settings:

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch:

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR):

• 120 dB

SNR:

• ≥ 52 dB

Image Enhancement:

• BLC, HLC, 3D DNR

Privacy Mask:

• 4 programmable polygon privacy masks

Interface

Ethernet Interface:

• 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage:

• Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone:

• Yes

Reset Key:

• Yes

Event

Basic Event:

• Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output

Smart Event:

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection

Linkage:

• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light

Deep Learning Function:

• Face Capture: Yes

General

Power:

• 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: IEEE 802.3af, Class 3, max. 9.7 W

Material:

• Metal except for trim ring

Dimension:

• Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4")

Package Dimension:

• 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight:

• Approx. 820 g (1.8 lb.)

With Package Weight:

• Approx. 1150 g (2.5 lb.)

Storage Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language:

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function:

• Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker

Approval

EMC:

• FCC: 47 CFR Part 15, Subpart B
• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• RCM: AS/NZS CISPR 32: 2015
• IC: ICES-003: Issue 7
• KC: KN32: 2015, KN35: 2015

Safety:

• UL: UL 62368-1
• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017

Environment:

• CE-RoHS: 2011/65/EU
• WEEE: 2012/19/EU
• Reach: Regulation (EC) No 1907/2006

Protection:

• IP67: IEC 60529-2013
