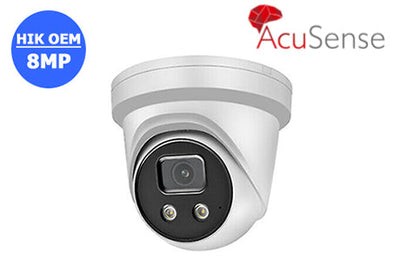

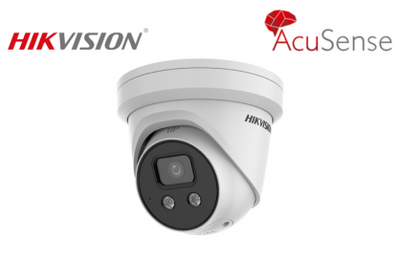

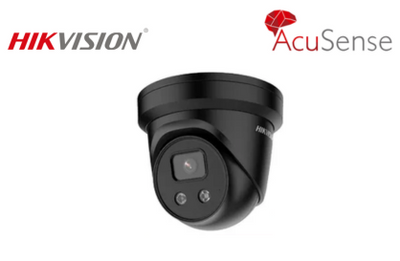

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Lens

DORI Distances

Illuminator

Video

Audio

Network

General

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Lens

DORI Distances

Illuminator

Video

Audio

Network

General

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Lens

DORI Distances

Illuminator

Video

Audio

Network

General

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Lens

DORI Distances

Illuminator

Video

Audio

Network

General

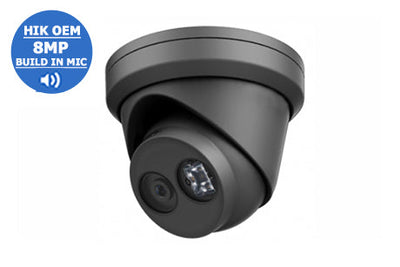

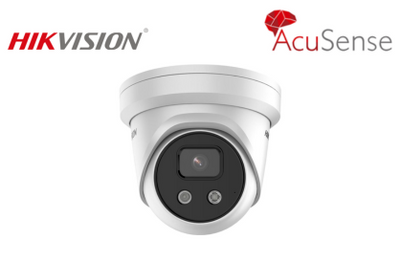

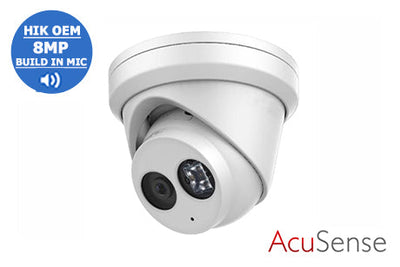

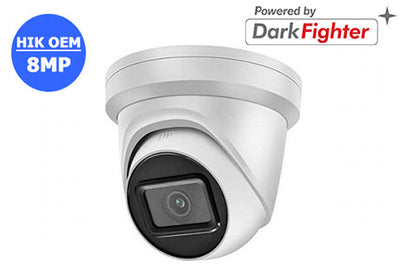

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

• Datasheet

Camera Specifications

Lens

| Lens Type | Fixed focal (2.8 mm, 4 mm, 6 mm options) | | FOV (Horizontal, Vertical, Diagonal) | 2.8 mm: 111°, 59°, 131° <br> 4 mm: 87°, 47°, 102° <br> 6 mm: 51°, 28°, 60° | | Lens Mount | M12 | | Iris Type | Fixed | | Aperture | F1.6 |

DORI Distance

Illuminator

Video

Audio

Network

General Features

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

• Datasheet

Camera Specifications

Lens

| Lens Type | Fixed focal (2.8 mm, 4 mm, 6 mm options) | | FOV (Horizontal, Vertical, Diagonal) | 2.8 mm: 111°, 59°, 131° <br> 4 mm: 87°, 47°, 102° <br> 6 mm: 51°, 28°, 60° | | Lens Mount | M12 | | Iris Type | Fixed | | Aperture | F1.6 |

DORI Distance

Illuminator

Video

Audio

Network

General Features

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

• Datasheet

Camera Specifications

Lens

| Lens Type | Fixed focal (2.8 mm, 4 mm, 6 mm options) | | FOV (Horizontal, Vertical, Diagonal) | 2.8 mm: 111°, 59°, 131° <br> 4 mm: 87°, 47°, 102° <br> 6 mm: 51°, 28°, 60° | | Lens Mount | M12 | | Iris Type | Fixed | | Aperture | F1.6 |

DORI Distance

Illuminator

Video

Audio

Network

General Features

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

• Datasheet

Camera Specifications

Lens

| Lens Type | Fixed focal (2.8 mm, 4 mm, 6 mm options) | | FOV (Horizontal, Vertical, Diagonal) | 2.8 mm: 111°, 59°, 131° <br> 4 mm: 87°, 47°, 102° <br> 6 mm: 51°, 28°, 60° | | Lens Mount | M12 | | Iris Type | Fixed | | Aperture | F1.6 |

DORI Distance

Illuminator

Video

Audio

Network

General Features

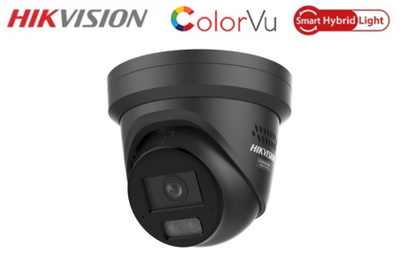

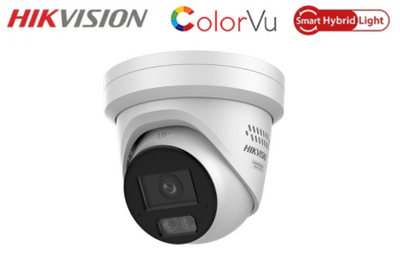

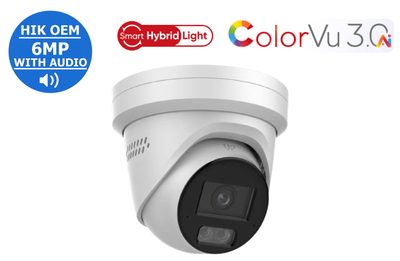

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm:

    • Horizontal: 108.8°

    • Vertical: 56.4°

    • Diagonal: 134.3°

  • 4 mm:

    • Horizontal: 93.3°

    • Vertical: 47.2°

    • Diagonal: 114.2°

• Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps

  • 60 Hz: 30 fps

• Third Stream:

  • 50/60 Hz: 10 fps (limited by settings)

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Profiles:

  • H.264: Baseline/Main/High

  • H.265: Main

• Control: CBR, VBR

• SVC: H.264 & H.265

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 & G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/S, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, SNMP, etc.

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32 (admin/operator/user roles)

• Security:
  Password protection, HTTPS, 802.1X, TLS 1.1/1.2/1.3, IP filtering, etc.

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Parameter Switch: Yes

• Settings: Saturation, brightness, contrast, gain, white balance, etc.

• Day/Night Switch: Day, Night, Auto, Schedule

• Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog

• SNR: ≥ 52 dB

• WDR: 130 dB

• Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10M/100M

• Storage: MicroSD/SDHC/SDXC (up to 512 GB)

• Speaker: Max 2 W, 110 dB @ 10 cm

• Microphone: Built-in dual mic

• Audio I/O:

  • Input: 1 (line-in), 3.3 Vpp max

  • Output: 1 (line-out), 3.3 Vpp max

• Alarm I/O: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)

• Reset Key: Yes

Events

• Basic: Motion detection, video tampering, exceptions

• Smart: Scene change detection

• Linkage: Upload, alarm output, recording, capture, light/sound warning

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human/vehicle classification supported

General

• Power:

  • 12 VDC ±25%, 1.29 A, max 15.5 W (Ø5.5 mm plug)

  • PoE: IEEE 802.3at, Class 4, max 17 W

• Material: Metal (cover and body)

• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")

• Package Dimensions: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight: 820 g (1.8 lb), with package: 1200 g (2.6 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• General Features: Heartbeat, mirror, log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 (incl. English, Russian, German, Spanish, Chinese, etc.)

• Flashing Light:

  • /SRB model: Red & Blue

  • /SL model: White

Certifications & Protection

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm:

    • Horizontal: 108.8°

    • Vertical: 56.4°

    • Diagonal: 134.3°

  • 4 mm:

    • Horizontal: 93.3°

    • Vertical: 47.2°

    • Diagonal: 114.2°

• Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps

  • 60 Hz: 30 fps

• Third Stream:

  • 50/60 Hz: 10 fps (limited by settings)

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Profiles:

  • H.264: Baseline/Main/High

  • H.265: Main

• Control: CBR, VBR

• SVC: H.264 & H.265

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 & G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/S, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, SNMP, etc.

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32 (admin/operator/user roles)

• Security:
  Password protection, HTTPS, 802.1X, TLS 1.1/1.2/1.3, IP filtering, etc.

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Parameter Switch: Yes

• Settings: Saturation, brightness, contrast, gain, white balance, etc.

• Day/Night Switch: Day, Night, Auto, Schedule

• Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog

• SNR: ≥ 52 dB

• WDR: 130 dB

• Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10M/100M

• Storage: MicroSD/SDHC/SDXC (up to 512 GB)

• Speaker: Max 2 W, 110 dB @ 10 cm

• Microphone: Built-in dual mic

• Audio I/O:

  • Input: 1 (line-in), 3.3 Vpp max

  • Output: 1 (line-out), 3.3 Vpp max

• Alarm I/O: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)

• Reset Key: Yes

Events

• Basic: Motion detection, video tampering, exceptions

• Smart: Scene change detection

• Linkage: Upload, alarm output, recording, capture, light/sound warning

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human/vehicle classification supported

General

• Power:

  • 12 VDC ±25%, 1.29 A, max 15.5 W (Ø5.5 mm plug)

  • PoE: IEEE 802.3at, Class 4, max 17 W

• Material: Metal (cover and body)

• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")

• Package Dimensions: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight: 820 g (1.8 lb), with package: 1200 g (2.6 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• General Features: Heartbeat, mirror, log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 (incl. English, Russian, German, Spanish, Chinese, etc.)

• Flashing Light:

  • /SRB model: Red & Blue

  • /SL model: White

Certifications & Protection

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X
