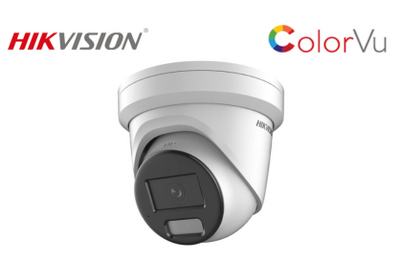

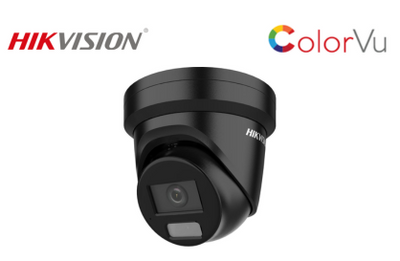

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm:

    • Horizontal: 108.8°

    • Vertical: 56.4°

    • Diagonal: 134.3°

  • 4 mm:

    • Horizontal: 93.3°

    • Vertical: 47.2°

    • Diagonal: 114.2°

• Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps

  • 60 Hz: 30 fps

• Third Stream:

  • 50/60 Hz: 10 fps (limited by settings)

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Profiles:

  • H.264: Baseline/Main/High

  • H.265: Main

• Control: CBR, VBR

• SVC: H.264 & H.265

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 & G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/S, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, SNMP, etc.

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32 (admin/operator/user roles)

• Security:
  Password protection, HTTPS, 802.1X, TLS 1.1/1.2/1.3, IP filtering, etc.

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Parameter Switch: Yes

• Settings: Saturation, brightness, contrast, gain, white balance, etc.

• Day/Night Switch: Day, Night, Auto, Schedule

• Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog

• SNR: ≥ 52 dB

• WDR: 130 dB

• Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10M/100M

• Storage: MicroSD/SDHC/SDXC (up to 512 GB)

• Speaker: Max 2 W, 110 dB @ 10 cm

• Microphone: Built-in dual mic

• Audio I/O:

  • Input: 1 (line-in), 3.3 Vpp max

  • Output: 1 (line-out), 3.3 Vpp max

• Alarm I/O: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)

• Reset Key: Yes

Events

• Basic: Motion detection, video tampering, exceptions

• Smart: Scene change detection

• Linkage: Upload, alarm output, recording, capture, light/sound warning

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human/vehicle classification supported

General

• Power:

  • 12 VDC ±25%, 1.29 A, max 15.5 W (Ø5.5 mm plug)

  • PoE: IEEE 802.3at, Class 4, max 17 W

• Material: Metal (cover and body)

• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")

• Package Dimensions: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight: 820 g (1.8 lb), with package: 1200 g (2.6 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• General Features: Heartbeat, mirror, log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 (incl. English, Russian, German, Spanish, Chinese, etc.)

• Flashing Light:

  • /SRB model: Red & Blue

  • /SL model: White

Certifications & Protection

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm:

    • Horizontal: 108.8°

    • Vertical: 56.4°

    • Diagonal: 134.3°

  • 4 mm:

    • Horizontal: 93.3°

    • Vertical: 47.2°

    • Diagonal: 114.2°

• Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps

  • 60 Hz: 30 fps

• Third Stream:

  • 50/60 Hz: 10 fps (limited by settings)

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Profiles:

  • H.264: Baseline/Main/High

  • H.265: Main

• Control: CBR, VBR

• SVC: H.264 & H.265

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 & G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/S, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, SNMP, etc.

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32 (admin/operator/user roles)

• Security:
  Password protection, HTTPS, 802.1X, TLS 1.1/1.2/1.3, IP filtering, etc.

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Parameter Switch: Yes

• Settings: Saturation, brightness, contrast, gain, white balance, etc.

• Day/Night Switch: Day, Night, Auto, Schedule

• Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog

• SNR: ≥ 52 dB

• WDR: 130 dB

• Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10M/100M

• Storage: MicroSD/SDHC/SDXC (up to 512 GB)

• Speaker: Max 2 W, 110 dB @ 10 cm

• Microphone: Built-in dual mic

• Audio I/O:

  • Input: 1 (line-in), 3.3 Vpp max

  • Output: 1 (line-out), 3.3 Vpp max

• Alarm I/O: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)

• Reset Key: Yes

Events

• Basic: Motion detection, video tampering, exceptions

• Smart: Scene change detection

• Linkage: Upload, alarm output, recording, capture, light/sound warning

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human/vehicle classification supported

General

• Power:

  • 12 VDC ±25%, 1.29 A, max 15.5 W (Ø5.5 mm plug)

  • PoE: IEEE 802.3at, Class 4, max 17 W

• Material: Metal (cover and body)

• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")

• Package Dimensions: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight: 820 g (1.8 lb), with package: 1200 g (2.6 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• General Features: Heartbeat, mirror, log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 (incl. English, Russian, German, Spanish, Chinese, etc.)

• Flashing Light:

  • /SRB model: Red & Blue

  • /SL model: White

Certifications & Protection

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

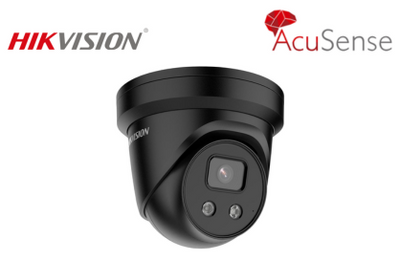

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
  • 4 mm: Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings
• Video Compression:
  • Main: H.265/H.264/H.264+/H.265+
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Compression (Model -U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate (Model -U): 64 Kbps to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, QoS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Users: Up to 32 users; 3 levels: Admin, Operator, User
• Security Features:
  • Password protection, HTTPS encryption, IP filtering, etc.
  • TLS 1.1/1.2/1.3 compliance

Interface

• Ethernet: 1 RJ45 (10 M/100 M self-adaptive)
• Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Microphone (-U model): Yes
• Reset Key: Yes

General

• Power:
  • 12 VDC ± 25% (max. 6.5 W)
  • PoE: IEEE 802.3af, Class 3 (max. 8 W)
• Material: Metal body and cover
• Dimensions: Ø138.3 mm × 115.4 mm (5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, BIS
• Environment: CE-RoHS
• Protection: IP67 (IEC 60529-2013)

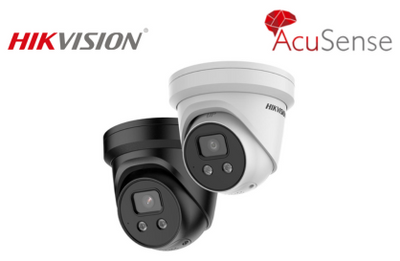

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor:

• 1/2.4" Progressive Scan CMOS

Max. Resolution:

• 3200 × 1800

Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR

Shutter Time:

• 1/3 s to 1/100,000 s

Day & Night:

• IR cut filter

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type:

• Fixed lens, 2.8, 4, and 6 mm optional

Focal Length & FOV:

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Mount:

• M12

Iris Type:

• Fixed

Aperture:

• F1.6

DORI:

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

Supplement Light Type:

• IR

Supplement Light Range:

• Up to 30 m

Smart Supplement Light:

• Yes

IR Wavelength:

• 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.

Video Compression:

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264 (Third stream is supported under certain settings.)

Video Bit Rate:

• 32 Kbps to 16 Mbps

H.264 Type:

• Baseline Profile, Main Profile, High Profile

H.265 Type:

• Main Profile

Bit Rate Control:

• CBR, VBR

Scalable Video Coding (SVC):

• H.264 and H.265 encoding

Region of Interest (ROI):

• 1 fixed region for main stream and sub-stream

Audio

Audio Type:

• Mono sound

Audio Compression:

• G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw)
• 16 Kbps (G.722.1)
• 16 Kbps (G.726)
• 32 to 192 Kbps (MP2L2)
• 8 to 320 Kbps (MP3)
• 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate:

• 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz

Environment Noise Filtering:

• Yes

Network

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View:

• Up to 6 channels

API:

• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host:

• Up to 32 users (3 user levels: administrator, operator, and user)

Security:

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage:

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client:

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in required live view: IE 10, IE 11
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch:

• Yes

Image Settings:

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch:

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR):

• 120 dB

SNR:

• ≥ 52 dB

Image Enhancement:

• BLC, HLC, 3D DNR

Privacy Mask:

• 4 programmable polygon privacy masks

Interface

Ethernet Interface:

• 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage:

• Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone:

• Yes

Reset Key:

• Yes

Event

Basic Event:

• Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output

Smart Event:

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection

Linkage:

• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light

Deep Learning Function:

• Face Capture: Yes

General

Power:

• 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: IEEE 802.3af, Class 3, max. 9.7 W

Material:

• Metal except for trim ring

Dimension:

• Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4")

Package Dimension:

• 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight:

• Approx. 820 g (1.8 lb.)

With Package Weight:

• Approx. 1150 g (2.5 lb.)

Storage Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language:

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function:

• Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker

Approval

EMC:

• FCC: 47 CFR Part 15, Subpart B
• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• RCM: AS/NZS CISPR 32: 2015
• IC: ICES-003: Issue 7
• KC: KN32: 2015, KN35: 2015

Safety:

• UL: UL 62368-1
• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017

Environment:

• CE-RoHS: 2011/65/EU
• WEEE: 2012/19/EU
• Reach: Regulation (EC) No 1907/2006

Protection:

• IP67: IEC 60529-2013

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor:

• 1/2.4" Progressive Scan CMOS

Max. Resolution:

• 3200 × 1800

Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR

Shutter Time:

• 1/3 s to 1/100,000 s

Day & Night:

• IR cut filter

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type:

• Fixed lens, 2.8, 4, and 6 mm optional

Focal Length & FOV:

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Mount:

• M12

Iris Type:

• Fixed

Aperture:

• F1.6

DORI:

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

Supplement Light Type:

• IR

Supplement Light Range:

• Up to 30 m

Smart Supplement Light:

• Yes

IR Wavelength:

• 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.

Video Compression:

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264 (Third stream is supported under certain settings.)

Video Bit Rate:

• 32 Kbps to 16 Mbps

H.264 Type:

• Baseline Profile, Main Profile, High Profile

H.265 Type:

• Main Profile

Bit Rate Control:

• CBR, VBR

Scalable Video Coding (SVC):

• H.264 and H.265 encoding

Region of Interest (ROI):

• 1 fixed region for main stream and sub-stream

Audio

Audio Type:

• Mono sound

Audio Compression:

• G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw)
• 16 Kbps (G.722.1)
• 16 Kbps (G.726)
• 32 to 192 Kbps (MP2L2)
• 8 to 320 Kbps (MP3)
• 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate:

• 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz

Environment Noise Filtering:

• Yes

Network

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View:

• Up to 6 channels

API:

• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host:

• Up to 32 users (3 user levels: administrator, operator, and user)

Security:

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage:

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client:

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in required live view: IE 10, IE 11
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch:

• Yes

Image Settings:

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch:

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR):

• 120 dB

SNR:

• ≥ 52 dB

Image Enhancement:

• BLC, HLC, 3D DNR

Privacy Mask:

• 4 programmable polygon privacy masks

Interface

Ethernet Interface:

• 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage:

• Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone:

• Yes

Reset Key:

• Yes

Event

Basic Event:

• Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output

Smart Event:

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection

Linkage:

• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light

Deep Learning Function:

• Face Capture: Yes

General

Power:

• 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: IEEE 802.3af, Class 3, max. 9.7 W

Material:

• Metal except for trim ring

Dimension:

• Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4")

Package Dimension:

• 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight:

• Approx. 820 g (1.8 lb.)

With Package Weight:

• Approx. 1150 g (2.5 lb.)

Storage Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions:

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language:

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function:

• Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker

Approval

EMC:

• FCC: 47 CFR Part 15, Subpart B
• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• RCM: AS/NZS CISPR 32: 2015
• IC: ICES-003: Issue 7
• KC: KN32: 2015, KN35: 2015

Safety:

• UL: UL 62368-1
• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017

Environment:

• CE-RoHS: 2011/65/EU
• WEEE: 2012/19/EU
• Reach: Regulation (EC) No 1907/2006

Protection:

• IP67: IEC 60529-2013
