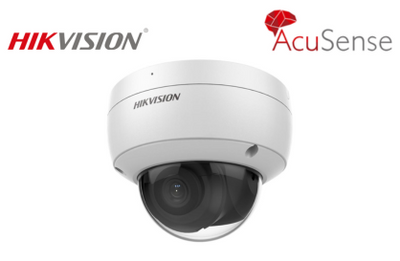

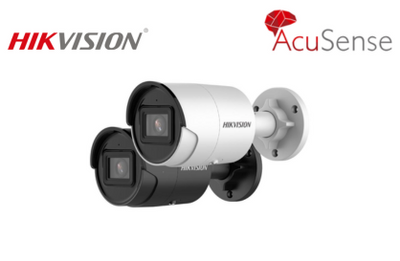

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm options
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps, 60 Hz: 10 fps (supports select settings)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Type: Mono sound
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Bit Rate: Ranges from 8 to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, UPnP, IPv4/IPv6, etc.
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI, SDK, ISUP
• User Levels: 3 levels: administrator, operator, user
• Security: Password protection, HTTPS, IP filter, etc.
• Network Storage: NAS, ANR, Hikvision memory card support

Image Settings

• Adjustable Parameters: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive
• Storage: MicroSD up to 512 GB
• Built-in Microphone: Yes
• Audio Input/Output: Line in and out options
• Alarm: 1 input, 1 output

Event Detection

• Basic Events: Motion detection, video tampering, alarm input/output
• Smart Events: Line crossing, intrusion, region entry/exit detection
• Linkage: FTP, NAS, memory card upload, email notifications

General

• Power: 12 VDC ± 25%, 0.5 A; PoE: IEEE 802.3af, Class 3
• Material: Aluminum alloy, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm (4.8" × 3.6")
• Weight: 440 g (1.0 lb); with package: 670 g (1.47 lb)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95%
• Languages: 33 available

Certifications and Compliance

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm options
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps, 60 Hz: 10 fps (supports select settings)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Type: Mono sound
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Bit Rate: Ranges from 8 to 320 Kbps depending on codec
• Sampling Rate: 8 kHz to 48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, UPnP, IPv4/IPv6, etc.
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI, SDK, ISUP
• User Levels: 3 levels: administrator, operator, user
• Security: Password protection, HTTPS, IP filter, etc.
• Network Storage: NAS, ANR, Hikvision memory card support

Image Settings

• Adjustable Parameters: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive
• Storage: MicroSD up to 512 GB
• Built-in Microphone: Yes
• Audio Input/Output: Line in and out options
• Alarm: 1 input, 1 output

Event Detection

• Basic Events: Motion detection, video tampering, alarm input/output
• Smart Events: Line crossing, intrusion, region entry/exit detection
• Linkage: FTP, NAS, memory card upload, email notifications

General

• Power: 12 VDC ± 25%, 0.5 A; PoE: IEEE 802.3af, Class 3
• Material: Aluminum alloy, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm (4.8" × 3.6")
• Weight: 440 g (1.0 lb); with package: 670 g (1.47 lb)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95%
• Languages: 33 available

Certifications and Compliance

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security (-SU)
• Audio and alarm interface available(-SU)
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI Distance:

• 2.8 mm:
  • Detect: 76 m, Observe: 30 m, Recognize: 15 m, Identify: 7 m
• 4 mm:
  • Detect: 115 m, Observe: 45 m, Recognize: 23 m, Identify: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression:

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound (-U models)
• Compression:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, etc.
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
  • 3 levels: Administrator, Operator, User


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: Supports microSD cards up to 512 GB
• Built-in Microphone: Yes (-U models)
• Audio Input/Output: Yes (-S models)
• Alarm Input/Output: Yes (-S models)
• Reset Key: Yes

Event & Smart Features

• Basic Events: Motion detection, video tampering, exception, alarm input/output (-S)
• Smart Events: Line crossing, intrusion, region entrance/exiting, scene change detection
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Aluminum alloy body, plastic bubble
• Dimensions: Ø121.4 mm × 92.2 mm
• Operating Conditions: -30 °C to 60 °C, ≤ 95% RH
• Language Support: 33 languages

Approval & Protection

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
  Shutter Time: 1/3 s to 1/100,000 s
  Day & Night: IR cut filter
  Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Lens

Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
Focal Length & FOV:

• 2.8 mm: Horizontal FOV: 111°, Vertical FOV: 59°, Diagonal FOV: 131°
• 4 mm: Horizontal FOV: 87°, Vertical FOV: 47°, Diagonal FOV: 102°
• 6 mm: Horizontal FOV: 51°, Vertical FOV: 28°, Diagonal FOV: 60°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Note: Third stream is supported under certain settings.

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes

Audio

Audio Type: -U: Mono sound
Audio Compression:

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate:

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC: 16 to 64 Kbps

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK
User/Host: Up to 32 users (3 user levels: administrator, operator, user)
Security: Password protection, HTTPS encryption, IP filter, audit logs, TLS 1.1/1.2

Network Storage: MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or browser)
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: MicroSD (up to 256 GB)
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection, video tampering, exceptions
Smart Event: Line crossing, intrusion, region entrance/exit (supports alarms for human/vehicle)
Deep Learning: Face capture

General

Power:

• 12 VDC ± 25% (max. 6 W)
• PoE: 802.3af, Class 3 (max. 7.2 W)

Dimension: Ø70 mm ×161.7 mm (Ø2.8" × 6.37")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight: Approx. 485 g (1.1 lb.)
With Package Weight: Approx. 749 g (1.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
Startup & Operating Conditions: Same as above

Languages Supported: 33 (including English, Russian, German, French, Spanish, etc.)

Approvals

EMC: CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
  Shutter Time: 1/3 s to 1/100,000 s
  Day & Night: IR cut filter
  Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Lens

Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
Focal Length & FOV:

• 2.8 mm: Horizontal FOV: 111°, Vertical FOV: 59°, Diagonal FOV: 131°
• 4 mm: Horizontal FOV: 87°, Vertical FOV: 47°, Diagonal FOV: 102°
• 6 mm: Horizontal FOV: 51°, Vertical FOV: 28°, Diagonal FOV: 60°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Note: Third stream is supported under certain settings.

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes

Audio

Audio Type: -U: Mono sound
Audio Compression:

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate:

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC: 16 to 64 Kbps

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK
User/Host: Up to 32 users (3 user levels: administrator, operator, user)
Security: Password protection, HTTPS encryption, IP filter, audit logs, TLS 1.1/1.2

Network Storage: MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or browser)
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: MicroSD (up to 256 GB)
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection, video tampering, exceptions
Smart Event: Line crossing, intrusion, region entrance/exit (supports alarms for human/vehicle)
Deep Learning: Face capture

General

Power:

• 12 VDC ± 25% (max. 6 W)
• PoE: 802.3af, Class 3 (max. 7.2 W)

Dimension: Ø70 mm ×161.7 mm (Ø2.8" × 6.37")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight: Approx. 485 g (1.1 lb.)
With Package Weight: Approx. 749 g (1.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
Startup & Operating Conditions: Same as above

Languages Supported: 33 (including English, Russian, German, French, Spanish, etc.)

Approvals

EMC: CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
  Shutter Time: 1/3 s to 1/100,000 s
  Day & Night: IR cut filter
  Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Lens

Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
Focal Length & FOV:

• 2.8 mm: Horizontal FOV: 111°, Vertical FOV: 59°, Diagonal FOV: 131°
• 4 mm: Horizontal FOV: 87°, Vertical FOV: 47°, Diagonal FOV: 102°
• 6 mm: Horizontal FOV: 51°, Vertical FOV: 28°, Diagonal FOV: 60°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Note: Third stream is supported under certain settings.

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes

Audio

Audio Type: -U: Mono sound
Audio Compression:

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate:

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC: 16 to 64 Kbps

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK
User/Host: Up to 32 users (3 user levels: administrator, operator, user)
Security: Password protection, HTTPS encryption, IP filter, audit logs, TLS 1.1/1.2

Network Storage: MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or browser)
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: MicroSD (up to 256 GB)
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection, video tampering, exceptions
Smart Event: Line crossing, intrusion, region entrance/exit (supports alarms for human/vehicle)
Deep Learning: Face capture

General

Power:

• 12 VDC ± 25% (max. 6 W)
• PoE: 802.3af, Class 3 (max. 7.2 W)

Dimension: Ø70 mm ×161.7 mm (Ø2.8" × 6.37")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight: Approx. 485 g (1.1 lb.)
With Package Weight: Approx. 749 g (1.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
Startup & Operating Conditions: Same as above

Languages Supported: 33 (including English, Russian, German, French, Spanish, etc.)

Approvals

EMC: CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
  Shutter Time: 1/3 s to 1/100,000 s
  Day & Night: IR cut filter
  Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Lens

Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
Focal Length & FOV:

• 2.8 mm: Horizontal FOV: 111°, Vertical FOV: 59°, Diagonal FOV: 131°
• 4 mm: Horizontal FOV: 87°, Vertical FOV: 47°, Diagonal FOV: 102°
• 6 mm: Horizontal FOV: 51°, Vertical FOV: 28°, Diagonal FOV: 60°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Note: Third stream is supported under certain settings.

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes

Audio

Audio Type: -U: Mono sound
Audio Compression:

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate:

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC: 16 to 64 Kbps

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK
User/Host: Up to 32 users (3 user levels: administrator, operator, user)
Security: Password protection, HTTPS encryption, IP filter, audit logs, TLS 1.1/1.2

Network Storage: MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or browser)
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: MicroSD (up to 256 GB)
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection, video tampering, exceptions
Smart Event: Line crossing, intrusion, region entrance/exit (supports alarms for human/vehicle)
Deep Learning: Face capture

General

Power:

• 12 VDC ± 25% (max. 6 W)
• PoE: 802.3af, Class 3 (max. 7.2 W)

Dimension: Ø70 mm ×161.7 mm (Ø2.8" × 6.37")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight: Approx. 485 g (1.1 lb.)
With Package Weight: Approx. 749 g (1.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
Startup & Operating Conditions: Same as above

Languages Supported: 33 (including English, Russian, German, French, Spanish, etc.)

Approvals

EMC: CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination:

• Color: 0.003 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
  Shutter Time: 1/3 s to 1/100,000 s
  Day & Night: IR cut filter
  Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Lens

Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
Focal Length & FOV:

• 2.8 mm: Horizontal FOV: 111°, Vertical FOV: 59°, Diagonal FOV: 131°
• 4 mm: Horizontal FOV: 87°, Vertical FOV: 47°, Diagonal FOV: 102°
• 6 mm: Horizontal FOV: 51°, Vertical FOV: 28°, Diagonal FOV: 60°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)
