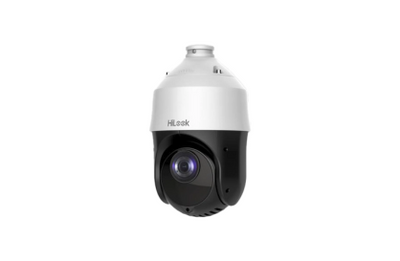

• Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Excellent night-time performance with up to 100 m enhanced IR
• Water and dust resistant (IP66)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 1920 × 1080

• Min. Illumination:

  • Color: 0.005 Lux @(F1.6, AGC ON)

  • B/W: 0.001 Lux @(F1.6, AGC ON)

  • 0 Lux with IR

• Shutter Speed: 1/1 s to 1/30,000 s

• Day & Night: IR Cut Filter

Zoom & Lens

• Optical Zoom: 25×

• Digital Zoom: 16×

• Focal Length: 4.8 mm to 120 mm

• Field of View (FOV):

  • Horizontal: 57.6° to 2.5°

  • Vertical: 34.4° to 1.4°

  • Diagonal: 64.5° to 2.9°

• Focus: Auto, Semi-auto, Manual

• Aperture: F1.6 to F3.5

• Zoom Speed: Approx. 3.2 s (wide-tele)

Illuminator

• Type: IR

• Range: Up to 100 m

• Smart Supplement Light: Yes

PTZ

• Pan Range: 360° Endless

• Tilt Range: -15° to 90° (Auto-flip)

• Pan Speed: 0.1°/s to 80°/s (Preset: 80°/s)

• Tilt Speed: 0.1°/s to 80°/s (Preset: 80°/s)

• Proportional Pan: Yes

• Presets: 300

• Preset Freezing: Yes

• Patrol Scan: 8 patrols (up to 32 presets each)

• Pattern Scan: 4 patterns (10+ min record each)

• Park Actions: Preset, Pattern, Patrol, Auto/Tilt/Random/Frame/Panorama Scan

• PTZ Status Display: Yes

• Scheduled Tasks: Various scan modes, dome reboot, dome adjust

• Power-off Memory: Yes

Video

• Main Stream:

  • 50Hz: 25fps (1920×1080, 1280×960, 1280×720)

  • 60Hz: 30fps (same resolutions)

• Sub Stream:

  • 50Hz: 25fps (704×576, 640×480, 352×288)

  • 60Hz: 30fps (704×480, 640×480, 352×240)

• Third Stream:

  • 50Hz/60Hz: Up to 30fps in full HD to 352×240

• Compression:

  • Main: H.265+/H.265/H.264+/H.264

  • Sub/Third: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 16384 Kbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• SVC: H.264 & H.265

• ROI: Up to 4 fixed areas per stream

Audio

• Compression: G.711alaw, G.711ulaw, G.722, G.726, MP2L2, PCM

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1: 16 Kbps

  • G.726: 16 Kbps

  • MP2L2: 32–160 Kbps

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, NTP, RTSP, SNMP, TCP/IP, UDP, DHCP, and more

• Simultaneous Live View: Up to 20 channels

• API Support: ONVIF, ISAPI, SDK, ISUP

• User Levels: Admin, Operator, User (max. 32 users)

• Security Features:

  • User & host authentication

  • HTTPS, IEEE 802.1x, IP filtering

• Storage: NAS (NFS, SMB/CIFS), ANR

• Clients: iVMS-4200, HiLookVision

• Browser Support: IE10–11, Chrome 57+, Firefox 52+, Safari 12+

Image Features

• Adjustments: Saturation, Brightness, Contrast, Sharpness, Gain, White Balance

• WDR: 120 dB

• Defog: Digital

• Image Enhancements: BLC, HLC, 3D DNR

• Privacy Masking: Up to 24 programmable masks

• Regional Settings: Focus and Exposure

Interface

• Ethernet: 1 × RJ45 10M/100M, PoE (802.3at, Class 4)

• On-board Storage: MicroSD/SDHC/SDXC (up to 256 GB)

• Audio I/O:

  • Input: 1 (line-in), 2–2.4 Vpp, 1 KΩ ± 10%

  • Output: 1 (line-out), 600 Ω

Events

• Basic: Motion, Tampering, Exception Detection

• Smart: Intrusion, Line Crossing, Region Entrance/Exit, Object Removal, Audio Exception, Unattended Baggage

General

• Power:

  • 12 VDC, 2.0 A

  • PoE (802.3at), 42.5–57 VDC, 0.6 A

  • Max: 18 W (IR Max: 6 W)

• Dimensions: Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")

• Weight: Approx. 2.5 kg (5.51 lb)

• Material: ADC12, PC + 10% GF

• Operating Temp: -30°C to 65°C (-22°F to 149°F), Humidity ≤ 90% (non-condensing)

Certifications & Protections

• EMC: FCC, CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS, LOA

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP66, 4000V Surge/Lightning/Voltage Protection

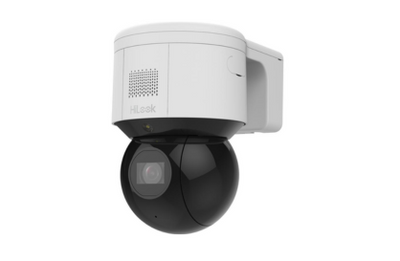

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Intelligent Detection
• Auto-tracking based on intelligent analysis
• Support two-way talk
• Red & Blue flashing light
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 4 × optical zoom allows for closer viewing of subjects in expansive areas
• Efficient H.265+ compression technology
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.8" Progressive Scan CMOS

• Max Resolution: 2560 × 1440

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.5, AGC ON)

  • B/W: 0.001 Lux @ (F1.5, AGC ON)

  • 0 Lux with IR

• Shutter Speed: 1 to 1/30,000 s

• Day & Night: IR Cut Filter

Lens

• Zoom: 4× Optical, 16× Digital

• Focal Length: 2.8 to 12 mm

• Field of View:

  • Horizontal: 96.7° to 31.6° (wide-tele)

  • Vertical: 51.1° to 17.7° (wide-tele)

  • Diagonal: 115.1° to 36.3° (wide-tele)

• Focus: Auto, Semi-Auto, Manual

• Max Aperture: F1.5

• Zoom Speed: Approx. 2 s (Optical Lens, Wide-Tele)

Illuminator

• IR Distance: Up to 50 m

• White Light Distance: Up to 6 m

PTZ (Pan-Tilt-Zoom)

• Pan Range: 0° to 350°

• Tilt Range: 0° to 90°

• Pan Speed: 0.1°/s to 60°/s (Preset: 60°/s)

• Tilt Speed: 0.1°/s to 50°/s (Preset: 60°/s)

• Presets: 300

• Patrol Scans: 8 patrols, up to 32 presets each

• Proportional Pan: Yes

• Preset Freezing: Yes

• 3D Positioning: Yes

• Scheduled Tasks: Preset, Patrol Scan, Dome Reboot, Dome Adjust, Aux Output

• Power-off Memory: Yes

• PTZ Status Display: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream:

  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub-Stream: H.265/H.264/MJPEG

  • Third Stream: H.265/H.264/MJPEG

• Video Bitrate: 32 Kbps to 16 Mbps

• Profiles:

  • H.264: Baseline, Main, High

  • H.265: Main Profile

• SVC: H.264 and H.265 Encoding

• ROI: 8 Fixed Regions per Stream

Audio

• Compression: G.711a/u, G.722.1, G.726, MP2L2, PCM

• Bitrate:

  • G.711: 64 Kbps

  • G.722.1: 16 Kbps

  • G.726: 16 Kbps

  • MP2L2: 32 to 160 Kbps

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, QoS, 802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

• Simultaneous Live Views: Up to 20 Channels

• API: ONVIF, ISAPI, SDK, ISUP

• Users: Up to 32 (Admin/Operator/User levels)

• Security Features:

  • Password Protection

  • HTTPS Encryption

  • IP Address Filtering

  • Watermark

  • Basic/Digest Authentication

  • RTP/RTSP over HTTPS

  • TLS 1.2, MAC Address Authentication

• Network Storage:

  • NAS (NFS, SMB/CIFS)

  • ANR (Auto Network Replenishment)

Client Software

• iVMS-4200

• HikCentral

• Hik-Connect
  (Wi-Fi connection with Hik-Connect directly is not supported.)

• Web Browsers Supported: IE10–11, Chrome 57+, Firefox 52+, Safari 12+

Image Features

• Adjustments: Saturation, Brightness, Contrast, Sharpness, Gain, White Balance

• Wide Dynamic Range: 120 dB

• Defog: Digital Defog

• Enhancement: BLC, HLC, 3D DNR

• Privacy Masks: 24 Programmable, Color Configurable

• Regional Focus and Exposure: Supported

Interface

• Ethernet: 1× RJ45 10M/100M Self-adaptive

• On-Board Storage: microSD/microSDHC/microSDXC (up to 256 GB)

• Audio Interface:

  • 1 Input (Line In)

  • 1 Output (Line Out)

• Built-in Microphone: Yes

• Built-in Speaker: Yes (8Ω, 2W, Max SPL 100 dB @10cm)

• Alarm Interface: 1 Input, 1 Output

• Power Output: 12 VDC, Max 60 mA

Events

• Basic Events:

  • Motion Detection

  • Video Tampering

  • Network Disconnected

  • IP Conflict

  • Illegal Login

  • HDD Full/Error

  • Alarm Input/Output

• Smart Events:

  • Face Detection

  • Line Crossing

  • Intrusion Detection

  • Region Entrance/Exit

  • Unattended Baggage Detection

  • Object Removal Detection

  • Audio Exception Detection

• Linkage Actions:

  • Preset, Patrol Scan

  • Upload to FTP/Memory Card/NAS

  • Notify Surveillance Center

  • Send Email

  • Audible Warning

  • Flashing Alarm

Deep Learning Functions

• Multi-Target-Type Detection: Human Body, Face, Vehicle Detection and Capture

General

• Power:

  • 12 VDC, 3.33 A

  • PoE (802.3at), 42.5–57 VDC, 0.6 A

  • Max 14 W (IR Max 2.4 W, White Light Flashing Max 1.2 W)

• Dimensions: 179.3 × 120.5 × 182 mm (7.06" × 4.74" × 7.17")

• Weight: Approx. 1.125 kg (2.48 lb.)

• Material: ADC12 + PC

• Operating Conditions: -30 °C to 65 °C (-22 °F to 149 °F), Humidity ≤90% (Non-condensing)

• Protection:

  • IP66 Rated (IEC 60529-2013)

  • TVS 6000V Lightning Protection

  • Surge and Voltage Transient Protection

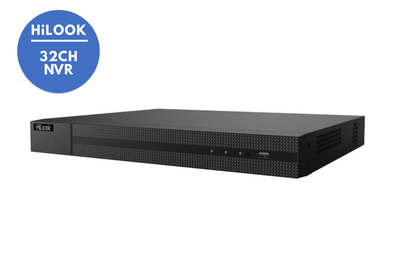

• Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
• Up to 256 Mbps incoming bandwidth
• Datasheet

Intelligent Analytics

AI by Device

• Facial recognition

• Perimeter protection

• Motion Detection 2.0

AI by Camera

• Facial recognition

• Perimeter protection

• Throwing objects from building

• Motion Detection 2.0

• ANPR

• VCA

Facial Recognition

Facial Detection & Analytics

• Face picture comparison

• Human face capture

• Face picture search

Face Picture Library

• Up to 16 libraries

• Up to 20,000 face pictures total

• Max size per picture: ≤ 4 MB

• Total capacity ≤ 1 GB

Facial Detection & Analytics Performance

• 1-ch @ 8 MP

Face Picture Comparison

• 4-ch

Motion Detection 2.0

By Camera

• All channels supported

Perimeter Protection

By Device

• 2-ch @ 4 MP

• Supports human & vehicle classification to reduce false alarms

By Camera

• All channels supported

Video and Audio

IP Video Input

• 32-ch

Incoming Bandwidth

• 256 Mbps

Outgoing Bandwidth

• 160 Mbps

HDMI Output

1-ch:

• 4K (3840 × 2160) @ 30 Hz

• 2K (2560 × 1440) @ 60 Hz

• 1920 × 1080 @ 60 Hz

• 1600 × 1200 @ 60 Hz

• 1280 × 1024 @ 60 Hz

• 1280 × 720 @ 60 Hz

• 1024 × 768 @ 60 Hz

VGA Output

1-ch:

• 1920 × 1080 @ 60 Hz

• 1280 × 1024 @ 60 Hz

• 1280 × 720 @ 60 Hz

Video Output Mode

• HDMI/VGA independent output

CVBS Output

• N/A

Audio Output

• 1-ch, RCA (2.0 Vp-p, 1 KΩ, using audio input)

Two-Way Audio

• 1-ch, RCA (Linear, 1 KΩ)

Decoding

Supported Formats

• H.265 / H.265+

• H.264 / H.264+

Recording Resolution

• 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback

• 16-ch

Decoding Capability

AI ON:

• 2-ch @ 12 MP (30 fps)

• 3-ch @ 8 MP (30 fps)

• 6-ch @ 4 MP (30 fps)

• 12-ch @ 1080p (30 fps)

AI OFF:

• 2-ch @ 12 MP (30 fps)

• 4-ch @ 8 MP (30 fps)

• 8-ch @ 4 MP (30 fps)

• 16-ch @ 1080p (30 fps)

Smooth Playback (HC ON) + AI ON:

• 1-ch @ 12 MP

• 2-ch @ 8 MP

• 5-ch @ 4 MP

• 11-ch @ 1080p

Smooth Playback (HC ON) + AI OFF:

• 2-ch @ 12 MP

• 3-ch @ 8 MP

• 7-ch @ 4 MP

• 15-ch @ 1080p

Stream Type

• Video

• Video & Audio

Audio Compression

• G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

Remote Connection

• Up to 128 users

API

• ONVIF (Profile S/G)

• SDK

• ISAPI

Browser Compatibility

• IE11

• Chrome 57+

• Firefox 52+

• Safari 12+

• Edge 89+

Network Protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

• 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

PoE

Interface

• 16 × RJ-45 10/100 Mbps self-adaptive ports

Power

• ≤ 200 W

Standard

• IEEE 802.3af/at

Auxiliary Interface

SATA

• 2 SATA interfaces

• Max capacity: 16 TB per HDD

USB

• Front: 1 × USB 2.0

• Rear: 1 × USB 2.0

Alarm In/Out

• 4 / 1

General

GUI Languages

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

Power Supply

• 100–240 VAC, 50/60 Hz

Consumption

• ≤ 15 W (without HDD & PoE off)

Working Temperature

• -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

• 10% to 90%

Dimensions

• 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

Weight

• ≤ 3 kg (without HDD)

Certification

Safety & EMC

• CE

• EN 55032:2015

• EN 61000-3-2

• EN 61000-3-3

• EN 50130-4

• EN 55035:2017

Obtained Certifications

CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

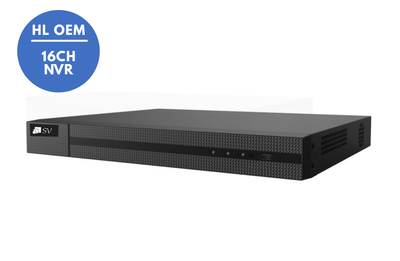

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth
• 3TB Installed
• Datasheet

Video and Audio

IP Video Input
• 16-channel

HDMI Output
• 1-ch, 4K (3840 × 2160)/30 Hz
• 1920 × 1080p/60 Hz
• 1600 × 1200/60 Hz
• 1280 × 1024/60 Hz
• 1280 × 720/60 Hz
• 1024 × 768/60 Hz

VGA Output
• 1-ch, 1920 × 1080p/60 Hz
• 1280 × 1024/60 Hz
• 1280 × 720/60 Hz
• 1024 × 768/60 Hz

Incoming Bandwidth
• 160 Mbps

Outgoing Bandwidth
• 80 Mbps

Audio Output
• 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio
• 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format
• H.265+, H.265, H.264+, H.264

Decoding Capability
• 4-ch @ 1080p

Synchronous Playback
• 16-channel

Recording Resolution
• 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network

Network Protocols
• TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface
• 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

PoE

Interface
• 16-channel PoE

Power Budget
• ≤ 150 W

Standard
• IEEE 802.3 af/at

RAID

RAID Support
• No

Auxiliary Interface

SATA
• 2 × SATA interfaces

Capacity
• Up to 8 TB per disk

USB Interface
• 2 × USB 2.0

General

Power Supply
• 100–240 V~, 50/60 Hz, 3.2 A MAX

Power Consumption
• ≤ 15 W

Working Temperature
• –10 to +55 °C (14 to 131 °F)

Working Humidity
• 10% to 90%

Chassis
• 1U

Dimensions (W × D × H)
• 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

Weight
• ≤ 2.6 kg (5.7 lb)

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth
• 2TB Installed
• Datasheet

Video & Audio

IP Video Input

• 8-ch

HDMI Output

• 1-ch

• 4K (3840 × 2160) @ 30 Hz

• 1920 × 1080p @ 60 Hz

• 1600 × 1200 @ 60 Hz

• 1280 × 1024 @ 60 Hz

• 1280 × 720 @ 60 Hz

• 1024 × 768 @ 60 Hz

• HDMI/VGA simultaneous output

VGA Output

• 1-ch

• 1920 × 1080p @ 60 Hz

• 1600 × 1200 @ 60 Hz

• 1280 × 1024 @ 60 Hz

• 1280 × 720 @ 60 Hz

• 1024 × 768 @ 60 Hz

• HDMI/VGA simultaneous output

Bandwidth

• Incoming: 80 Mbps

• Outgoing: 80 Mbps

Audio

• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format

• H.265+, H.265, H.264+, H.264

Decoding Capability

• 4-ch @ 1080p

Synchronous Playback

• 8-ch

Recording Resolution

• 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network

Protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface

• 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port

PoE

Interface

• 8 × RJ-45 10/100 Mbps self-adaptive Ethernet ports

Power Budget

• ≤ 75 W

RAID

• RAID Type: No

Auxiliary Interface

SATA

• 1 × SATA interface

• Capacity: Up to 8 TB per disk

USB

• 2 × USB 2.0 ports

General

Power Supply

• 48 VDC, 1.88 A

Consumption

• ≤ 10 W (without PoE enabled)

Operating Conditions

• Temperature: –10 to +55 °C (14 to 131 °F)

• Humidity: 10% to 90%

Chassis

• 1U

Dimensions (W × D × H)

• 265 × 225 × 48 mm

• (10.2" × 8.9" × 1.9")

Weight

• ≤ 1 kg (2.2 lb)

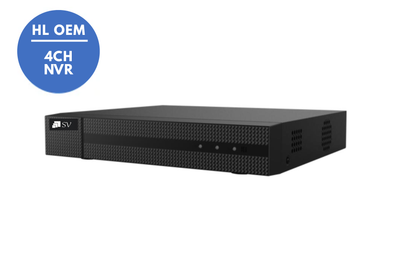

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth
• 1TB Installed
• Datasheet

Motion Detection 2.0

Human/Vehicle Analysis: 1-ch, 4-ch

Video and Audio

IP Video Input

• 4-ch

• Incoming bandwidth: 40 Mbps

• Outgoing bandwidth: 80 Mbps

HDMI Output

• 1-ch

• Supported resolutions:

  • 4K (4096 × 2160) @ 30 Hz

  • 4K (3840 × 2160) @ 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

  • 1600 × 1200 @ 60 Hz

  • 1280 × 1024 @ 60 Hz

  • 1280 × 720 @ 60 Hz

VGA Output

• 1-ch

• Supported resolutions:

  • 1920 × 1080 @ 60 Hz

  • 1280 × 1024 @ 60 Hz

  • 1280 × 720 @ 60 Hz

Video Output Mode

• HDMI/VGA simultaneous output

Audio

• Audio output: 1-ch, RCA (Linear, 1 kΩ)

• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ)

Decoding

Decoding Format

H.265+, H.265, H.264+, H.264, MPEG4

Recording Resolution

8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous Playback

• 4-ch

Decoding Capability

• 1-ch @ 8 MP

• 4-ch @ 1080p

Network

Remote Connections

• Up to 32

Network Protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

• 1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

PoE Interface

• 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet ports

Power Output

• ≤ 50 W total PoE budget

Standard

• IEEE 802.3 af/at

Auxiliary Interfaces

SATA

• 1 SATA interface

• Supports up to 8 TB per disk

USB

• 2 × USB 2.0

General

Power Supply

• 48 VDC, 1.35 A

Power Consumption

• ≤ 10 W (without HDD, PoE off)

Working Conditions

• Temperature: -10°C to +55°C (14°F to 131°F)

• Humidity: 10% to 90%

Chassis

• 1U

Dimensions (W × D × H)

• 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")

Weight

• ≤ 1 kg (without HDD, 2.2 lb.)

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light

• Supplement Light Range: Up to 30 m

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Supported under certain settings

• Video Compression:

  • Main stream: H.265/H.264/H.264+/H.265+

  • Sub-stream: H.265/H.264/MJPEG

  • Third stream: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound with built-in dual-mic

• Bit Rate:

  • 64 Kbps (G.711u/a)

  • 16 Kbps (G.722.1, G.726)

  • 32–192 Kbps (MP2L2)

  • 8–320 Kbps (MP3)

  • 16–64 Kbps (AAC-LC)

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• User Access: Up to 32 users; admin, operator, and user levels

• Security: Password protection, complex passwords, HTTPS encryption, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, security audit, and more

• Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Image Switch: Yes

• Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR, Defog, Distortion Correction

• SNR: ≥ 52 dB

• WDR: 130 dB

• Image Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1× RJ45 10M/100M self-adaptive port

• Storage: microSD/SDHC/SDXC (up to 512 GB)

• Audio: Built-in dual microphone

• Reset Key: Yes

Events

• Basic: Motion detection (human/vehicle filtering), video tampering, exceptions

• Smart: Scene change detection

• Linkage: FTP/NAS/upload/memory card/email/recording/capture

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exit (human & vehicle classification)

General

• Power Supply:

  • 12 VDC ±25%, 0.7 A, max. 8.5 W

  • PoE (802.3af, Class 3), max. 11 W

• Material: Metal body and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• Weight: Approx. 750 g (1.7 lb)

• With Packaging: Approx. 1140 g (2.5 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)

• Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 languages (incl. English, Russian, Spanish, French, etc.)

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environment: CE-RoHS

• Protection: IP67 (IEC 60529-2013)

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light

• Supplement Light Range: Up to 30 m

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Supported under certain settings

• Video Compression:

  • Main stream: H.265/H.264/H.264+/H.265+

  • Sub-stream: H.265/H.264/MJPEG

  • Third stream: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 1 fixed region for main stream

Audio

• Type: Mono sound with built-in dual-mic

• Bit Rate:

  • 64 Kbps (G.711u/a)

  • 16 Kbps (G.722.1, G.726)

  • 32–192 Kbps (MP2L2)

  • 8–320 Kbps (MP3)

  • 16–64 Kbps (AAC-LC)

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• User Access: Up to 32 users; admin, operator, and user levels

• Security: Password protection, complex passwords, HTTPS encryption, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, security audit, and more

• Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+


• Image Switch: Yes

• Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR, Defog, Distortion Correction

• SNR: ≥ 52 dB

• WDR: 130 dB

• Image Stabilization: EIS

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1× RJ45 10M/100M self-adaptive port

• Storage: microSD/SDHC/SDXC (up to 512 GB)

• Audio: Built-in dual microphone

• Reset Key: Yes

Events

• Basic: Motion detection (human/vehicle filtering), video tampering, exceptions

• Smart: Scene change detection

• Linkage: FTP/NAS/upload/memory card/email/recording/capture

Deep Learning Functions

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exit (human & vehicle classification)

General

• Power Supply:

  • 12 VDC ±25%, 0.7 A, max. 8.5 W

  • PoE (802.3af, Class 3), max. 11 W

• Material: Metal body and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• Weight: Approx. 750 g (1.7 lb)

• With Packaging: Approx. 1140 g (2.5 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)

• Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

• Languages Supported: 33 languages (incl. English, Russian, Spanish, French, etc.)

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environment: CE-RoHS

• Protection: IP67 (IEC 60529-2013)
