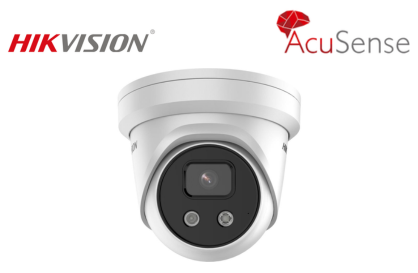

HIKVISION DS-2CD2366G2-I (2.8mm) 6 MP AcuSense Fixed Turret Network Camera

HIKVISION DS-2CD2366G2-I (2.8mm) 6 MP AcuSense Fixed Turret Network Camera
Regular price $274.29

6 MP AcuSense Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security(-U)
  • Water and dust resistant (IP67)
  • Datasheet



Camera Specifications

Image Sensor

  • Type: 1/2.4" Progressive Scan CMOS
  • Max Resolution: 3200 × 1800
  • Minimum Illumination:
    • Color: 0.003 Lux @ (F1.6, AGC ON)
    • B/W: 0 Lux with IR

Shutter & Day/Night

  • Shutter Time: 1/3 s to 1/100,000 s
  • Day/Night Mode: IR cut filter

Angle Adjustment

  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

  • Lens Type: Fixed lens (2.8 mm, 4 mm, and 6 mm optional)
  • Focal Length & Field of View (FOV):
    • 2.8 mm: Horizontal 105°, Vertical 55°, Diagonal 127°
    • 4 mm: Horizontal 78°, Vertical 38°, Diagonal 96°
    • 6 mm: Horizontal 51°, Vertical 26°, Diagonal 59°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

  • 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
  • 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
  • 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

  • Supplement Light Type: IR
  • Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream:

    • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream:

    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream:

    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • Third stream supported under certain settings.

Compression

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Bit Rate

  • Range: 32 Kbps to 16 Mbps
  • Control: CBR, VBR

Audio

  • Audio Type: Mono sound (-U model)
  • Compression:
    • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Bit Rate:
    • G.711: 64 Kbps
    • MP3: 8 to 320 Kbps
    • AAC-LC: 16 to 64 Kbps
  • Sampling Rate: 8/16/32/44.1/48 kHz
  • Environment Noise Filtering: Yes (-U model)

Network

  • Protocols: TCP/IP, HTTP(S), FTP, DHCP, RTP, RTSP, UPnP, etc.
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profiles S/G/T), ISAPI, SDK

Security

  • Password protection, HTTPS encryption, IP address filtering, TLS 1.1/1.2/1.3

Storage

  • NAS (NFS, SMB/CIFS), ANR, memory card support (up to 512 GB)


  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance
  • Wide Dynamic Range: 120 dB
  • Privacy Masks: 4 programmable polygon masks

Interface

  • Ethernet: 1 RJ45 (10M/100M self-adaptive)
  • Onboard Storage: MicroSD/microSDHC/microSDXC (up to 512 GB)

Event & Smart Features

  • Basic Event: Motion detection, video tampering alarm
  • Smart Event: Line crossing, intrusion, region entrance/exit detection
  • Face Capture: Yes

General

  • Power:
    • 12 VDC ± 25%, 0.45 A, max. 5.4 W
    • PoE: IEEE 802.3af, Class 3, max. 6.5 W
  • Material: Metal (except trim ring)
  • Dimensions: Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
  • Weight: Approx. 740 g (1.6 lb.)

Environmental

  • Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
  • Storage Conditions: Same as above
  • Languages Supported: 33, including English, Russian, Spanish, etc.

Approvals

  • EMC: CE-EMC, RCM, KC standards
  • Safety: UL 62368-1, IEC 62368-1, EN 62368-1
  • Environment: CE-RoHS, WEEE

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty


6 MP AcuSense Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security(-U)
  • Water and dust resistant (IP67)
  • Datasheet



Camera Specifications

Image Sensor

  • Type: 1/2.4" Progressive Scan CMOS
  • Max Resolution: 3200 × 1800
  • Minimum Illumination:
    • Color: 0.003 Lux @ (F1.6, AGC ON)
    • B/W: 0 Lux with IR

Shutter & Day/Night

  • Shutter Time: 1/3 s to 1/100,000 s
  • Day/Night Mode: IR cut filter

Angle Adjustment

  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

  • Lens Type: Fixed lens (2.8 mm, 4 mm, and 6 mm optional)
  • Focal Length & Field of View (FOV):
    • 2.8 mm: Horizontal 105°, Vertical 55°, Diagonal 127°
    • 4 mm: Horizontal 78°, Vertical 38°, Diagonal 96°
    • 6 mm: Horizontal 51°, Vertical 26°, Diagonal 59°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

  • 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
  • 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
  • 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

  • Supplement Light Type: IR
  • Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream:

    • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream:

    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream:

    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • Third stream supported under certain settings.

Compression

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Bit Rate

  • Range: 32 Kbps to 16 Mbps
  • Control: CBR, VBR

Audio

  • Audio Type: Mono sound (-U model)
  • Compression:
    • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Bit Rate:
    • G.711: 64 Kbps
    • MP3: 8 to 320 Kbps
    • AAC-LC: 16 to 64 Kbps
  • Sampling Rate: 8/16/32/44.1/48 kHz
  • Environment Noise Filtering: Yes (-U model)

Network

  • Protocols: TCP/IP, HTTP(S), FTP, DHCP, RTP, RTSP, UPnP, etc.
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profiles S/G/T), ISAPI, SDK

Security

  • Password protection, HTTPS encryption, IP address filtering, TLS 1.1/1.2/1.3

Storage

  • NAS (NFS, SMB/CIFS), ANR, memory card support (up to 512 GB)


  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance
  • Wide Dynamic Range: 120 dB
  • Privacy Masks: 4 programmable polygon masks

Interface

  • Ethernet: 1 RJ45 (10M/100M self-adaptive)
  • Onboard Storage: MicroSD/microSDHC/microSDXC (up to 512 GB)

Event & Smart Features

  • Basic Event: Motion detection, video tampering alarm
  • Smart Event: Line crossing, intrusion, region entrance/exit detection
  • Face Capture: Yes

General

  • Power:
    • 12 VDC ± 25%, 0.45 A, max. 5.4 W
    • PoE: IEEE 802.3af, Class 3, max. 6.5 W
  • Material: Metal (except trim ring)
  • Dimensions: Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
  • Weight: Approx. 740 g (1.6 lb.)

Environmental

  • Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
  • Storage Conditions: Same as above
  • Languages Supported: 33, including English, Russian, Spanish, etc.

Approvals

  • EMC: CE-EMC, RCM, KC standards
  • Safety: UL 62368-1, IEC 62368-1, EN 62368-1
  • Environment: CE-RoHS, WEEE

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
