• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal: 108.8°
    • Vertical: 56.4°
    • Diagonal: 134.3°
  • 4 mm:
    • Horizontal: 93.3°
    • Vertical: 47.2°
    • Diagonal: 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI

• Detection, Observation, Recognition, Identification (DORI):
  • 2.8 mm:
    • D: 89 m
    • O: 35 m
    • R: 17 m
    • I: 8 m
  • 4 mm:
    • D: 109 m
    • O: 43 m
    • R: 21 m
    • I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (3 levels: Administrator, Operator, User)
• Security: Password protection, HTTPS encryption, watermarking, and more


• WDR: 130 dB
• Privacy Mask: 4 programmable masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR, Defog
• Settings: Adjustable via client software or web browser

Interface

• Ethernet Port: 1 RJ45 (10/100 Mbps)
• On-Board Storage: Supports microSD/microSDHC/microSDXC (up to 512 GB)
• Built-in Microphone: Yes
• Alarm Ports: 1 input, 1 output

General

• Power:
  • 12 VDC ± 25%, 0.75 A, max. 9 W
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Metal (cover and body)
• Dimensions: Ø138.3 mm × 115.4 mm
• Weight: Approx. 820 g (1.8 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
• Storage Conditions: Same as operating conditions

Approvals

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal: 108.8°
    • Vertical: 56.4°
    • Diagonal: 134.3°
  • 4 mm:
    • Horizontal: 93.3°
    • Vertical: 47.2°
    • Diagonal: 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI

• Detection, Observation, Recognition, Identification (DORI):
  • 2.8 mm:
    • D: 89 m
    • O: 35 m
    • R: 17 m
    • I: 8 m
  • 4 mm:
    • D: 109 m
    • O: 43 m
    • R: 21 m
    • I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (3 levels: Administrator, Operator, User)
• Security: Password protection, HTTPS encryption, watermarking, and more


• WDR: 130 dB
• Privacy Mask: 4 programmable masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR, Defog
• Settings: Adjustable via client software or web browser

Interface

• Ethernet Port: 1 RJ45 (10/100 Mbps)
• On-Board Storage: Supports microSD/microSDHC/microSDXC (up to 512 GB)
• Built-in Microphone: Yes
• Alarm Ports: 1 input, 1 output

General

• Power:
  • 12 VDC ± 25%, 0.75 A, max. 9 W
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Metal (cover and body)
• Dimensions: Ø138.3 mm × 115.4 mm
• Weight: Approx. 820 g (1.8 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
• Storage Conditions: Same as operating conditions

Approvals

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal: 108.8°
    • Vertical: 56.4°
    • Diagonal: 134.3°
  • 4 mm:
    • Horizontal: 93.3°
    • Vertical: 47.2°
    • Diagonal: 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI

• Detection, Observation, Recognition, Identification (DORI):
  • 2.8 mm:
    • D: 89 m
    • O: 35 m
    • R: 17 m
    • I: 8 m
  • 4 mm:
    • D: 109 m
    • O: 43 m
    • R: 21 m
    • I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (3 levels: Administrator, Operator, User)
• Security: Password protection, HTTPS encryption, watermarking, and more


• WDR: 130 dB
• Privacy Mask: 4 programmable masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR, Defog
• Settings: Adjustable via client software or web browser

Interface

• Ethernet Port: 1 RJ45 (10/100 Mbps)
• On-Board Storage: Supports microSD/microSDHC/microSDXC (up to 512 GB)
• Built-in Microphone: Yes
• Alarm Ports: 1 input, 1 output

General

• Power:
  • 12 VDC ± 25%, 0.75 A, max. 9 W
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Metal (cover and body)
• Dimensions: Ø138.3 mm × 115.4 mm
• Weight: Approx. 820 g (1.8 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
• Storage Conditions: Same as operating conditions

Approvals

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal: 108.8°
    • Vertical: 56.4°
    • Diagonal: 134.3°
  • 4 mm:
    • Horizontal: 93.3°
    • Vertical: 47.2°
    • Diagonal: 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI

• Detection, Observation, Recognition, Identification (DORI):
  • 2.8 mm:
    • D: 89 m
    • O: 35 m
    • R: 17 m
    • I: 8 m
  • 4 mm:
    • D: 109 m
    • O: 43 m
    • R: 21 m
    • I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (3 levels: Administrator, Operator, User)
• Security: Password protection, HTTPS encryption, watermarking, and more


• WDR: 130 dB
• Privacy Mask: 4 programmable masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR, Defog
• Settings: Adjustable via client software or web browser

Interface

• Ethernet Port: 1 RJ45 (10/100 Mbps)
• On-Board Storage: Supports microSD/microSDHC/microSDXC (up to 512 GB)
• Built-in Microphone: Yes
• Alarm Ports: 1 input, 1 output

General

• Power:
  • 12 VDC ± 25%, 0.75 A, max. 9 W
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Metal (cover and body)
• Dimensions: Ø138.3 mm × 115.4 mm
• Weight: Approx. 820 g (1.8 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
• Storage Conditions: Same as operating conditions

Approvals

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS

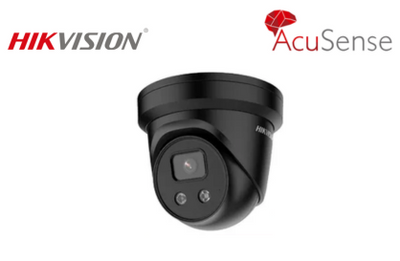

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal: 108.8°
    • Vertical: 56.4°
    • Diagonal: 134.3°
  • 4 mm:
    • Horizontal: 93.3°
    • Vertical: 47.2°
    • Diagonal: 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI

• Detection, Observation, Recognition, Identification (DORI):
  • 2.8 mm:
    • D: 89 m
    • O: 35 m
    • R: 17 m
    • I: 8 m
  • 4 mm:
    • D: 109 m
    • O: 43 m
    • R: 21 m
    • I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (3 levels: Administrator, Operator, User)
• Security: Password protection, HTTPS encryption, watermarking, and more


• WDR: 130 dB
• Privacy Mask: 4 programmable masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR, Defog
• Settings: Adjustable via client software or web browser

Interface

• Ethernet Port: 1 RJ45 (10/100 Mbps)
• On-Board Storage: Supports microSD/microSDHC/microSDXC (up to 512 GB)
• Built-in Microphone: Yes
• Alarm Ports: 1 input, 1 output

General

• Power:
  • 12 VDC ± 25%, 0.75 A, max. 9 W
  • PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Metal (cover and body)
• Dimensions: Ø138.3 mm × 115.4 mm
• Weight: Approx. 820 g (1.8 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
• Storage Conditions: Same as operating conditions

Approvals

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS

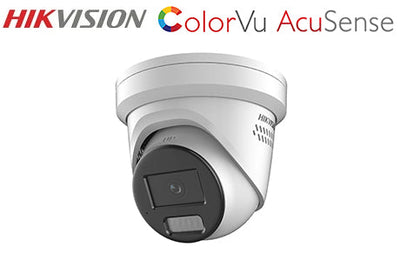

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.2″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)

Shutter Speed

• 1/3 s to 1/100,000 s

Day & Night Mode

• 24/7 Color Imaging

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Type

• Fixed focal lens, available in 2.8 mm and 4 mm options

Focal Length & Field of View (FOV):

• 2.8 mm:
  • Horizontal: 102°
  • Vertical: 52°
  • Diagonal: 124°
• 4 mm:
  • Horizontal: 88°
  • Vertical: 47°
  • Diagonal: 104°

Lens Mount:

• M16

Aperture:

• F1.0

Depth of Field:

• 2.8 mm: 3.1 m to ∞
• 4 mm: 3.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

Range:

• 2.8 mm:
  • Detection: 96 m
  • Observation: 38 m
  • Recognition: 19 m
  • Identification: 9 m
• 4 mm:
  • Detection: 102 m
  • Observation: 40 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

Type:

• White Light

Range:

• Up to 30 m

Smart Supplement Light:

• Supported

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz:
  • 24 fps (3840 × 2160)
  • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main Stream: H.265, H.264, H.264+, H.265+
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264

Bit Rate:

• 32 Kbps to 16 Mbps

Encoding Types:

• H.264: Baseline, Main, High Profile
• H.265: Main Profile

Bit Rate Control:

• CBR/VBR

Scalable Video Coding (SVC):

• Supported for H.264 and H.265

Region of Interest (ROI):

• 1 fixed region for main and sub-stream

Audio

Environment Noise Filtering:

• Supported

Sampling Rate:

• 8/16/32/44.1/48 kHz

Compression:

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC)

Network

Simultaneous Live View:

• Up to 6 channels

API:

• Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Security Features:

• Password protection, HTTPS encryption, IP address filtering, TLS 1.1/1.2


Wide Dynamic Range (WDR):

• 130 dB

Privacy Masks:

• 8 programmable masks

Image Enhancement:

• BLC, HLC, 3D DNR

Image Settings:

• Adjustable via software or web browser

General

Power:

• 12 VDC: 0.42 A (5 W max)
• PoE: 802.3af, 36–57 V

Material:

• Cover: Metal
• Main Body: Metal

Dimensions:

• Camera: Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)
• Package: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)

Weight:

• Camera: Approx. 870 g (1.9 lb)
• With Package: Approx. 1160 g (2.6 lb)

Operating Conditions:

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: ≤ 95% (non-condensing)

Protection:

• IP67

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.2″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON)

Shutter Speed

• 1/3 s to 1/100,000 s

Day & Night Mode

• 24/7 Color Imaging

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Type

• Fixed focal lens, available in 2.8 mm and 4 mm options

Focal Length & Field of View (FOV):

• 2.8 mm:
  • Horizontal: 102°
  • Vertical: 52°
  • Diagonal: 124°
• 4 mm:
  • Horizontal: 88°
  • Vertical: 47°
  • Diagonal: 104°

Lens Mount:

• M16

Aperture:

• F1.0

Depth of Field:

• 2.8 mm: 3.1 m to ∞
• 4 mm: 3.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

Range:

• 2.8 mm:
  • Detection: 96 m
  • Observation: 38 m
  • Recognition: 19 m
  • Identification: 9 m
• 4 mm:
  • Detection: 102 m
  • Observation: 40 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

Type:

• White Light

Range:

• Up to 30 m

Smart Supplement Light:

• Supported

Video

Main Stream:

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz:
  • 24 fps (3840 × 2160)
  • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main Stream: H.265, H.264, H.264+, H.265+
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264

Bit Rate:

• 32 Kbps to 16 Mbps

Encoding Types:

• H.264: Baseline, Main, High Profile
• H.265: Main Profile

Bit Rate Control:

• CBR/VBR

Scalable Video Coding (SVC):

• Supported for H.264 and H.265

Region of Interest (ROI):

• 1 fixed region for main and sub-stream

Audio

Environment Noise Filtering:

• Supported

Sampling Rate:

• 8/16/32/44.1/48 kHz

Compression:

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC)

Network

Simultaneous Live View:

• Up to 6 channels

API:

• Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Security Features:

• Password protection, HTTPS encryption, IP address filtering, TLS 1.1/1.2


Wide Dynamic Range (WDR):

• 130 dB

Privacy Masks:

• 8 programmable masks

Image Enhancement:

• BLC, HLC, 3D DNR

Image Settings:

• Adjustable via software or web browser

General

Power:

• 12 VDC: 0.42 A (5 W max)
• PoE: 802.3af, 36–57 V

Material:

• Cover: Metal
• Main Body: Metal

Dimensions:

• Camera: Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)
• Package: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)

Weight:

• Camera: Approx. 870 g (1.9 lb)
• With Package: Approx. 1160 g (2.6 lb)

Operating Conditions:

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: ≤ 95% (non-condensing)

Protection:

• IP67

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89.2 m
  • Observation: 35.4 m
  • Recognition: 17.8 m
  • Identification: 8.9 m
• 4 mm:
  • Detection: 99.4 m
  • Observation: 39.4 m
  • Recognition: 19.9 m
  • Identification: 9.9 m
• 6 mm:
  • Detection: 140.0 m
  • Observation: 55.6 m
  • Recognition: 28.0 m
  • Identification: 14.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  Third stream is supported under certain settings.

• Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Security:
  • Password protection, HTTPS encryption, IP address filtering
  • TLS 1.1/1.2, WSSE authentication


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

General

• Power:
  • 12 VDC ± 25% (max. 5.8 W)
  • PoE: 802.3af, Class 3 (max. 6.8 W)
• Dimensions: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
• Weight: Approx. 740 g (1.6 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity
• Storage Conditions: Same as operating conditions
• Protection: IP67 (IEC 60529-2013)

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89.2 m
  • Observation: 35.4 m
  • Recognition: 17.8 m
  • Identification: 8.9 m
• 4 mm:
  • Detection: 99.4 m
  • Observation: 39.4 m
  • Recognition: 19.9 m
  • Identification: 9.9 m
• 6 mm:
  • Detection: 140.0 m
  • Observation: 55.6 m
  • Recognition: 28.0 m
  • Identification: 14.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  Third stream is supported under certain settings.

• Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Security:
  • Password protection, HTTPS encryption, IP address filtering
  • TLS 1.1/1.2, WSSE authentication


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

General

• Power:
  • 12 VDC ± 25% (max. 5.8 W)
  • PoE: 802.3af, Class 3 (max. 6.8 W)
• Dimensions: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
• Weight: Approx. 740 g (1.6 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity
• Storage Conditions: Same as operating conditions
• Protection: IP67 (IEC 60529-2013)

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89.2 m
  • Observation: 35.4 m
  • Recognition: 17.8 m
  • Identification: 8.9 m
• 4 mm:
  • Detection: 99.4 m
  • Observation: 39.4 m
  • Recognition: 19.9 m
  • Identification: 9.9 m
• 6 mm:
  • Detection: 140.0 m
  • Observation: 55.6 m
  • Recognition: 28.0 m
  • Identification: 14.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  Third stream is supported under certain settings.

• Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Security:
  • Password protection, HTTPS encryption, IP address filtering
  • TLS 1.1/1.2, WSSE authentication


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

General

• Power:
  • 12 VDC ± 25% (max. 5.8 W)
  • PoE: 802.3af, Class 3 (max. 6.8 W)
• Dimensions: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
• Weight: Approx. 740 g (1.6 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity
• Storage Conditions: Same as operating conditions
• Protection: IP67 (IEC 60529-2013)

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89.2 m
  • Observation: 35.4 m
  • Recognition: 17.8 m
  • Identification: 8.9 m
• 4 mm:
  • Detection: 99.4 m
  • Observation: 39.4 m
  • Recognition: 19.9 m
  • Identification: 9.9 m
• 6 mm:
  • Detection: 140.0 m
  • Observation: 55.6 m
  • Recognition: 28.0 m
  • Identification: 14.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  Third stream is supported under certain settings.

• Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Security:
  • Password protection, HTTPS encryption, IP address filtering
  • TLS 1.1/1.2, WSSE authentication


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

General

• Power:
  • 12 VDC ± 25% (max. 5.8 W)
  • PoE: 802.3af, Class 3 (max. 6.8 W)
• Dimensions: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
• Weight: Approx. 740 g (1.6 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity
• Storage Conditions: Same as operating conditions
• Protection: IP67 (IEC 60529-2013)

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89.2 m
  • Observation: 35.4 m
  • Recognition: 17.8 m
  • Identification: 8.9 m
• 4 mm:
  • Detection: 99.4 m
  • Observation: 39.4 m
  • Recognition: 19.9 m
  • Identification: 9.9 m
• 6 mm:
  • Detection: 140.0 m
  • Observation: 55.6 m
  • Recognition: 28.0 m
  • Identification: 14.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  Third stream is supported under certain settings.

• Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Security:
  • Password protection, HTTPS encryption, IP address filtering
  • TLS 1.1/1.2, WSSE authentication


• Settings: Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

General

• Power:
  • 12 VDC ± 25% (max. 5.8 W)
  • PoE: 802.3af, Class 3 (max. 6.8 W)
• Dimensions: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
• Weight: Approx. 740 g (1.6 lb)

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity
• Storage Conditions: Same as operating conditions
• Protection: IP67 (IEC 60529-2013)

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
