• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• 24/7 colorful imaging
• Focus on human and vehicle classification based on deep learning
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Image & Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160 (4K)

• Minimum Illumination:

  • Color: 0.0005 Lux @ F1.0 (AGC ON)

  • 0 Lux with supplementary light

• Shutter Speed: 1 s to 1/100,000 s

• Day/Night: IR cut filter

• Wide Dynamic Range (WDR): 130 dB

• Signal-to-Noise Ratio (SNR): ≥ 52 dB

• Electronic Image Stabilisation (EIS): Yes

Angle Adjustment

• Pan: 0°–360°

• Tilt: 0°–75°

• Rotate: 0°–360°

Lens

• Lens Type: Fixed focal

• Available Focal Lengths: 2.8 mm / 4 mm

• Aperture: F1.0

• Iris: Fixed

• Lens Mount: M16

Field of View

Depth of Field

• 2.8 mm: 3.3 m to ∞

• 4 mm: 3.8 m to ∞

DORI Distances

Illumination

• Supplement Light Type: White Light & IR

• Illumination Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

Streaming Performance

Main Stream

• 50 Hz: 25 fps @ 4K / 3K / 5 MP / 1080p / 720p

• 60 Hz: 30 fps @ 4K / 3K / 5 MP / 1080p / 720p

Sub Stream

• 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / D1 / CIF

Third Stream*

• 10 fps @ 1080p / 720p / D1 / CIF

* Third stream available under specific configurations.

Compression & Encoding

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Bit Rate Control: CBR / VBR

• Profiles:

  • H.264: Baseline / Main / High

  • H.265: Main

• SVC: Supported (H.264 / H.265)

• ROI: 1 fixed region (main stream)

Audio

• Audio Type: Mono

• Noise Filtering: Yes

Audio Codecs
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Sampling Rates
8 / 16 / 32 / 48 kHz

Audio Bit Rate

• G.711: 64 Kbps

• G.722.1: 16 Kbps

• G.726: 16 Kbps

• MP2L2: 32–192 Kbps

• MP3: 8–320 Kbps

• AAC-LC: 16–64 Kbps

Smart Analytics & AI

Basic Events

• Motion detection (human & vehicle classification)

• Video tampering

• Exception detection

Smart Events

• Scene change detection

Deep Learning Functions

• Face capture

• Perimeter protection:

  • Line crossing

  • Intrusion

  • Region entrance / exit

  • Human & vehicle target filtering

Alarm Linkage

• FTP / NAS / memory card upload

• Trigger recording & snapshot

• Alarm output

• Audible warning & strobe

• Email & surveillance centre notification

Network & Security

• Live View: Up to 6 simultaneous channels

• Users: Up to 32 (Administrator / Operator / User)

Protocols
TCP/IP, HTTP(S), FTP, DHCP, DNS, DDNS, RTSP, RTP/RTCP, SMTP, NTP, UPnP, IGMP,
IPv4/IPv6, QoS, 802.1X, SNMP, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP

API Support
ONVIF (Profile S / G / T), ISAPI, SDK, ISUP

Security Features

• HTTPS encryption

• Strong password enforcement

• 802.1X authentication (EAP-TLS / LEAP / MD5)

• IP filtering & MAC authentication

• Watermarking

• Security audit log

• TLS 1.1 / 1.2 / 1.3

Storage & Client

• Local Storage: microSD / microSDHC / microSDXC (up to 512 GB)

• Network Storage: NAS (NFS / SMB), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in-free: Chrome 80+, Firefox 80+, Edge 89+

Interface

• 1 × RJ45 10/100 Mbps Ethernet

• Built-in speaker (2 W, up to 110 dB @ 10 cm)

• Built-in microphone (dual-array, line-in / line-out)

• Alarm I/O: 1 input / 1 output (24 VDC / VAC, 1 A)

• Reset button

Power

• DC: 12 VDC ±25%, max. 15.5 W

• PoE: IEEE 802.3at (PoE+), Class 4, max. 17 W

• Protection: Reverse polarity protection

Mechanical & Environment

• Material: Full metal housing

• Dimensions: Ø138.3 × 115.4 mm

• Weight: Approx. 820 g

• With Packaging: Approx. 1.2 kg

Operating Conditions

• Temperature: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

General

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• Flashing Light:

  • SRB model: Red & Blue

  • SL model: White

General Functions
Heartbeat, mirror, flash log, anti-banding, pixel counter, password reset via email

Languages Supported
33 languages (English, Chinese, Korean, Japanese, European & Eastern European languages)

Certifications

EMC
CE-EMC, RCM, IC, KC

Safety
UL, CB, CE-LVD

Environmental
RoHS

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm options)

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°

  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to ∞

  • 4 mm: 3.8 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: White Light, IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bitrate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Bitrate Control: CBR, VBR

• SVC: H.264, H.265

• ROI: 1 fixed region (main stream)

Audio

• Type: Mono

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

• Users: Up to 32 (Admin, Operator, User)

• Security:

  • HTTPS, 802.1X, IP filtering, watermark, audit logs

  • TLS 1.1/1.2/1.3, MAC address authentication

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Support:

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+

  • Local Service: Same


• Parameter Switch: Yes

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (via software/web browser)

• Day/Night Modes: Day, Night, Auto, Schedule

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 130 dB

• Privacy Mask: 4 programmable polygonal areas

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• Storage: microSD/SDHC/SDXC up to 512 GB

• Speaker: Max. 2 W, SPL 110 dB @ 10 cm

• Microphone:

  • Arrayed dual-microphone (-2U)

  • 1 input (line in), max 3.3 Vpp, 4.7 KΩ

  • 1 output (line out), max 3.3 Vpp, 100 Ω

• Alarm I/O: 1 input, 1 output (max. 24 VDC/AC, 1 A)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle targeting), tamper, exception

• Smart Events:

  • Scene change detection

• Linkage Methods:

  • FTP/NAS upload, email, alarm output, recording, snapshots, audible alerts, strobe light

Deep Learning Functions

• Face Capture: Supported

• Perimeter Protection:

  • Line crossing, intrusion, region entry/exit (human/vehicle detection)

General

• Power Supply:

  • 12 VDC ± 25%, 1.29 A, Max. 15.5 W (reverse polarity protected)

  • PoE: IEEE 802.3at, Class 4, Max. 17 W

• Material: Metal housing and cover

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Size: 170 × 170 × 160 mm (6.7" × 6.7" × 6.3")

• Weight:

  • Net: ~820 g (1.8 lb)

  • With Package: ~1200 g (2.6 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% RH (non-condensing)

• Storage Conditions: Same as operating

• General Features:

  • Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

• Languages Supported: 33 (English, Russian, Spanish, French, Chinese, etc.)

Flashing Light (Model Specific)

• /SRB Model: Red & Blue Light

• /SL Model: White Light

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environmental: CE-RoHS

• Ingress Protection: IP67

• Anti-Corrosion: NEMA 4X

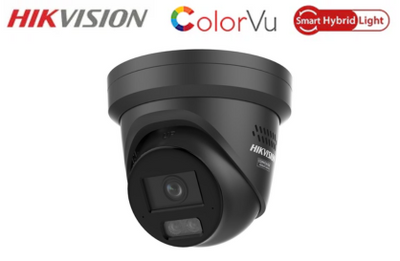

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°
  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 17 m
  • Identification: 8 m
• 4 mm:
  • Detection: 109 m
  • Observation: 43 m
  • Recognition: 21 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings.

• Video Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 16 Kbps to 64 Kbps (AAC-LC)
  • 32 to 192 Kbps (MP2L2)
  • 8 to 320 Kbps (MP3)
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users, 3 user levels (administrator, operator, user)
• Security:
  • Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, security audit log
  • TLS 1.1/1.2/1.3, host authentication (MAC address)


• Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Wide Dynamic Range (WDR): 130 dB
• Privacy Mask: 4 programmable polygon masks

General

• Power:
  • 12 VDC ± 25%, 0.54 A, max. 6.5 W
  • PoE: IEEE 802.3af, Class 3, max. 8 W
• Material: Cover and main body (metal)
• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Weight:
  • Without package: Approx. 770 g (1.7 lb.)
  • With package: Approx. 1040 g (2.3 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)

Approvals

• EMC: CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD, BIS
• Environment: CE-RoHS
• Protection: IP67
