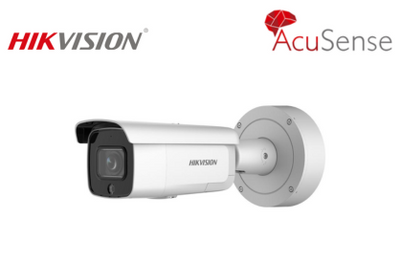

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Type: Varifocal, motorized (2.8 to 12 mm)
• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal: 106° to 35°
  • Vertical: 56° to 20°
  • Diagonal: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI

• Wide:
  • Detect: 68 m
  • Observe: 27 m
  • Recognize: 13 m
  • Identify: 7 m
• Tele:
  • Detect: 200 m
  • Observe: 79 m
  • Recognize: 40 m
  • Identify: 20 m

Illuminator

• Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• Wavelength: 850 nm

Video Specifications

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (same resolutions)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (same resolutions)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (same resolutions)
• Bit Rate: 32 Kbps to 16 Mbps
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
• Scalable Video Coding: H.264 and H.265 encoding

Audio

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • MP3: 32 to 192 Kbps
  • AAC-LC: 16 to 64 Kbps
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, IPv4, IPv6, SSL/TLS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK

Image Features

• Settings: Rotate mode, brightness, contrast, sharpness, etc.
• Day/Night Switch: Auto, Day, Night, Schedule
• WDR: 120 dB
• SNR: ≥ 52 dB

Interface

• Ethernet: 1 RJ45 10M/100M port
• Audio:
  • Input: Line-in (3.5 mm)
  • Output: Line-out (3.5 mm)
• On-Board Storage: MicroSD (up to 512 GB)
• Built-in Features: Microphone, Speaker

General

• Power:
  • 12 VDC ± 25% or PoE (802.3at, Class 4)
  • Max Power: 18 W
• Dimensions: Ø144.1 mm × 345.7 mm
• Weight: Approx. 1.42 kg (without package)

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Type: Varifocal, motorized (2.8 to 12 mm)
• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal: 106° to 35°
  • Vertical: 56° to 20°
  • Diagonal: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI

• Wide:
  • Detect: 68 m
  • Observe: 27 m
  • Recognize: 13 m
  • Identify: 7 m
• Tele:
  • Detect: 200 m
  • Observe: 79 m
  • Recognize: 40 m
  • Identify: 20 m

Illuminator

• Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• Wavelength: 850 nm

Video Specifications

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (same resolutions)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (same resolutions)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (same resolutions)
• Bit Rate: 32 Kbps to 16 Mbps
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
• Scalable Video Coding: H.264 and H.265 encoding

Audio

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • MP3: 32 to 192 Kbps
  • AAC-LC: 16 to 64 Kbps
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, IPv4, IPv6, SSL/TLS, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK

Image Features

• Settings: Rotate mode, brightness, contrast, sharpness, etc.
• Day/Night Switch: Auto, Day, Night, Schedule
• WDR: 120 dB
• SNR: ≥ 52 dB

Interface

• Ethernet: 1 RJ45 10M/100M port
• Audio:
  • Input: Line-in (3.5 mm)
  • Output: Line-out (3.5 mm)
• On-Board Storage: MicroSD (up to 512 GB)
• Built-in Features: Microphone, Speaker

General

• Power:
  • 12 VDC ± 25% or PoE (802.3at, Class 4)
  • Max Power: 18 W
• Dimensions: Ø144.1 mm × 345.7 mm
• Weight: Approx. 1.42 kg (without package)

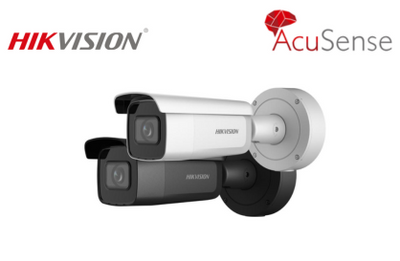

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Lens Type: Varifocal, motorized lens, 2.8 to 12 mm
• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm
    • Horizontal FOV: 106° to 35°
    • Vertical FOV: 56° to 20°
    • Diagonal FOV: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 to 12 mm:
  • Wide:
    • Detection (D): 68 m
    • Observation (O): 27 m
    • Recognition (R): 13 m
    • Identification (I): 7 m
  • Tele:
    • Detection (D): 200 m
    • Observation (O): 79 m
    • Recognition (R): 40 m
    • Identification (I): 20 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Bit Rate: 32 Kbps to 16 Mbps
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, SSL/TLS, and more
• Simultaneous Live View: Up to 6 channels
• User Access:
  • Up to 32 users (administrator, operator, user levels)
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
• Security:
  • Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, TLS 1.1/1.2/1.3

Storage

• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• On-Board Storage: Built-in microSD card slot, supports up to 512 GB

General

• Power:
  • 12 VDC ± 25%, 1.08 A, max. 13 W
  • PoE: IEEE 802.3at, Class 4, max. 15 W
• Material: Metal
• Dimensions: Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
• Weight: Approx. 1450 g (3.2 lb.)
• Protection:
  • IP66 (IEC 60529-2013)
  • IK10 (IEC 62262:2002)

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800
• Min Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Lens Type: Varifocal, motorized lens, 2.8 to 12 mm
• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm
    • Horizontal FOV: 106° to 35°
    • Vertical FOV: 56° to 20°
    • Diagonal FOV: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 to 12 mm:
  • Wide:
    • Detection (D): 68 m
    • Observation (O): 27 m
    • Recognition (R): 13 m
    • Identification (I): 7 m
  • Tele:
    • Detection (D): 200 m
    • Observation (O): 79 m
    • Recognition (R): 40 m
    • Identification (I): 20 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Bit Rate: 32 Kbps to 16 Mbps
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, RTP/RTSP, IPv4/IPv6, SSL/TLS, and more
• Simultaneous Live View: Up to 6 channels
• User Access:
  • Up to 32 users (administrator, operator, user levels)
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
• Security:
  • Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, TLS 1.1/1.2/1.3

Storage

• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• On-Board Storage: Built-in microSD card slot, supports up to 512 GB

General

• Power:
  • 12 VDC ± 25%, 1.08 A, max. 13 W
  • PoE: IEEE 802.3at, Class 4, max. 15 W
• Material: Metal
• Dimensions: Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
• Weight: Approx. 1450 g (3.2 lb.)
• Protection:
  • IP66 (IEC 60529-2013)
  • IK10 (IEC 62262:2002)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
  • 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 2.2 m to ∞
  • 4 mm: 2.6 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 89 m
  • Observation: 35 m
  • Recognition: 18 m
  • Identification: 9 m
• 4 mm:
  • Detection: 99 m
  • Observation: 39 m
  • Recognition: 20 m
  • Identification: 10 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
  • 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
• Sub-Stream:
  • 50 Hz: 25 fps (up to 1280 × 720)
  • 60 Hz: 30 fps (up to 1280 × 720)
• Third Stream:
  • 50/60 Hz: 10 fps (up to 1920 × 1080)
• Video Compression:
  • Main Stream: H.265/H.264/H.265+/H.264+
  • Sub/Third Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Profiles:
  • H.264: Baseline/Main/High Profile
  • H.265: Main Profile

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 to 320 Kbps (format-dependent)

Network

• Simultaneous Live View: Up to 6 channels
• API Support: ONVIF (Profile S/G/T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
• Users: Up to 32, with 3 user levels (Admin, Operator, User)

Smart Features

• Events: Motion detection, tampering, exceptions
• Linkage: FTP/NAS upload, email alerts, recording triggers
• Deep Learning: Face capture, perimeter protection

General

• Power:
  • 12 VDC ± 25% or PoE (802.3af)
  • Max Consumption: 8 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø113.6 mm × 72.6 mm
• Weight: 400 g (635 g with package)
• Protection: IP67, IK08
• Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 105°
    • Vertical FOV: 55°
    • Diagonal FOV: 127°
  • 4 mm:
    • Horizontal FOV: 78°
    • Vertical FOV: 38°
    • Diagonal FOV: 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• 4 mm:
  • Detection: 115 m
  • Observation: 45 m
  • Recognition: 23 m
  • Identification: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: Up to 25 fps at resolutions including 3200 × 1800
  • 60 Hz: Up to 30 fps at resolutions including 3200 × 1800
• Sub-Stream:
  • 50 Hz: Up to 25 fps at 1280 × 720, 640 × 480, and 640 × 360
  • 60 Hz: Up to 30 fps at 1280 × 720, 640 × 480, and 640 × 360
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (resolutions up to 1920 × 1080)

Note: Third stream is supported under certain settings.

• Video Compression:
  • Main Stream: H.265, H.264, H.265+, H.264+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-streams

Audio

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, and more
• Simultaneous Live View: Up to 6 channels
• Users: Supports up to 32 users
• Security: Password protection, HTTPS encryption, IP filtering, watermark, etc.
• Storage: NAS (NFS, SMB/CIFS), ANR, memory card encryption

Image Features

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port
• On-Board Storage: Supports microSD card up to 512 GB
• Built-in Microphone: Yes

Event

• Basic Event: Motion detection, video tampering, exceptions
• Smart Event: Line crossing, intrusion, region entry/exit (human/vehicle targeting)
• Linkage: Recording, capture, notifications, alarms

General Specifications

• Power:
  • 12 VDC ± 25% or PoE (802.3af, Class 3)
  • Max. Power: 7 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)

Approvals and Protection

• Certifications: FCC, CE, RCM, KC, UL
• Environmental Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 105°
    • Vertical FOV: 55°
    • Diagonal FOV: 127°
  • 4 mm:
    • Horizontal FOV: 78°
    • Vertical FOV: 38°
    • Diagonal FOV: 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• 4 mm:
  • Detection: 115 m
  • Observation: 45 m
  • Recognition: 23 m
  • Identification: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: Up to 25 fps at resolutions including 3200 × 1800
  • 60 Hz: Up to 30 fps at resolutions including 3200 × 1800
• Sub-Stream:
  • 50 Hz: Up to 25 fps at 1280 × 720, 640 × 480, and 640 × 360
  • 60 Hz: Up to 30 fps at 1280 × 720, 640 × 480, and 640 × 360
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (resolutions up to 1920 × 1080)

Note: Third stream is supported under certain settings.

• Video Compression:
  • Main Stream: H.265, H.264, H.265+, H.264+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-streams

Audio

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, and more
• Simultaneous Live View: Up to 6 channels
• Users: Supports up to 32 users
• Security: Password protection, HTTPS encryption, IP filtering, watermark, etc.
• Storage: NAS (NFS, SMB/CIFS), ANR, memory card encryption

Image Features

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port
• On-Board Storage: Supports microSD card up to 512 GB
• Built-in Microphone: Yes

Event

• Basic Event: Motion detection, video tampering, exceptions
• Smart Event: Line crossing, intrusion, region entry/exit (human/vehicle targeting)
• Linkage: Recording, capture, notifications, alarms

General Specifications

• Power:
  • 12 VDC ± 25% or PoE (802.3af, Class 3)
  • Max. Power: 7 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)

Approvals and Protection

• Certifications: FCC, CE, RCM, KC, UL
• Environmental Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 105°
    • Vertical FOV: 55°
    • Diagonal FOV: 127°
  • 4 mm:
    • Horizontal FOV: 78°
    • Vertical FOV: 38°
    • Diagonal FOV: 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• 4 mm:
  • Detection: 115 m
  • Observation: 45 m
  • Recognition: 23 m
  • Identification: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: Up to 25 fps at resolutions including 3200 × 1800
  • 60 Hz: Up to 30 fps at resolutions including 3200 × 1800
• Sub-Stream:
  • 50 Hz: Up to 25 fps at 1280 × 720, 640 × 480, and 640 × 360
  • 60 Hz: Up to 30 fps at 1280 × 720, 640 × 480, and 640 × 360
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (resolutions up to 1920 × 1080)

Note: Third stream is supported under certain settings.

• Video Compression:
  • Main Stream: H.265, H.264, H.265+, H.264+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-streams

Audio

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, and more
• Simultaneous Live View: Up to 6 channels
• Users: Supports up to 32 users
• Security: Password protection, HTTPS encryption, IP filtering, watermark, etc.
• Storage: NAS (NFS, SMB/CIFS), ANR, memory card encryption

Image Features

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port
• On-Board Storage: Supports microSD card up to 512 GB
• Built-in Microphone: Yes

Event

• Basic Event: Motion detection, video tampering, exceptions
• Smart Event: Line crossing, intrusion, region entry/exit (human/vehicle targeting)
• Linkage: Recording, capture, notifications, alarms

General Specifications

• Power:
  • 12 VDC ± 25% or PoE (802.3af, Class 3)
  • Max. Power: 7 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)

Approvals and Protection

• Certifications: FCC, CE, RCM, KC, UL
• Environmental Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 105°
    • Vertical FOV: 55°
    • Diagonal FOV: 127°
  • 4 mm:
    • Horizontal FOV: 78°
    • Vertical FOV: 38°
    • Diagonal FOV: 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• 4 mm:
  • Detection: 115 m
  • Observation: 45 m
  • Recognition: 23 m
  • Identification: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: Up to 25 fps at resolutions including 3200 × 1800
  • 60 Hz: Up to 30 fps at resolutions including 3200 × 1800
• Sub-Stream:
  • 50 Hz: Up to 25 fps at 1280 × 720, 640 × 480, and 640 × 360
  • 60 Hz: Up to 30 fps at 1280 × 720, 640 × 480, and 640 × 360
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (resolutions up to 1920 × 1080)

Note: Third stream is supported under certain settings.

• Video Compression:
  • Main Stream: H.265, H.264, H.265+, H.264+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-streams

Audio

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, and more
• Simultaneous Live View: Up to 6 channels
• Users: Supports up to 32 users
• Security: Password protection, HTTPS encryption, IP filtering, watermark, etc.
• Storage: NAS (NFS, SMB/CIFS), ANR, memory card encryption

Image Features

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port
• On-Board Storage: Supports microSD card up to 512 GB
• Built-in Microphone: Yes

Event

• Basic Event: Motion detection, video tampering, exceptions
• Smart Event: Line crossing, intrusion, region entry/exit (human/vehicle targeting)
• Linkage: Recording, capture, notifications, alarms

General Specifications

• Power:
  • 12 VDC ± 25% or PoE (802.3af, Class 3)
  • Max. Power: 7 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)

Approvals and Protection

• Certifications: FCC, CE, RCM, KC, UL
• Environmental Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 105°
    • Vertical FOV: 55°
    • Diagonal FOV: 127°
  • 4 mm:
    • Horizontal FOV: 78°
    • Vertical FOV: 38°
    • Diagonal FOV: 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• 4 mm:
  • Detection: 115 m
  • Observation: 45 m
  • Recognition: 23 m
  • Identification: 11 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: Up to 25 fps at resolutions including 3200 × 1800
  • 60 Hz: Up to 30 fps at resolutions including 3200 × 1800
• Sub-Stream:
  • 50 Hz: Up to 25 fps at 1280 × 720, 640 × 480, and 640 × 360
  • 60 Hz: Up to 30 fps at 1280 × 720, 640 × 480, and 640 × 360
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (resolutions up to 1920 × 1080)

Note: Third stream is supported under certain settings.

• Video Compression:
  • Main Stream: H.265, H.264, H.265+, H.264+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-streams

Audio

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Sampling Rate: 8/16/32/44.1/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, and more
• Simultaneous Live View: Up to 6 channels
• Users: Supports up to 32 users
• Security: Password protection, HTTPS encryption, IP filtering, watermark, etc.
• Storage: NAS (NFS, SMB/CIFS), ANR, memory card encryption

Image Features

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port
• On-Board Storage: Supports microSD card up to 512 GB
• Built-in Microphone: Yes

Event

• Basic Event: Motion detection, video tampering, exceptions
• Smart Event: Line crossing, intrusion, region entry/exit (human/vehicle targeting)
• Linkage: Recording, capture, notifications, alarms

General Specifications

• Power:
  • 12 VDC ± 25% or PoE (802.3af, Class 3)
  • Max. Power: 7 W
• Material: Aluminum base, plastic cover
• Dimensions: Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)

Approvals and Protection

• Certifications: FCC, CE, RCM, KC, UL
• Environmental Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: -30° to 30°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal, 2.8 mm and 4 mm options
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI Distance

• 2.8 mm:
  • D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm:
  • D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings.

Video Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Other Video Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• SVC Encoding: H.264 and H.265
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Compression:
  • G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
• Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK, ISUP
• Users/Host: Up to 32 users; 3 levels (admin/operator/user)
• Security: Password protection, HTTPS, IP filtering, WSSE authentication, TLS, watermarking

Storage

• Network Storage: NAS, ANR (Auto Network Replenishment)
• On-Board Storage: microSD, up to 512 GB

Smart Features

• Basic Events: Motion detection, tampering, exception
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting (with human/vehicle filtering)
  • Scene change detection

General

• Power:
  • 12 VDC ± 25%, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7 W
• Material: Base: Aluminum, Cover: Plastic
• Dimensions: Ø110 mm × 57.4 mm (4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), 95% humidity max.

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP67, IK8

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Focusing on human and vehicle classification based on deep learning
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• -S: audio and alarm interface available
• Water and dust resistant IP67 and vandal proof IK08
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: -30° to 30°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal, 2.8 mm and 4 mm options
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:
  • 2.8 mm: 1.8 m to ∞
  • 4 mm: 3.1 m to ∞

DORI Distance

• 2.8 mm:
  • D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm:
  • D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings.

Video Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Other Video Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• SVC Encoding: H.264 and H.265
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Compression:
  • G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
• Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK, ISUP
• Users/Host: Up to 32 users; 3 levels (admin/operator/user)
• Security: Password protection, HTTPS, IP filtering, WSSE authentication, TLS, watermarking

Storage

• Network Storage: NAS, ANR (Auto Network Replenishment)
• On-Board Storage: microSD, up to 512 GB

Smart Features

• Basic Events: Motion detection, tampering, exception
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting (with human/vehicle filtering)
  • Scene change detection

General

• Power:
  • 12 VDC ± 25%, max. 6 W
  • PoE: IEEE 802.3af, Class 3, max. 7 W
• Material: Base: Aluminum, Cover: Plastic
• Dimensions: Ø110 mm × 57.4 mm (4.3" × 2.3")
• Weight: Approx. 375 g (0.8 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), 95% humidity max.

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP67, IK8
