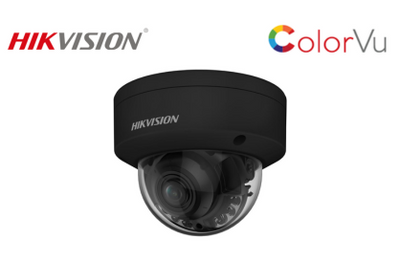

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong backlight due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 75°
• Rotate: 0° to 355°

Lens

Type

• Varifocal, motorized lens (2.8 to 12 mm)

Focal Length & Field of View (FOV)

• Horizontal: 112.3° to 41.2°
• Vertical: 58.1° to 23.1°
• Diagonal: 137.4° to 47.3°

Aperture: Max. F1.2
Iris Type: Fixed
Depth of Field: 1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

• Wide: Detection: 87 m, Observation: 35 m, Recognition: 17 m, Identification: 9 m
• Tele: Detection: 216 m, Observation: 86 m, Recognition: 43 m, Identification: 22 m

Illuminator

Supplement Light

• Type: IR, White Light
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: Up to 25 fps (3840 × 2160)
• 60 Hz: Up to 24 fps (3840 × 2160)

Sub-Stream

• Up to 30 fps for resolutions like 1280 × 720

Video Compression

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG

Bit Rate Control: CBR/VBR
Region of Interest (ROI): 1 fixed region

Audio

Compression:

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw)
• 16 Kbps (G.722.1/G.726)
• 8 to 320 Kbps (MP3)

Environment Noise Filtering: Yes

Network

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, RTP, RTSP, and more

Simultaneous Live View: Up to 6 channels
Security: Password protection, HTTPS encryption, IP filtering

Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)


Image Settings:

• Rotate mode, saturation, brightness, contrast, sharpness, gain
• Adjustable via software or browser

Enhancements: BLC, HLC, 3D DNR
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon masks

Interface

Ethernet:

• 1 RJ45 10M/100M self-adaptive port

Storage:

• Built-in memory card slot, supports microSD/microSDHC/microSDXC (up to 512 GB)

Audio:

• 1 input (line in)
• 1 output (line out)

Alarm:

• 1 input, 1 output

Reset Key: Yes

Event & Smart Features

Basic Events: Motion detection, tampering alarm, exception
Smart Events: Scene change detection
Deep Learning Features: Face capture, perimeter protection

General

Power Supply:

• 12 VDC ± 25% or PoE (IEEE 802.3af, Class 3)

Material: Metal
Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)

Dimensions: Ø141 mm × 112 mm (Ø5.55" × 4.41")
Weight: Approx. 820 g

Certifications

• EMC: CE-EMC, RCM, IC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE

Protection: IP67, IK10

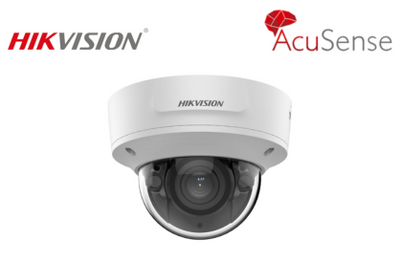

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Minimum Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range (WDR): 120 dB
• Day & Night Mode: IR Cut Filter
• Power-Off Memory: Yes

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Rotate: 0° to 355°

Lens

• Focal Length & Field of View (FOV):
  • 2.8–12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI Distance

• Wide View:
  • Detect: 86.0 m
  • Observe: 34.1 m
  • Recognize: 17.2 m
  • Identify: 8.6 m
• Tele View:
  • Detect: 214.0 m
  • Observe: 84.9 m
  • Recognize: 42.8 m
  • Identify: 21.4 m

Illuminator

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Range: Up to 40 m
• IR Wavelength: 850 nm

Video

• Maximum Resolution: 3840 × 2160
• Frame Rates:
  • Main Stream:
    • 50 Hz: 25 fps (4K to 720p)
    • 60 Hz: 24 fps (4K), 30 fps (lower resolutions)
  • Sub-Stream:
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream:
    • 50/60 Hz: 10 fps (1080p to 360p)
• Video Compression:
  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Region of Interest (ROI): 1 fixed region per stream
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8 kHz to 48 kHz
• Compression Formats: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Bit Rates: 8–320 Kbps depending on codec

Network

• Security Features:
  • Password protection, HTTPS encryption, IP filter
  • Security Audit Log, HTTP/HTTPS authentication
  • TLS 1.1/1.2, WSSE
• Simultaneous Live Views: Up to 6 channels
• API Support: Open Network Video Interface (Profiles S/G/T), ISAPI, SDK
• Supported Protocols: TCP/IP, HTTP, HTTPS, RTP, RTSP, IPv4/IPv6, and more
• User Levels: 32 users (Administrator, Operator, User)
• Network Storage:
  • MicroSD/SDHC/SDXC (up to 256 GB)
  • NAS (NFS, SMB/CIFS), ANR

Image Features

• Settings:
  • Adjustable Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Enhancements: BLC, HLC, 3D DNR
• Target Cropping: Yes
• Day/Night Switch Modes: Day, Night, Auto, Schedule

Interface

• Audio:
  • Input: 1 (Line-in), max 3.3 Vpp, impedance: 4.7 KΩ
  • Output: 1 (Line-out), max 3.3 Vpp, impedance: 100 Ω
• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage: MicroSD up to 256 GB
• Ethernet Port: RJ45 10 M/100 M

Event Detection

• Basic: Motion detection (human/vehicle classification), tampering, exception
• Smart: Scene change detection
• Deep Learning: Face capture, perimeter protection

Power and Environmental

• Operating Conditions: -30°C to 60°C (-22°F to 140°F), 95% RH (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af, Class 3)
• Power Consumption: Max 12.5 W

Physical Specifications

• Material: Metal
• Camera Dimensions: Ø153.3 mm × 111.6 mm (Ø6" × 4.4")
• Package Dimensions: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
• Camera Weight: Approx. 860 g (1.9 lb)

Certifications

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Minimum Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range (WDR): 120 dB
• Day & Night Mode: IR Cut Filter
• Power-Off Memory: Yes

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Rotate: 0° to 355°

Lens

• Focal Length & Field of View (FOV):
  • 2.8–12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI Distance

• Wide View:
  • Detect: 86.0 m
  • Observe: 34.1 m
  • Recognize: 17.2 m
  • Identify: 8.6 m
• Tele View:
  • Detect: 214.0 m
  • Observe: 84.9 m
  • Recognize: 42.8 m
  • Identify: 21.4 m

Illuminator

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Range: Up to 40 m
• IR Wavelength: 850 nm

Video

• Maximum Resolution: 3840 × 2160
• Frame Rates:
  • Main Stream:
    • 50 Hz: 25 fps (4K to 720p)
    • 60 Hz: 24 fps (4K), 30 fps (lower resolutions)
  • Sub-Stream:
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream:
    • 50/60 Hz: 10 fps (1080p to 360p)
• Video Compression:
  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Region of Interest (ROI): 1 fixed region per stream
• Scalable Video Coding (SVC): H.264 and H.265

Audio

• Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8 kHz to 48 kHz
• Compression Formats: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Bit Rates: 8–320 Kbps depending on codec

Network

• Security Features:
  • Password protection, HTTPS encryption, IP filter
  • Security Audit Log, HTTP/HTTPS authentication
  • TLS 1.1/1.2, WSSE
• Simultaneous Live Views: Up to 6 channels
• API Support: Open Network Video Interface (Profiles S/G/T), ISAPI, SDK
• Supported Protocols: TCP/IP, HTTP, HTTPS, RTP, RTSP, IPv4/IPv6, and more
• User Levels: 32 users (Administrator, Operator, User)
• Network Storage:
  • MicroSD/SDHC/SDXC (up to 256 GB)
  • NAS (NFS, SMB/CIFS), ANR

Image Features

• Settings:
  • Adjustable Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
• Enhancements: BLC, HLC, 3D DNR
• Target Cropping: Yes
• Day/Night Switch Modes: Day, Night, Auto, Schedule

Interface

• Audio:
  • Input: 1 (Line-in), max 3.3 Vpp, impedance: 4.7 KΩ
  • Output: 1 (Line-out), max 3.3 Vpp, impedance: 100 Ω
• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage: MicroSD up to 256 GB
• Ethernet Port: RJ45 10 M/100 M

Event Detection

• Basic: Motion detection (human/vehicle classification), tampering, exception
• Smart: Scene change detection
• Deep Learning: Face capture, perimeter protection

Power and Environmental

• Operating Conditions: -30°C to 60°C (-22°F to 140°F), 95% RH (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af, Class 3)
• Power Consumption: Max 12.5 W

Physical Specifications

• Material: Metal
• Camera Dimensions: Ø153.3 mm × 111.6 mm (Ø6" × 4.4")
• Package Dimensions: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
• Camera Weight: Approx. 860 g (1.9 lb)

Certifications

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

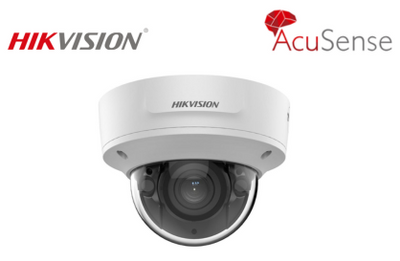

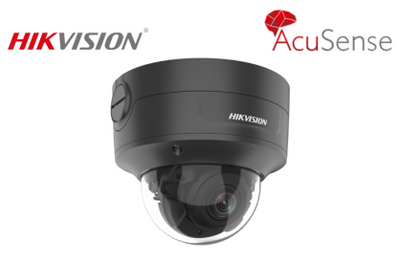

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Type: Varifocal, motorized (2.8 to 12 mm)
• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 106° to 35°
  • Vertical FOV: 56° to 20°
  • Diagonal FOV: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• Wide (2.8 mm):
  • D: 68 m, O: 27 m, R: 13 m, I: 7 m
• Tele (12 mm):
  • D: 200 m, O: 79 m, R: 40 m, I: 20 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Audio

• Type: Mono sound
• Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1/G.726)
  • 32–192 Kbps (MP2L2)
  • 8–320 Kbps (MP3)
  • 16–64 Kbps (AAC-LC)
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

Security

• Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, watermarking, RTP/RTSP over HTTPS, and more.

Storage

• On-Board: microSD card (up to 512 GB)
• Network Storage: NAS (NFS, SMB/CIFS), ANR


• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Masking: 4 programmable masks

Interface

• Ethernet: 1 RJ45 10M/100M port
• Audio Input/Output: 1 input, 1 output (3.5 mm connectors)
• Alarm: 1 input, 1 output

Events

• Basic Events: Motion detection, video tampering, exception
• Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change detection

General

• Power:
  • 12 VDC ± 25%, 0.88 A (max 10.5 W)
  • PoE: IEEE 802.3af, Class 3 (max 12.5 W)
• Dimensions: Ø153.5 mm × 133.1 mm
• Weight: Approx. 1110 g (2.4 lb.)

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP66, IK10

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Type: Varifocal, motorized (2.8 to 12 mm)
• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 106° to 35°
  • Vertical FOV: 56° to 20°
  • Diagonal FOV: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• Wide (2.8 mm):
  • D: 68 m, O: 27 m, R: 13 m, I: 7 m
• Tele (12 mm):
  • D: 200 m, O: 79 m, R: 40 m, I: 20 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Audio

• Type: Mono sound
• Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1/G.726)
  • 32–192 Kbps (MP2L2)
  • 8–320 Kbps (MP3)
  • 16–64 Kbps (AAC-LC)
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

Security

• Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, watermarking, RTP/RTSP over HTTPS, and more.

Storage

• On-Board: microSD card (up to 512 GB)
• Network Storage: NAS (NFS, SMB/CIFS), ANR


• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Masking: 4 programmable masks

Interface

• Ethernet: 1 RJ45 10M/100M port
• Audio Input/Output: 1 input, 1 output (3.5 mm connectors)
• Alarm: 1 input, 1 output

Events

• Basic Events: Motion detection, video tampering, exception
• Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change detection

General

• Power:
  • 12 VDC ± 25%, 0.88 A (max 10.5 W)
  • PoE: IEEE 802.3af, Class 3 (max 12.5 W)
• Dimensions: Ø153.5 mm × 133.1 mm
• Weight: Approx. 1110 g (2.4 lb.)

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP66, IK10

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Type: Varifocal, motorized (2.8 to 12 mm)
• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 106° to 35°
  • Vertical FOV: 56° to 20°
  • Diagonal FOV: 127° to 41°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• Wide (2.8 mm):
  • D: 68 m, O: 27 m, R: 13 m, I: 7 m
• Tele (12 mm):
  • D: 200 m, O: 79 m, R: 40 m, I: 20 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Audio

• Type: Mono sound
• Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1/G.726)
  • 32–192 Kbps (MP2L2)
  • 8–320 Kbps (MP3)
  • 16–64 Kbps (AAC-LC)
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

Security

• Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, watermarking, RTP/RTSP over HTTPS, and more.

Storage

• On-Board: microSD card (up to 512 GB)
• Network Storage: NAS (NFS, SMB/CIFS), ANR


• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Masking: 4 programmable masks

Interface

• Ethernet: 1 RJ45 10M/100M port
• Audio Input/Output: 1 input, 1 output (3.5 mm connectors)
• Alarm: 1 input, 1 output

Events

• Basic Events: Motion detection, video tampering, exception
• Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change detection

General

• Power:
  • 12 VDC ± 25%, 0.88 A (max 10.5 W)
  • PoE: IEEE 802.3af, Class 3 (max 12.5 W)
• Dimensions: Ø153.5 mm × 133.1 mm
• Weight: Approx. 1110 g (2.4 lb.)

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP66, IK10

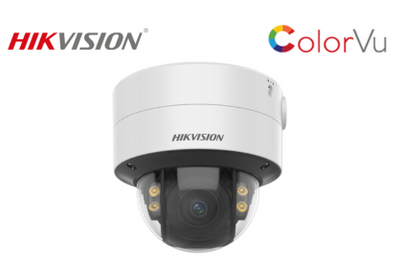

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• 24/7 colorful imaging
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• 24/7 colorful imaging
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range (WDR): 120 dB
• Day & Night: IR cut filter
• Power-off Memory: Yes
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Iris Type: Fixed
• Lens Mount: Ø14

DORI (Detection, Observation, Recognition, Identification) Ranges:

• 2.8 to 12 mm:
  • Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
  • Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

Illuminator

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Range: Up to 60 m
• Wavelength: 850 nm

Video

• Max. Resolution: 3840 × 2160

• Frame Rates:

  • Main Stream:
    • 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
    • 60 Hz: 24 fps (3840 × 2160) / 30 fps (other resolutions)
  • Sub Stream:
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)

• Video Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265

• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8 kHz to 48 kHz
• Audio Compression:
  • G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate:
  • 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC)

Network

• Security:
  • Password protection, HTTPS encryption, IP address filter, TLS 1.1/1.2, etc.
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
• Protocols:
  • TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, RTP, RTSP, etc.
• Users: Up to 32, with 3 user levels


• Parameters Switch: Yes
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR
• Settings: Adjustable rotate mode, saturation, brightness, contrast, sharpness, and white balance

Interface

• Audio:
  • 1 input (line-in)
  • 1 output (line-out)
• Alarm:
  • 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage: Built-in micro SD slot (up to 256 GB)
• Ethernet: 1 RJ45 10 M/100 M self-adaptive port

Event

• Basic Events:
  • Motion detection (human/vehicle classification), video tampering, exceptions
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting detection (human/vehicle classification)
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3at, Class 4
• Power Consumption:
  • 12 VDC: 1.08 A, max. 13 W
  • PoE: Max. 15 W
• Operating Conditions:
  • -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity (non-condensing)
• Dimensions: 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
• Weight: Approx. 1380 g (3.0 lb.)
• Material: Metal

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

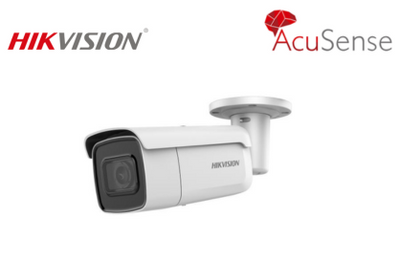

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range (WDR): 120 dB
• Day & Night: IR cut filter
• Power-off Memory: Yes
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Iris Type: Fixed
• Lens Mount: Ø14

DORI (Detection, Observation, Recognition, Identification) Ranges:

• 2.8 to 12 mm:
  • Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
  • Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

Illuminator

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Range: Up to 60 m
• Wavelength: 850 nm

Video

• Max. Resolution: 3840 × 2160

• Frame Rates:

  • Main Stream:
    • 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
    • 60 Hz: 24 fps (3840 × 2160) / 30 fps (other resolutions)
  • Sub Stream:
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)

• Video Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• Bit Rate Control: CBR/VBR

• Scalable Video Coding (SVC): H.264 and H.265

• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8 kHz to 48 kHz
• Audio Compression:
  • G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate:
  • 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC)

Network

• Security:
  • Password protection, HTTPS encryption, IP address filter, TLS 1.1/1.2, etc.
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
• Protocols:
  • TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, RTP, RTSP, etc.
• Users: Up to 32, with 3 user levels


• Parameters Switch: Yes
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR
• Settings: Adjustable rotate mode, saturation, brightness, contrast, sharpness, and white balance

Interface

• Audio:
  • 1 input (line-in)
  • 1 output (line-out)
• Alarm:
  • 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage: Built-in micro SD slot (up to 256 GB)
• Ethernet: 1 RJ45 10 M/100 M self-adaptive port

Event

• Basic Events:
  • Motion detection (human/vehicle classification), video tampering, exceptions
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting detection (human/vehicle classification)
• Deep Learning: Face capture

General

• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3at, Class 4
• Power Consumption:
  • 12 VDC: 1.08 A, max. 13 W
  • PoE: Max. 15 W
• Operating Conditions:
  • -30 °C to 60 °C (-22 °F to 140 °F), ≤ 95% humidity (non-condensing)
• Dimensions: 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
• Weight: Approx. 1380 g (3.0 lb.)
• Material: Metal

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67, IK10

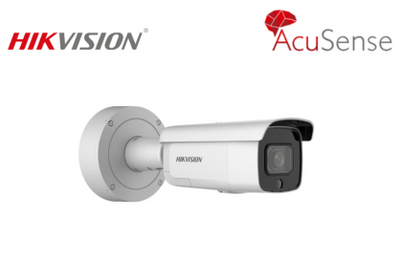

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Lens Type: Varifocal, motorized (2.8–12 mm)
• Focal Length & Field of View (FOV):
  • Horizontal: 108° to 46°
  • Vertical: 58° to 26°
  • Diagonal: 127.4° to 52°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.4

DORI (Detection, Observation, Recognition, Identification)

• 2.8–12 mm:
  • Wide:
    • Detection: 86.0 m
    • Observation: 34.1 m
    • Recognition: 17.2 m
    • Identification: 8.6 m
  • Tele:
    • Detection: 214.0 m
    • Observation: 84.9 m
    • Recognition: 42.8 m
    • Identification: 21.4 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800 to 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
• Video Compression:
  • Main: H.265/H.264 (+Enhanced H.264+/H.265+)
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline/Main/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• SVC Support: H.264/H.265
• Region of Interest (ROI): 1 fixed region (Main & Sub-stream)
• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • 64 Kbps (G.711)
  • 16 Kbps (G.722.1/G.726)
  • 32–192 Kbps (MP2L2)
  • 8–320 Kbps (MP3)
  • 16–64 Kbps (AAC)
• Sampling Rate: 8–48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, RTP/RTSP, NTP, and more
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Users: Up to 32 (Administrator, Operator, User levels)
• Security: Password protection, HTTPS, IP filters, encryption, and more
• Storage:
  • MicroSD (256 GB), NAS, ANR
  • Memory card encryption and health detection


• Switch: Day, Night, Auto, Schedule
• Settings: Rotate, saturation, brightness, sharpness, white balance
• WDR: 120 dB
• Image Enhancements: BLC, HLC, 3D DNR

Interface

• Ethernet: 1 RJ45 (10M/100M self-adaptive)
• Storage: Micro SD/SDHC/SDXC (256 GB)
• Built-in: Microphone & Speaker (Max. SPL: 97 dB at 10 cm)
• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Smart Features

• Basic Events: Motion detection, video tampering
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting detection
  • Scene change detection
• Linkage: Capture, recording, audible alarms, strobe light

General

• Power:
  • 12 VDC ± 25% (Max. 14.5 W)
  • PoE (802.3at, Class 4; Max. 18 W)
• Dimensions: Ø144.1 mm × 342.7 mm
• Weight: Approx. 1450 g (3.2 lb.)
• Temperature & Humidity: -30 °C to 60 °C, 95% (non-condensing)
• Languages: 33 options including English, Spanish, Russian, and more

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: RoHS, WEEE, REACH
• Protection: IP66, IK10

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Lens Type: Varifocal, motorized (2.8–12 mm)
• Focal Length & Field of View (FOV):
  • Horizontal: 108° to 46°
  • Vertical: 58° to 26°
  • Diagonal: 127.4° to 52°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.4

DORI (Detection, Observation, Recognition, Identification)

• 2.8–12 mm:
  • Wide:
    • Detection: 86.0 m
    • Observation: 34.1 m
    • Recognition: 17.2 m
    • Identification: 8.6 m
  • Tele:
    • Detection: 214.0 m
    • Observation: 84.9 m
    • Recognition: 42.8 m
    • Identification: 21.4 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 × 1800 to 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
• Video Compression:
  • Main: H.265/H.264 (+Enhanced H.264+/H.265+)
  • Sub: H.265/H.264/MJPEG
  • Third: H.265/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline/Main/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• SVC Support: H.264/H.265
• Region of Interest (ROI): 1 fixed region (Main & Sub-stream)
• Target Cropping: Yes

Audio

• Type: Mono sound
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Bit Rate:
  • 64 Kbps (G.711)
  • 16 Kbps (G.722.1/G.726)
  • 32–192 Kbps (MP2L2)
  • 8–320 Kbps (MP3)
  • 16–64 Kbps (AAC)
• Sampling Rate: 8–48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, RTP/RTSP, NTP, and more
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profiles S/G/T), ISAPI, SDK
• Users: Up to 32 (Administrator, Operator, User levels)
• Security: Password protection, HTTPS, IP filters, encryption, and more
• Storage:
  • MicroSD (256 GB), NAS, ANR
  • Memory card encryption and health detection


• Switch: Day, Night, Auto, Schedule
• Settings: Rotate, saturation, brightness, sharpness, white balance
• WDR: 120 dB
• Image Enhancements: BLC, HLC, 3D DNR

Interface

• Ethernet: 1 RJ45 (10M/100M self-adaptive)
• Storage: Micro SD/SDHC/SDXC (256 GB)
• Built-in: Microphone & Speaker (Max. SPL: 97 dB at 10 cm)
• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Smart Features

• Basic Events: Motion detection, video tampering
• Smart Events:
  • Line crossing, intrusion, region entrance/exiting detection
  • Scene change detection
• Linkage: Capture, recording, audible alarms, strobe light

General

• Power:
  • 12 VDC ± 25% (Max. 14.5 W)
  • PoE (802.3at, Class 4; Max. 18 W)
• Dimensions: Ø144.1 mm × 342.7 mm
• Weight: Approx. 1450 g (3.2 lb.)
• Temperature & Humidity: -30 °C to 60 °C, 95% (non-condensing)
• Languages: 33 options including English, Spanish, Russian, and more

Approvals

• EMC: FCC, CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD
• Environment: RoHS, WEEE, REACH
• Protection: IP66, IK10

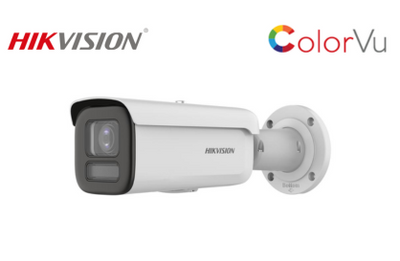

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Minimum Illumination:
  • Color: 0.0028 Lux @ (F1.2, AGC ON)
  • 0 Lux with light

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

Lens Details

Lens Type

• Varifocal, motorized lens (2.8 to 12 mm)

Focal Length & Field of View (FOV)

• Horizontal FOV: 112.3° to 41.2°
• Vertical FOV: 58.1° to 23.1°
• Diagonal FOV: 137.4° to 47.3°

Lens Mount

• Integrated

Iris Type

• Fixed

Aperture

• F1.2

Depth of Field

• 1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

Illuminator

Supplement Light Type

• IR, White Light

Range

• Up to 60 m

Smart Supplement Light

• Yes

IR Wavelength

• 850 nm

Video Specifications

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression Formats

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate

• 32 Kbps to 16 Mbps

Audio

Compression Formats

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit Rate

• 64 Kbps to 320 Kbps (based on format)

Sampling Rate

• 8 kHz to 48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

Simultaneous Live View

• Up to 6 channels

Security

• Password protection, HTTPS encryption, 802.1X authentication, watermarking, and more

Image Features

Wide Dynamic Range (WDR)

• 130 dB

Enhancement

• BLC, HLC, 3D DNR

Privacy Masking

• 4 programmable polygon masks

Day/Night Switch

• Day, Night, Auto, Schedule

Interface

Ethernet

• 1 RJ45 10M/100M self-adaptive

Audio

• Input: 1 line in
• Output: 1 line out

Alarm

• 1 input, 1 output

On-Board Storage

• MicroSD/microSDHC/microSDXC, up to 512 GB

General Features

Power

• 12 VDC ± 25%, 1.21 A, max. 14.5 W
• PoE: IEEE 802.3at, Class 4, max. 18 W

Material

• Metal construction

Dimensions

• 298 mm × 97.9 mm × 95.7 mm

Operating Conditions

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Languages

• Supports 33 languages

Compliance

Certifications

• EMC: CE-EMC, EN 55032
• Safety: UL 62368-1, CE-LVD
• Environment: CE-RoHS

Protection Ratings

• IP67 (Waterproof)
• IK10 (Vandal-resistant)

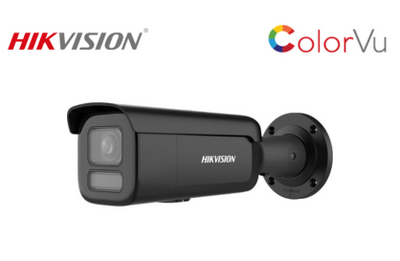

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Minimum Illumination:
  • Color: 0.0028 Lux @ (F1.2, AGC ON)
  • 0 Lux with light

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

Lens Details

Lens Type

• Varifocal, motorized lens (2.8 to 12 mm)

Focal Length & Field of View (FOV)

• Horizontal FOV: 112.3° to 41.2°
• Vertical FOV: 58.1° to 23.1°
• Diagonal FOV: 137.4° to 47.3°

Lens Mount

• Integrated

Iris Type

• Fixed

Aperture

• F1.2

Depth of Field

• 1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

Illuminator

Supplement Light Type

• IR, White Light

Range

• Up to 60 m

Smart Supplement Light

• Yes

IR Wavelength

• 850 nm

Video Specifications

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression Formats

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate

• 32 Kbps to 16 Mbps

Audio

Compression Formats

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit Rate

• 64 Kbps to 320 Kbps (based on format)

Sampling Rate

• 8 kHz to 48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

Simultaneous Live View

• Up to 6 channels

Security

• Password protection, HTTPS encryption, 802.1X authentication, watermarking, and more

Image Features

Wide Dynamic Range (WDR)

• 130 dB

Enhancement

• BLC, HLC, 3D DNR

Privacy Masking

• 4 programmable polygon masks

Day/Night Switch

• Day, Night, Auto, Schedule

Interface

Ethernet

• 1 RJ45 10M/100M self-adaptive

Audio

• Input: 1 line in
• Output: 1 line out

Alarm

• 1 input, 1 output

On-Board Storage

• MicroSD/microSDHC/microSDXC, up to 512 GB

General Features

Power

• 12 VDC ± 25%, 1.21 A, max. 14.5 W
• PoE: IEEE 802.3at, Class 4, max. 18 W

Material

• Metal construction

Dimensions

• 298 mm × 97.9 mm × 95.7 mm

Operating Conditions

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Languages

• Supports 33 languages

Compliance

Certifications

• EMC: CE-EMC, EN 55032
• Safety: UL 62368-1, CE-LVD
• Environment: CE-RoHS

Protection Ratings

• IP67 (Waterproof)
• IK10 (Vandal-resistant)

• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Minimum Illumination:
  • Color: 0.0028 Lux @ (F1.2, AGC ON)
  • 0 Lux with light

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

Lens Details

Lens Type

• Varifocal, motorized lens (2.8 to 12 mm)

Focal Length & Field of View (FOV)

• Horizontal FOV: 112.3° to 41.2°
• Vertical FOV: 58.1° to 23.1°
• Diagonal FOV: 137.4° to 47.3°

Lens Mount

• Integrated

Iris Type

• Fixed

Aperture

• F1.2

Depth of Field

• 1 m to ∞

DORI (Detection, Observation, Recognition, Identification)

Illuminator

Supplement Light Type

• IR, White Light

Range

• Up to 60 m

Smart Supplement Light

• Yes

IR Wavelength

• 850 nm

Video Specifications

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compression Formats

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate

• 32 Kbps to 16 Mbps

Audio

Compression Formats

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit Rate

• 64 Kbps to 320 Kbps (based on format)

Sampling Rate

• 8 kHz to 48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

Simultaneous Live View

• Up to 6 channels

Security

• Password protection, HTTPS encryption, 802.1X authentication, watermarking, and more

Image Features

Wide Dynamic Range (WDR)

• 130 dB

Enhancement

• BLC, HLC, 3D DNR

Privacy Masking

• 4 programmable polygon masks

Day/Night Switch

• Day, Night, Auto, Schedule

Interface

Ethernet

• 1 RJ45 10M/100M self-adaptive

Audio

• Input: 1 line in
• Output: 1 line out

Alarm

• 1 input, 1 output

On-Board Storage

• MicroSD/microSDHC/microSDXC, up to 512 GB

General Features

Power

• 12 VDC ± 25%, 1.21 A, max. 14.5 W
• PoE: IEEE 802.3at, Class 4, max. 18 W

Material

• Metal construction

Dimensions

• 298 mm × 97.9 mm × 95.7 mm

Operating Conditions

• -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%

Languages

• Supports 33 languages

Compliance

Certifications

• EMC: CE-EMC, EN 55032
• Safety: UL 62368-1, CE-LVD
• Environment: CE-RoHS

Protection Ratings

• IP67 (Waterproof)
• IK10 (Vandal-resistant)
