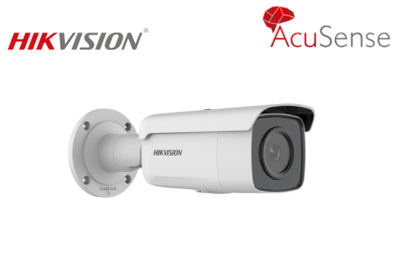

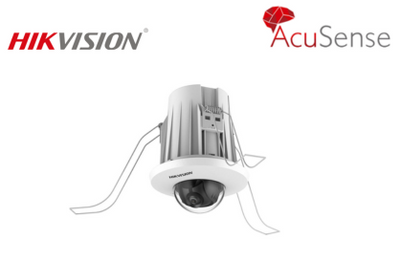

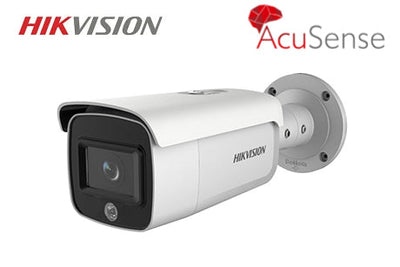

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)
• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)
• Datasheet

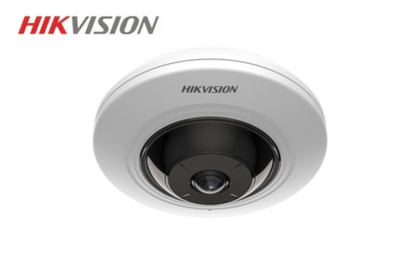

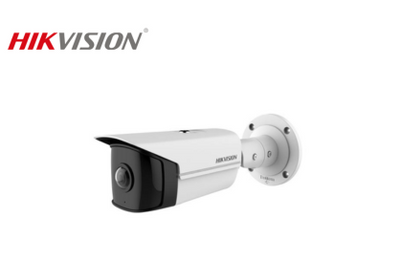

• High quality imaging with 4 MP resolution
• 180°super wide field of view
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Distortion correction
• Water and dust resistant (IP67)
• Datasheet

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detect, Observe, Recognize, Identify)

• 2.8 to 12 mm:
  • Wide:
    • Detect: 86.0 m
    • Observe: 34.1 m
    • Recognize: 17.2 m
    • Identify: 8.6 m
  • Tele:
    • Detect: 214.0 m
    • Observe: 84.9 m
    • Recognize: 42.8 m
    • Identify: 21.4 m

Illuminator

• IR Wavelength: 850 nm
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• Supplement Light Type: IR

Video Features

Streams

• Main Stream:
  • 50 Hz: Up to 25 fps (3840 × 2160)
  • 60 Hz: Up to 30 fps (3200 × 1800)
• Sub-Stream:
  • 50 Hz: Up to 25 fps (1280 × 720)
  • 60 Hz: Up to 30 fps (1280 × 720)
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (1920 × 1080)

Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Bit Rate

• Range: 32 Kbps to 16 Mbps
• Control: CBR/VBR

Advanced Features

• SVC: H.264 & H.265 encoding
• ROI: 1 fixed region
• Target Cropping: Yes

Audio

• Type: Mono
• Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression Formats:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711) to 320 Kbps (MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP(S), FTP, RTP/RTSP, DNS, DDNS, SNMP, etc.
• User/Host: Up to 32 users (Administrator, Operator, User)

Security

• Features:
  • Password protection
  • HTTPS encryption
  • Security Audit Log
  • TLS 1.1/1.2
  • IP address filtering

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Privacy Masking: 4 programmable regions
• Switch Modes: Day, Night, Auto, Schedule
• Image Settings:
  • Saturation, Brightness, Contrast, etc.
  • Adjustable via software or browser

Interface

• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio I/O:
  • Line-in: 3.3 Vpp max
  • Line-out: 3.3 Vpp max
• Ethernet: 1 RJ45 10 M/100 M port
• Storage: MicroSD (up to 512 GB)
• Reset Key: Yes

Event Management

• Basic Events: Motion detection, tampering, exceptions
• Smart Events: Scene change detection

General

• Power:
  • 12 VDC or PoE (max. 12.5 W)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb.)

Certifications

• Protection: IP67, IK10
• Safety: UL, CB
• Environment: CE-ROHS, WEEE

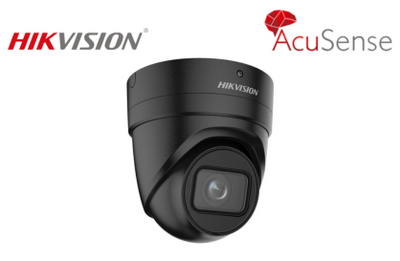

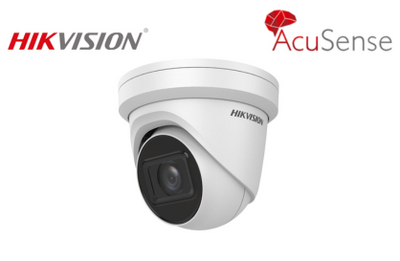

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detect, Observe, Recognize, Identify)

• 2.8 to 12 mm:
  • Wide:
    • Detect: 86.0 m
    • Observe: 34.1 m
    • Recognize: 17.2 m
    • Identify: 8.6 m
  • Tele:
    • Detect: 214.0 m
    • Observe: 84.9 m
    • Recognize: 42.8 m
    • Identify: 21.4 m

Illuminator

• IR Wavelength: 850 nm
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• Supplement Light Type: IR

Video Features

Streams

• Main Stream:
  • 50 Hz: Up to 25 fps (3840 × 2160)
  • 60 Hz: Up to 30 fps (3200 × 1800)
• Sub-Stream:
  • 50 Hz: Up to 25 fps (1280 × 720)
  • 60 Hz: Up to 30 fps (1280 × 720)
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (1920 × 1080)

Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Bit Rate

• Range: 32 Kbps to 16 Mbps
• Control: CBR/VBR

Advanced Features

• SVC: H.264 & H.265 encoding
• ROI: 1 fixed region
• Target Cropping: Yes

Audio

• Type: Mono
• Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression Formats:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711) to 320 Kbps (MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP(S), FTP, RTP/RTSP, DNS, DDNS, SNMP, etc.
• User/Host: Up to 32 users (Administrator, Operator, User)

Security

• Features:
  • Password protection
  • HTTPS encryption
  • Security Audit Log
  • TLS 1.1/1.2
  • IP address filtering

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Privacy Masking: 4 programmable regions
• Switch Modes: Day, Night, Auto, Schedule
• Image Settings:
  • Saturation, Brightness, Contrast, etc.
  • Adjustable via software or browser

Interface

• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio I/O:
  • Line-in: 3.3 Vpp max
  • Line-out: 3.3 Vpp max
• Ethernet: 1 RJ45 10 M/100 M port
• Storage: MicroSD (up to 512 GB)
• Reset Key: Yes

Event Management

• Basic Events: Motion detection, tampering, exceptions
• Smart Events: Scene change detection

General

• Power:
  • 12 VDC or PoE (max. 12.5 W)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb.)

Certifications

• Protection: IP67, IK10
• Safety: UL, CB
• Environment: CE-ROHS, WEEE

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detect, Observe, Recognize, Identify)

• 2.8 to 12 mm:
  • Wide:
    • Detect: 86.0 m
    • Observe: 34.1 m
    • Recognize: 17.2 m
    • Identify: 8.6 m
  • Tele:
    • Detect: 214.0 m
    • Observe: 84.9 m
    • Recognize: 42.8 m
    • Identify: 21.4 m

Illuminator

• IR Wavelength: 850 nm
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• Supplement Light Type: IR

Video Features

Streams

• Main Stream:
  • 50 Hz: Up to 25 fps (3840 × 2160)
  • 60 Hz: Up to 30 fps (3200 × 1800)
• Sub-Stream:
  • 50 Hz: Up to 25 fps (1280 × 720)
  • 60 Hz: Up to 30 fps (1280 × 720)
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (1920 × 1080)

Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Bit Rate

• Range: 32 Kbps to 16 Mbps
• Control: CBR/VBR

Advanced Features

• SVC: H.264 & H.265 encoding
• ROI: 1 fixed region
• Target Cropping: Yes

Audio

• Type: Mono
• Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression Formats:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711) to 320 Kbps (MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP(S), FTP, RTP/RTSP, DNS, DDNS, SNMP, etc.
• User/Host: Up to 32 users (Administrator, Operator, User)

Security

• Features:
  • Password protection
  • HTTPS encryption
  • Security Audit Log
  • TLS 1.1/1.2
  • IP address filtering

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Privacy Masking: 4 programmable regions
• Switch Modes: Day, Night, Auto, Schedule
• Image Settings:
  • Saturation, Brightness, Contrast, etc.
  • Adjustable via software or browser

Interface

• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio I/O:
  • Line-in: 3.3 Vpp max
  • Line-out: 3.3 Vpp max
• Ethernet: 1 RJ45 10 M/100 M port
• Storage: MicroSD (up to 512 GB)
• Reset Key: Yes

Event Management

• Basic Events: Motion detection, tampering, exceptions
• Smart Events: Scene change detection

General

• Power:
  • 12 VDC or PoE (max. 12.5 W)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb.)

Certifications

• Protection: IP67, IK10
• Safety: UL, CB
• Environment: CE-ROHS, WEEE

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 108° to 46°
  • Vertical FOV: 58° to 26°
  • Diagonal FOV: 127.4° to 52°
• Lens Type: Varifocal, motorized
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detect, Observe, Recognize, Identify)

• 2.8 to 12 mm:
  • Wide:
    • Detect: 86.0 m
    • Observe: 34.1 m
    • Recognize: 17.2 m
    • Identify: 8.6 m
  • Tele:
    • Detect: 214.0 m
    • Observe: 84.9 m
    • Recognize: 42.8 m
    • Identify: 21.4 m

Illuminator

• IR Wavelength: 850 nm
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• Supplement Light Type: IR

Video Features

Streams

• Main Stream:
  • 50 Hz: Up to 25 fps (3840 × 2160)
  • 60 Hz: Up to 30 fps (3200 × 1800)
• Sub-Stream:
  • 50 Hz: Up to 25 fps (1280 × 720)
  • 60 Hz: Up to 30 fps (1280 × 720)
• Third Stream:
  • 50 Hz/60 Hz: 10 fps (1920 × 1080)

Compression

• Main Stream: H.265/H.264/H.265+/H.264+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Bit Rate

• Range: 32 Kbps to 16 Mbps
• Control: CBR/VBR

Advanced Features

• SVC: H.264 & H.265 encoding
• ROI: 1 fixed region
• Target Cropping: Yes

Audio

• Type: Mono
• Noise Filtering: Yes
• Sampling Rate: 8–48 kHz
• Compression Formats:
  • G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711) to 320 Kbps (MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF, ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP(S), FTP, RTP/RTSP, DNS, DDNS, SNMP, etc.
• User/Host: Up to 32 users (Administrator, Operator, User)

Security

• Features:
  • Password protection
  • HTTPS encryption
  • Security Audit Log
  • TLS 1.1/1.2
  • IP address filtering

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Privacy Masking: 4 programmable regions
• Switch Modes: Day, Night, Auto, Schedule
• Image Settings:
  • Saturation, Brightness, Contrast, etc.
  • Adjustable via software or browser

Interface

• Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio I/O:
  • Line-in: 3.3 Vpp max
  • Line-out: 3.3 Vpp max
• Ethernet: 1 RJ45 10 M/100 M port
• Storage: MicroSD (up to 512 GB)
• Reset Key: Yes

Event Management

• Basic Events: Motion detection, tampering, exceptions
• Smart Events: Scene change detection

General

• Power:
  • 12 VDC or PoE (max. 12.5 W)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb.)

Certifications

• Protection: IP67, IK10
• Safety: UL, CB
• Environment: CE-ROHS, WEEE

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 99° to 35°
  • Vertical FOV: 53° to 20°
  • Diagonal FOV: 117° to 41°
• Lens Type: Varifocal, motorized (2.8 to 12 mm)
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detection, Observation, Recognition, Identification)

• Wide (2.8 mm):
  • Detection: 80 m
  • Observation: 31 m
  • Recognition: 16 m
  • Identification: 8 m
• Tele (12 mm):
  • Detection: 210 m
  • Observation: 83 m
  • Recognition: 42 m
  • Identification: 21 m

Illuminator

• Supplement Light Type: IR
• IR Wavelength: 850 nm
• Range: Up to 40 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    Third stream supported under certain settings.
• Compression:
  • Main Stream: H.265, H.264, H.264+, H.265+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• SVC: H.264, H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-stream
• Target Cropping: Yes

Audio

• Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8/16/32/44.1/48 kHz
• Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps

Network

• Simultaneous Live View: Up to 6 channels
• API:
  • ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host:
  • Up to 32 users
  • 3 levels: Administrator, Operator, User
• Security:
  • Password protection, HTTPS encryption, IP filter, Security Audit Log, TLS 1.1/1.2


• WDR: 120 dB
• Privacy Mask: 4 programmable polygon masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Settings:
  Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by software/browser
• SNR: ≥ 52 dB

Interface

• Alarm: 1 input, 1 output (max. 24 VAC/24 VDC, 1 A)
• Audio:
  • Input: 1 (max. amplitude 3.3 Vpp, impedance 4.7 KΩ)
  • Output: 1 (max. amplitude 3.3 Vpp, impedance 100 Ω)
• Ethernet: 1 RJ45 10M/100M self-adaptive
• On-Board Storage: Up to 512 GB microSD card
• Reset Key: Yes

Event

• Basic Event:
  • Motion detection, video tampering, exceptions
• Smart Event:
  • Line crossing, intrusion, region entry/exit, scene change detection
• Linkage:
  Upload to FTP/NAS/SD card, notify center, send email, trigger alarms

General

• Power:
  • 12 VDC (0.92 A, max. 11.04 W)
  • PoE: IEEE 802.3af (Class 3, max. 12.5 W)
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), ≤ 95% humidity (non-condensing)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb)

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-ROHS, WEEE, REACH
• Protection: IP67, IK10

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Day & Night: IR cut filter
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Focal Length & FOV:
  • 2.8 to 12 mm
  • Horizontal FOV: 99° to 35°
  • Vertical FOV: 53° to 20°
  • Diagonal FOV: 117° to 41°
• Lens Type: Varifocal, motorized (2.8 to 12 mm)
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI (Detection, Observation, Recognition, Identification)

• Wide (2.8 mm):
  • Detection: 80 m
  • Observation: 31 m
  • Recognition: 16 m
  • Identification: 8 m
• Tele (12 mm):
  • Detection: 210 m
  • Observation: 83 m
  • Recognition: 42 m
  • Identification: 21 m

Illuminator

• Supplement Light Type: IR
• IR Wavelength: 850 nm
• Range: Up to 40 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    Third stream supported under certain settings.
• Compression:
  • Main Stream: H.265, H.264, H.264+, H.265+
  • Sub-Stream: H.265, H.264, MJPEG
  • Third Stream: H.265, H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• SVC: H.264, H.265 encoding
• Region of Interest (ROI): 1 fixed region for main and sub-stream
• Target Cropping: Yes

Audio

• Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8/16/32/44.1/48 kHz
• Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps

Network

• Simultaneous Live View: Up to 6 channels
• API:
  • ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
• Protocols:
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host:
  • Up to 32 users
  • 3 levels: Administrator, Operator, User
• Security:
  • Password protection, HTTPS encryption, IP filter, Security Audit Log, TLS 1.1/1.2


• WDR: 120 dB
• Privacy Mask: 4 programmable polygon masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Settings:
  Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by software/browser
• SNR: ≥ 52 dB

Interface

• Alarm: 1 input, 1 output (max. 24 VAC/24 VDC, 1 A)
• Audio:
  • Input: 1 (max. amplitude 3.3 Vpp, impedance 4.7 KΩ)
  • Output: 1 (max. amplitude 3.3 Vpp, impedance 100 Ω)
• Ethernet: 1 RJ45 10M/100M self-adaptive
• On-Board Storage: Up to 512 GB microSD card
• Reset Key: Yes

Event

• Basic Event:
  • Motion detection, video tampering, exceptions
• Smart Event:
  • Line crossing, intrusion, region entry/exit, scene change detection
• Linkage:
  Upload to FTP/NAS/SD card, notify center, send email, trigger alarms

General

• Power:
  • 12 VDC (0.92 A, max. 11.04 W)
  • PoE: IEEE 802.3af (Class 3, max. 12.5 W)
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), ≤ 95% humidity (non-condensing)
• Material: Metal
• Dimension: Ø138.3 mm × 126 mm
• Weight: Approx. 850 g (1.9 lb)

Approval

• EMC: FCC, CE-EMC, RCM, KC
• Safety: UL, CB, CE-LVD
• Environment: CE-ROHS, WEEE, REACH
• Protection: IP67, IK10

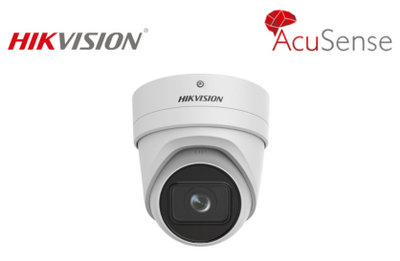

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

Lens Type

• Varifocal, motorized, 2.8 to 12 mm

Focal Length & FOV

• Focal Length: 2.8 to 12 mm
• Field of View (FOV):
  • Horizontal: 99° to 35°
  • Vertical: 53° to 20°
  • Diagonal: 117° to 41°

Lens Mount

• Ø14

Iris Type

• Fixed

Aperture

• F1.4

DORI (Detection, Observation, Recognition, Identification)

2.8 to 12 mm:

• Wide:
  • Detection: 80 m
  • Observation: 31 m
  • Recognition: 16 m
  • Identification: 8 m
• Tele:
  • Detection: 210 m
  • Observation: 83 m
  • Recognition: 42 m
  • Identification: 21 m

Illuminator

Supplement Light

• Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Note: Third stream is supported under certain settings.

Video Compression

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate

• 32 Kbps to 16 Mbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main Profile

Bit Rate Control

• CBR/VBR

Scalable Video Coding (SVC)

• H.264 and H.265 encoding

Region of Interest (ROI)

• 1 fixed region for main stream and sub-stream

Target Cropping

• Yes

Audio

Type

• Mono sound

Compression

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bit Rate

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC-LC: 16 to 64 Kbps

Sampling Rate

• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket

Simultaneous Live View

• Up to 6 channels

API

• Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK

User/Host

• Up to 32 users, 3 user levels: Administrator, Operator, User

Security

• Password protection, HTTPS encryption, IP filter, Security Audit Log, TLS 1.1/1.2

Network Storage

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client Software

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in Required: IE 10, IE 11
• Plug-in Free: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable via software/browser

Day/Night Switch

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

• 120 dB

Signal-to-Noise Ratio (SNR)

• ≥ 52 dB

Image Enhancement

• BLC, HLC, 3D DNR

Interface

Ethernet

• 1 RJ45 10 M/100 M self-adaptive port

On-Board Storage

• Built-in microSD card slot (up to 512 GB)

Audio

• Input: 1 (3.5 mm, max. amplitude 3.3 Vpp)
• Output: 1 (3.5 mm, max. amplitude 3.3 Vpp)

Alarm

• Input/Output: 1/1

Reset Key

• Yes

Event

Basic Events

• Motion detection (human/vehicle classification), video tampering alarm, exceptions

Smart Events

• Line crossing, intrusion, region entrance/exit, scene change detection

Linkage

• Upload to FTP/NAS/SD card, notify surveillance center, send email, trigger recording/alarm output

Deep Learning

• Face Capture: Yes

General

Power

• 12 VDC: Max. 11.04 W
• PoE: 802.3af, Class 3, Max. 12.5 W

Dimensions

• Camera: Ø135.8 mm × 145.5 mm
• Package: 170 mm × 170 mm × 205 mm

Weight

• Camera: Approx. 1040 g
• With Package: Approx. 1420 g

Storage & Operating Conditions

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: 95% or less (non-condensing)

Languages

• 33 supported

General Functions

• Anti-flicker, heartbeat, privacy mask, flash log, password reset via email, pixel counter

Approvals

EMC

• FCC, CE-EMC, RCM, KC

Safety

• UL, CB, CE-LVD

Environmental

• CE-ROHS, WEEE, REACH

Protection

• IP66, IK10

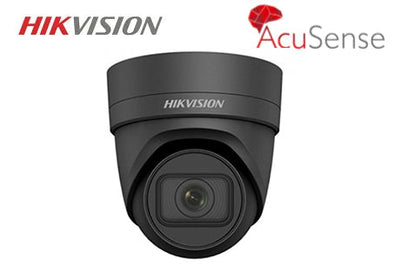

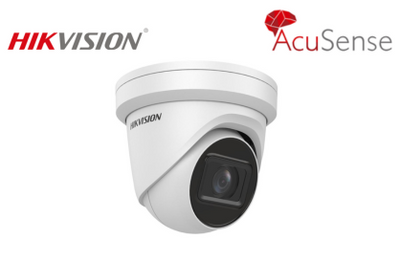

• High quality imaging with 6 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Datasheet

Camera

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.4, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

Lens Type

• Varifocal, motorized, 2.8 to 12 mm

Focal Length & FOV

• Focal Length: 2.8 to 12 mm
• Field of View (FOV):
  • Horizontal: 99° to 35°
  • Vertical: 53° to 20°
  • Diagonal: 117° to 41°

Lens Mount

• Ø14

Iris Type

• Fixed

Aperture

• F1.4

DORI (Detection, Observation, Recognition, Identification)

2.8 to 12 mm:

• Wide:
  • Detection: 80 m
  • Observation: 31 m
  • Recognition: 16 m
  • Identification: 8 m
• Tele:
  • Detection: 210 m
  • Observation: 83 m
  • Recognition: 42 m
  • Identification: 21 m

Illuminator

Supplement Light

• Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Note: Third stream is supported under certain settings.

Video Compression

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate

• 32 Kbps to 16 Mbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main Profile

Bit Rate Control

• CBR/VBR

Scalable Video Coding (SVC)

• H.264 and H.265 encoding

Region of Interest (ROI)

• 1 fixed region for main stream and sub-stream

Target Cropping

• Yes

Audio

Type

• Mono sound

Compression

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bit Rate

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps
• AAC-LC: 16 to 64 Kbps

Sampling Rate

• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket

Simultaneous Live View

• Up to 6 channels

API

• Open Network Video Interface (PROFILE S, G, T), ISAPI, SDK

User/Host

• Up to 32 users, 3 user levels: Administrator, Operator, User

Security

• Password protection, HTTPS encryption, IP filter, Security Audit Log, TLS 1.1/1.2

Network Storage

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client Software

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in Required: IE 10, IE 11
• Plug-in Free: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable via software/browser

Day/Night Switch

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

• 120 dB

Signal-to-Noise Ratio (SNR)

• ≥ 52 dB

Image Enhancement

• BLC, HLC, 3D DNR

Interface

Ethernet

• 1 RJ45 10 M/100 M self-adaptive port

On-Board Storage

• Built-in microSD card slot (up to 512 GB)

Audio

• Input: 1 (3.5 mm, max. amplitude 3.3 Vpp)
• Output: 1 (3.5 mm, max. amplitude 3.3 Vpp)

Alarm

• Input/Output: 1/1

Reset Key

• Yes

Event

Basic Events

• Motion detection (human/vehicle classification), video tampering alarm, exceptions

Smart Events

• Line crossing, intrusion, region entrance/exit, scene change detection

Linkage

• Upload to FTP/NAS/SD card, notify surveillance center, send email, trigger recording/alarm output

Deep Learning

• Face Capture: Yes

General

Power

• 12 VDC: Max. 11.04 W
• PoE: 802.3af, Class 3, Max. 12.5 W

Dimensions

• Camera: Ø135.8 mm × 145.5 mm
• Package: 170 mm × 170 mm × 205 mm

Weight

• Camera: Approx. 1040 g
• With Package: Approx. 1420 g

Storage & Operating Conditions

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: 95% or less (non-condensing)

Languages

• 33 supported

General Functions

• Anti-flicker, heartbeat, privacy mask, flash log, password reset via email, pixel counter

Approvals

EMC

• FCC, CE-EMC, RCM, KC

Safety

• UL, CB, CE-LVD

Environmental

• CE-ROHS, WEEE, REACH

Protection

• IP66, IK10

• High quality imaging with 4 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Built-in microphone for real-time audio security
• Focus on human and vehicle targets classification based on deep learning
• Datasheet

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology
• 180° fisheye view
• Clear imaging against strong back light due to 120 dB true WDR technology
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max. Resolution: 2560 × 1920

• Min. Illumination:

  • Color: 0.017 Lux @ (F2.25, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens

• Focal Length: 1.05 mm

• Field of View:

  • Horizontal: 180°

  • Vertical: 180°

  • Diagonal: 180°

• Focus: Fixed

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F2.25

• Depth of Field: 0.1 m to ∞

DORI Distance

• Detection (D): 21 m

• Observation (O): 8 m

• Recognition (R): 4 m

• Identification (I): 2 m

Illuminator

• Supplement Light Type: IR

• Light Range: Up to 8 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps @ 2560 × 1920 / 2048 × 1536 / 1280 × 960

  • 60 Hz: 30 fps @ 2560 × 1920 / 2048 × 1536 / 1280 × 960

• Sub-Stream:

  • 50 Hz: 25 fps @ 640 × 480

  • 60 Hz: 30 fps @ 640 × 480

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Region of Interest (ROI): 1 fixed region (main stream)

Fisheye Display

• Mounting: Wall, table, ceiling

• Display Modes: 14 modes (Fisheye View, 180° Panorama, 4PTZ, etc.)

Audio

• Audio Type: Mono

• Compression Formats: G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Audio Bit Rate:

  • 64 Kbps (G.711ulaw/alaw)

  • 16 Kbps (G.722.1, G.726)

  • 32–160 Kbps (MP2L2)

  • 16–64 Kbps (AAC-LC)

• Sampling Rate: 8 kHz / 16 kHz

• Environment Noise Filtering: Yes

Network

• Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS

• Simultaneous Live View: Up to 6 channels

• API Support: ONVIF (Profiles S, G, T), ISAPI

• User Management: Up to 32 users (administrator, operator, user)

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Security Features: Password protection, HTTPS encryption, IP filtering, TLS 1.1/1.2, Security audit logs

• Web Browser Support:

  • Live view with plug-in: IE 10+

  • Local access: Chrome 57+, Firefox 52+

• Network Storage: NAS (NFS, SMB/CIFS)


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance (adjustable via client or browser)

• Day/Night Switching: Day, Night, Auto, Schedule

• Image Enhancements: BLC, 3D DNR

• Wide Dynamic Range (WDR): 120 dB

Interface

• Ethernet Port: 1× RJ45 10M/100M self-adaptive

• On-Board Storage: microSD/microSDHC/microSDXC card up to 256 GB

• Built-in Microphone: Yes (-U models)

• Audio I/O:

  • 1 Input (line-in, max 3.3 Vpp, 4.7 KΩ impedance)

  • 1 Output (line-out, max 3.3 Vpp, 100 Ω impedance)

• Alarm I/O: 1 input, 1 output (max. 12 VDC, 30 A)

• Reset Button: Yes

• Power Output: 12 VDC, max. 100 mA

Event Management

• Basic Events: Motion detection, video tampering, exceptions

• Smart Events: Line crossing detection, intrusion detection

• Event Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture/alarm output

General

• Power Supply:

  • 12 VDC ± 25%, 0.5 A, max. 6 W

  • PoE (IEEE 802.3af, Class 3), max. 7.5 W

• Material: ADC12

• Dimensions: Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")

• Package Dimensions: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")

• Weight: Approx. 320 g (0.7 lb)

• Package Weight: Approx. 500 g (1.1 lb)

• Languages Supported: 13 languages (including English, Turkish, Polish, etc.)

• Storage Conditions: -10°C to 50°C, 95% humidity or less (non-condensing)

• Operating Conditions: -10°C to 50°C, 95% humidity or less (non-condensing)

• General Features: Heartbeat, anti-banding, mirror, password protection

Certifications

• EMC: CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS, LOA

• Environment: CE-RoHS compliant

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology
• 180° fisheye view
• Clear imaging against strong back light due to 120 dB true WDR technology
• Audio and alarm interface available
• Datasheet

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max. Resolution: 2560 × 1920

• Min. Illumination:

  • Color: 0.017 Lux @ (F2.25, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens

• Focal Length: 1.05 mm

• Field of View:

  • Horizontal: 180°

  • Vertical: 180°

  • Diagonal: 180°

• Focus: Fixed

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F2.25

• Depth of Field: 0.1 m to ∞

DORI Distance

• Detection (D): 21 m

• Observation (O): 8 m

• Recognition (R): 4 m

• Identification (I): 2 m

Illuminator

• Supplement Light Type: IR

• Light Range: Up to 8 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps @ 2560 × 1920 / 2048 × 1536 / 1280 × 960

  • 60 Hz: 30 fps @ 2560 × 1920 / 2048 × 1536 / 1280 × 960

• Sub-Stream:

  • 50 Hz: 25 fps @ 640 × 480

  • 60 Hz: 30 fps @ 640 × 480

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• Region of Interest (ROI): 1 fixed region (main stream)

Fisheye Display

• Mounting: Wall, table, ceiling

• Display Modes: 14 modes (Fisheye View, 180° Panorama, 4PTZ, etc.)

Audio

• Audio Type: Mono

• Compression Formats: G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Audio Bit Rate:

  • 64 Kbps (G.711ulaw/alaw)

  • 16 Kbps (G.722.1, G.726)

  • 32–160 Kbps (MP2L2)

  • 16–64 Kbps (AAC-LC)

• Sampling Rate: 8 kHz / 16 kHz

• Environment Noise Filtering: Yes

Network

• Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS

• Simultaneous Live View: Up to 6 channels

• API Support: ONVIF (Profiles S, G, T), ISAPI

• User Management: Up to 32 users (administrator, operator, user)

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Security Features: Password protection, HTTPS encryption, IP filtering, TLS 1.1/1.2, Security audit logs

• Web Browser Support:

  • Live view with plug-in: IE 10+

  • Local access: Chrome 57+, Firefox 52+

• Network Storage: NAS (NFS, SMB/CIFS)


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance (adjustable via client or browser)

• Day/Night Switching: Day, Night, Auto, Schedule

• Image Enhancements: BLC, 3D DNR

• Wide Dynamic Range (WDR): 120 dB

Interface

• Ethernet Port: 1× RJ45 10M/100M self-adaptive

• On-Board Storage: microSD/microSDHC/microSDXC card up to 256 GB

• Built-in Microphone: Yes (-U models)

• Audio I/O:

  • 1 Input (line-in, max 3.3 Vpp, 4.7 KΩ impedance)

  • 1 Output (line-out, max 3.3 Vpp, 100 Ω impedance)

• Alarm I/O: 1 input, 1 output (max. 12 VDC, 30 A)

• Reset Button: Yes

• Power Output: 12 VDC, max. 100 mA

Event Management

• Basic Events: Motion detection, video tampering, exceptions

• Smart Events: Line crossing detection, intrusion detection

• Event Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture/alarm output

General

• Power Supply:

  • 12 VDC ± 25%, 0.5 A, max. 6 W

  • PoE (IEEE 802.3af, Class 3), max. 7.5 W

• Material: ADC12

• Dimensions: Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")

• Package Dimensions: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")

• Weight: Approx. 320 g (0.7 lb)

• Package Weight: Approx. 500 g (1.1 lb)

• Languages Supported: 13 languages (including English, Turkish, Polish, etc.)

• Storage Conditions: -10°C to 50°C, 95% humidity or less (non-condensing)

• Operating Conditions: -10°C to 50°C, 95% humidity or less (non-condensing)

• General Features: Heartbeat, anti-banding, mirror, password protection

Certifications

• EMC: CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS, LOA

• Environment: CE-RoHS compliant
