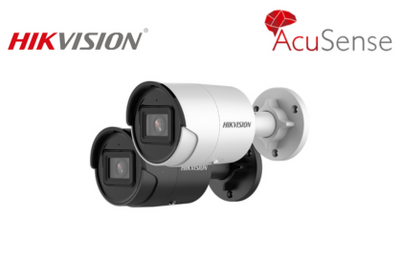

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

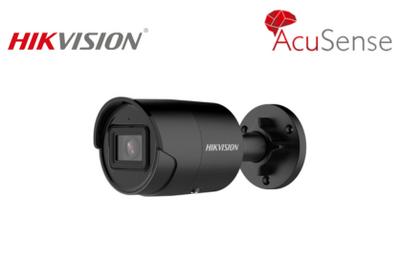

• In Black Colour
• Datasheet

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Specifications

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Supported under certain settings.

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Additional Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound (-U model)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Sampling Rates: 8/16/32/44.1/48 kHz

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

API

• ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Users

• Up to 32 users with 3 levels: administrator, operator, user

Security

• Password protection, HTTPS encryption, 802.1X authentication, and more

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10/100M port
• Storage: microSD card (up to 512 GB)
• Built-in Microphone: Yes (-U model)
• Reset Key: Yes

General

• Power: 12 VDC or PoE (max. 7.2 W)
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 490 g
• Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95%

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• In Black Colour
• Datasheet

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Specifications

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Supported under certain settings.

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Additional Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound (-U model)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Sampling Rates: 8/16/32/44.1/48 kHz

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

API

• ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Users

• Up to 32 users with 3 levels: administrator, operator, user

Security

• Password protection, HTTPS encryption, 802.1X authentication, and more

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10/100M port
• Storage: microSD card (up to 512 GB)
• Built-in Microphone: Yes (-U model)
• Reset Key: Yes

General

• Power: 12 VDC or PoE (max. 7.2 W)
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 490 g
• Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95%

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• In Black Colour
• Datasheet

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Specifications

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Supported under certain settings.

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Additional Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound (-U model)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Sampling Rates: 8/16/32/44.1/48 kHz

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

API

• ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Users

• Up to 32 users with 3 levels: administrator, operator, user

Security

• Password protection, HTTPS encryption, 802.1X authentication, and more

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10/100M port
• Storage: microSD card (up to 512 GB)
• Built-in Microphone: Yes (-U model)
• Reset Key: Yes

General

• Power: 12 VDC or PoE (max. 7.2 W)
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 490 g
• Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95%

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Specifications

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Supported under certain settings.

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Additional Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound (-U model)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Sampling Rates: 8/16/32/44.1/48 kHz

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

API

• ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Users

• Up to 32 users with 3 levels: administrator, operator, user

Security

• Password protection, HTTPS encryption, 802.1X authentication, and more

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10/100M port
• Storage: microSD card (up to 512 GB)
• Built-in Microphone: Yes (-U model)
• Reset Key: Yes

General

• Power: 12 VDC or PoE (max. 7.2 W)
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 490 g
• Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95%

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
• Datasheet

Image Sensor

• Type: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
• 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
• 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

Lens Specifications

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Supported under certain settings.

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Additional Features

• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio

• Audio Type: Mono sound (-U model)
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Sampling Rates: 8/16/32/44.1/48 kHz

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

API

• ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Users

• Up to 32 users with 3 levels: administrator, operator, user

Security

• Password protection, HTTPS encryption, 802.1X authentication, and more

Image Features

• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10/100M port
• Storage: microSD card (up to 512 GB)
• Built-in Microphone: Yes (-U model)
• Reset Key: Yes

General

• Power: 12 VDC or PoE (max. 7.2 W)
• Dimensions: Ø70 mm × 161.7 mm
• Weight: Approx. 490 g
• Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95%

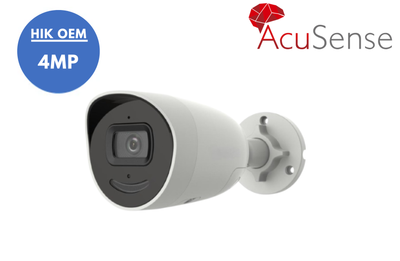

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Image & Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max Resolution: 2688 × 1520

• Minimum Illumination:

  • Color: 0.003 Lux @ F1.4 (AGC ON)

  • B/W: 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Signal-to-Noise Ratio: ≥ 52 dB

• Wide Dynamic Range: 120 dB

Angle Adjustment

• Pan: 0°–360°

• Tilt: 0°–90°

• Rotate: 0°–360°

Lens

• Lens Type: Fixed focal

• Available Focal Lengths: 2.8 mm / 4 mm / 6 mm

• Aperture: F1.4

• Iris: Fixed

• Lens Mount: M12

Field of View

DORI Distances

IR & Illumination

• IR Type: Infrared

• IR Range: Up to 40 m

• IR Wavelength: 850 nm

• Smart IR: Yes

Video

Streaming Performance

Main Stream

• 50 Hz: 25 fps @ 2688 × 1520 / 1080p / 720p

• 60 Hz: 30 fps @ 2688 × 1520 / 1080p / 720p

Sub Stream

• Up to 30 fps @ 720p / D1 / CIF

Third Stream*

• 10 fps @ 1080p / 720p / D1 / CIF

* Available under specific configurations.

Compression & Encoding

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

• Bit Rate: 32 Kbps – 8 Mbps

• Bit Rate Control: CBR / VBR

• SVC: Supported (H.264 / H.265)

• ROI: 1 fixed region (main & sub stream)

Audio

• Audio Type: Mono

• Built-in Microphone: Yes

• Built-in Speaker: Yes (1.2 W, 95 dB @ 10 cm)

• Noise Filtering: Yes

Audio Codecs
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Sampling Rate
8 kHz to 48 kHz

Smart Analytics

Basic Events

• Motion detection (human & vehicle classification)

• Video tampering

• Exception detection

Smart Events

• Line crossing

• Intrusion detection

• Region entrance / exit

• Scene change detection

AI Functions

• Face capture

• Perimeter protection (human & vehicle filtering)

Alarm Linkage

• FTP / NAS / memory card upload

• Trigger recording & snapshot

• Audible warning & strobe

• Email notification

Network & Security

• Live View: Up to 6 simultaneous channels

• Users: Up to 32 (Admin / Operator / User)

Protocols
TCP/IP, HTTP(S), FTP, DHCP, DNS, RTSP, RTP, SMTP, NTP, UPnP, IGMP,
IPv4/IPv6, QoS, 802.1X, SNMP, SSL/TLS, PPPoE, ARP, WebSocket

API Support
ONVIF (Profile S / G / T), ISAPI, SDK

Security Features

• HTTPS encryption

• Strong password enforcement

• IP address filtering

• Security audit log

• TLS 1.1 / 1.2, digest authentication

Storage & Client

• Local Storage: microSD / microSDHC / microSDXC (up to 512 GB)

• Network Storage: NAS (NFS / SMB), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in: IE 10 / 11

• Plug-in Free: Chrome 57+, Firefox 52+, Edge 89+

Interface

• Built-in microphone

• Built-in speaker

• Reset button

• 1 × RJ45 10/100 Mbps Ethernet

Power

• DC Power: 12 VDC ±25%, max. 6.5 W

• PoE: 802.3af, Class 3, max. 8 W

• Protection: Reverse polarity protection

Mechanical & Environment

• Material: Metal

• Ingress Protection: IP67

• Operating Temperature: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

Dimensions

• 72.9 × 73.3 × 191.1 mm

Weight

• Net: ~590 g

• With packaging: ~820 g

Certifications

• EMC: FCC, CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environmental: RoHS, WEEE, REACH

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Image & Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max Resolution: 2688 × 1520

• Minimum Illumination:

  • Color: 0.003 Lux @ F1.4 (AGC ON)

  • B/W: 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Signal-to-Noise Ratio: ≥ 52 dB

• Wide Dynamic Range: 120 dB

Angle Adjustment

• Pan: 0°–360°

• Tilt: 0°–90°

• Rotate: 0°–360°

Lens

• Lens Type: Fixed focal

• Available Focal Lengths: 2.8 mm / 4 mm / 6 mm

• Aperture: F1.4

• Iris: Fixed

• Lens Mount: M12

Field of View

DORI Distances

IR & Illumination

• IR Type: Infrared

• IR Range: Up to 40 m

• IR Wavelength: 850 nm

• Smart IR: Yes

Video

Streaming Performance

Main Stream

• 50 Hz: 25 fps @ 2688 × 1520 / 1080p / 720p

• 60 Hz: 30 fps @ 2688 × 1520 / 1080p / 720p

Sub Stream

• Up to 30 fps @ 720p / D1 / CIF

Third Stream*

• 10 fps @ 1080p / 720p / D1 / CIF

* Available under specific configurations.

Compression & Encoding

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

• Bit Rate: 32 Kbps – 8 Mbps

• Bit Rate Control: CBR / VBR

• SVC: Supported (H.264 / H.265)

• ROI: 1 fixed region (main & sub stream)

Audio

• Audio Type: Mono

• Built-in Microphone: Yes

• Built-in Speaker: Yes (1.2 W, 95 dB @ 10 cm)

• Noise Filtering: Yes

Audio Codecs
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Sampling Rate
8 kHz to 48 kHz

Smart Analytics

Basic Events

• Motion detection (human & vehicle classification)

• Video tampering

• Exception detection

Smart Events

• Line crossing

• Intrusion detection

• Region entrance / exit

• Scene change detection

AI Functions

• Face capture

• Perimeter protection (human & vehicle filtering)

Alarm Linkage

• FTP / NAS / memory card upload

• Trigger recording & snapshot

• Audible warning & strobe

• Email notification

Network & Security

• Live View: Up to 6 simultaneous channels

• Users: Up to 32 (Admin / Operator / User)

Protocols
TCP/IP, HTTP(S), FTP, DHCP, DNS, RTSP, RTP, SMTP, NTP, UPnP, IGMP,
IPv4/IPv6, QoS, 802.1X, SNMP, SSL/TLS, PPPoE, ARP, WebSocket

API Support
ONVIF (Profile S / G / T), ISAPI, SDK

Security Features

• HTTPS encryption

• Strong password enforcement

• IP address filtering

• Security audit log

• TLS 1.1 / 1.2, digest authentication

Storage & Client

• Local Storage: microSD / microSDHC / microSDXC (up to 512 GB)

• Network Storage: NAS (NFS / SMB), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in: IE 10 / 11

• Plug-in Free: Chrome 57+, Firefox 52+, Edge 89+

Interface

• Built-in microphone

• Built-in speaker

• Reset button

• 1 × RJ45 10/100 Mbps Ethernet

Power

• DC Power: 12 VDC ±25%, max. 6.5 W

• PoE: 802.3af, Class 3, max. 8 W

• Protection: Reverse polarity protection

Mechanical & Environment

• Material: Metal

• Ingress Protection: IP67

• Operating Temperature: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

Dimensions

• 72.9 × 73.3 × 191.1 mm

Weight

• Net: ~590 g

• With packaging: ~820 g

Certifications

• EMC: FCC, CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environmental: RoHS, WEEE, REACH
