• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160 (8 MP)

• Min. Illumination:

  • Color: 0.0008 Lux @ (F1.0, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm / 4 mm optional)

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

Focal Length & Field of View

• 2.8 mm:

  • Horizontal: 108.8°

  • Vertical: 56.4°

  • Diagonal: 134.3°

• 4 mm:

  • Horizontal: 93.3°

  • Vertical: 47.2°

  • Diagonal: 114.2°

Depth of Field

• 2.8 mm: 3.3 m to ∞

• 4 mm: 3.8 m to ∞

DORI

• 2.8 mm:

  • Detect: 89 m

  • Observe: 35 m

  • Recognise: 17 m

  • Identify: 8 m

• 4 mm:

  • Detect: 109 m

  • Observe: 43 m

  • Recognise: 21 m

  • Identify: 10 m

Illuminator

• Supplement Light Type: IR

• IR Wavelength: 850 nm

• IR Range: Up to 30 m

• Smart Supplement Light: Yes

Video

Main Stream

• 50 Hz:

  • 25 fps @ 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

• 60 Hz:

  • 24 fps @ 3840 × 2160

  • 30 fps @ 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

Sub-Stream

• 50 Hz: 25 fps @ 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 30 fps @ 1280 × 720 / 640 × 480 / 640 × 360

Third Stream*

• 50 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

*Supported under certain settings

Compression

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub-Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

Bit Rate & Control

• Video Bit Rate: 32 Kbps to 16 Mbps

• Bit Rate Control: CBR / VBR

• H.264 Profile: Baseline / Main / High

• H.265 Profile: Main

• SVC: Supported (H.264 & H.265)

• ROI: 1 fixed region (main & sub stream)

Audio (-U)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • AAC-LC: 16–64 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

• Sampling Rate: 8 / 16 / 32 / 44.1 / 48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32

  • Levels: Administrator / Operator / User

Security

• Password protection, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, digest authentication, WSSE, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, MAC address authentication

Storage

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Client & Browser

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser:

  • Plug-in required: IE 10 / IE 11

  • Plug-in free: Chrome 57+, Firefox 52+, Edge 89+


• Image Parameter Switch: Yes

• Adjustments: Rotate, brightness, contrast, saturation, sharpness, gain, white balance

• Day/Night Mode: Day / Night / Auto / Schedule

• Enhancement: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 120 dB

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10/100 Mbps

• On-Board Storage: microSD / microSDHC / microSDXC up to 512 GB

• Built-in Microphone: Yes (-U)

• Reset Button: Yes

Event

• Basic Events: Motion detection (human & vehicle), video tampering, exception

• Linkage: FTP/NAS/SD, notify center, email, recording, snapshot

• Smart Event: Scene change detection

Deep Learning

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human & vehicle target classification

General

• Power:

  • 12 VDC ±25%, 0.54 A, max. 6.5 W

  • PoE: IEEE 802.3af, Class 3, max. 8 W

• Material: Full metal (cover & body)

• Dimensions: Ø138.3 × 115.4 mm

• Weight: Approx. 775 g

• With Package: Approx. 1231 g

• Operating Temperature: −30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

• Languages: 33 languages

Certifications

• EMC: CE, ICES-003, RCM

• Safety: CB, CE-LVD

• Environment: RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160 (8 MP)

• Min. Illumination:

  • Color: 0.0008 Lux @ (F1.0, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm / 4 mm optional)

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

Focal Length & Field of View

• 2.8 mm:

  • Horizontal: 108.8°

  • Vertical: 56.4°

  • Diagonal: 134.3°

• 4 mm:

  • Horizontal: 93.3°

  • Vertical: 47.2°

  • Diagonal: 114.2°

Depth of Field

• 2.8 mm: 3.3 m to ∞

• 4 mm: 3.8 m to ∞

DORI

• 2.8 mm:

  • Detect: 89 m

  • Observe: 35 m

  • Recognise: 17 m

  • Identify: 8 m

• 4 mm:

  • Detect: 109 m

  • Observe: 43 m

  • Recognise: 21 m

  • Identify: 10 m

Illuminator

• Supplement Light Type: IR

• IR Wavelength: 850 nm

• IR Range: Up to 30 m

• Smart Supplement Light: Yes

Video

Main Stream

• 50 Hz:

  • 25 fps @ 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

• 60 Hz:

  • 24 fps @ 3840 × 2160

  • 30 fps @ 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

Sub-Stream

• 50 Hz: 25 fps @ 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 30 fps @ 1280 × 720 / 640 × 480 / 640 × 360

Third Stream*

• 50 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

*Supported under certain settings

Compression

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub-Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

Bit Rate & Control

• Video Bit Rate: 32 Kbps to 16 Mbps

• Bit Rate Control: CBR / VBR

• H.264 Profile: Baseline / Main / High

• H.265 Profile: Main

• SVC: Supported (H.264 & H.265)

• ROI: 1 fixed region (main & sub stream)

Audio (-U)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • AAC-LC: 16–64 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

• Sampling Rate: 8 / 16 / 32 / 44.1 / 48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32

  • Levels: Administrator / Operator / User

Security

• Password protection, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, digest authentication, WSSE, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, MAC address authentication

Storage

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Client & Browser

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser:

  • Plug-in required: IE 10 / IE 11

  • Plug-in free: Chrome 57+, Firefox 52+, Edge 89+


• Image Parameter Switch: Yes

• Adjustments: Rotate, brightness, contrast, saturation, sharpness, gain, white balance

• Day/Night Mode: Day / Night / Auto / Schedule

• Enhancement: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 120 dB

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10/100 Mbps

• On-Board Storage: microSD / microSDHC / microSDXC up to 512 GB

• Built-in Microphone: Yes (-U)

• Reset Button: Yes

Event

• Basic Events: Motion detection (human & vehicle), video tampering, exception

• Linkage: FTP/NAS/SD, notify center, email, recording, snapshot

• Smart Event: Scene change detection

Deep Learning

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human & vehicle target classification

General

• Power:

  • 12 VDC ±25%, 0.54 A, max. 6.5 W

  • PoE: IEEE 802.3af, Class 3, max. 8 W

• Material: Full metal (cover & body)

• Dimensions: Ø138.3 × 115.4 mm

• Weight: Approx. 775 g

• With Package: Approx. 1231 g

• Operating Temperature: −30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

• Languages: 33 languages

Certifications

• EMC: CE, ICES-003, RCM

• Safety: CB, CE-LVD

• Environment: RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160 (8 MP)

• Min. Illumination:

  • Color: 0.0008 Lux @ (F1.0, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm / 4 mm optional)

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

Focal Length & Field of View

• 2.8 mm:

  • Horizontal: 108.8°

  • Vertical: 56.4°

  • Diagonal: 134.3°

• 4 mm:

  • Horizontal: 93.3°

  • Vertical: 47.2°

  • Diagonal: 114.2°

Depth of Field

• 2.8 mm: 3.3 m to ∞

• 4 mm: 3.8 m to ∞

DORI

• 2.8 mm:

  • Detect: 89 m

  • Observe: 35 m

  • Recognise: 17 m

  • Identify: 8 m

• 4 mm:

  • Detect: 109 m

  • Observe: 43 m

  • Recognise: 21 m

  • Identify: 10 m

Illuminator

• Supplement Light Type: IR

• IR Wavelength: 850 nm

• IR Range: Up to 30 m

• Smart Supplement Light: Yes

Video

Main Stream

• 50 Hz:

  • 25 fps @ 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

• 60 Hz:

  • 24 fps @ 3840 × 2160

  • 30 fps @ 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720

Sub-Stream

• 50 Hz: 25 fps @ 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 30 fps @ 1280 × 720 / 640 × 480 / 640 × 360

Third Stream*

• 50 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

• 60 Hz: 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360

*Supported under certain settings

Compression

• Main Stream: H.265 / H.264 / H.265+ / H.264+

• Sub-Stream: H.265 / H.264 / MJPEG

• Third Stream: H.265 / H.264

Bit Rate & Control

• Video Bit Rate: 32 Kbps to 16 Mbps

• Bit Rate Control: CBR / VBR

• H.264 Profile: Baseline / Main / High

• H.265 Profile: Main

• SVC: Supported (H.264 & H.265)

• ROI: 1 fixed region (main & sub stream)

Audio (-U)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • AAC-LC: 16–64 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

• Sampling Rate: 8 / 16 / 32 / 44.1 / 48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32

  • Levels: Administrator / Operator / User

Security

• Password protection, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, digest authentication, WSSE, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, MAC address authentication

Storage

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Client & Browser

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser:

  • Plug-in required: IE 10 / IE 11

  • Plug-in free: Chrome 57+, Firefox 52+, Edge 89+


• Image Parameter Switch: Yes

• Adjustments: Rotate, brightness, contrast, saturation, sharpness, gain, white balance

• Day/Night Mode: Day / Night / Auto / Schedule

• Enhancement: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• WDR: 120 dB

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10/100 Mbps

• On-Board Storage: microSD / microSDHC / microSDXC up to 512 GB

• Built-in Microphone: Yes (-U)

• Reset Button: Yes

Event

• Basic Events: Motion detection (human & vehicle), video tampering, exception

• Linkage: FTP/NAS/SD, notify center, email, recording, snapshot

• Smart Event: Scene change detection

Deep Learning

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance/exiting

  • Human & vehicle target classification

General

• Power:

  • 12 VDC ±25%, 0.54 A, max. 6.5 W

  • PoE: IEEE 802.3af, Class 3, max. 8 W

• Material: Full metal (cover & body)

• Dimensions: Ø138.3 × 115.4 mm

• Weight: Approx. 775 g

• With Package: Approx. 1231 g

• Operating Temperature: −30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

• Languages: 33 languages

Certifications

• EMC: CE, ICES-003, RCM

• Safety: CB, CE-LVD

• Environment: RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529-2013)

• High quality imaging with 8 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

IMAGING

• Sensor: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K)

• Min Illumination:

  • Color: 0.0008 Lux @ F1.0 (AGC ON)

  • B/W: 0 Lux (IR ON)

• Shutter: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS & COVERAGE

• Lens: Fixed focal (2.8 mm / 4 mm)

• Mount: M16

• Iris: Fixed

• Aperture: F1.0

Field of View

• 2.8 mm: 105° (H) / 56° (V) / 130° (D)

• 4 mm: 90° (H) / 47° (V) / 111° (D)

Depth of Field

• 2.8 mm: 3.3 m – ∞

• 4 mm: 3.8 m – ∞

DORI RANGE

• 2.8 mm: Detect 89 m | Observe 35 m | Recognize 17 m | Identify 8 m

• 4 mm: Detect 109 m | Observe 43 m | Recognize 21 m | Identify 10 m

IR ILLUMINATION

• IR Type: Infrared

• Range: Up to 30 m

• Wavelength: 850 nm

• Smart IR: Yes

VIDEO STREAMS

Main Stream

• 50 Hz: 25 fps @ 4K / 3.2 MP / 4 MP / 1080p / 720p

• 60 Hz:

  • 24 fps @ 4K

  • 30 fps @ 3.2 MP / 4 MP / 1080p / 720p

Sub Stream

• 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p

Third Stream*

• 10 fps @ 1080p / 720p / VGA / 360p

*Available under certain settings.

VIDEO ENCODING

• Main: H.265 / H.264 / H.265+ / H.264+

• Sub: H.265 / H.264 / MJPEG

• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Control: CBR / VBR

• Profiles: H.264 Baseline/Main/High, H.265 Main

• SVC: H.264 / H.265

• ROI: 1 fixed region (Main & Sub)

AUDIO

• Built-in: 2 microphones + speaker (105 dB @ 10 cm)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate: 8 – 320 Kbps (codec dependent)

• Sampling: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O: Line In / Line Out

NETWORK & SECURITY

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

• Security: HTTPS, 802.1X, IP filter, digest auth, watermark, TLS 1.1/1.2/1.3

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification

• Tamper Alarm: Yes

• Smart Event: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VAC/VDC, 1 A)

• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

BUILD & ENVIRONMENT

• Housing: Full metal

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (Packaged)

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (Non-condensing)

• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, flash log, anti-banding, pixel counter, email reset

• Languages: 33 supported

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

COMPLIANCE

• EMC: CE, RCM, IC, KC

• Safety: UL / IEC / EN 62368-1

• Environment: RoHS, WEEE, REACH

• High quality imaging with 8 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

IMAGING

• Sensor: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K)

• Min Illumination:

  • Color: 0.0008 Lux @ F1.0 (AGC ON)

  • B/W: 0 Lux (IR ON)

• Shutter: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS & COVERAGE

• Lens: Fixed focal (2.8 mm / 4 mm)

• Mount: M16

• Iris: Fixed

• Aperture: F1.0

Field of View

• 2.8 mm: 105° (H) / 56° (V) / 130° (D)

• 4 mm: 90° (H) / 47° (V) / 111° (D)

Depth of Field

• 2.8 mm: 3.3 m – ∞

• 4 mm: 3.8 m – ∞

DORI RANGE

• 2.8 mm: Detect 89 m | Observe 35 m | Recognize 17 m | Identify 8 m

• 4 mm: Detect 109 m | Observe 43 m | Recognize 21 m | Identify 10 m

IR ILLUMINATION

• IR Type: Infrared

• Range: Up to 30 m

• Wavelength: 850 nm

• Smart IR: Yes

VIDEO STREAMS

Main Stream

• 50 Hz: 25 fps @ 4K / 3.2 MP / 4 MP / 1080p / 720p

• 60 Hz:

  • 24 fps @ 4K

  • 30 fps @ 3.2 MP / 4 MP / 1080p / 720p

Sub Stream

• 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p

Third Stream*

• 10 fps @ 1080p / 720p / VGA / 360p

*Available under certain settings.

VIDEO ENCODING

• Main: H.265 / H.264 / H.265+ / H.264+

• Sub: H.265 / H.264 / MJPEG

• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Control: CBR / VBR

• Profiles: H.264 Baseline/Main/High, H.265 Main

• SVC: H.264 / H.265

• ROI: 1 fixed region (Main & Sub)

AUDIO

• Built-in: 2 microphones + speaker (105 dB @ 10 cm)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate: 8 – 320 Kbps (codec dependent)

• Sampling: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O: Line In / Line Out

NETWORK & SECURITY

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

• Security: HTTPS, 802.1X, IP filter, digest auth, watermark, TLS 1.1/1.2/1.3

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification

• Tamper Alarm: Yes

• Smart Event: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VAC/VDC, 1 A)

• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

BUILD & ENVIRONMENT

• Housing: Full metal

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (Packaged)

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (Non-condensing)

• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, flash log, anti-banding, pixel counter, email reset

• Languages: 33 supported

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

COMPLIANCE

• EMC: CE, RCM, IC, KC

• Safety: UL / IEC / EN 62368-1

• Environment: RoHS, WEEE, REACH

• High quality imaging with 8 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

IMAGING

• Sensor: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K)

• Min Illumination:

  • Color: 0.0008 Lux @ F1.0 (AGC ON)

  • B/W: 0 Lux (IR ON)

• Shutter: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS & COVERAGE

• Lens: Fixed focal (2.8 mm / 4 mm)

• Mount: M16

• Iris: Fixed

• Aperture: F1.0

Field of View

• 2.8 mm: 105° (H) / 56° (V) / 130° (D)

• 4 mm: 90° (H) / 47° (V) / 111° (D)

Depth of Field

• 2.8 mm: 3.3 m – ∞

• 4 mm: 3.8 m – ∞

DORI RANGE

• 2.8 mm: Detect 89 m | Observe 35 m | Recognize 17 m | Identify 8 m

• 4 mm: Detect 109 m | Observe 43 m | Recognize 21 m | Identify 10 m

IR ILLUMINATION

• IR Type: Infrared

• Range: Up to 30 m

• Wavelength: 850 nm

• Smart IR: Yes

VIDEO STREAMS

Main Stream

• 50 Hz: 25 fps @ 4K / 3.2 MP / 4 MP / 1080p / 720p

• 60 Hz:

  • 24 fps @ 4K

  • 30 fps @ 3.2 MP / 4 MP / 1080p / 720p

Sub Stream

• 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p

Third Stream*

• 10 fps @ 1080p / 720p / VGA / 360p

*Available under certain settings.

VIDEO ENCODING

• Main: H.265 / H.264 / H.265+ / H.264+

• Sub: H.265 / H.264 / MJPEG

• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Control: CBR / VBR

• Profiles: H.264 Baseline/Main/High, H.265 Main

• SVC: H.264 / H.265

• ROI: 1 fixed region (Main & Sub)

AUDIO

• Built-in: 2 microphones + speaker (105 dB @ 10 cm)

• Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate: 8 – 320 Kbps (codec dependent)

• Sampling: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O: Line In / Line Out

NETWORK & SECURITY

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

• Security: HTTPS, 802.1X, IP filter, digest auth, watermark, TLS 1.1/1.2/1.3

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification

• Tamper Alarm: Yes

• Smart Event: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VAC/VDC, 1 A)

• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

BUILD & ENVIRONMENT

• Housing: Full metal

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (Packaged)

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (Non-condensing)

• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, flash log, anti-banding, pixel counter, email reset

• Languages: 33 supported

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

COMPLIANCE

• EMC: CE, RCM, IC, KC

• Safety: UL / IEC / EN 62368-1

• Environment: RoHS, WEEE, REACH

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

CAMERA

• Sensor: 1/2.4" Progressive Scan CMOS
• Resolution: 3200 × 1800
• Min Illumination: 0.001 Lux (Color, F1.0, AGC ON) / 0 Lux (IR ON)
• Shutter: 1/3 s – 1/100,000 s
• Day/Night: IR Cut Filter
• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS

• Type: Fixed focal
• Options: 2.8 mm / 4 mm
• Mount: M12
• Iris: Fixed
• Aperture: F1.0

Field of View
• 2.8 mm: H 114.8° / V 60° / D 143.5°
• 4 mm: H 94° / V 50.2° / D 112°

Depth of Field
• 2.8 mm: 1.7 m – ∞
• 4 mm: 2.2 m – ∞

DORI

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m
• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

ILLUMINATION

• Light Type: IR
• IR Distance: Up to 30 m
• IR Wavelength: 850 nm
• Smart IR: Yes

VIDEO

Frame Rate
• Main Stream (50 Hz): 25 fps @ 3200×1800 / 2688×1520 / 1080p / 720p
• Main Stream (60 Hz): 24 fps @ 3200×1800, 30 fps @ 2688×1520 / 1080p / 720p
• Sub Stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p
• Third Stream*: 10 fps @ 1080p / 720p / VGA / 360p

*Third stream available under certain settings.

Compression
• Main: H.265 / H.264 / H.265+ / H.264+
• Sub: H.265 / H.264 / MJPEG
• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps
• Control: CBR / VBR
• Profiles: H.264 Baseline/Main/High, H.265 Main
• SVC: H.264 / H.265
• ROI: 1 region (Main & Sub)

AUDIO (-U MODELS)

• Codecs: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Bit Rate: 8 Kbps – 320 Kbps (codec dependent)
• Sampling: 8 / 16 / 32 / 48 kHz
• Noise Filter: Yes
• Built-in Mic: Yes

NETWORK

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP
• ONVIF: Profile S / G / T
• API: ONVIF, ISAPI, SDK, ISUP
• Live View: Up to 6 channels
• Users: Up to 32 (Admin / Operator / User)

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB
• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification
• Tamper Alarm: Yes
• Smart Event: Scene Change Detection
• AI Functions:
– Face Capture
– Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps
• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 6.5 W
• PoE: IEEE 802.3af Class 3, Max 8 W

PHYSICAL

• Material: Full Metal
• Dimensions: Ø138.3 × 115.4 mm
• Weight: ~770 g (Net), ~1040 g (With box)

ENVIRONMENT

• Operating Temp: -30 °C to 60 °C
• Humidity: ≤95% (Non-condensing)
• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, anti-banding, pixel counter, email reset
• Languages: 33 supported

CERTIFICATIONS

• EMC: CE, RCM, IC, KC
• Safety: IEC / EN 62368-1
• Environment: RoHS, WEEE, REACH

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

CAMERA

• Sensor: 1/2.4" Progressive Scan CMOS
• Resolution: 3200 × 1800
• Min Illumination: 0.001 Lux (Color, F1.0, AGC ON) / 0 Lux (IR ON)
• Shutter: 1/3 s – 1/100,000 s
• Day/Night: IR Cut Filter
• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS

• Type: Fixed focal
• Options: 2.8 mm / 4 mm
• Mount: M12
• Iris: Fixed
• Aperture: F1.0

Field of View
• 2.8 mm: H 114.8° / V 60° / D 143.5°
• 4 mm: H 94° / V 50.2° / D 112°

Depth of Field
• 2.8 mm: 1.7 m – ∞
• 4 mm: 2.2 m – ∞

DORI

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m
• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

ILLUMINATION

• Light Type: IR
• IR Distance: Up to 30 m
• IR Wavelength: 850 nm
• Smart IR: Yes

VIDEO

Frame Rate
• Main Stream (50 Hz): 25 fps @ 3200×1800 / 2688×1520 / 1080p / 720p
• Main Stream (60 Hz): 24 fps @ 3200×1800, 30 fps @ 2688×1520 / 1080p / 720p
• Sub Stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p
• Third Stream*: 10 fps @ 1080p / 720p / VGA / 360p

*Third stream available under certain settings.

Compression
• Main: H.265 / H.264 / H.265+ / H.264+
• Sub: H.265 / H.264 / MJPEG
• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps
• Control: CBR / VBR
• Profiles: H.264 Baseline/Main/High, H.265 Main
• SVC: H.264 / H.265
• ROI: 1 region (Main & Sub)

AUDIO (-U MODELS)

• Codecs: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Bit Rate: 8 Kbps – 320 Kbps (codec dependent)
• Sampling: 8 / 16 / 32 / 48 kHz
• Noise Filter: Yes
• Built-in Mic: Yes

NETWORK

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP
• ONVIF: Profile S / G / T
• API: ONVIF, ISAPI, SDK, ISUP
• Live View: Up to 6 channels
• Users: Up to 32 (Admin / Operator / User)

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB
• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification
• Tamper Alarm: Yes
• Smart Event: Scene Change Detection
• AI Functions:
– Face Capture
– Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps
• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 6.5 W
• PoE: IEEE 802.3af Class 3, Max 8 W

PHYSICAL

• Material: Full Metal
• Dimensions: Ø138.3 × 115.4 mm
• Weight: ~770 g (Net), ~1040 g (With box)

ENVIRONMENT

• Operating Temp: -30 °C to 60 °C
• Humidity: ≤95% (Non-condensing)
• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, anti-banding, pixel counter, email reset
• Languages: 33 supported

CERTIFICATIONS

• EMC: CE, RCM, IC, KC
• Safety: IEC / EN 62368-1
• Environment: RoHS, WEEE, REACH

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

CAMERA

• Sensor: 1/2.4" Progressive Scan CMOS
• Resolution: 3200 × 1800
• Min Illumination: 0.001 Lux (Color, F1.0, AGC ON) / 0 Lux (IR ON)
• Shutter: 1/3 s – 1/100,000 s
• Day/Night: IR Cut Filter
• Adjustment: Pan 0–360° / Tilt 0–75° / Rotate 0–360°

LENS

• Type: Fixed focal
• Options: 2.8 mm / 4 mm
• Mount: M12
• Iris: Fixed
• Aperture: F1.0

Field of View
• 2.8 mm: H 114.8° / V 60° / D 143.5°
• 4 mm: H 94° / V 50.2° / D 112°

Depth of Field
• 2.8 mm: 1.7 m – ∞
• 4 mm: 2.2 m – ∞

DORI

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m
• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

ILLUMINATION

• Light Type: IR
• IR Distance: Up to 30 m
• IR Wavelength: 850 nm
• Smart IR: Yes

VIDEO

Frame Rate
• Main Stream (50 Hz): 25 fps @ 3200×1800 / 2688×1520 / 1080p / 720p
• Main Stream (60 Hz): 24 fps @ 3200×1800, 30 fps @ 2688×1520 / 1080p / 720p
• Sub Stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 720p / VGA / 360p
• Third Stream*: 10 fps @ 1080p / 720p / VGA / 360p

*Third stream available under certain settings.

Compression
• Main: H.265 / H.264 / H.265+ / H.264+
• Sub: H.265 / H.264 / MJPEG
• Third: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps
• Control: CBR / VBR
• Profiles: H.264 Baseline/Main/High, H.265 Main
• SVC: H.264 / H.265
• ROI: 1 region (Main & Sub)

AUDIO (-U MODELS)

• Codecs: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Bit Rate: 8 Kbps – 320 Kbps (codec dependent)
• Sampling: 8 / 16 / 32 / 48 kHz
• Noise Filter: Yes
• Built-in Mic: Yes

NETWORK

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, PPPoE, WebSocket, SRTP, SFTP
• ONVIF: Profile S / G / T
• API: ONVIF, ISAPI, SDK, ISUP
• Live View: Up to 6 channels
• Users: Up to 32 (Admin / Operator / User)

STORAGE

• Edge Storage: microSD / SDHC / SDXC up to 512 GB
• Network Storage: NAS (NFS / SMB), ANR

EVENTS & AI

• Motion Detection: Human & Vehicle classification
• Tamper Alarm: Yes
• Smart Event: Scene Change Detection
• AI Functions:
– Face Capture
– Perimeter Protection (Line crossing, intrusion, entry, exit)

INTERFACES

• Ethernet: 1× RJ45 10/100 Mbps
• Reset Button: Yes

POWER

• DC: 12 VDC ±25%, Max 6.5 W
• PoE: IEEE 802.3af Class 3, Max 8 W

PHYSICAL

• Material: Full Metal
• Dimensions: Ø138.3 × 115.4 mm
• Weight: ~770 g (Net), ~1040 g (With box)

ENVIRONMENT

• Operating Temp: -30 °C to 60 °C
• Humidity: ≤95% (Non-condensing)
• Protection: IP67

SYSTEM

• Functions: Heartbeat, mirror, anti-banding, pixel counter, email reset
• Languages: 33 supported

CERTIFICATIONS

• EMC: CE, RCM, IC, KC
• Safety: IEC / EN 62368-1
• Environment: RoHS, WEEE, REACH

• High quality imaging with 6 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Imaging

• Sensor: 1/2.4" Progressive Scan CMOS

• Max Resolution: 3200 × 1800

• Min Illumination: Color 0.001 Lux @ F1.0 (AGC ON), B/W 0 Lux (IR ON)

• Shutter Speed: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

Lens & Coverage

• Lens Type: Fixed focal

• Focal Length Options: 2.8 mm / 4 mm

• Aperture: F1.0

• Lens Mount: M12

• Field of View (2.8 mm): H 115° / V 60° / D 144°

• Field of View (4 mm): H 94° / V 50° / D 112°

• Depth of Field:

  • 2.8 mm: 1.7 m – ∞

  • 4 mm: 2.2 m – ∞

DORI Performance

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m

• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

IR & Illumination

• Supplement Light Type: IR

• IR Range: Up to 30 m

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream:

  • 25 fps @ 3200×1800 / 2688×1520 / 1920×1080 / 1280×720 (50 Hz)

  • 30 fps @ same resolutions (60 Hz)

• Sub Stream:

  • 25 fps (50 Hz) / 30 fps (60 Hz) @ 1280×720 / 640×480 / 640×360

• Third Stream*: 10 fps @ 1920×1080 / 1280×720 / 640×480 / 640×360

• Video Compression:

  • Main: H.265 / H.264 / H.265+ / H.264+

  • Sub: H.265 / H.264 / MJPEG

  • Third*: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Bit Rate Control: CBR / VBR

• SVC: H.264 / H.265

• ROI: 1 fixed region (main & sub)

*Third stream supported under certain settings.

Audio

• Built-in Audio: 2 microphones + speaker

• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Audio Bit Rate: 8 Kbps – 320 Kbps (codec dependent)

• Sampling Rate: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O:

  • 1× Line In (3.3 Vpp, 4.7 KΩ)

  • 1× Line Out (3.3 Vpp, 100 Ω)

Network

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, WebSocket, SRTP, SFTP, PPPoE, Bonjour, UPnP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

Storage

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Events & Analytics

• Motion Detection: Human & vehicle classification

• Smart Events: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, region entry/exit)

Interfaces

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VDC / 24 VAC, 1 A)

• Reset Button: Yes

Power

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

Physical

• Material: Full metal housing

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (With package)

Environmental

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Protection: IP67

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environment: RoHS, WEEE, REACH

Other

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

• Languages: 33 languages supported

• Functions: Heartbeat, mirror, anti-banding, pixel counter, password reset, flash log

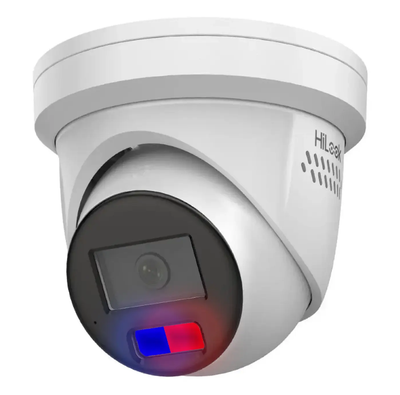

• High quality imaging with 6 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Imaging

• Sensor: 1/2.4" Progressive Scan CMOS

• Max Resolution: 3200 × 1800

• Min Illumination: Color 0.001 Lux @ F1.0 (AGC ON), B/W 0 Lux (IR ON)

• Shutter Speed: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

Lens & Coverage

• Lens Type: Fixed focal

• Focal Length Options: 2.8 mm / 4 mm

• Aperture: F1.0

• Lens Mount: M12

• Field of View (2.8 mm): H 115° / V 60° / D 144°

• Field of View (4 mm): H 94° / V 50° / D 112°

• Depth of Field:

  • 2.8 mm: 1.7 m – ∞

  • 4 mm: 2.2 m – ∞

DORI Performance

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m

• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

IR & Illumination

• Supplement Light Type: IR

• IR Range: Up to 30 m

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream:

  • 25 fps @ 3200×1800 / 2688×1520 / 1920×1080 / 1280×720 (50 Hz)

  • 30 fps @ same resolutions (60 Hz)

• Sub Stream:

  • 25 fps (50 Hz) / 30 fps (60 Hz) @ 1280×720 / 640×480 / 640×360

• Third Stream*: 10 fps @ 1920×1080 / 1280×720 / 640×480 / 640×360

• Video Compression:

  • Main: H.265 / H.264 / H.265+ / H.264+

  • Sub: H.265 / H.264 / MJPEG

  • Third*: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Bit Rate Control: CBR / VBR

• SVC: H.264 / H.265

• ROI: 1 fixed region (main & sub)

*Third stream supported under certain settings.

Audio

• Built-in Audio: 2 microphones + speaker

• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Audio Bit Rate: 8 Kbps – 320 Kbps (codec dependent)

• Sampling Rate: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O:

  • 1× Line In (3.3 Vpp, 4.7 KΩ)

  • 1× Line Out (3.3 Vpp, 100 Ω)

Network

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, WebSocket, SRTP, SFTP, PPPoE, Bonjour, UPnP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

Storage

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Events & Analytics

• Motion Detection: Human & vehicle classification

• Smart Events: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, region entry/exit)

Interfaces

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VDC / 24 VAC, 1 A)

• Reset Button: Yes

Power

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

Physical

• Material: Full metal housing

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (With package)

Environmental

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Protection: IP67

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environment: RoHS, WEEE, REACH

Other

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

• Languages: 33 languages supported

• Functions: Heartbeat, mirror, anti-banding, pixel counter, password reset, flash log

• High quality imaging with 6 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Datasheet

Imaging

• Sensor: 1/2.4" Progressive Scan CMOS

• Max Resolution: 3200 × 1800

• Min Illumination: Color 0.001 Lux @ F1.0 (AGC ON), B/W 0 Lux (IR ON)

• Shutter Speed: 1/3 s – 1/100,000 s

• Day/Night: IR Cut Filter

• SNR: ≥ 52 dB

• WDR: 120 dB

Lens & Coverage

• Lens Type: Fixed focal

• Focal Length Options: 2.8 mm / 4 mm

• Aperture: F1.0

• Lens Mount: M12

• Field of View (2.8 mm): H 115° / V 60° / D 144°

• Field of View (4 mm): H 94° / V 50° / D 112°

• Depth of Field:

  • 2.8 mm: 1.7 m – ∞

  • 4 mm: 2.2 m – ∞

DORI Performance

• 2.8 mm: Detect 64 m / Observe 25 m / Recognize 12 m / Identify 6 m

• 4 mm: Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m

IR & Illumination

• Supplement Light Type: IR

• IR Range: Up to 30 m

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream:

  • 25 fps @ 3200×1800 / 2688×1520 / 1920×1080 / 1280×720 (50 Hz)

  • 30 fps @ same resolutions (60 Hz)

• Sub Stream:

  • 25 fps (50 Hz) / 30 fps (60 Hz) @ 1280×720 / 640×480 / 640×360

• Third Stream*: 10 fps @ 1920×1080 / 1280×720 / 640×480 / 640×360

• Video Compression:

  • Main: H.265 / H.264 / H.265+ / H.264+

  • Sub: H.265 / H.264 / MJPEG

  • Third*: H.265 / H.264

• Bit Rate: 32 Kbps – 16 Mbps

• Bit Rate Control: CBR / VBR

• SVC: H.264 / H.265

• ROI: 1 fixed region (main & sub)

*Third stream supported under certain settings.

Audio

• Built-in Audio: 2 microphones + speaker

• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Audio Bit Rate: 8 Kbps – 320 Kbps (codec dependent)

• Sampling Rate: 8 / 16 / 32 / 48 kHz

• Noise Filtering: Yes

• Audio I/O:

  • 1× Line In (3.3 Vpp, 4.7 KΩ)

  • 1× Line Out (3.3 Vpp, 100 Ω)

Network

• Protocols: TCP/IP, HTTP(S), FTP, DHCP, DNS, RTP/RTSP, NTP, SMTP, IPv4/IPv6, SNMP, QoS, SSL/TLS, WebSocket, SRTP, SFTP, PPPoE, Bonjour, UPnP

• ONVIF: Profile S / T / G

• API: ONVIF, ISAPI, SDK, ISUP

• Live View: Up to 6 channels

• Users: Up to 32 (Admin / Operator / User)

Storage

• Edge Storage: microSD / SDHC / SDXC up to 512 GB

• Network Storage: NAS (NFS, SMB/CIFS), ANR

Events & Analytics

• Motion Detection: Human & vehicle classification

• Smart Events: Scene change detection

• AI Functions:

  • Face Capture

  • Perimeter Protection (Line crossing, intrusion, region entry/exit)

Interfaces

• Ethernet: 1× RJ45 10/100 Mbps

• Alarm I/O: 1 In / 1 Out (24 VDC / 24 VAC, 1 A)

• Reset Button: Yes

Power

• DC: 12 VDC ±25%, Max 16 W

• PoE: IEEE 802.3at (Class 4), Max 18 W

Physical

• Material: Full metal housing

• Dimensions: Ø138.3 × 115.4 mm

• Weight: ~780 g (Net), ~1210 g (With package)

Environmental

• Operating Temp: -30 °C to 60 °C

• Humidity: ≤ 95% (non-condensing)

• Protection: IP67

Certifications

• EMC: CE, RCM, IC, KC

• Safety: UL, CB, CE-LVD

• Environment: RoHS, WEEE, REACH

Other

• Flashing Light:

  • /SRB: Red & Blue

  • /SL: White

• Languages: 33 languages supported

• Functions: Heartbeat, mirror, anti-banding, pixel counter, password reset, flash log
