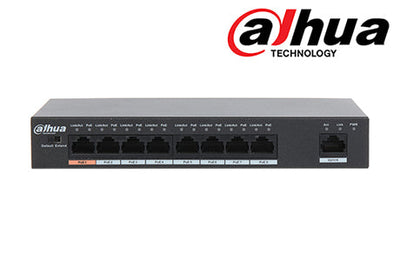

DH-PFS3009-8ET-96 Dahua 8 Port POE Switch (unmanaged)

•  Layer two commercial switch
• Supports PoE power management

• Supports wall-mount installation

• Supports anti-theft lock hole

• MAC auto learning and aging, MAC address capacity is 1K

• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards

• RJ45 port supports 10/100Mbps self-adaptation

• Supports 250 meters long distance PoE transmission
• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

DH-PFS3009-8ET-96 Dahua 8 Port POE Switch (unmanaged)

•  Layer two commercial switch
• Supports PoE power management

• Supports wall-mount installation

• Supports anti-theft lock hole

• MAC auto learning and aging, MAC address capacity is 1K

• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards

• RJ45 port supports 10/100Mbps self-adaptation

• Supports 250 meters long distance PoE transmission
• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

DH-PFS3005-4ET-60 Dahua 4 Port POE Switch (unmanaged)

•  Layer two commercial switch
• Supports PoE power management

• Supports wall-mount installation

• Supports anti-theft lock hole

• MAC auto learning and aging, MAC address capacity is 1K

• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards

• RJ45 port supports 10/100Mbps self-adaptation

• Supports 250 meters long distance PoE transmission
• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

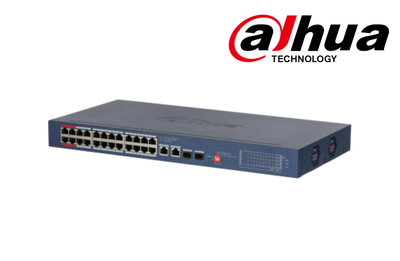

28-Port Cloud-Managed Desktop Gigabit Switch with 24-Port PoE

Key Features

• 24 × RJ-45 Gigabit PoE ports

• 2 × RJ-45 Gigabit uplink ports

• 2 × SFP Gigabit uplink ports

• 240 W total PoE budget

• IEEE 802.3af/at supported on all PoE ports

• Additional IEEE 802.3bt / Hi-PoE support on red ports

• DIP switch for quick enable/disable of Cloud-Managed mode, PoE Watchdog, and Long Distance PoE

• Wide operating temperature range from –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and Link Aggregation

• Web-managed and centralized cloud management via the DoLynk app

• Real-time network monitoring

• Plug-and-play auto detection and easy setup for network and security systems

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 56 Gbps

• Packet Forwarding Rate: 41.664 Mpps

Port Configuration

• Ports 1–24: 24 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 25–26: 2 × RJ-45 10/100/1000 Mbps (Uplink)

• Ports 27–28: 2 × SFP 1000 Mbps (Uplink)

Environmental

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH, non-condensing

• Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

• Storage Humidity: 5%–95% RH, non-condensing

Power

• Power Supply: Built-in, 100–240 VAC, 47–63 Hz

• Max Input Current: 4 A

• Power Consumption:

  • Idle: 11.8 W

  • Full Load: 253.5 W

Protection

• ESD Protection:

  • Air discharge: 8 kV

  • Contact discharge: 6 kV

• Lightning Protection:

  • Common mode: 6 kV

  • Differential mode: 1 kV

Physical Specifications

• Net Weight: 2.55 kg (5.62 lb)

• Gross Weight: 3.25 kg (7.17 lb)

• Product Dimensions: 440 × 228.81 × 43.65 mm

• Packaging Dimensions: 540 × 342 × 90 mm

• Casing Material: Sheet metal

• Installation: Desktop mount or rack mount

Certifications

• CE

PoE Specifications

• PoE Support: Yes

• Total PoE Budget: ≤ 240 W

• Per-Port PoE Output:

  • Ports 1–4: up to 90 W

  • Ports 5–24: up to 30 W

• Supported PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Hi-PoE

• PoE Power Management: Power on/off control and automatic shutdown on overload

• Long Distance PoE: Up to 250 m at 10 Mbps

PoE Pin Assignment

• Ports 1–2:

  • 1,2,4,5 (V+)

  • 3,6,7,8 (V−)

• Ports 3–24:

  • 1,2 (V+)

  • 3,6 (V−)

Hardware

• DIP Switch Functions:

  • Managed Mode: ON by default for local web and cloud management; OFF for unmanaged mode

  • PoE Watchdog: Monitors ports 1–24 and automatically restarts PoE after 2 minutes of no traffic (works only when Managed Mode is OFF)

  • Extend Mode: Ports 1–24 support transmission distances up to 250 m at 10 Mbps (works only when Managed Mode is OFF)

• Reset Button: 1

Performance

• MTBF: 967,753 hours

• Packet Buffer Size: 4 Mbit

• Jumbo Frame: 15,360 Bytes

• MAC Address Table: 8K

Network Features

• Supported Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3az, 802.3ad

• VLAN Support: IEEE 802.1Q, up to 32 VLANs

• Loop Protection: STP and RSTP

• Link Aggregation: Static aggregation

• Port Features: Flow control, unknown unicast suppression, multicast storm control, broadcast storm control, MAC and port binding, loop prevention

• Port Mirroring: Local mirroring and N:1 mirroring

• LLDP: Supported

• DHCP Function: DHCP client

• Security: Port isolation

Management

• Web management

• Cloud management

• System logs

• Fault alarms

Package Contents

• User manual

• Legal and regulatory information

• Power cord

• Rack-mounting kit

Optional SFP Modules

• GSFP-1310T-20-SMF: 1.25G, 1310/1550 nm, 20 km, LC, single-mode

• GSFP-1310R-20-SMF: 1.25G, 1550/1310 nm, 20 km, LC, single-mode

• GSFP-1310-20-SMF: 1.25G, 1310 nm, 20 km, LC, single-mode

• GSFP-850-MMF: 1.25G, 850 nm, 550 m, LC, multi-mode

PoE Transmission Performance

• Switch power supply voltage: 54 V

• Cable requirement: CAT6, maximum DC resistance < 8 Ω per 100 m

IEEE 802.3bt (90 W):

• 100 m: 71.3 W

• 150 m: 62 W

• 200 m: 51 W

• 250 m: 40 W

Hi-PoE (60 W):

• 100 m: 46 W

• 150 m: 42 W

• 200 m: 37 W

• 250 m: 32 W

IEEE 802.3at (30 W):

• 100 m: 25.5 W

• 150 m: 25.5 W

• 200 m: 25.5 W

• 250 m: 24 W

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

28-Port Cloud-Managed Desktop Gigabit Switch with 24-Port PoE

Key Features

• 24 × RJ-45 Gigabit PoE ports

• 2 × RJ-45 Gigabit uplink ports

• 2 × SFP Gigabit uplink ports

• 240 W total PoE budget

• IEEE 802.3af/at supported on all PoE ports

• Additional IEEE 802.3bt / Hi-PoE support on red ports

• DIP switch for quick enable/disable of Cloud-Managed mode, PoE Watchdog, and Long Distance PoE

• Wide operating temperature range from –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and Link Aggregation

• Web-managed and centralized cloud management via the DoLynk app

• Real-time network monitoring

• Plug-and-play auto detection and easy setup for network and security systems

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 56 Gbps

• Packet Forwarding Rate: 41.664 Mpps

Port Configuration

• Ports 1–24: 24 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 25–26: 2 × RJ-45 10/100/1000 Mbps (Uplink)

• Ports 27–28: 2 × SFP 1000 Mbps (Uplink)

Environmental

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH, non-condensing

• Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

• Storage Humidity: 5%–95% RH, non-condensing

Power

• Power Supply: Built-in, 100–240 VAC, 47–63 Hz

• Max Input Current: 4 A

• Power Consumption:

  • Idle: 11.8 W

  • Full Load: 253.5 W

Protection

• ESD Protection:

  • Air discharge: 8 kV

  • Contact discharge: 6 kV

• Lightning Protection:

  • Common mode: 6 kV

  • Differential mode: 1 kV

Physical Specifications

• Net Weight: 2.55 kg (5.62 lb)

• Gross Weight: 3.25 kg (7.17 lb)

• Product Dimensions: 440 × 228.81 × 43.65 mm

• Packaging Dimensions: 540 × 342 × 90 mm

• Casing Material: Sheet metal

• Installation: Desktop mount or rack mount

Certifications

• CE

PoE Specifications

• PoE Support: Yes

• Total PoE Budget: ≤ 240 W

• Per-Port PoE Output:

  • Ports 1–4: up to 90 W

  • Ports 5–24: up to 30 W

• Supported PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Hi-PoE

• PoE Power Management: Power on/off control and automatic shutdown on overload

• Long Distance PoE: Up to 250 m at 10 Mbps

PoE Pin Assignment

• Ports 1–2:

  • 1,2,4,5 (V+)

  • 3,6,7,8 (V−)

• Ports 3–24:

  • 1,2 (V+)

  • 3,6 (V−)

Hardware

• DIP Switch Functions:

  • Managed Mode: ON by default for local web and cloud management; OFF for unmanaged mode

  • PoE Watchdog: Monitors ports 1–24 and automatically restarts PoE after 2 minutes of no traffic (works only when Managed Mode is OFF)

  • Extend Mode: Ports 1–24 support transmission distances up to 250 m at 10 Mbps (works only when Managed Mode is OFF)

• Reset Button: 1

Performance

• MTBF: 967,753 hours

• Packet Buffer Size: 4 Mbit

• Jumbo Frame: 15,360 Bytes

• MAC Address Table: 8K

Network Features

• Supported Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3az, 802.3ad

• VLAN Support: IEEE 802.1Q, up to 32 VLANs

• Loop Protection: STP and RSTP

• Link Aggregation: Static aggregation

• Port Features: Flow control, unknown unicast suppression, multicast storm control, broadcast storm control, MAC and port binding, loop prevention

• Port Mirroring: Local mirroring and N:1 mirroring

• LLDP: Supported

• DHCP Function: DHCP client

• Security: Port isolation

Management

• Web management

• Cloud management

• System logs

• Fault alarms

Package Contents

• User manual

• Legal and regulatory information

• Power cord

• Rack-mounting kit

Optional SFP Modules

• GSFP-1310T-20-SMF: 1.25G, 1310/1550 nm, 20 km, LC, single-mode

• GSFP-1310R-20-SMF: 1.25G, 1550/1310 nm, 20 km, LC, single-mode

• GSFP-1310-20-SMF: 1.25G, 1310 nm, 20 km, LC, single-mode

• GSFP-850-MMF: 1.25G, 850 nm, 550 m, LC, multi-mode

PoE Transmission Performance

• Switch power supply voltage: 54 V

• Cable requirement: CAT6, maximum DC resistance < 8 Ω per 100 m

IEEE 802.3bt (90 W):

• 100 m: 71.3 W

• 150 m: 62 W

• 200 m: 51 W

• 250 m: 40 W

Hi-PoE (60 W):

• 100 m: 46 W

• 150 m: 42 W

• 200 m: 37 W

• 250 m: 32 W

IEEE 802.3at (30 W):

• 100 m: 25.5 W

• 150 m: 25.5 W

• 200 m: 25.5 W

• 250 m: 24 W

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

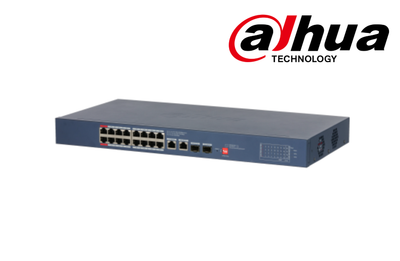

20-Port Cloud-Managed Desktop Gigabit Switch with 16-Port PoE

Key Features

• 16 × Gigabit PoE RJ-45 ports, 2 × Gigabit RJ-45 uplink ports, 2 × Gigabit SFP uplink ports

• 190 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • Additional IEEE 802.3bt / Hi-PoE support on red ports

• DIP switch for quick enable/disable of:

  • Cloud-Managed Mode

  • PoE Watchdog

  • Long Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and Link Aggregation

• Web-managed and centralized cloud management via DoLynk App

• Real-time network monitoring

• Plug-and-play auto detection and easy system setup

• Datasheet

Basic Specifications

Port Configuration

Environmental

Power

Protection

Physical

Certifications

• CE

PoE Specifications

PoE Pin Assignment

• Ports 1–2:

  • 1,2,4,5 (V+) / 3,6,7,8 (V−)

• Ports 3–16:

  • 1,2 (V+) / 3,6 (V−)

Hardware

DIP Switch Functions

• Managed Mode

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog

  • Monitors ports 1–16

  • Auto-restarts PoE after 2 minutes of no traffic

  • Only works when Managed Mode is OFF

• Extend Mode

  • Ports 1–16 up to 250 m @ 10 Mbps

  • Only works when Managed Mode is OFF

Performance

Network Features

Management

• Web Management

• Cloud Management

• Logs

• Fault Alarms

Package Contents

• 1 × User Manual

• 1 × Legal & Regulatory Information

• 1 × Power Cord

• 1 × Rack-Mounting Kit

Optional SFP Modules

PoE Transmission Performance

Switch power supply: 54 V | Cable: CAT6, DC resistance < 8 Ω / 100 m

IEEE 802.3bt (90 W)

Hi-PoE (60 W)

IEEE 802.3at (30 W)

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

20-Port Cloud-Managed Desktop Gigabit Switch with 16-Port PoE

Key Features

• 16 × Gigabit PoE RJ-45 ports, 2 × Gigabit RJ-45 uplink ports, 2 × Gigabit SFP uplink ports

• 190 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • Additional IEEE 802.3bt / Hi-PoE support on red ports

• DIP switch for quick enable/disable of:

  • Cloud-Managed Mode

  • PoE Watchdog

  • Long Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and Link Aggregation

• Web-managed and centralized cloud management via DoLynk App

• Real-time network monitoring

• Plug-and-play auto detection and easy system setup

• Datasheet

Basic Specifications

Port Configuration

Environmental

Power

Protection

Physical

Certifications

• CE

PoE Specifications

PoE Pin Assignment

• Ports 1–2:

  • 1,2,4,5 (V+) / 3,6,7,8 (V−)

• Ports 3–16:

  • 1,2 (V+) / 3,6 (V−)

Hardware

DIP Switch Functions

• Managed Mode

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog

  • Monitors ports 1–16

  • Auto-restarts PoE after 2 minutes of no traffic

  • Only works when Managed Mode is OFF

• Extend Mode

  • Ports 1–16 up to 250 m @ 10 Mbps

  • Only works when Managed Mode is OFF

Performance

Network Features

Management

• Web Management

• Cloud Management

• Logs

• Fault Alarms

Package Contents

• 1 × User Manual

• 1 × Legal & Regulatory Information

• 1 × Power Cord

• 1 × Rack-Mounting Kit

Optional SFP Modules

PoE Transmission Performance

Switch power supply: 54 V | Cable: CAT6, DC resistance < 8 Ω / 100 m

IEEE 802.3bt (90 W)

Hi-PoE (60 W)

IEEE 802.3at (30 W)

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

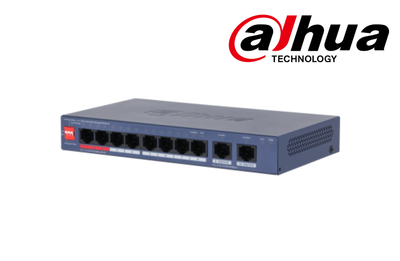

10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

Key Features

• 8 × RJ-45 Gigabit PoE ports, 2 × RJ-45 Gigabit uplink ports

• 110 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • IEEE 802.3bt support on Ports 1–2 (red ports)

• DIP switch for fast mode switching:

  • Cloud-Managed / Unmanaged Mode

  • PoE Watchdog

  • Long-Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and link aggregation

• Web-managed and centralised cloud management via DoLynk App

• Easy configuration with auto network detection and system setup

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 14.88 Mpps

Port Configuration

• Ports 1–8: 8 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 9–10: 2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power

• Power Supply: External power adapter, 54 VDC / 2.22 A

• Power Consumption:

  • Idle: 5.7 W

  • Full Load: 115 W

PoE Specifications

• PoE Support: Yes

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE / IEEE 802.3bt

• PoE Output Power:

  • Ports 1–2: ≤ 90 W per port

  • Ports 3–8: ≤ 30 W per port

  • Total PoE Budget: ≤ 110 W

• PoE Power Management:

  • PoE power consumption management

  • PoE power on/off

  • Automatic PoE shutdown on overload detection

• PoE Pin Assignment:

  • Ports 1–2:

    • V+: 1, 2, 4, 5

    • V–: 3, 6, 7, 8

  • Ports 3–8:

    • V+: 1, 2

    • V–: 3, 6

• Long-Distance PoE: Yes

Hardware Features

DIP Switch Functions

• Managed Mode:

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog:

  • Monitors ports 1–8

  • Automatically restarts PoE if no traffic is detected for 2 minutes

  • Only active when Managed Mode is OFF

• Extend Mode:

  • Ports 1–8 support up to 250 m transmission at 10 Mbps

  • Only active when Managed Mode is OFF

• Reset Button: 1

Performance

• MTBF: 2,482,955 hours

• Packet Buffer: 4 Mbit

• Jumbo Frame: 15,360 Bytes

• MAC Address Table: 8K

• Supported VLANs: 32

Network Standards

• IEEE Standards:

  • IEEE 802.3

  • IEEE 802.3u

  • IEEE 802.3x

  • IEEE 802.3ab

  • IEEE 802.3az

  • IEEE 802.3ad

Network Features

• Ethernet Loop Protection: STP, RSTP

• VLAN: IEEE 802.1Q VLAN

• Link Aggregation: Static aggregation

• Port Features:

  • IEEE 802.3x Flow Control

  • Unknown Unicast Suppression

  • Multicast Storm Control

  • Broadcast Storm Control

  • MAC + Port Binding

  • Loop Prevention

• Port Mirroring:

  • Local Port Mirroring

  • N:1 Mirroring

• LLDP Support: Yes

• DHCP: DHCP Client

• Security: Port Isolation

Management

• Management Methods:

  • Web Management

  • Cloud Management

• Monitoring & Maintenance:

  • Logs

  • Fault Alarms

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 6 kV

  • Differential Mode: 1 kV

Physical Specifications

• Net Weight: 0.36 kg (0.79 lb)

• Gross Weight: 1.13 kg (2.49 lb)

• Product Dimensions:

  • 184.6 × 103.3 × 27 mm (7.27" × 4.07" × 1.06")

• Packaging Dimensions:

  • 252 × 137 × 113 mm (9.92" × 5.39" × 4.45")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Certifications

• CE

Packing List

• 1 × User Manual

• 1 × Legal and Regulatory Information

• 1 × Power Adapter

• 1 × Power Cord

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

Key Features

• 8 × RJ-45 Gigabit PoE ports, 2 × RJ-45 Gigabit uplink ports

• 110 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • IEEE 802.3bt support on Ports 1–2 (red ports)

• DIP switch for fast mode switching:

  • Cloud-Managed / Unmanaged Mode

  • PoE Watchdog

  • Long-Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN, STP, RSTP, and link aggregation

• Web-managed and centralised cloud management via DoLynk App

• Easy configuration with auto network detection and system setup

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 14.88 Mpps

Port Configuration

• Ports 1–8: 8 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 9–10: 2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power

• Power Supply: External power adapter, 54 VDC / 2.22 A

• Power Consumption:

  • Idle: 5.7 W

  • Full Load: 115 W

PoE Specifications

• PoE Support: Yes

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE / IEEE 802.3bt

• PoE Output Power:

  • Ports 1–2: ≤ 90 W per port

  • Ports 3–8: ≤ 30 W per port

  • Total PoE Budget: ≤ 110 W

• PoE Power Management:

  • PoE power consumption management

  • PoE power on/off

  • Automatic PoE shutdown on overload detection

• PoE Pin Assignment:

  • Ports 1–2:

    • V+: 1, 2, 4, 5

    • V–: 3, 6, 7, 8

  • Ports 3–8:

    • V+: 1, 2

    • V–: 3, 6

• Long-Distance PoE: Yes

Hardware Features

DIP Switch Functions

• Managed Mode:

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog:

  • Monitors ports 1–8

  • Automatically restarts PoE if no traffic is detected for 2 minutes

  • Only active when Managed Mode is OFF

• Extend Mode:

  • Ports 1–8 support up to 250 m transmission at 10 Mbps

  • Only active when Managed Mode is OFF

• Reset Button: 1

Performance

• MTBF: 2,482,955 hours

• Packet Buffer: 4 Mbit

• Jumbo Frame: 15,360 Bytes

• MAC Address Table: 8K

• Supported VLANs: 32

Network Standards

• IEEE Standards:

  • IEEE 802.3

  • IEEE 802.3u

  • IEEE 802.3x

  • IEEE 802.3ab

  • IEEE 802.3az

  • IEEE 802.3ad

Network Features

• Ethernet Loop Protection: STP, RSTP

• VLAN: IEEE 802.1Q VLAN

• Link Aggregation: Static aggregation

• Port Features:

  • IEEE 802.3x Flow Control

  • Unknown Unicast Suppression

  • Multicast Storm Control

  • Broadcast Storm Control

  • MAC + Port Binding

  • Loop Prevention

• Port Mirroring:

  • Local Port Mirroring

  • N:1 Mirroring

• LLDP Support: Yes

• DHCP: DHCP Client

• Security: Port Isolation

Management

• Management Methods:

  • Web Management

  • Cloud Management

• Monitoring & Maintenance:

  • Logs

  • Fault Alarms

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 6 kV

  • Differential Mode: 1 kV

Physical Specifications

• Net Weight: 0.36 kg (0.79 lb)

• Gross Weight: 1.13 kg (2.49 lb)

• Product Dimensions:

  • 184.6 × 103.3 × 27 mm (7.27" × 4.07" × 1.06")

• Packaging Dimensions:

  • 252 × 137 × 113 mm (9.92" × 5.39" × 4.45")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Certifications

• CE

Packing List

• 1 × User Manual

• 1 × Legal and Regulatory Information

• 1 × Power Adapter

• 1 × Power Cord

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

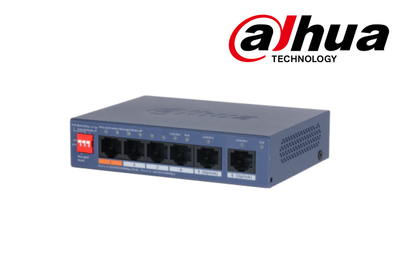

6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

Key Features

• 4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit uplink ports

• 60 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • Additional Hi-PoE support on Port 1 (orange port)

• DIP switch control for quick mode switching:

  • Cloud-Managed Mode

  • PoE Watchdog

  • Long-Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN and loop protection

• Web-managed and centralised cloud management via DoLynk App

• Easy configuration with auto network detection and setup

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 12 Gbps

• Packet Forwarding Rate: 8.9 Mpps

Port Configuration

• Ports 1–4: 4 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 5–6: 2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power

• Power Supply: External, 53 VDC / 0.8 A

• Power Consumption:

  • Idle: ≤ 3 W

  • Full Load: 65 W

PoE Specifications

• PoE Support: Yes

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE

• PoE Output Power:

  • Port 1: ≤ 60 W

  • Ports 2–4: ≤ 30 W per port

  • Total PoE Budget: ≤ 60 W

• PoE Power Management:

  • PoE power consumption management

  • Remote PoE on/off

  • Automatic PoE shutdown on overload detection

• PoE Pin Assignment:

  • V+: 1, 2, 4, 5

  • V–: 3, 6, 7, 8

• Long-Distance PoE: Yes

Hardware Features

DIP Switch Functions

• Managed Mode:

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog:

  • Monitors ports 1–4

  • Automatically restarts PoE if no traffic is detected for 2 minutes

  • Only active when Managed Mode is OFF

• Extend Mode:

  • Ports 1–4 support up to 250 m transmission at 10 Mbps

  • Only active when Managed Mode is OFF

• Reset Button: 1

Performance

• MTBF: 232.62 years

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 Bytes

• MAC Address Table: 2K

• Supported VLANs: 32

Network Standards

• IEEE Standards:

  • IEEE 802.3

  • IEEE 802.3u

  • IEEE 802.3x

  • IEEE 802.3ab

  • IEEE 802.3az

Network Features

• VLAN: IEEE 802.1Q VLAN

• Port Features:

  • IEEE 802.3x Flow Control

  • Unknown Unicast Suppression

  • Multicast Storm Control

  • Broadcast Storm Control

  • MAC + Port Binding

  • Loop Prevention

• Port Mirroring:

  • N:1 Mirroring

  • Local Port Mirroring

• LLDP Support: Yes

• DHCP: DHCP Client

• Security: Port Isolation

Management

• Management Methods:

  • Web Management

  • Cloud Management

• Monitoring & Maintenance:

  • Logs

  • Fault Alarms

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 6 kV

Physical Specifications

• Net Weight: 0.2 kg (0.44 lb)

• Gross Weight: 0.76 kg (1.68 lb)

• Product Dimensions:

  • 115 × 84 × 27 mm (4.53" × 3.33" × 1.06")

• Packaging Dimensions:

  • 195 × 114 × 83 mm (7.68" × 4.49" × 3.27")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Packing List

• 1 × Quick Start Guide

• 1 × Legal and Regulatory Information

• 1 × Power Adapter

• 1 × Power Cord

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

Key Features

• 4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit uplink ports

• 60 W total PoE budget

  • IEEE 802.3af/at on all PoE ports

  • Additional Hi-PoE support on Port 1 (orange port)

• DIP switch control for quick mode switching:

  • Cloud-Managed Mode

  • PoE Watchdog

  • Long-Distance PoE

• Wide operating temperature: –10 °C to +55 °C

• Supports VLAN and loop protection

• Web-managed and centralised cloud management via DoLynk App

• Easy configuration with auto network detection and setup

• Datasheet

Basic Specifications

• Switching Layer: Layer 2

• Switching Capacity: 12 Gbps

• Packet Forwarding Rate: 8.9 Mpps

Port Configuration

• Ports 1–4: 4 × RJ-45 10/100/1000 Mbps (PoE)

• Ports 5–6: 2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power

• Power Supply: External, 53 VDC / 0.8 A

• Power Consumption:

  • Idle: ≤ 3 W

  • Full Load: 65 W

PoE Specifications

• PoE Support: Yes

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE

• PoE Output Power:

  • Port 1: ≤ 60 W

  • Ports 2–4: ≤ 30 W per port

  • Total PoE Budget: ≤ 60 W

• PoE Power Management:

  • PoE power consumption management

  • Remote PoE on/off

  • Automatic PoE shutdown on overload detection

• PoE Pin Assignment:

  • V+: 1, 2, 4, 5

  • V–: 3, 6, 7, 8

• Long-Distance PoE: Yes

Hardware Features

DIP Switch Functions

• Managed Mode:

  • ON (default): Local web + cloud management

  • OFF: Unmanaged mode

• PoE Watchdog:

  • Monitors ports 1–4

  • Automatically restarts PoE if no traffic is detected for 2 minutes

  • Only active when Managed Mode is OFF

• Extend Mode:

  • Ports 1–4 support up to 250 m transmission at 10 Mbps

  • Only active when Managed Mode is OFF

• Reset Button: 1

Performance

• MTBF: 232.62 years

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 Bytes

• MAC Address Table: 2K

• Supported VLANs: 32

Network Standards

• IEEE Standards:

  • IEEE 802.3

  • IEEE 802.3u

  • IEEE 802.3x

  • IEEE 802.3ab

  • IEEE 802.3az

Network Features

• VLAN: IEEE 802.1Q VLAN

• Port Features:

  • IEEE 802.3x Flow Control

  • Unknown Unicast Suppression

  • Multicast Storm Control

  • Broadcast Storm Control

  • MAC + Port Binding

  • Loop Prevention

• Port Mirroring:

  • N:1 Mirroring

  • Local Port Mirroring

• LLDP Support: Yes

• DHCP: DHCP Client

• Security: Port Isolation

Management

• Management Methods:

  • Web Management

  • Cloud Management

• Monitoring & Maintenance:

  • Logs

  • Fault Alarms

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 6 kV

Physical Specifications

• Net Weight: 0.2 kg (0.44 lb)

• Gross Weight: 0.76 kg (1.68 lb)

• Product Dimensions:

  • 115 × 84 × 27 mm (4.53" × 3.33" × 1.06")

• Packaging Dimensions:

  • 195 × 114 × 83 mm (7.68" × 4.49" × 3.27")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Packing List

• 1 × Quick Start Guide

• 1 × Legal and Regulatory Information

• 1 × Power Adapter

• 1 × Power Cord

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

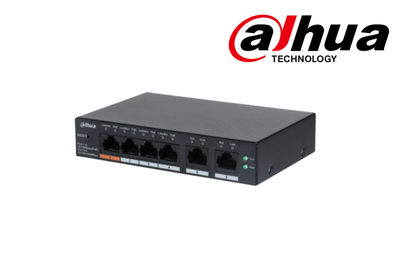

6-Port Cloud Managed Desktop Switch with 4-Port PoE

Key Features

• Complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab standards

• Supports IEEE 802.3af / 802.3at / Hi-PoE power supply standards

• Intelligent PoE with PoE power consumption management and remote PoE on/off

• Wide operating temperature range

• Fully enclosed metal housing, dust-proof design

• Datasheet

Hardware Specifications

General

• Included Power Adapter: Yes

• PoE Support: Yes

• Reset Button: 1

• Power Supply: External, 53 VDC / 1.226 A

Ports

• Total Ethernet Ports: 6

• PoE Ports:

  • Ports 1–4: 4 × RJ-45, 10/100 Mbps (PoE)

• Uplink Ports:

  • Ports 5–6: 2 × RJ-45, 10/100/1000 Mbps

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 5%–95% RH (non-condensing)

• Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power Consumption

• Idle: ≤ 3 W

• Full Load: 65 W

Performance

• Switching Layer: Layer 2

• Switching Capacity: 4.8 Gbps

• Packet Forwarding Rate: 3.57 Mpps

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 Bytes

• MAC Address Table: 8K

• VLAN Support: Up to 32 VLANs

• MTBF: 232.62 years

PoE Specifications

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE

• PoE Output Power:

  • Port 1: ≤ 60 W

  • Ports 2–4: ≤ 30 W per port

  • Total PoE Budget: ≤ 60 W

• PoE Pin Assignment:

  • V+: 1, 2, 4, 5

  • V–: 3, 6, 7, 8

• Long-Distance PoE Transmission: Yes

Network & Management Features

• VLAN Type: Port-based VLAN

• Flow Control: IEEE 802.3x

• DHCP: DHCP Client

• Management:

  • Web Management

  • App Management

• Management Type: Smart Managed / Cloud Managed

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 4 kV

  • Differential Mode: 2 kV

Physical Specifications

• Net Weight: 0.28 kg (0.64 lb)

• Gross Weight: 0.92 kg (2.02 lb)

• Product Dimensions:

  • 130 × 90 × 26 mm (5.11" × 3.54" × 1.02")

• Packaging Dimensions:

  • 265 × 238 × 76 mm (10.43" × 9.37" × 2.99")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

6-Port Cloud Managed Desktop Switch with 4-Port PoE

Key Features

• Complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab standards

• Supports IEEE 802.3af / 802.3at / Hi-PoE power supply standards

• Intelligent PoE with PoE power consumption management and remote PoE on/off

• Wide operating temperature range

• Fully enclosed metal housing, dust-proof design

• Datasheet

Hardware Specifications

General

• Included Power Adapter: Yes

• PoE Support: Yes

• Reset Button: 1

• Power Supply: External, 53 VDC / 1.226 A

Ports

• Total Ethernet Ports: 6

• PoE Ports:

  • Ports 1–4: 4 × RJ-45, 10/100 Mbps (PoE)

• Uplink Ports:

  • Ports 5–6: 2 × RJ-45, 10/100/1000 Mbps

Environmental Specifications

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 5%–95% RH (non-condensing)

• Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

• Storage Humidity: 5%–95% RH (non-condensing)

Power Consumption

• Idle: ≤ 3 W

• Full Load: 65 W

Performance

• Switching Layer: Layer 2

• Switching Capacity: 4.8 Gbps

• Packet Forwarding Rate: 3.57 Mpps

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 Bytes

• MAC Address Table: 8K

• VLAN Support: Up to 32 VLANs

• MTBF: 232.62 years

PoE Specifications

• PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE

• PoE Output Power:

  • Port 1: ≤ 60 W

  • Ports 2–4: ≤ 30 W per port

  • Total PoE Budget: ≤ 60 W

• PoE Pin Assignment:

  • V+: 1, 2, 4, 5

  • V–: 3, 6, 7, 8

• Long-Distance PoE Transmission: Yes

Network & Management Features

• VLAN Type: Port-based VLAN

• Flow Control: IEEE 802.3x

• DHCP: DHCP Client

• Management:

  • Web Management

  • App Management

• Management Type: Smart Managed / Cloud Managed

Protection

• ESD Protection:

  • Air Discharge: 8 kV

  • Contact Discharge: 6 kV

• Lightning Protection:

  • Common Mode: 4 kV

  • Differential Mode: 2 kV

Physical Specifications

• Net Weight: 0.28 kg (0.64 lb)

• Gross Weight: 0.92 kg (2.02 lb)

• Product Dimensions:

  • 130 × 90 × 26 mm (5.11" × 3.54" × 1.02")

• Packaging Dimensions:

  • 265 × 238 × 76 mm (10.43" × 9.37" × 2.99")

• Casing Material: Sheet metal

Installation

• Mounting Options: Desktop mount, Wall mount

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Features:

• 10 Ports:10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
• Two Cables in One:With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• 2x Uplink Ports:MS110P provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode:One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing:Allows for efficient heat dissipation and long network life
• Plug and Play:Simple to use and saves time and effort
• PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices

DESCRIPTION

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
• Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
• Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort

Warranty Period: 5-Year
