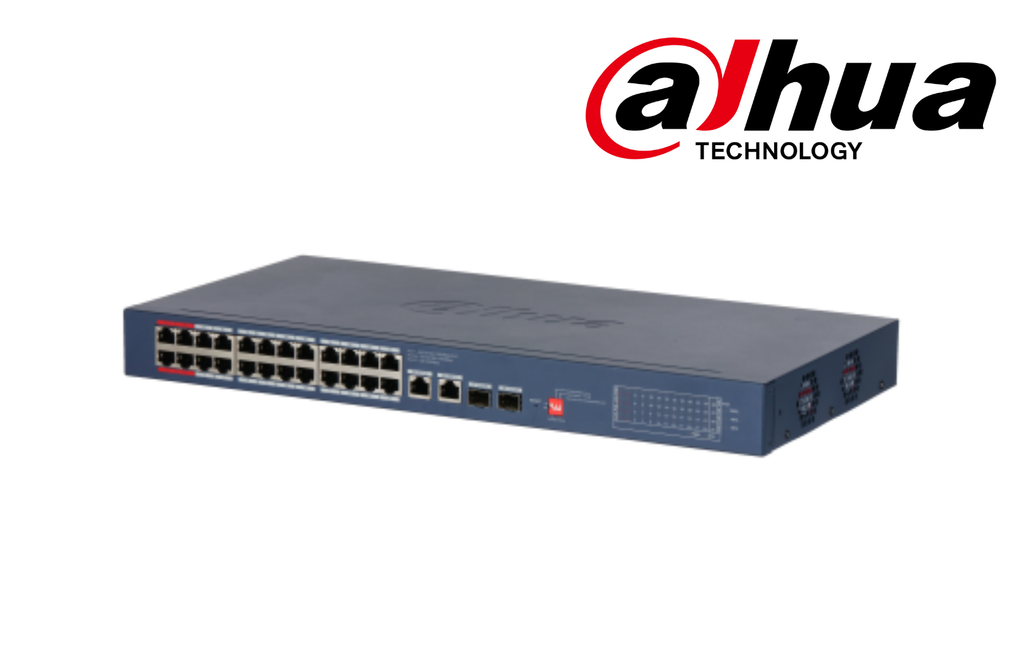

Dahua CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port POE

Dahua CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port POE
$600.00

28-Port Cloud-Managed Desktop Gigabit Switch with 24-Port PoE

Key Features

  • 24 × RJ-45 Gigabit PoE ports

  • 2 × RJ-45 Gigabit uplink ports

  • 2 × SFP Gigabit uplink ports

  • 240 W total PoE budget

  • IEEE 802.3af/at supported on all PoE ports

  • Additional IEEE 802.3bt / Hi-PoE support on red ports

  • DIP switch for quick enable/disable of Cloud-Managed mode, PoE Watchdog, and Long Distance PoE

  • Wide operating temperature range from –10 °C to +55 °C

  • Supports VLAN, STP, RSTP, and Link Aggregation

  • Web-managed and centralized cloud management via the DoLynk app

  • Real-time network monitoring

  • Plug-and-play auto detection and easy setup for network and security systems

  • Datasheet

Basic Specifications

  • Switching Layer: Layer 2

  • Switching Capacity: 56 Gbps

  • Packet Forwarding Rate: 41.664 Mpps

Port Configuration

  • Ports 1–24: 24 × RJ-45 10/100/1000 Mbps (PoE)

  • Ports 25–26: 2 × RJ-45 10/100/1000 Mbps (Uplink)

  • Ports 27–28: 2 × SFP 1000 Mbps (Uplink)

Environmental

  • Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

  • Operating Humidity: 10%–90% RH, non-condensing

  • Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

  • Storage Humidity: 5%–95% RH, non-condensing

Power

  • Power Supply: Built-in, 100–240 VAC, 47–63 Hz

  • Max Input Current: 4 A

  • Power Consumption:

    • Idle: 11.8 W

    • Full Load: 253.5 W

Protection

  • ESD Protection:

    • Air discharge: 8 kV

    • Contact discharge: 6 kV

  • Lightning Protection:

    • Common mode: 6 kV

    • Differential mode: 1 kV

Physical Specifications

  • Net Weight: 2.55 kg (5.62 lb)

  • Gross Weight: 3.25 kg (7.17 lb)

  • Product Dimensions: 440 × 228.81 × 43.65 mm

  • Packaging Dimensions: 540 × 342 × 90 mm

  • Casing Material: Sheet metal

  • Installation: Desktop mount or rack mount

Certifications

  • CE

PoE Specifications

  • PoE Support: Yes

  • Total PoE Budget: ≤ 240 W

  • Per-Port PoE Output:

    • Ports 1–4: up to 90 W

    • Ports 5–24: up to 30 W

  • Supported PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Hi-PoE

  • PoE Power Management: Power on/off control and automatic shutdown on overload

  • Long Distance PoE: Up to 250 m at 10 Mbps

PoE Pin Assignment

  • Ports 1–2:

    • 1,2,4,5 (V+)

    • 3,6,7,8 (V−)

  • Ports 3–24:

    • 1,2 (V+)

    • 3,6 (V−)

Hardware

  • DIP Switch Functions:

    • Managed Mode: ON by default for local web and cloud management; OFF for unmanaged mode

    • PoE Watchdog: Monitors ports 1–24 and automatically restarts PoE after 2 minutes of no traffic (works only when Managed Mode is OFF)

    • Extend Mode: Ports 1–24 support transmission distances up to 250 m at 10 Mbps (works only when Managed Mode is OFF)

  • Reset Button: 1

Performance

  • MTBF: 967,753 hours

  • Packet Buffer Size: 4 Mbit

  • Jumbo Frame: 15,360 Bytes

  • MAC Address Table: 8K

Network Features

  • Supported Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3az, 802.3ad

  • VLAN Support: IEEE 802.1Q, up to 32 VLANs

  • Loop Protection: STP and RSTP

  • Link Aggregation: Static aggregation

  • Port Features: Flow control, unknown unicast suppression, multicast storm control, broadcast storm control, MAC and port binding, loop prevention

  • Port Mirroring: Local mirroring and N:1 mirroring

  • LLDP: Supported

  • DHCP Function: DHCP client

  • Security: Port isolation

Management

  • Web management

  • Cloud management

  • System logs

  • Fault alarms

Package Contents

  • User manual

  • Legal and regulatory information

  • Power cord

  • Rack-mounting kit

Optional SFP Modules

  • GSFP-1310T-20-SMF: 1.25G, 1310/1550 nm, 20 km, LC, single-mode

  • GSFP-1310R-20-SMF: 1.25G, 1550/1310 nm, 20 km, LC, single-mode

  • GSFP-1310-20-SMF: 1.25G, 1310 nm, 20 km, LC, single-mode

  • GSFP-850-MMF: 1.25G, 850 nm, 550 m, LC, multi-mode

PoE Transmission Performance

  • Switch power supply voltage: 54 V

  • Cable requirement: CAT6, maximum DC resistance < 8 Ω per 100 m

IEEE 802.3bt (90 W):

  • 100 m: 71.3 W

  • 150 m: 62 W

  • 200 m: 51 W

  • 250 m: 40 W

Hi-PoE (60 W):

  • 100 m: 46 W

  • 150 m: 42 W

  • 200 m: 37 W

  • 250 m: 32 W

IEEE 802.3at (30 W):

  • 100 m: 25.5 W

  • 150 m: 25.5 W

  • 200 m: 25.5 W

  • 250 m: 24 W

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
