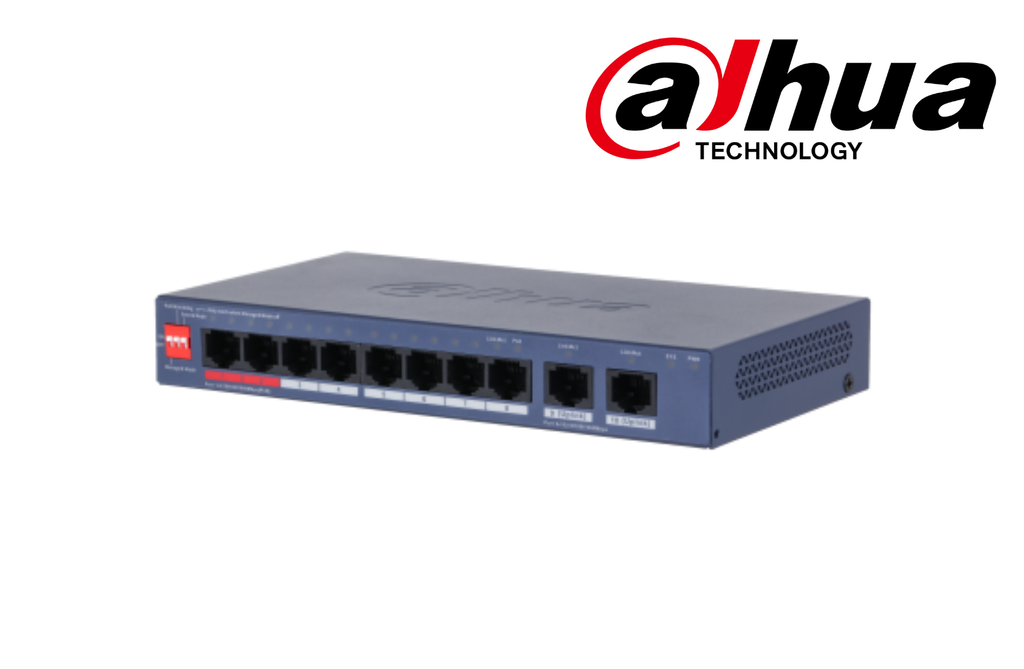

Dahua CS4010-8GT-110 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port POE

Dahua CS4010-8GT-110 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port POE
$211.42

10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

Key Features

  • 8 × RJ-45 Gigabit PoE ports, 2 × RJ-45 Gigabit uplink ports

  • 110 W total PoE budget

    • IEEE 802.3af/at on all PoE ports

    • IEEE 802.3bt support on Ports 1–2 (red ports)

  • DIP switch for fast mode switching:

    • Cloud-Managed / Unmanaged Mode

    • PoE Watchdog

    • Long-Distance PoE

  • Wide operating temperature: –10 °C to +55 °C

  • Supports VLAN, STP, RSTP, and link aggregation

  • Web-managed and centralised cloud management via DoLynk App

  • Easy configuration with auto network detection and system setup

  • Datasheet

Basic Specifications

  • Switching Layer: Layer 2

  • Switching Capacity: 20 Gbps

  • Packet Forwarding Rate: 14.88 Mpps

Port Configuration

  • Ports 1–8: 8 × RJ-45 10/100/1000 Mbps (PoE)

  • Ports 9–10: 2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)

Environmental Specifications

  • Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

  • Operating Humidity: 10%–90% RH (non-condensing)

  • Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

  • Storage Humidity: 5%–95% RH (non-condensing)

Power

  • Power Supply: External power adapter, 54 VDC / 2.22 A

  • Power Consumption:

    • Idle: 5.7 W

    • Full Load: 115 W

PoE Specifications

  • PoE Support: Yes

  • PoE Protocols: IEEE 802.3af / IEEE 802.3at / Hi-PoE / IEEE 802.3bt

  • PoE Output Power:

    • Ports 1–2: ≤ 90 W per port

    • Ports 3–8: ≤ 30 W per port

    • Total PoE Budget: ≤ 110 W

  • PoE Power Management:

    • PoE power consumption management

    • PoE power on/off

    • Automatic PoE shutdown on overload detection

  • PoE Pin Assignment:

    • Ports 1–2:

      • V+: 1, 2, 4, 5

      • V–: 3, 6, 7, 8

    • Ports 3–8:

      • V+: 1, 2

      • V–: 3, 6

  • Long-Distance PoE: Yes

Hardware Features

DIP Switch Functions

  • Managed Mode:

    • ON (default): Local web + cloud management

    • OFF: Unmanaged mode

  • PoE Watchdog:

    • Monitors ports 1–8

    • Automatically restarts PoE if no traffic is detected for 2 minutes

    • Only active when Managed Mode is OFF

  • Extend Mode:

    • Ports 1–8 support up to 250 m transmission at 10 Mbps

    • Only active when Managed Mode is OFF

  • Reset Button: 1

Performance

  • MTBF: 2,482,955 hours

  • Packet Buffer: 4 Mbit

  • Jumbo Frame: 15,360 Bytes

  • MAC Address Table: 8K

  • Supported VLANs: 32

Network Standards

  • IEEE Standards:

    • IEEE 802.3

    • IEEE 802.3u

    • IEEE 802.3x

    • IEEE 802.3ab

    • IEEE 802.3az

    • IEEE 802.3ad

Network Features

  • Ethernet Loop Protection: STP, RSTP

  • VLAN: IEEE 802.1Q VLAN

  • Link Aggregation: Static aggregation

  • Port Features:

    • IEEE 802.3x Flow Control

    • Unknown Unicast Suppression

    • Multicast Storm Control

    • Broadcast Storm Control

    • MAC + Port Binding

    • Loop Prevention

  • Port Mirroring:

    • Local Port Mirroring

    • N:1 Mirroring

  • LLDP Support: Yes

  • DHCP: DHCP Client

  • Security: Port Isolation

Management

  • Management Methods:

    • Web Management

    • Cloud Management

  • Monitoring & Maintenance:

    • Logs

    • Fault Alarms

Protection

  • ESD Protection:

    • Air Discharge: 8 kV

    • Contact Discharge: 6 kV

  • Lightning Protection:

    • Common Mode: 6 kV

    • Differential Mode: 1 kV

Physical Specifications

  • Net Weight: 0.36 kg (0.79 lb)

  • Gross Weight: 1.13 kg (2.49 lb)

  • Product Dimensions:

    • 184.6 × 103.3 × 27 mm (7.27" × 4.07" × 1.06")

  • Packaging Dimensions:

    • 252 × 137 × 113 mm (9.92" × 5.39" × 4.45")

  • Casing Material: Sheet metal

Installation

  • Mounting Options: Desktop mount, Wall mount

Certifications

  • CE

Packing List

  • 1 × User Manual

  • 1 × Legal and Regulatory Information

  • 1 × Power Adapter

  • 1 × Power Cord

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
