• 90°@180° adjustable coverage
• IP65 weather resistance for outdoor application
• Active IR anti-masking
• Multiple enrollment methods and easy installation
• Frequency hopping against jamming for reliable transmission
• Datasheet

Detection Performance

• Detection Method: Passive Infrared; Microwave

• Detection Range: 15 m

• Detection Angle: 90° @ 180° adjustable

• Detection Zones: 92

• Detectable Speed: 0.3–2 m/s

• Sensitivity: Auto; Low

• White Light Filter: 10,000 lux

• Microwave Frequency: 24GHz (24.15–24.25GHz)

• Pet Immunity: 40Kg

• Digital Temperature Compensation: Support

• Anti-masking: Support

• Adaptable Coverage: Support (Pattern mask included)

Features

• Digital Processing: Tri-Signal Logic

• Sealed Optics: Support

• Tamper Protection: Front; Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

• Anti-Sway Analytics: Support

Interface

• Power Switch: Yes

• Power Up Enrolling: Yes

• LED Indicator:

  • Green (Top PIR)

  • Red (Microwave)

  • Orange (Bottom PIR)

  • Green + Orange (Mask)

  • Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1 Km

• Frequency Hopping: Support

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)

  • Note: Battery life may be significantly reduced at low temperatures

• Power Supply: Battery Powered

• Battery Type: CR123A × 5

• Typical Voltage: 3V

General

• Operation Temperature: -25°C to 60°C (-13°F to 140°F)

• Storage Temperature: -25°C to 60°C (-13°F to 140°F)

• Operation Humidity: 10% to 90%

• IP Rating: IP65

• Dimensions (W × H × D): 75 mm × 202 mm × 73 mm

• Weight: 600g

• Mounting Height: 0.8 to 1.2 m

• Mounting Method: Wall

• Application Scenario: Outdoor

• Big screen display, modular design for multiple use applications
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Frequency hopping against jamming for reliable transmission
• External probe included
• Datasheet

Detection Performance

• Detection Method: Temperature Sensor

• Detection Range:

  • -10°C to 55°C (Standalone)

  • -35°C to 99°C (With Included Probe)

Features

• Digital Processing: Support

• Tamper Protection: Front; Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• LED Indicator: On-Screen Display

• Display Screen Size: 2.7 inch

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 800m

• Frequency Hopping: Support

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Power Supply: Battery Powered

• Battery Type: AAA × 2

• Typical Voltage: 3V

• Standard Battery Life: Up to 2 years (standby time)

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): 62.6mm × 62.6mm × 18mm

• Weight: 73.5g

• Mounting Method: Wall

• Application Scenario: Indoor (Standalone / With Included Probe)

• Big screen display, modular design for multiple use applications
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Frequency hopping against jamming for reliable transmission
• External probe included
• Datasheet

Detection Performance

• Detection Method: Temperature Sensor

• Detection Range:

  • -10°C to 55°C (Standalone)

  • -35°C to 99°C (With Included Probe)

Features

• Digital Processing: Support

• Tamper Protection: Front; Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• LED Indicator: On-Screen Display

• Display Screen Size: 2.7 inch

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 800m

• Frequency Hopping: Support

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Power Supply: Battery Powered

• Battery Type: AAA × 2

• Typical Voltage: 3V

• Standard Battery Life: Up to 2 years (standby time)

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): 62.6mm × 62.6mm × 18mm

• Weight: 73.5g

• Mounting Method: Wall

• Application Scenario: Indoor (Standalone / With Included Probe)

• High quality chamber with photoelectric sensor
• 10 years battery life

Detection Performance

• Detection Method: Chamber with Photoelectric Sensor

Features

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Yes

• Power Up Enrolling: Yes

• LED Indicator: Red (Alarm)

• Buzzer: ≥ 85dB @ 3m

Transmission

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 800m

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 10 years (standby time)

• Power Supply: Battery Powered

• Battery Type: Non-replaceable CR17450 × 1

• Typical Voltage: 3V

General

• Operation Temperature: -10°C to 60°C (14°F to 140°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): φ102 × 35mm

• Weight: 125g

• Mounting Method: Ceiling

• Application Scenario: Indoor

• High quality chamber with photoelectric sensor
• 10 years battery life

Detection Performance

• Detection Method: Chamber with Photoelectric Sensor

Features

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Yes

• Power Up Enrolling: Yes

• LED Indicator: Red (Alarm)

• Buzzer: ≥ 85dB @ 3m

Transmission

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 800m

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 10 years (standby time)

• Power Supply: Battery Powered

• Battery Type: Non-replaceable CR17450 × 1

• Typical Voltage: 3V

General

• Operation Temperature: -10°C to 60°C (14°F to 140°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): φ102 × 35mm

• Weight: 125g

• Mounting Method: Ceiling

• Application Scenario: Indoor

• PIR Detection Range: 12m / 85.9°
• Glass Break Range: 8m / 120°
• Up to 30KG pet immunity
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Datasheet

Detection Performance

• Detection Method: Passive Infrared; Acoustic Sensor

• Detection Range: 12m

• Detection Angle: 85.9°

• Detection Zones: 52

• Detectable Speed: 0.3–2 m/s

• Pet Immunity: 30Kg

• PIR Sensitivity: Auto, High, Pet

• White Light Filter: 6500 lux

• Glass Break Range: 8m

• Glass Type: Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing

• Glass Break Sensitivity: 2m, 4m, 6m, 8m

• Glass Thickness: 2.4mm to 6.4mm

• Glass Size: 0.3m x 0.3m to 3m x 3m

• Digital Temperature Compensation: Support

• Creep Zone Protection: Support

Features

• Digital Processing: Support

• Sealed Optics: Support

• Tamper Protection: Front; Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Yes

• Power Up Enrolling: Yes

• LED Indicator:

  • Green (PIR)

  • Red (BG)

  • Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1Km

• Frequency Hopping: Support

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 4 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 2

• Typical Voltage: 3V

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5mm × 103mm × 48.5mm

• Weight: 134g

• Mounting Height: 1.8 to 2.4m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory

• PIR Detection Range: 12m / 85.9°
• Glass Break Range: 8m / 120°
• Up to 30KG pet immunity
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Datasheet

Detection Performance

• Detection Method: Passive Infrared; Acoustic Sensor

• Detection Range: 12m

• Detection Angle: 85.9°

• Detection Zones: 52

• Detectable Speed: 0.3–2 m/s

• Pet Immunity: 30Kg

• PIR Sensitivity: Auto, High, Pet

• White Light Filter: 6500 lux

• Glass Break Range: 8m

• Glass Type: Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing

• Glass Break Sensitivity: 2m, 4m, 6m, 8m

• Glass Thickness: 2.4mm to 6.4mm

• Glass Size: 0.3m x 0.3m to 3m x 3m

• Digital Temperature Compensation: Support

• Creep Zone Protection: Support

Features

• Digital Processing: Support

• Sealed Optics: Support

• Tamper Protection: Front; Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Yes

• Power Up Enrolling: Yes

• LED Indicator:

  • Green (PIR)

  • Red (BG)

  • Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1Km

• Frequency Hopping: Support

• Enrolling Method: Power Up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 4 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 2

• Typical Voltage: 3V

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operation Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5mm × 103mm × 48.5mm

• Weight: 134g

• Mounting Height: 1.8 to 2.4m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory

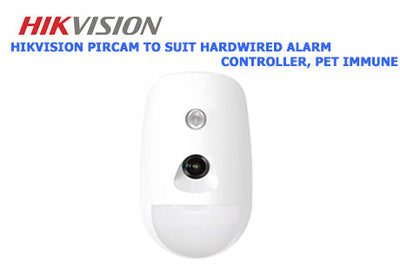

• Detection range: 12m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• 24/7 colorful imaging
• Large integrated memory buffer for image storage
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Datasheet

• Detection range: 12m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• 24/7 colorful imaging
• Large integrated memory buffer for image storage
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Datasheet

• Detection Range: 15m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Detection Range: 15m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

• IP66 protective level, UV stable
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• IP66 protective level, UV stable
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet
