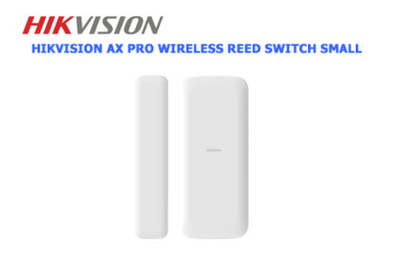

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

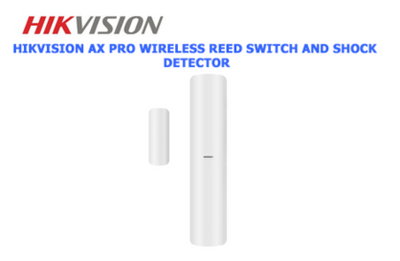

• Magnetic contact combined with shock and tilt detection
• 2 wired inputs extension
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Magnetic contact combined with shock and tilt detection
• 2 wired inputs extension
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet

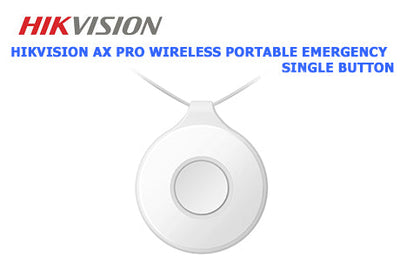

• Accidental press protection
• Fully remote configurable through App
• IP66 daily environment protection
• Frequency hopping against jamming for reliable transmission
• Optional lanyard and wristband accessory available
• Datasheet

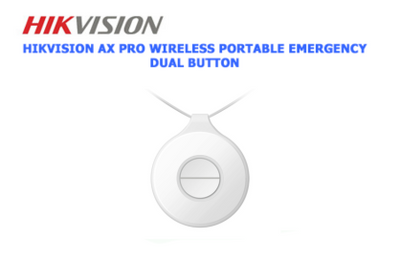

• Accidental press protection
• Fully remote configurable through App
• IP66 daily environment protection
• Frequency hopping against jamming for reliable transmission
• Optional lanyard and wristband accessory available
• Datasheet

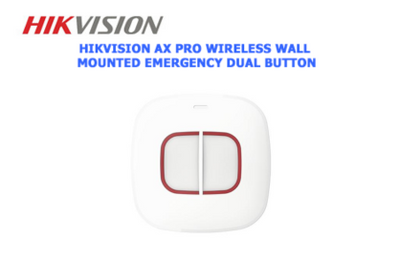

• Dual effective emergency button
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• IP66 water proof
• Datasheet

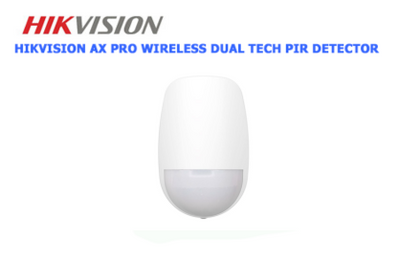

• 3D optics including creep-zone protection, full coverage without dead angle
• 24G microwave to prevent wall penetration
• Digital temperature compensation
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

Detection Performance

• Detection Method: Passive Infrared / Microwave

• Detection Range: 12 m

• Detection Angle: 85.9°

• Detection Zones: 52

• Detectable Speed: 0.3 – 2 m/s

• Sensitivity: High / Auto / Pet

• Pet Immunity: Up to 30 kg

• White Light Filter: 6500 lux

• Microwave Frequency: 24 GHz (24.15 – 24.25 GHz)

• Digital Temperature Compensation: Supported

• Creep Zone Protection: Supported

• Feature - Digital Processing: Supported

• Sealed Optics: Supported

Support

• Tamper Protection: Front / Rear

• Environment Temperature Indicator: Supported

• Signal Strength Indicator: Supported

Interface

• Power Switch: Power Up Enrolling

• LED Indicator:

  • Green (PIR)

  • Red (Microwave)

  • Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433 MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1.2 km

• Frequency Hopping: Supported

• Enrolling Method: Power Up / Remote ID / QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 2

• Typical Voltage: 3 V

General

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operating Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5 mm × 103 mm × 48.5 mm

• Weight: 141 g

• Mounting Height: 1.8 to 2.4 m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory

• 3D optics including creep-zone protection, full coverage without dead angle
• 24G microwave to prevent wall penetration
• Digital temperature compensation
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

Detection Performance

• Detection Method: Passive Infrared / Microwave

• Detection Range: 12 m

• Detection Angle: 85.9°

• Detection Zones: 52

• Detectable Speed: 0.3 – 2 m/s

• Sensitivity: High / Auto / Pet

• Pet Immunity: Up to 30 kg

• White Light Filter: 6500 lux

• Microwave Frequency: 24 GHz (24.15 – 24.25 GHz)

• Digital Temperature Compensation: Supported

• Creep Zone Protection: Supported

• Feature - Digital Processing: Supported

• Sealed Optics: Supported

Support

• Tamper Protection: Front / Rear

• Environment Temperature Indicator: Supported

• Signal Strength Indicator: Supported

Interface

• Power Switch: Power Up Enrolling

• LED Indicator:

  • Green (PIR)

  • Red (Microwave)

  • Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433 MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1.2 km

• Frequency Hopping: Supported

• Enrolling Method: Power Up / Remote ID / QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 2

• Typical Voltage: 3 V

General

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operating Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5 mm × 103 mm × 48.5 mm

• Weight: 141 g

• Mounting Height: 1.8 to 2.4 m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory

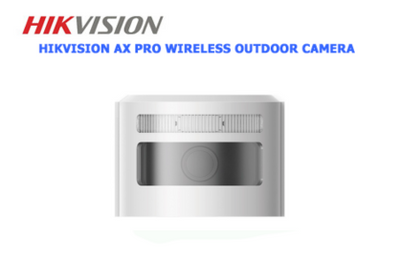

• 1/2.7" Progressive Scan CMOS
• 2.0 mm fixed lens
• 3D Digital Noise Reduction
• Easy Installation
• The direction of the Angle can be adjusted to fit the TT Detector's Angle
• Protection Level IP66
• Datasheet

Detection Performance

• Detection Method: Video Verification

Feature

• Digital Noise Reduction: 3D

Optics

• Focal Length: 2.0 mm @ F2.25

Video

• Field of View:

  • Horizontal: 137.2°

  • Vertical: 80.1°

• Image Type: JPEG

• Resolution Options:

  • 640 × 480

  • 320 × 240

  • 160 × 120

• Fill Light: Infrared Light

• Fill Light Range: 15 m

• Day/Night Switch: Auto

Interface

• Communication Interface: 1 × 12-Bit Data Interface

Electrical Characteristics

• Power Supply: 3 VDC

• Power Consumption: 1200 mA

General

• Operating Temperature: -25°C to 60°C (-13°F to 140°F)

• Storage Temperature: -25°C to 60°C (-13°F to 140°F)

• Operating Humidity: 10% to 90%

• IP Rating: IP66

• Dimensions (W × H × D): 74.1 mm × 72.35 mm × 53 mm

• Weight: 155 g

• 1/2.7" Progressive Scan CMOS
• 2.0 mm fixed lens
• 3D Digital Noise Reduction
• Easy Installation
• The direction of the Angle can be adjusted to fit the TT Detector's Angle
• Protection Level IP66
• Datasheet

Detection Performance

• Detection Method: Video Verification

Feature

• Digital Noise Reduction: 3D

Optics

• Focal Length: 2.0 mm @ F2.25

Video

• Field of View:

  • Horizontal: 137.2°

  • Vertical: 80.1°

• Image Type: JPEG

• Resolution Options:

  • 640 × 480

  • 320 × 240

  • 160 × 120

• Fill Light: Infrared Light

• Fill Light Range: 15 m

• Day/Night Switch: Auto

Interface

• Communication Interface: 1 × 12-Bit Data Interface

Electrical Characteristics

• Power Supply: 3 VDC

• Power Consumption: 1200 mA

General

• Operating Temperature: -25°C to 60°C (-13°F to 140°F)

• Storage Temperature: -25°C to 60°C (-13°F to 140°F)

• Operating Humidity: 10% to 90%

• IP Rating: IP66

• Dimensions (W × H × D): 74.1 mm × 72.35 mm × 53 mm

• Weight: 155 g

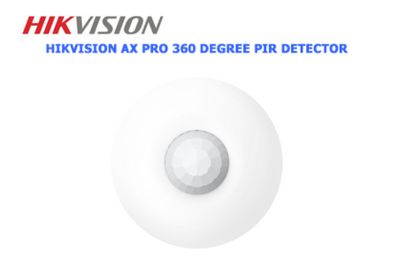

• Detection Range: 12m / 360°
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datatsheet

• Detection Range: 12m / 360°
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datatsheet

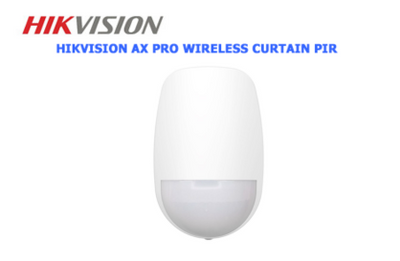

• Long range with narrow angle detection
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

Detection Performance

• Detection Method: Passive Infrared

• Detection Range: 15 m

• Detection Angle: 6.3°

• Detection Zones: 18

• Detectable Speed: 0.3 – 2 m/s

• Pet Immunity: None

• White Light Filter: 6500 lux

• Digital Temperature Compensation: Supported

• Creep Zone Protection: Supported

• Feature - Digital Processing: Supported

• Sealed Optics: Supported

Support

• Tamper Protection: Front / Rear

• Environment Temperature Indicator: Supported

• Signal Strength Indicator: Supported

Interface

• Power Switch: Power Up Enrolling

• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433 MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1.2 km

• Frequency Hopping: Supported

• Enrolling Method: Power Up / Remote ID / QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 1

• Typical Voltage: 3 V

General

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operating Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5 mm × 103 mm × 48.5 mm

• Weight: 128 g

• Mounting Height: 2.4 to 3.6 m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory

• Long range with narrow angle detection
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
• Datasheet

Detection Performance

• Detection Method: Passive Infrared

• Detection Range: 15 m

• Detection Angle: 6.3°

• Detection Zones: 18

• Detectable Speed: 0.3 – 2 m/s

• Pet Immunity: None

• White Light Filter: 6500 lux

• Digital Temperature Compensation: Supported

• Creep Zone Protection: Supported

• Feature - Digital Processing: Supported

• Sealed Optics: Supported

Support

• Tamper Protection: Front / Rear

• Environment Temperature Indicator: Supported

• Signal Strength Indicator: Supported

Interface

• Power Switch: Power Up Enrolling

• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433 MHz

• Transmission Security: AES-128 Encryption

• Transmission Range (Free Space): 1.2 km

• Frequency Hopping: Supported

• Enrolling Method: Power Up / Remote ID / QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)

• Power Supply: Battery Powered

• Battery Type: CR123A × 1

• Typical Voltage: 3 V

General

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Operating Humidity: 10% to 90%

• Dimensions (W × H × D): 65.5 mm × 103 mm × 48.5 mm

• Weight: 128 g

• Mounting Height: 2.4 to 3.6 m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory
