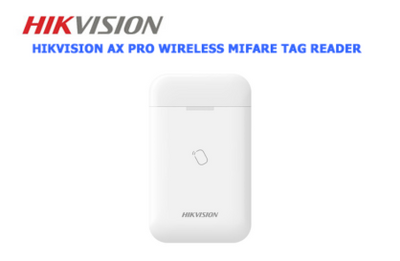

• 868MHz two-way wireless communication
• AES-128 encryption
• LED display, show the differernt feedbacks with easy understanding
• Operation: Stay arm/away arm/disarm by areas
• Arming process with fault confirm, more secure
• Patrol tag check in
• Front and rear panel tamper-proof
• Datasheet

Hardware Features

• Power Switch: Power On/Off

Electrical Characteristics

• Battery Type: 3 × AA batteries

• Operating Humidity: 10% to 90% (non-condensing)

• Operating Temperature: -10 °C to 55 °C (-4 °F to +122 °F)

• Power Consumption:

  • Quiescent Current: 110 µA

  • Max Current: 292 mA

  • Voltage: 1.5 VDC

• Battery Life Span: Up to 2 years (standby time)

Wireless Transmission

• RF Frequency: 868 MHz

• RF Modulation: 2GFSK

• RF Distance: 1200 m (open area)

Display

• Indicator Lights:

  • 5 LEDs:

    • Area (blue)

    • Fault (orange)

    • Arm (blue)

    • Disarm (green)

    • Alarm (red)

    • Signal (red/green)

General

• Installation Method: Wall-mounting

• Dimensions (W × H × D): 75 × 124 × 21 mm

• Color: White

• Weight: 183 g

• 868MHz two-way wireless communication
• AES-128 encryption
• LED display, show the differernt feedbacks with easy understanding
• Operation: Stay arm/away arm/disarm by areas
• Arming process with fault confirm, more secure
• Patrol tag check in
• Front and rear panel tamper-proof
• Datasheet

Hardware Features

• Power Switch: Power On/Off

Electrical Characteristics

• Battery Type: 3 × AA batteries

• Operating Humidity: 10% to 90% (non-condensing)

• Operating Temperature: -10 °C to 55 °C (-4 °F to +122 °F)

• Power Consumption:

  • Quiescent Current: 110 µA

  • Max Current: 292 mA

  • Voltage: 1.5 VDC

• Battery Life Span: Up to 2 years (standby time)

Wireless Transmission

• RF Frequency: 868 MHz

• RF Modulation: 2GFSK

• RF Distance: 1200 m (open area)

Display

• Indicator Lights:

  • 5 LEDs:

    • Area (blue)

    • Fault (orange)

    • Arm (blue)

    • Disarm (green)

    • Alarm (red)

    • Signal (red/green)

General

• Installation Method: Wall-mounting

• Dimensions (W × H × D): 75 × 124 × 21 mm

• Color: White

• Weight: 183 g

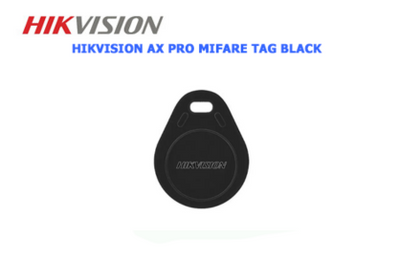

• Small and solid structure
• Convenient to carry with
• Datasheet

General Specifications

• Operating Temperature: -10 °C to 50 °C

• Shell Material: PVC, ABS

• Dimensions (W × H × D): 41 × 32 × 3.5 mm

• Color: White

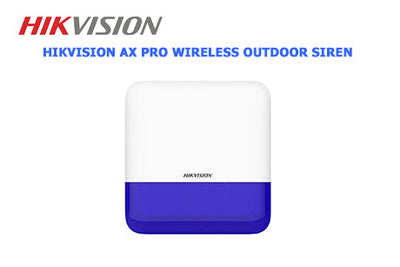

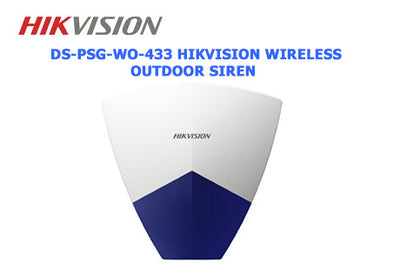

• 433 MHz two-way wireless communication
• Configurable arming/disarming prompt sound and LED indicator
• 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
• AES-128 encryption
• Front and rear panel tamper-proof
• 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
• Buzzer Decibel: 90 to 110 dB
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet


RF Transmission

• RF Frequency: 433 MHz

• RF Modulation: 2GFSK

• RF Range: 900 m (open area)

Electrical Characteristics

• Battery Life Span: Up to 3 years (standby time)

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Operation Humidity: 10% to 90% (non-condensing)

• Shell Material: PC + ABS

• Dimensions (W × H × D): 88 × 88 × 32 mm (3.46" × 3.46" × 1.26")

• Weight: 169.5 g (6.0 oz)

• Color: Blue/Red LED flash

• 433 MHz two-way wireless communication
• Configurable arming/disarming prompt sound and LED indicator
• 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
• AES-128 encryption
• Front and rear panel tamper-proof
• 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
• Buzzer Decibel: 90 to 110 dB
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• Datasheet


RF Transmission

• RF Frequency: 433 MHz

• RF Modulation: 2GFSK

• RF Range: 900 m (open area)

Electrical Characteristics

• Battery Life Span: Up to 3 years (standby time)

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)

• Operation Humidity: 10% to 90% (non-condensing)

• Shell Material: PC + ABS

• Dimensions (W × H × D): 88 × 88 × 32 mm (3.46" × 3.46" × 1.26")

• Weight: 169.5 g (6.0 oz)

• Color: Blue/Red LED flash

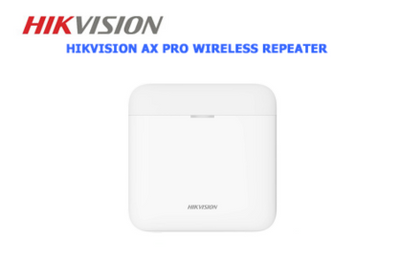

• 433MHz two-way wireless communication
• Two-way communication, stable and secure
• LED display, show the differernt feedbacks with easy understanding
• Up to 35 hrs battery backup after mains lost, no worry about communication
• Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
• Easy installation with new designed structure
• Datasheet

Software Features

• Auto Pairing: Supported

Hardware Features

• Serial Port: 2 (for debug)

• Tamper-Proof: 1 (front and back)

• Power Switch: 1

Electrical Characteristics

• Battery Type: Built-in Li-ion battery

• Power Supply: 100 VAC to 240 VAC

• Operation Humidity: 10% to 90%

• Operation Temperature: -10°C to +55°C

  Note: The battery cannot be charged at temperatures lower than 10°C. Please ensure the adapter is connected.

• Battery Life Span: Up to 35 hours at normal temperature

  Note: Battery working time may be significantly reduced at low temperatures.

Wireless Transmission

• RF Frequency: 433 MHz

• RF Method: Two-way communication

• RF Modulation: 2GFSK

• RF Distance: 800 m (open area)

• Wireless Security: AES-128

Display

• LED Status Indicators:

  • Register/Signal: Green/Red

  • Power: Green

  • Fault: Amber

General

• Installation Method: Wall mounting

• Dimensions (W × H × D): 150 mm × 150 mm × 25 mm

• Shell Material: Plastic

• Color: White

• Weight: 372 g

Device Management

• PIRCAM Pairing: Supported

• Keypad: LCD keypad not supported

• 433MHz two-way wireless communication
• Two-way communication, stable and secure
• LED display, show the differernt feedbacks with easy understanding
• Up to 35 hrs battery backup after mains lost, no worry about communication
• Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
• Easy installation with new designed structure
• Datasheet

Software Features

• Auto Pairing: Supported

Hardware Features

• Serial Port: 2 (for debug)

• Tamper-Proof: 1 (front and back)

• Power Switch: 1

Electrical Characteristics

• Battery Type: Built-in Li-ion battery

• Power Supply: 100 VAC to 240 VAC

• Operation Humidity: 10% to 90%

• Operation Temperature: -10°C to +55°C

  Note: The battery cannot be charged at temperatures lower than 10°C. Please ensure the adapter is connected.

• Battery Life Span: Up to 35 hours at normal temperature

  Note: Battery working time may be significantly reduced at low temperatures.

Wireless Transmission

• RF Frequency: 433 MHz

• RF Method: Two-way communication

• RF Modulation: 2GFSK

• RF Distance: 800 m (open area)

• Wireless Security: AES-128

Display

• LED Status Indicators:

  • Register/Signal: Green/Red

  • Power: Green

  • Fault: Amber

General

• Installation Method: Wall mounting

• Dimensions (W × H × D): 150 mm × 150 mm × 25 mm

• Shell Material: Plastic

• Color: White

• Weight: 372 g

Device Management

• PIRCAM Pairing: Supported

• Keypad: LCD keypad not supported
