Metal Vandal-resistant Facial Recognition IP Villa Door Station

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP camera with IR supplement
• One-touch physical button for easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth

Specification

System Parameters

• Operating System: Linux
• ROM: 4 GB
• RAM: 1 GB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 4.3-inch
• Operation Method: Capacitive touch screen
• Type: IPS
• Resolution: 800 × 480
• Luminance: 425 cd/m²

Video Parameters

• Lens: 2
• Resolution: 2 × 2 MP
• FOV: Horizontal: 88°, Vertical: 44°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard:
  • Main stream and sub stream: H.264
  • Third stream: H.265

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate:
  • G.711u, G.711a, Opus: 64 kbps
  • G.722.1, G.726: 32 kbps
  • AAC-LD, AAC-LC: 16 kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 20,000
• Face Capacity: 10,000
• Fingerprint Capacity: /
• Card Capacity: 100,000
• Message Capacity: /
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Support: 2.0
• 3G/4G: /

Authentication

• Card Reading Frequency: 13.56 MHz
• Face Recognition Distance: 0.3 to 2 m
• Face Recognition Accuracy Rate: ≥ 99%
• Face Recognition Duration: ＜ 0.2 s per person

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• Tamper: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: Reserved
• Lock Control: 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
• Door Contact Input: 2

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: /
• Weight:
  • Net weight: 0.405 kg
  • Gross weight: 0.752 kg
• Protective Level: IP65, IK08
• Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity: 10% to 90% (no-condensing)
• Dimension (W × H × D): 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
• Battery: /
• Power Supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
• Application Environment: Outdoor
• Power Consumption: ≤ 6 W
• Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Metal Vandal-resistant Facial Recognition IP Villa Door Station

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP camera with IR supplement
• One-touch physical button for easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth

Specification

System Parameters

• Operating System: Linux
• ROM: 4 GB
• RAM: 1 GB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 4.3-inch
• Operation Method: Capacitive touch screen
• Type: IPS
• Resolution: 800 × 480
• Luminance: 425 cd/m²

Video Parameters

• Lens: 2
• Resolution: 2 × 2 MP
• FOV: Horizontal: 88°, Vertical: 44°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard:
  • Main stream and sub stream: H.264
  • Third stream: H.265

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate:
  • G.711u, G.711a, Opus: 64 kbps
  • G.722.1, G.726: 32 kbps
  • AAC-LD, AAC-LC: 16 kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 20,000
• Face Capacity: 10,000
• Fingerprint Capacity: /
• Card Capacity: 100,000
• Message Capacity: /
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Support: 2.0
• 3G/4G: /

Authentication

• Card Reading Frequency: 13.56 MHz
• Face Recognition Distance: 0.3 to 2 m
• Face Recognition Accuracy Rate: ≥ 99%
• Face Recognition Duration: ＜ 0.2 s per person

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• Tamper: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: Reserved
• Lock Control: 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
• Door Contact Input: 2

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: /
• Weight:
  • Net weight: 0.405 kg
  • Gross weight: 0.752 kg
• Protective Level: IP65, IK08
• Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity: 10% to 90% (no-condensing)
• Dimension (W × H × D): 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
• Battery: /
• Power Supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
• Application Environment: Outdoor
• Power Consumption: ≤ 6 W
• Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

9 Series 10.1" Android Indoor Station

Advanced Android-based indoor station with unified smart security management, ultra-smooth operation, and Super HD clarity for premium residential and commercial intercom systems.

Key Features

• Integrated smart security management on a single screen

• Android 14 operating system

• 4-core embedded high-performance processor

• 4 GB RAM + 8 GB ROM

• 10.1" IPS capacitive touch display

• 1920 × 1200 resolution (Super HD)

• Dual built-in microphones and dual loudspeakers

• Noise suppression and echo cancellation

• Wi-Fi 6 (2.4 GHz & 5 GHz)

• BLE 5.0 support

• Standard PoE (IEEE 802.3at)

• Datasheet

System Parameters

• Operating System: Android 14

• Processor: Embedded high-performance processor

• RAM: 4 GB

• ROM: 8 GB

Display

• Screen Size: 10.1-inch

• Display Type: Colorful IPS

• Operation Method: Capacitive touch screen

• Resolution: 1920 × 1200

Audio

• Audio Input: 2 built-in omnidirectional microphones

• Audio Output: 2 built-in loudspeakers

• Audio Compression: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD

• Audio Bitrate: 64 Kbps

• Audio Quality: Noise suppression and echo cancellation

• Volume Adjustment: Adjustable

Capacity

• Linked Doorphone Capacity: 17

• Linked Indoor Extensions Capacity: 15

• Linked Network Camera Capacity: 16

• Message Storage:

  • 200 captured pictures

  • 200 alarm records

  • 200 unlock records

  • 200 tamper records

Network

• Wi-Fi: Wi-Fi 6 (2.4 GHz & 5 GHz)

• Bluetooth: BLE 5.0

• Network Interface: 1 × RJ-45 (10/100 Mbps self-adaptive)

• Network Protocols:
  IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  SIP v1 (RFC2543), SIP v2 (RFC3261)
  DTMF (SIP Info)
  SADP, ISAPI, ONVIF

Interfaces

• Alarm Input: 8 (Reserved)

• RS-485: 1 × RS-485 (Half duplex)

• TF Card Slot: Supports up to 256 GB

• Power Input: 12 VDC

• Power Output: 12 VDC, 200 mA

• Relay: 1 (Reserved), Max. 30VDC 1A

General

• Installation: Surface mounting

• Proximity Sensor:

  • Distance: 50 cm

  • Horizontal: 25°

  • Vertical: 25°

• Power Supply:

  • 12 VDC, 2.5 A

  • IEEE 802.3at (Standard PoE)

• Power Consumption: ≤ 24 W

• Working Temperature: -10 °C to 50 °C

• Working Humidity: 10% to 90% (non-condensing)

• Application Environment: Indoor

• Weight:

  • Without package: 545 g

  • With package: 639 g

• Dimensions (W × H × D):
  246.58 mm × 155.76 mm × 23.62 mm

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

9 Series 10.1" Android Indoor Station

Advanced Android-based indoor station with unified smart security management, ultra-smooth operation, and Super HD clarity for premium residential and commercial intercom systems.

Key Features

• Integrated smart security management on a single screen

• Android 14 operating system

• 4-core embedded high-performance processor

• 4 GB RAM + 8 GB ROM

• 10.1" IPS capacitive touch display

• 1920 × 1200 resolution (Super HD)

• Dual built-in microphones and dual loudspeakers

• Noise suppression and echo cancellation

• Wi-Fi 6 (2.4 GHz & 5 GHz)

• BLE 5.0 support

• Standard PoE (IEEE 802.3at)

• Datasheet

System Parameters

• Operating System: Android 14

• Processor: Embedded high-performance processor

• RAM: 4 GB

• ROM: 8 GB

Display

• Screen Size: 10.1-inch

• Display Type: Colorful IPS

• Operation Method: Capacitive touch screen

• Resolution: 1920 × 1200

Audio

• Audio Input: 2 built-in omnidirectional microphones

• Audio Output: 2 built-in loudspeakers

• Audio Compression: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD

• Audio Bitrate: 64 Kbps

• Audio Quality: Noise suppression and echo cancellation

• Volume Adjustment: Adjustable

Capacity

• Linked Doorphone Capacity: 17

• Linked Indoor Extensions Capacity: 15

• Linked Network Camera Capacity: 16

• Message Storage:

  • 200 captured pictures

  • 200 alarm records

  • 200 unlock records

  • 200 tamper records

Network

• Wi-Fi: Wi-Fi 6 (2.4 GHz & 5 GHz)

• Bluetooth: BLE 5.0

• Network Interface: 1 × RJ-45 (10/100 Mbps self-adaptive)

• Network Protocols:
  IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  SIP v1 (RFC2543), SIP v2 (RFC3261)
  DTMF (SIP Info)
  SADP, ISAPI, ONVIF

Interfaces

• Alarm Input: 8 (Reserved)

• RS-485: 1 × RS-485 (Half duplex)

• TF Card Slot: Supports up to 256 GB

• Power Input: 12 VDC

• Power Output: 12 VDC, 200 mA

• Relay: 1 (Reserved), Max. 30VDC 1A

General

• Installation: Surface mounting

• Proximity Sensor:

  • Distance: 50 cm

  • Horizontal: 25°

  • Vertical: 25°

• Power Supply:

  • 12 VDC, 2.5 A

  • IEEE 802.3at (Standard PoE)

• Power Consumption: ≤ 24 W

• Working Temperature: -10 °C to 50 °C

• Working Humidity: 10% to 90% (non-condensing)

• Application Environment: Indoor

• Weight:

  • Without package: 545 g

  • With package: 639 g

• Dimensions (W × H × D):
  246.58 mm × 155.76 mm × 23.62 mm

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Protective shield

• Protective shield for DS-KV9503-WBE1 villa door station (Surface mouting)
• Material: SECC

General

• Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity10% to 95% (No condensing)
• Dimension (W × H × D)

  188.69 × 97 × 49.06 mm (7.43" × 3.82\" ×

  1.93)"

• MaterialSECC

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Protective shield

• Protective shield for DS-KV9503-WBE1 villa door station (Surface mouting)
• Material: SECC

General

• Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity10% to 95% (No condensing)
• Dimension (W × H × D)

  188.69 × 97 × 49.06 mm (7.43" × 3.82\" ×

  1.93)"

• MaterialSECC

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Protective rain shield designed for Hikvision KV6114 and KV6124 series villa door stations. Ideal for surface-mounted installations to provide additional weather protection and extend device lifespan.

Key Features

• Protective rain shielder

• Designed for surface-mounted installation

• Compatible with KV6114 / KV6124 series

• Durable PC (polycarbonate) construction

• Enhances weather protection and durability

Specifications

Model
DS-KABV6114-RS

Installation Type
Surface mounting

Material
PC (Polycarbonate)

Dimensions (W × H × D)
194.49 mm × 84.62 mm × 47 mm
(7.66" × 3.33" × 1.85")

Working Temperature
-40 °C to 60 °C
(-40 °F to 140 °F)

Working Humidity
10% to 95% (Non-condensing)

Compatible Models

• KV6114 Series

• KV6124 Series

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Protective rain shield designed for Hikvision KV6114 and KV6124 series villa door stations. Ideal for surface-mounted installations to provide additional weather protection and extend device lifespan.

Key Features

• Protective rain shielder

• Designed for surface-mounted installation

• Compatible with KV6114 / KV6124 series

• Durable PC (polycarbonate) construction

• Enhances weather protection and durability

Specifications

Model
DS-KABV6114-RS

Installation Type
Surface mounting

Material
PC (Polycarbonate)

Dimensions (W × H × D)
194.49 mm × 84.62 mm × 47 mm
(7.66" × 3.33" × 1.85")

Working Temperature
-40 °C to 60 °C
(-40 °F to 140 °F)

Working Humidity
10% to 95% (Non-condensing)

Compatible Models

• KV6114 Series

• KV6124 Series

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Wall-mounted angle bracket designed to adjust the installation angle of compatible Hikvision villa door stations by 30°. Improves camera viewing angle and installation flexibility.

Key Features

• Wall-mounted bracket

• 30° installation angle adjustment

• Designed for Hikvision villa door stations

• Durable PC (polycarbonate) construction

• Suitable for indoor and outdoor use

Specifications

Model
DS-KABV24-A

Material
PC (Polycarbonate)

Angle Adjustment
30°

Dimensions (W × H × D)
119.6 mm × 46.7 mm × 28.3 mm

Working Temperature
-40 °C to 70 °C
(-40 °F to 158 °F)

Compatible Models

• KV6114 Series

• KV6124 Series

• DS-KB2412T-IM

• DS-KB2422T-IM

• DS-KB2411T-IM

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

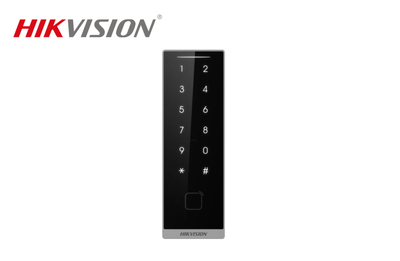

Pro Series Card & PIN Reader (IP66)

Professional outdoor access control reader supporting card, PIN, Bluetooth, and gesture-based unlocking. Designed for secure installations requiring multi-factor authentication and durable IP66 protection.

Datasheet

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols

• Built-in M1 (13.56 MHz) and EM (125 KHz) card reading module

• Supports DESfire card reading

• Multiple authentication methods:

  • Card

  • PIN code

  • Bluetooth

  • Wave-to-open (gesture detection via Bluetooth)

• Capacitive touch panel operation

• Built-in buzzer for reading status indication

• Occlusion detection support

• Supports online firmware upgrade

• IP66-rated weatherproof design

Authentication

• Supported Card Types:

  • DESfire Card

  • EM Card (125 KHz)

  • M1 Card (13.56 MHz)

Interface

• RS-485: Supported

• Wiegand: Supported (W26/W34)

• OSDP: Supported

General Specifications

• Power Supply: 12 VDC

• Power Consumption: ≤ 6W

• Working Temperature: -40°C to 65°C

• Working Humidity: 0% to 90%

• Protection Level: IP66

• Installation: Wall mounting

• Dimensions (W × H × D):
  139 × 46 × 21.2 mm
  (5.47 × 1.81 × 0.83 inch)

• Weight: 167.7 g

• Buzzer: Supported

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Pro Series Card & PIN Reader (IP66)

Professional outdoor access control reader supporting card, PIN, Bluetooth, and gesture-based unlocking. Designed for secure installations requiring multi-factor authentication and durable IP66 protection.

Datasheet

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols

• Built-in M1 (13.56 MHz) and EM (125 KHz) card reading module

• Supports DESfire card reading

• Multiple authentication methods:

  • Card

  • PIN code

  • Bluetooth

  • Wave-to-open (gesture detection via Bluetooth)

• Capacitive touch panel operation

• Built-in buzzer for reading status indication

• Occlusion detection support

• Supports online firmware upgrade

• IP66-rated weatherproof design

Authentication

• Supported Card Types:

  • DESfire Card

  • EM Card (125 KHz)

  • M1 Card (13.56 MHz)

Interface

• RS-485: Supported

• Wiegand: Supported (W26/W34)

• OSDP: Supported

General Specifications

• Power Supply: 12 VDC

• Power Consumption: ≤ 6W

• Working Temperature: -40°C to 65°C

• Working Humidity: 0% to 90%

• Protection Level: IP66

• Installation: Wall mounting

• Dimensions (W × H × D):
  139 × 46 × 21.2 mm
  (5.47 × 1.81 × 0.83 inch)

• Weight: 167.7 g

• Buzzer: Supported

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Professional access control card reader supporting multiple authentication methods including M1, EM, DESfire, Bluetooth, and wave-to-open functionality. Designed for outdoor environments with IP66 protection.

Datasheet

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols

• Built-in M1 (13.56 MHz) and EM (125 KHz) card reading module

• Supports DESfire card reading

• Multiple authentication methods:

  • Card

  • Bluetooth

  • Wave-to-open (gesture recognition)

• Touch panel operation

• Built-in buzzer for reading status indication

• Occlusion detection support

• Supports online firmware upgrade

• IP66-rated weatherproof design

Authentication

• Supported Card Types:

  • EM Card (125 KHz)

  • M1 Card (13.56 MHz)

  • DESfire Card

Interface

• RS-485: Supported

• Wiegand: Supported (W26/W34)

• OSDP: Supported

General Specifications

• Power Supply: DC 12V

• Power Consumption: ≤ 6W

• Working Temperature: -40°C to 65°C

• Working Humidity: 0% to 90%

• Protection Level: IP66

• Installation: Wall mounting

• Dimensions (W × H × D):
  139 × 46 × 21.2 mm
  (5.47 × 1.81 × 0.83 inch)

• Weight: 167.7 g

• Buzzer: Supported

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Professional access control card reader supporting multiple authentication methods including M1, EM, DESfire, Bluetooth, and wave-to-open functionality. Designed for outdoor environments with IP66 protection.

Datasheet

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols

• Built-in M1 (13.56 MHz) and EM (125 KHz) card reading module

• Supports DESfire card reading

• Multiple authentication methods:

  • Card

  • Bluetooth

  • Wave-to-open (gesture recognition)

• Touch panel operation

• Built-in buzzer for reading status indication

• Occlusion detection support

• Supports online firmware upgrade

• IP66-rated weatherproof design

Authentication

• Supported Card Types:

  • EM Card (125 KHz)

  • M1 Card (13.56 MHz)

  • DESfire Card

Interface

• RS-485: Supported

• Wiegand: Supported (W26/W34)

• OSDP: Supported

General Specifications

• Power Supply: DC 12V

• Power Consumption: ≤ 6W

• Working Temperature: -40°C to 65°C

• Working Humidity: 0% to 90%

• Protection Level: IP66

• Installation: Wall mounting

• Dimensions (W × H × D):
  139 × 46 × 21.2 mm
  (5.47 × 1.81 × 0.83 inch)

• Weight: 167.7 g

• Buzzer: Supported

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

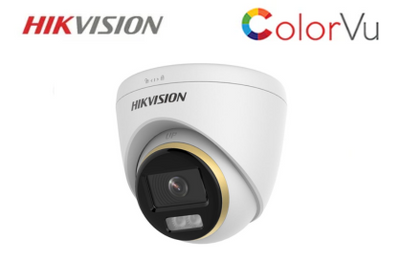

3K ColorVu Dual-light Fixed Turret Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

• Data Sheet

Camera Specifications

• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Maximum Resolution: 2960 (H) × 1665 (V)
• Slow Shutter: Up to 16 times
• Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens Details

• Lens Type: 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 110°
    • Vertical FOV: 59°
    • Diagonal FOV: 139°
  • 3.6 mm:
    • Horizontal FOV: 90°
    • Vertical FOV: 49°
    • Diagonal FOV: 105°
• Lens Mount: M12

Illuminator

• Supplement Light Range:
  • IR: Up to 40 m
  • White Light: Up to 40 m
• Smart Supplement Light: Yes

Image Features

• Frame Rate:
  • 3K @20 fps
  • 4 MP @25 fps/30 fps
  • 1080p @25 fps/30 fps
• Privacy Mask: 4/8 programmable privacy masks
• Wide Dynamic Range (WDR): ≥130 dB
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• AGC (Automatic Gain Control): Yes
• Day/Night Mode: Auto/Color/Black and White
• White Balance: Auto/Outdoor/Global/Manual
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Anti-Banding, Smart Light, Brightness, Contrast, Mirror

Interface

• Video Output: 1 HD analog output

Event

• Motion Detection: 4 programmable motion areas

General

• Power:
  • 12 VDC ± 25%, 0.65 A, max. 7.8 W
  • Recommendation: Use one power adapter per camera
• Language: English
• Operating Condition:
  • Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity: 90% or less (non-condensing)
• Material:
  • Main body: Metal
  • Enclosure: Plastic
• Communication: HIKVISION-C
• Dimensions: Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
• Weight: Approx. 325 g (0.72 lb.)
• Protection: IP67


Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

3K ColorVu Dual-light Fixed Turret Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

• Data Sheet

Camera Specifications

• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Maximum Resolution: 2960 (H) × 1665 (V)
• Slow Shutter: Up to 16 times
• Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens Details

• Lens Type: 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & Field of View (FOV):
  • 2.8 mm:
    • Horizontal FOV: 110°
    • Vertical FOV: 59°
    • Diagonal FOV: 139°
  • 3.6 mm:
    • Horizontal FOV: 90°
    • Vertical FOV: 49°
    • Diagonal FOV: 105°
• Lens Mount: M12

Illuminator

• Supplement Light Range:
  • IR: Up to 40 m
  • White Light: Up to 40 m
• Smart Supplement Light: Yes

Image Features

• Frame Rate:
  • 3K @20 fps
  • 4 MP @25 fps/30 fps
  • 1080p @25 fps/30 fps
• Privacy Mask: 4/8 programmable privacy masks
• Wide Dynamic Range (WDR): ≥130 dB
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• AGC (Automatic Gain Control): Yes
• Day/Night Mode: Auto/Color/Black and White
• White Balance: Auto/Outdoor/Global/Manual
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Anti-Banding, Smart Light, Brightness, Contrast, Mirror

Interface

• Video Output: 1 HD analog output

Event

• Motion Detection: 4 programmable motion areas

General

• Power:
  • 12 VDC ± 25%, 0.65 A, max. 7.8 W
  • Recommendation: Use one power adapter per camera
• Language: English
• Operating Condition:
  • Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity: 90% or less (non-condensing)
• Material:
  • Main body: Metal
  • Enclosure: Plastic
• Communication: HIKVISION-C
• Dimensions: Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
• Weight: Approx. 325 g (0.72 lb.)
• Protection: IP67


Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

8 MP Powered by Darkfighter Fixed Turret Network Camera

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

8 MP Powered by Darkfighter Fixed Turret Network Camera

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

8 MP Powered by Darkfighter Fixed Turret Network Camera

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

8 MP Powered by Darkfighter Fixed Turret Network Camera

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
