• High quality imaging with 8 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet


Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night:
  • IR cut filter
  • Blue glass module to reduce ghost phenomenon

Lens

• Aperture:
  • 2.8 to 12 mm: F1.2 to F2.5
  • 8 to 32 mm: F1.7 to F1.73
• Iris Type: P-iris
• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm:
    • Horizontal FOV: 112.3° to 41.2°
    • Vertical FOV: 58° to 23.1°
    • Diagonal FOV: 137.3° to 47.3°
  • 8 to 32 mm:
    • Horizontal FOV: 41.8° to 14.9°
    • Vertical FOV: 22.92° to 8.48°
    • Diagonal FOV: 48.7° to 17°
• Focus Modes: Auto, Semi-auto, Manual

DORI (Detect, Observe, Recognize, Identify)

• Wide (2.8 to 12 mm):
  • D: 87 m
  • O: 34.5 m
  • R: 17.4 m
  • I: 8.7 m
• Tele (8 to 32 mm):
  • D: 218 m
  • O: 86.5 m
  • R: 43.6 m
  • I: 21.8 m

Illuminator

• Type: IR
• Range:
  • 2.8 to 12 mm: 50 m
  • 8 to 32 mm: 100 m
• Smart Supplement Light: Yes
• Wavelength: 850 nm

AI Open Platform

• Model Specification:
  • Supports up to 4 models
  • Model types: detection, classification, mixed

Video

• Main Stream Resolutions:
  • 50 Hz: 25 fps
  • 60 Hz: 30 fps
• Sub-Streams & Frame Rates: Multiple resolutions supported
• Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Encoding Features: ROI, SVC

Audio

• Bit Rate: 64 Kbps to 320 Kbps
• Compression: G.711, G.722.1, G.726, MP3, AAC-LC
• Sampling Rates: 8 kHz to 48 kHz
• Type: Mono
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, RTSP, etc.
• Simultaneous Live Views: Up to 20 channels
• API Support: ONVIF (Profiles S, G, T, M), SDK

Security

• Password protection, encryption (HTTPS, TLS 1.3), IP filtering, and more.

Interface

• Ethernet: 1 RJ45 10/100/1000 Mbps
• Audio: Line in/out
• Alarm: 2 inputs, 2 outputs
• On-Board Storage: Up to 1 TB (microSD)
• Video Output: Composite (for debugging)

General

• Power:
  • 12 VDC, PoE (IEEE 802.3at)
• Material: Aluminum alloy
• Dimensions: Ø144 mm × 347 mm (Without -Y)
• Weight: Approx. 1.95 kg (4.2 lb)

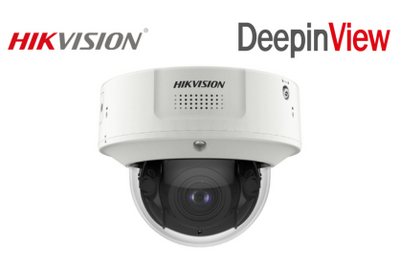

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

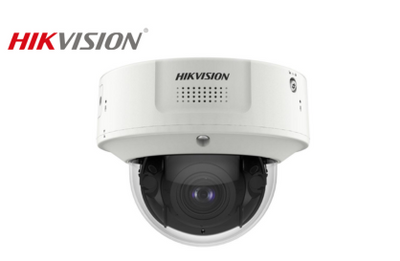

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• 25 × optical zoom captures details in remote area
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Built-in heater on the front viewing window to ensure clear image under snowy weather
• Built-in gyroscope to ensure stable image output
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• 25 × optical zoom captures details in remote area
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Built-in heater on the front viewing window to ensure clear image under snowy weather
• Built-in gyroscope to ensure stable image output
• Water and dust resistant (IP67) and vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• 25 × optical zoom captures details in remote area
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Built-in heater on the front viewing window to ensure clear image under snowy weather
• Built-in gyroscope to ensure stable image output
• Water and dust resistant (IP67) and vandal proof (IK10)

• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Anti-IR reflection bubble guarantees image quality
• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)
• Anti-IR reflection bubble guarantees image quality
• Datasheet

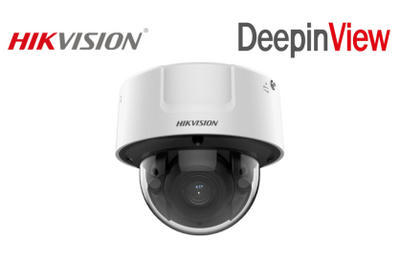

• High quality imaging with 8 MP resolution
• Excellent low-light performance via DarkFighter technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• 5 streams to meet a wide variety of applications
• Vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8" Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter with blue glass module to reduce ghost phenomenon
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm:
    • Horizontal FOV: 112.3° to 41.2°
    • Vertical FOV: 58° to 23.1°
    • Diagonal FOV: 137.3° to 47.3°
  • 8 to 32 mm:
    • Horizontal FOV: 41.8° to 14.9°
    • Vertical FOV: 22.92° to 8.48°
    • Diagonal FOV: 48.7° to 17°
• Focus: Auto, Semi-auto, Manual
• Iris Type: P-iris
• Aperture:
  • 2.8 to 12 mm: F1.2 to F2.5
  • 8 to 32 mm: F1.7 to F1.73

DORI (Detect, Observe, Recognize, Identify)

Wide View

• 2.8 to 12 mm:
  • D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m
• 8 to 32 mm:
  • D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m

Tele View

• 2.8 to 12 mm:
  • D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m
• 8 to 32 mm:
  • D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

Illuminator

• IR Wavelength: 850 nm
• Smart Supplement Light: Yes
• Supplement Light Range:
  • 2.8 to 12 mm: 30 m
  • 8 to 32 mm: 50 m
• Light Type: IR

Video

• Main Stream:
  • 50 Hz: 25 fps @ 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720
  • 60 Hz: 30 fps @ same resolutions
• Sub-Stream:
  • 50 Hz: 25 fps @ 704 × 576, 640 × 480
  • 60 Hz: 30 fps @ 704 × 480, 640 × 480
• Third to Fifth Stream: Resolutions vary; refer to main streams.
• Video Compression: H.265+/H.265/H.264+/H.264, MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• H.264/H.265 Types: Baseline, Main, High Profiles

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Sampling Rates: 8/16/32/44.1/48 kHz
• Bit Rate:
  • 64 Kbps (G.711)
  • 16–192 Kbps (MP3/MP2L2/AAC-LC)

Network

• Protocols: TCP/IP, HTTP, HTTPS, RTSP, etc.
• Simultaneous Live View: Up to 20 channels
• API Support: ONVIF, ISAPI, SDK

Intelligent Features

• Face Capture & Comparison:
  • Detects 120 faces simultaneously
  • Supports 150,000 faces in total
• People Counting: Real-time data, deduplication, export reports
• Perimeter Protection: Line crossing, intrusion

General Specifications

• Power Supply:
  • 12 VDC ±20%, 24 VAC ±20%, PoE IEEE 802.3at
• Material: Aluminum alloy
• Weight: Approx. 875 g (1.93 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% humidity

Certifications

• EMC: FCC, CE-EMC, RCM, IC
• Safety: UL 62368-1, CE-LVD
• Environment: RoHS, WEEE

• High quality imaging with 8 MP resolution
• Excellent low-light performance via DarkFighter technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• 5 streams to meet a wide variety of applications
• Vandal proof (IK10)
• Datasheet

Camera Specifications

Image Sensor

• 1/1.8" Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter with blue glass module to reduce ghost phenomenon
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens

• Focal Length & Field of View (FOV):
  • 2.8 to 12 mm:
    • Horizontal FOV: 112.3° to 41.2°
    • Vertical FOV: 58° to 23.1°
    • Diagonal FOV: 137.3° to 47.3°
  • 8 to 32 mm:
    • Horizontal FOV: 41.8° to 14.9°
    • Vertical FOV: 22.92° to 8.48°
    • Diagonal FOV: 48.7° to 17°
• Focus: Auto, Semi-auto, Manual
• Iris Type: P-iris
• Aperture:
  • 2.8 to 12 mm: F1.2 to F2.5
  • 8 to 32 mm: F1.7 to F1.73

DORI (Detect, Observe, Recognize, Identify)

Wide View

• 2.8 to 12 mm:
  • D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m
• 8 to 32 mm:
  • D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m

Tele View

• 2.8 to 12 mm:
  • D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m
• 8 to 32 mm:
  • D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

Illuminator

• IR Wavelength: 850 nm
• Smart Supplement Light: Yes
• Supplement Light Range:
  • 2.8 to 12 mm: 30 m
  • 8 to 32 mm: 50 m
• Light Type: IR

Video

• Main Stream:
  • 50 Hz: 25 fps @ 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720
  • 60 Hz: 30 fps @ same resolutions
• Sub-Stream:
  • 50 Hz: 25 fps @ 704 × 576, 640 × 480
  • 60 Hz: 30 fps @ 704 × 480, 640 × 480
• Third to Fifth Stream: Resolutions vary; refer to main streams.
• Video Compression: H.265+/H.265/H.264+/H.264, MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• H.264/H.265 Types: Baseline, Main, High Profiles

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Sampling Rates: 8/16/32/44.1/48 kHz
• Bit Rate:
  • 64 Kbps (G.711)
  • 16–192 Kbps (MP3/MP2L2/AAC-LC)

Network

• Protocols: TCP/IP, HTTP, HTTPS, RTSP, etc.
• Simultaneous Live View: Up to 20 channels
• API Support: ONVIF, ISAPI, SDK

Intelligent Features

• Face Capture & Comparison:
  • Detects 120 faces simultaneously
  • Supports 150,000 faces in total
• People Counting: Real-time data, deduplication, export reports
• Perimeter Protection: Line crossing, intrusion

General Specifications

• Power Supply:
  • 12 VDC ±20%, 24 VAC ±20%, PoE IEEE 802.3at
• Material: Aluminum alloy
• Weight: Approx. 875 g (1.93 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% humidity

Certifications

• EMC: FCC, CE-EMC, RCM, IC
• Safety: UL 62368-1, CE-LVD
• Environment: RoHS, WEEE

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Vandal proof (IK10)
• Datasheet

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Vandal proof (IK10)
• Datasheet
