• Panoramic channel supports image stitching, with 180° horizontal field of view
• High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
• Secures an expansive area with 32 × optical zoom and 16 × digital zoom
• AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
• Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
• Active strobe light and audio alarm to warn intruders off
• Smart-linkage between panoramic channel and PTZ channel
• Datasheet

Camera Specifications

Image Sensor:

• Panoramic Channel: 1/2.5" Progressive Scan CMOS

• PTZ Channel: 1/2.8" Progressive Scan CMOS

Max. Resolution:

• Panoramic Channel: 3632 × 1632

• PTZ Channel: 2560 × 1440

Min. Illumination:

• PTZ Channel: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Panoramic Channel: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

Shutter Speed: 1 s to 1/30,000 s
Day & Night: IR cut filter
Zoom: 32× optical, 16× digital
Slow Shutter: Yes
HLC: Yes
3D DNR: Yes

Lens Specifications

Focal Length:

• Panoramic Channel: 2.8 mm

• PTZ Channel: 5.9 mm to 188.8 mm

FOV:

• Panoramic Channel: Horizontal field of view: 180° ±10°, Vertical field of view: 80° ±5°

• PTZ Channel: Horizontal field of view: 60.2° to 2.3°

Focus: Auto, Semi-auto, Manual
Aperture:

• Panoramic Channel: F1.0

• PTZ Channel: Max. F1.5

Zoom Speed:

• Panoramic Channel: No

• PTZ Channel: Approx. 5.6 s

Illuminator

Supplement Light Range:

• IR Distance: Up to 200 m

• White Light Distance:

  • Panoramic Channel: 30 m

PTZ Specifications

Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90°
Pan Speed: Configurable from 0.1° to 160°/s, Preset speed: 240°/s
Tilt Speed: Configurable from 0.1° to 120°/s, Preset speed: 200°/s
Proportional Pan: Yes
Presets: 300
Preset Freezing: Yes
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Park Action: Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan
3D Positioning: Yes
PTZ Status Display: Yes
Scheduled Task: Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Aux output, Dome adjust
Power-off Memory: Yes

Video Specifications

Main Stream:

• PTZ Channel:

  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Panoramic Channel:

  • 50 Hz: 25 fps (3632 × 1632, 3680 × 1656)

  • 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)

Sub-Stream:

• PTZ Channel:

  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Panoramic Channel:

  • 50 Hz: 25 fps (1200 × 536, 960 × 432)

  • 60 Hz: 30 fps (1200 × 536, 960 × 432)

Third Stream:

• PTZ Channel:

  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Panoramic Channel: No

Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Third stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16384 Kbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC): Yes
Region of Interest (ROI): Fixed region

Audio Specifications

Audio Compression:

• G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Audio Bit Rate:

• 32 to 192 Kbps (MP2L2)

• 16 to 64 Kbps (AAC-LC)

• 8 to 320 Kbps (MP3)

Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering: Yes

Network Specifications

Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP

Simultaneous Live View: 20
API: ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
User/Host: 32

Network Storage: NAS (NFS, SMB/CIFS), Auto network replenishment (ANR)
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser: IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge 79.0.309.65+

Image Settings

Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness
Day/Night Switch: Day, night, auto, schedule
Wide Dynamic Range (WDR):

• Panoramic Channel: Digital WDR

• PTZ Channel: 120 dB

SNR: > 52 dB
Defog: Yes
Image Stabilization: Yes
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus: Yes
Regional Exposure: Yes

Interface

Ethernet Interface: 1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio:

• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%

• 1 output (line out), line level, output impedance: 600 Ω
  Alarm: 2 input(s), 1 output(s)
  Reset: Yes

Event Specifications

Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection

Linkage:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing
Smart Tracking: Manual tracking, auto-tracking
Smart Linkage: Panorama linkage, tracking takeover, track in turn

Deep Learning Function

Face Capture:
Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

Regional People Counting: Yes

General Specifications

Power: 24 VAC, Max. 60 W, Hi-PoE
Dimension: Ø222.3 mm × 387.2 mm (Ø8.75" × 15.2")
Weight: Approx. 6 kg (13.23 lb.)
Material: ADC12, Plastic, PC+10% GF
Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

General Function: Mirror, watermark, password protection, IP address filter
Demist: Yes

Approval

Protection: IP66 (IEC 60529-2013)

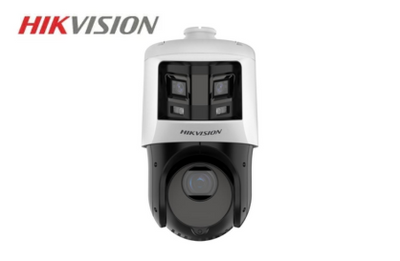

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning
• Datasheet

Camera Overview

Image Sensor

• Bullet Channel: 1/2.5" Progressive Scan CMOS

• PTZ Channel: 1/2.8" Progressive Scan CMOS

Maximum Resolution

• Bullet Channel: 3632 × 1632

• PTZ Channel: 2560 × 1440

Minimum Illumination

• Bullet Channel: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light

• PTZ Channel:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • B/W: 0.001 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Day & Night

• ICR (Infrared Cut Filter Removal)

Zoom

• PTZ Channel: 25 × optical, 16 × digital

Slow Shutter

• Yes

Lens

Focal Length

• Bullet Channel: 2.8 mm

• PTZ Channel: 4.8 to 120 mm, 25 × optical

Field of View (FOV)

• Bullet Channel:

  • Horizontal: 180±10°

  • Vertical: 80±5°

• PTZ Channel:

  • Horizontal: 55° to 2.4° (wide-tele)

  • Vertical: 33° to 1.4° (wide-tele)

  • Diagonal: 61.5° to 2.8° (wide-tele)

Focus

• Semi-auto, manual, auto

Aperture

• Bullet Channel: F1.0

• PTZ Channel: F1.6

Zoom Speed

• PTZ Channel: Approx. 3.6 s

Illuminator

Supplement Light Type

• PTZ Channel: IR

• Bullet Channel: White Light

Supplement Light Range

• PTZ Channel: Up to 100 m

• Bullet Channel: Up to 30 m

Smart Supplement Light

• Yes

PTZ (Pan/Tilt/Zoom)

Movement Range

• Pan: 360°

• Tilt: -15° to 90° (auto flip)

Pan Speed

• Configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

• Configurable from 0.1° to 80°/s; preset speed: 80°/s

Proportional Pan

• Yes

Presets

• 300

Preset Freezing

• Yes

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

• Yes

PTZ Status Display

• Yes

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory

• Yes

Video

Main Stream

• Bullet Channel:

  • 50 Hz: 25 fps (3632 × 1632, 3680 × 1656)

  • 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)

• PTZ Channel:

  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

• Bullet Channel:

  • 50 Hz: 25 fps (1200 × 536, 960 × 432)

  • 60 Hz: 30 fps (1200 × 536, 960 × 432)

• PTZ Channel:

  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

• PTZ Channel:

  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• H.265, H.264, MJPEG

Video Bit Rate

• 32 kbps to 16384 kbps

H.264 Type

• Baseline profile, main profile, high profile

H.265 Type

• Main profile

Scalable Video Coding (SVC)

• Supported for H.264 and H.265 encoding

Region of Interest (ROI)

• 8 fixed regions for each stream

Audio

Audio Compression

• G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Audio Bit Rate

• MP2L2: 16 kHz, 32 kHz, 48 kHz

• AAC-LC: 16 kHz, 32 kHz, 48 kHz

• PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

• MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Audio Sampling Rate

• MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps

• AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps

• MP3: 8 Kbps, 16 Kbps, 24 Kbps, 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 160 Kbps, 192 Kbps, 224 Kbps, 256 Kbps, 320 Kbps

Environment Noise Filtering

• Yes

Network

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

Simultaneous Live View

• 20

API

• ISAPI, SDK, ISUP, ONVIF

User/Host

• 32

Security

• Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Network Storage

• NAS (NFS, SMB/CIFS), ANR

Client

• iVMS-4200, Hik-Connect

Web Browser Compatibility

• IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+

Image Settings

• Sharpness, saturation, brightness, contrast

Day/Night Switch

• Day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

• 120 dB

Signal-to-Noise Ratio (SNR)

• ≥ 52 dB

Defog

• Digital defog

Image Stabilization

• EIS

Image Enhancement

• BLC, HLC, 3D DNR

Privacy Mask

• Bullet Channel: 8 programmable polygon privacy masks

• PTZ Channel: 24 programmable polygon privacy masks (mask color or mosaic configurable)

Regional Focus

• Yes

Regional Exposure

• Yes

Interface

Ethernet Interface

• RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

• Built-in memory card slot, supports Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio

• 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

• 1 audio output, line level, impedance: 600 Ω

Alarm

• 1 alarm input, 1 alarm output

Reset

• Yes

Event Detection

Basic Events

• PTZ Channel: Motion detection, video tampering alarm

• Bullet & PTZ Channels: Alarm input and output, exception events (IP address conflict, HDD full, illegal login, HDD error, network disconnected, abnormal reboot)

Smart Events

• Bullet & PTZ Channels: Audio exception detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage

• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, PTZ actions (preset, patrol scan, pattern scan)

Smart Linkage

• Panorama Linkage

Deep Learning Functions

• Face Capture: Detects up to 5 faces simultaneously, supports detecting, tracking, capturing, grading, selecting faces in motion, and outputs the best face picture

• Regional People Counting: Yes

General Specifications

Power

• 12VDC, PoE+

Dimensions

• Ø 166 mm × 375 mm (Ø 6.5" × 14.7")

Weight

• Approx. 2.4 kg (13.2 lb.)

Material

• ADC12

Operating Conditions

• Temperature: -30℃ to 65℃ (-22°F to 149°F)

• Humidity: < 90% RH

Demist

• Demist by heating the glass

Power Consumption and Current

• Max. 24 W, including Max. 2.6 W for heater and Max. 11 W for supplement light

Protection

• IP66 Standard, 6000 V Lightning Protection, Surge Protection, and Voltage Transient Protection

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning
• Datasheet

Camera Overview

Image Sensor

• Bullet Channel: 1/2.5" Progressive Scan CMOS

• PTZ Channel: 1/2.8" Progressive Scan CMOS

Maximum Resolution

• Bullet Channel: 3632 × 1632

• PTZ Channel: 2560 × 1440

Minimum Illumination

• Bullet Channel: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light

• PTZ Channel:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • B/W: 0.001 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Day & Night

• ICR (Infrared Cut Filter Removal)

Zoom

• PTZ Channel: 25 × optical, 16 × digital

Slow Shutter

• Yes

Lens

Focal Length

• Bullet Channel: 2.8 mm

• PTZ Channel: 4.8 to 120 mm, 25 × optical

Field of View (FOV)

• Bullet Channel:

  • Horizontal: 180±10°

  • Vertical: 80±5°

• PTZ Channel:

  • Horizontal: 55° to 2.4° (wide-tele)

  • Vertical: 33° to 1.4° (wide-tele)

  • Diagonal: 61.5° to 2.8° (wide-tele)

Focus

• Semi-auto, manual, auto

Aperture

• Bullet Channel: F1.0

• PTZ Channel: F1.6

Zoom Speed

• PTZ Channel: Approx. 3.6 s

Illuminator

Supplement Light Type

• PTZ Channel: IR

• Bullet Channel: White Light

Supplement Light Range

• PTZ Channel: Up to 100 m

• Bullet Channel: Up to 30 m

Smart Supplement Light

• Yes

PTZ (Pan/Tilt/Zoom)

Movement Range

• Pan: 360°

• Tilt: -15° to 90° (auto flip)

Pan Speed

• Configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

• Configurable from 0.1° to 80°/s; preset speed: 80°/s

Proportional Pan

• Yes

Presets

• 300

Preset Freezing

• Yes

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

• Yes

PTZ Status Display

• Yes

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory

• Yes

Video

Main Stream

• Bullet Channel:

  • 50 Hz: 25 fps (3632 × 1632, 3680 × 1656)

  • 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)

• PTZ Channel:

  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

• Bullet Channel:

  • 50 Hz: 25 fps (1200 × 536, 960 × 432)

  • 60 Hz: 30 fps (1200 × 536, 960 × 432)

• PTZ Channel:

  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

• PTZ Channel:

  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• H.265, H.264, MJPEG

Video Bit Rate

• 32 kbps to 16384 kbps

H.264 Type

• Baseline profile, main profile, high profile

H.265 Type

• Main profile

Scalable Video Coding (SVC)

• Supported for H.264 and H.265 encoding

Region of Interest (ROI)

• 8 fixed regions for each stream

Audio

Audio Compression

• G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Audio Bit Rate

• MP2L2: 16 kHz, 32 kHz, 48 kHz

• AAC-LC: 16 kHz, 32 kHz, 48 kHz

• PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

• MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Audio Sampling Rate

• MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps

• AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps

• MP3: 8 Kbps, 16 Kbps, 24 Kbps, 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 160 Kbps, 192 Kbps, 224 Kbps, 256 Kbps, 320 Kbps

Environment Noise Filtering

• Yes

Network

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

Simultaneous Live View

• 20

API

• ISAPI, SDK, ISUP, ONVIF

User/Host

• 32

Security

• Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Network Storage

• NAS (NFS, SMB/CIFS), ANR

Client

• iVMS-4200, Hik-Connect

Web Browser Compatibility

• IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+

Image Settings

• Sharpness, saturation, brightness, contrast

Day/Night Switch

• Day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

• 120 dB

Signal-to-Noise Ratio (SNR)

• ≥ 52 dB

Defog

• Digital defog

Image Stabilization

• EIS

Image Enhancement

• BLC, HLC, 3D DNR

Privacy Mask

• Bullet Channel: 8 programmable polygon privacy masks

• PTZ Channel: 24 programmable polygon privacy masks (mask color or mosaic configurable)

Regional Focus

• Yes

Regional Exposure

• Yes

Interface

Ethernet Interface

• RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

• Built-in memory card slot, supports Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio

• 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

• 1 audio output, line level, impedance: 600 Ω

Alarm

• 1 alarm input, 1 alarm output

Reset

• Yes

Event Detection

Basic Events

• PTZ Channel: Motion detection, video tampering alarm

• Bullet & PTZ Channels: Alarm input and output, exception events (IP address conflict, HDD full, illegal login, HDD error, network disconnected, abnormal reboot)

Smart Events

• Bullet & PTZ Channels: Audio exception detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage

• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, PTZ actions (preset, patrol scan, pattern scan)

Smart Linkage

• Panorama Linkage

Deep Learning Functions

• Face Capture: Detects up to 5 faces simultaneously, supports detecting, tracking, capturing, grading, selecting faces in motion, and outputs the best face picture

• Regional People Counting: Yes

General Specifications

Power

• 12VDC, PoE+

Dimensions

• Ø 166 mm × 375 mm (Ø 6.5" × 14.7")

Weight

• Approx. 2.4 kg (13.2 lb.)

Material

• ADC12

Operating Conditions

• Temperature: -30℃ to 65℃ (-22°F to 149°F)

• Humidity: < 90% RH

Demist

• Demist by heating the glass

Power Consumption and Current

• Max. 24 W, including Max. 2.6 W for heater and Max. 11 W for supplement light

Protection

• IP66 Standard, 6000 V Lightning Protection, Surge Protection, and Voltage Transient Protection

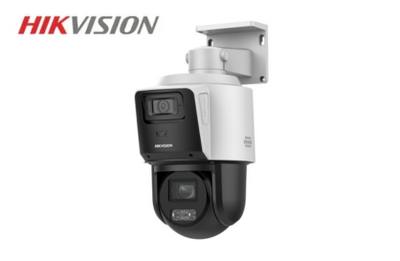

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 4× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Supports 12V DC & PoE+
• Support Human and Vehicle Detection
• Datasheet

Camera Specifications

Camera

• Image Sensor:

  • Bullet channel: 1/2.8" Progressive Scan CMOS

  • PTZ channel: 1/2.8" Progressive Scan CMOS

• Min. Illumination:

  • Bullet channel: Color: 0.01 Lux @ (F1.6, AGC ON); B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR

  • PTZ channel: Color: 0.01 Lux @ (F1.5, AGC ON); B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s

• Slow Shutter: Yes

• Day & Night: ICR

• Zoom:

  • PTZ channel: 4× optical, 16× digital

• Max. Resolution:

  • Bullet channel: 2560 × 1440

  • PTZ channel: 2560 × 1440

Lens

• Focus: Auto, Manual, Semi-auto

• Focal Length:

  • Bullet channel: 2.8 mm

  • PTZ channel: 2.8 to 12 mm (4× optical)

• Zoom Speed:

  • PTZ channel: Approx. 3.3 s

• Field of View (FOV):

  • Bullet channel: H: 114.9°, V: 62.4°, D: 130.7°

  • PTZ channel: H: 98°–34.2°, V: 52°–19.2°, D: 111°–39°

• Aperture:

  • Bullet channel: F1.6

  • PTZ channel: F1.5 to F2.9

Illuminator

• Supplement Light Type:

  • Bullet channel: Hybrid (IR and White Light)

  • PTZ channel: IR

• Smart Supplement Light: Yes

• Supplement Light Range:

  • PTZ channel IR: Up to 40 m

  • Bullet channel IR: Up to 30 m, White Light: Up to 30 m

PTZ

• Movement Range:

  • Pan: 0° to 350°

  • Tilt: Bullet channel: 7° to 17° (manual); PTZ channel: -5° to 90°

• Pan Speed: 0.1°–30°/s (configurable), Preset speed: 30°/s

• Tilt Speed: 0.1°–30°/s (configurable), Preset speed: 30°/s

• Proportional Pan: Yes

• Presets: 300

• Patrol Scan: 8 patrols (up to 32 presets each)

• Power-off Memory: Yes

• Park Action: Preset, Patrol Scan

• 3D Positioning: Yes

• PTZ Status Display: Yes

• Preset Freezing: Yes

• Scheduled Tasks: Dome reboot, preset, patrol scan, dome adjust, aux output

Video

• Region of Interest (ROI): 1 fixed region for main stream

• Main Stream:

  • Bullet & PTZ channel:

    • 50 Hz: 25 fps (2560×1440, 1920×1080, 1280×720)

    • 60 Hz: 30 fps (2560×1440, 1920×1080, 1280×720)

• Sub-Stream:

  • 50 Hz: 25 fps (640×480, 640×360)

  • 60 Hz: 30 fps (640×480, 640×360)

• Third Stream:

  • 50 Hz: 25 fps (1280×720, 640×480, 640×360)

  • 60 Hz: 30 fps (1280×720, 640×480, 640×360)

• Video Compression: H.265, H.264, MJPEG

• Video Bit Rate: 32 kbps to 16384 kbps

• H.264 Type: Main profile, Baseline profile, High profile

• H.265 Type: Main profile

• Scalable Video Coding (SVC): Yes

Audio

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Audio Bit Rate:

  • MP2L2: 32–160 kbps

  • AAC: 16, 32, 64 kbps

  • MP3: 8–160 kbps

• Audio Sampling Rate:

  • MP2L2: 16 kHz

  • AAC-LC: 16 kHz

  • PCM: 8/16 kHz

  • MP3: 8/16 kHz

• Environment Noise Filtering: Yes

Network

• API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Protocols: TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1X, IPv4/IPv6, DDNS, ICMP, UPnP

• Simultaneous Live View: 20

• Users/Hosts: 32

• Security Features: 802.1X authenticated access, MAC address binding, username/password authentication, IP filter, HTTPS encryption

• Client Software: iVMS-4200, Hik-Connect

• Web Browser Compatibility: IE8+, Chrome 31–44, Firefox 30–51, Safari 8.0+


• Settings: Sharpness, Saturation, Brightness, Contrast

• Wide Dynamic Range (WDR): 120 dB

• SNR: ≥ 52 dB

• Defog: Digital Defog

• Day/Night Switch: Day, Night, Auto, Scheduled Switch

• Image Enhancement: BLC, HLC, 3D DNR

• Privacy Mask:

  • Bullet & PTZ: 24 programmable polygon masks

• Regional Focus:

  • Bullet: No

  • PTZ: Yes

• Regional Exposure:

  • Bullet: No

  • PTZ: Yes

• Image Parameters Switch: Yes

Interface

• Ethernet Interface: RJ45, 10M/100M self-adaptive Ethernet port

• On-board Storage: Micro SD/SDHC/SDXC (up to 512 GB)

• Reset Button: Yes

Events

• Basic Events: Motion detection, video tampering, exception, alarm input/output

• Smart Events: Line crossing detection, intrusion detection, region entrance/exit detection, audio exception

• Event Linkage:

  • Bullet & PTZ channel: Upload to FTP/NAS/Memory Card, Notify Surveillance Center, Send Email, Trigger Alarm Output, Trigger Recording, PTZ Actions (Preset, Patrol, Pattern Scan)

General

• General Functions: Mirror, Watermark, IP Address Filter, Password Protection

• Power Supply: 12 VDC, PoE+

• Operating Conditions: -30°C to 50°C (-22°F to 122°F), Humidity ≤ 95% (non-condensing)

• Demist: Heated Glass

• Material: PC

• Dimensions: 311.5 × 223.5 × 156 mm (12.26" × 8.80" × 6.14")

• Weight: Approx. 1.37 kg (3.02 lb.)

• Approvals: IP66 Standard, Surge Protection, Voltage Transient Protection

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 4× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Supports 12V DC & PoE+
• Support Human and Vehicle Detection
• Datasheet

Camera Specifications

Camera

• Image Sensor:

  • Bullet channel: 1/2.8" Progressive Scan CMOS

  • PTZ channel: 1/2.8" Progressive Scan CMOS

• Min. Illumination:

  • Bullet channel: Color: 0.01 Lux @ (F1.6, AGC ON); B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR

  • PTZ channel: Color: 0.01 Lux @ (F1.5, AGC ON); B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s

• Slow Shutter: Yes

• Day & Night: ICR

• Zoom:

  • PTZ channel: 4× optical, 16× digital

• Max. Resolution:

  • Bullet channel: 2560 × 1440

  • PTZ channel: 2560 × 1440

Lens

• Focus: Auto, Manual, Semi-auto

• Focal Length:

  • Bullet channel: 2.8 mm

  • PTZ channel: 2.8 to 12 mm (4× optical)

• Zoom Speed:

  • PTZ channel: Approx. 3.3 s

• Field of View (FOV):

  • Bullet channel: H: 114.9°, V: 62.4°, D: 130.7°

  • PTZ channel: H: 98°–34.2°, V: 52°–19.2°, D: 111°–39°

• Aperture:

  • Bullet channel: F1.6

  • PTZ channel: F1.5 to F2.9

Illuminator

• Supplement Light Type:

  • Bullet channel: Hybrid (IR and White Light)

  • PTZ channel: IR

• Smart Supplement Light: Yes

• Supplement Light Range:

  • PTZ channel IR: Up to 40 m

  • Bullet channel IR: Up to 30 m, White Light: Up to 30 m

PTZ

• Movement Range:

  • Pan: 0° to 350°

  • Tilt: Bullet channel: 7° to 17° (manual); PTZ channel: -5° to 90°

• Pan Speed: 0.1°–30°/s (configurable), Preset speed: 30°/s

• Tilt Speed: 0.1°–30°/s (configurable), Preset speed: 30°/s

• Proportional Pan: Yes

• Presets: 300

• Patrol Scan: 8 patrols (up to 32 presets each)

• Power-off Memory: Yes

• Park Action: Preset, Patrol Scan

• 3D Positioning: Yes

• PTZ Status Display: Yes

• Preset Freezing: Yes

• Scheduled Tasks: Dome reboot, preset, patrol scan, dome adjust, aux output

Video

• Region of Interest (ROI): 1 fixed region for main stream

• Main Stream:

  • Bullet & PTZ channel:

    • 50 Hz: 25 fps (2560×1440, 1920×1080, 1280×720)

    • 60 Hz: 30 fps (2560×1440, 1920×1080, 1280×720)

• Sub-Stream:

  • 50 Hz: 25 fps (640×480, 640×360)

  • 60 Hz: 30 fps (640×480, 640×360)

• Third Stream:

  • 50 Hz: 25 fps (1280×720, 640×480, 640×360)

  • 60 Hz: 30 fps (1280×720, 640×480, 640×360)

• Video Compression: H.265, H.264, MJPEG

• Video Bit Rate: 32 kbps to 16384 kbps

• H.264 Type: Main profile, Baseline profile, High profile

• H.265 Type: Main profile

• Scalable Video Coding (SVC): Yes

Audio

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Audio Bit Rate:

  • MP2L2: 32–160 kbps

  • AAC: 16, 32, 64 kbps

  • MP3: 8–160 kbps

• Audio Sampling Rate:

  • MP2L2: 16 kHz

  • AAC-LC: 16 kHz

  • PCM: 8/16 kHz

  • MP3: 8/16 kHz

• Environment Noise Filtering: Yes

Network

• API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Protocols: TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1X, IPv4/IPv6, DDNS, ICMP, UPnP

• Simultaneous Live View: 20

• Users/Hosts: 32

• Security Features: 802.1X authenticated access, MAC address binding, username/password authentication, IP filter, HTTPS encryption

• Client Software: iVMS-4200, Hik-Connect

• Web Browser Compatibility: IE8+, Chrome 31–44, Firefox 30–51, Safari 8.0+


• Settings: Sharpness, Saturation, Brightness, Contrast

• Wide Dynamic Range (WDR): 120 dB

• SNR: ≥ 52 dB

• Defog: Digital Defog

• Day/Night Switch: Day, Night, Auto, Scheduled Switch

• Image Enhancement: BLC, HLC, 3D DNR

• Privacy Mask:

  • Bullet & PTZ: 24 programmable polygon masks

• Regional Focus:

  • Bullet: No

  • PTZ: Yes

• Regional Exposure:

  • Bullet: No

  • PTZ: Yes

• Image Parameters Switch: Yes

Interface

• Ethernet Interface: RJ45, 10M/100M self-adaptive Ethernet port

• On-board Storage: Micro SD/SDHC/SDXC (up to 512 GB)

• Reset Button: Yes

Events

• Basic Events: Motion detection, video tampering, exception, alarm input/output

• Smart Events: Line crossing detection, intrusion detection, region entrance/exit detection, audio exception

• Event Linkage:

  • Bullet & PTZ channel: Upload to FTP/NAS/Memory Card, Notify Surveillance Center, Send Email, Trigger Alarm Output, Trigger Recording, PTZ Actions (Preset, Patrol, Pattern Scan)

General

• General Functions: Mirror, Watermark, IP Address Filter, Password Protection

• Power Supply: 12 VDC, PoE+

• Operating Conditions: -30°C to 50°C (-22°F to 122°F), Humidity ≤ 95% (non-condensing)

• Demist: Heated Glass

• Material: PC

• Dimensions: 311.5 × 223.5 × 156 mm (12.26" × 8.80" × 6.14")

• Weight: Approx. 1.37 kg (3.02 lb.)

• Approvals: IP66 Standard, Surge Protection, Voltage Transient Protection

• 1/1.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• Water and dust resistant (IP67)
• Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
• Datasheet

Camera Overview

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

Minimum Illumination

• Color: 0.001 Lux @ (F1.2, AGC ON)

• B/W: 0.0005 Lux @ (F1.2, AGC ON)

• IR: 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Slow Shutter

• Yes

Day & Night

• IR Cut Filter: Yes

Zoom

• Optical: 42x

• Digital: 16x

Maximum Resolution

• 2560 × 1440

Lens

Focus

• Auto, semi-auto, manual

Focal Length

• 6.0 mm to 252 mm

Zoom Speed

• Approx. 5.4 s

Field of View (FOV)

• Horizontal: 58.8° to 1.97° (wide-tele)

• Vertical: 34.6° to 1.12° (wide-tele)

• Diagonal: 67.1° to 2.28° (wide-tele)

Aperture

• Max. F1.2

Illuminator

Supplement Light Type

• Hybrid

Supplement Light Range

• IR Distance: Up to 500 m

• White Light Distance: Up to 100 m

Smart Supplement Light

• Yes

PTZ (Pan/Tilt/Zoom)

Movement Range

• Pan: 360°

• Tilt: -20° to 90° (auto flip)

Pan Speed

• Configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

• Configurable from 0.1° to 120°/s; preset speed: 200°/s

Proportional Pan

• Yes

Presets

• 300

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

• Yes

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

• Yes

PTZ Status Display

• Yes

Preset Freezing

• Yes

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264/MJPEG

Video Bit Rate

• 32 Kbps to 16384 Kbps

H.264 Type

• Baseline Profile, Main Profile, High Profile

H.265 Type

• Main Profile

Scalable Video Coding (SVC)

• Supported for H.264 and H.265 encoding

Region of Interest (ROI)

• 8 fixed regions for each stream

Audio

Audio Compression

• G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC

Audio Bit Rate

• G.711: 64 Kbps

• G.722.1: 16 Kbps

• G.726: 16 Kbps

• MP2L2: 32 Kbps to 192 Kbps

• AAC: 16 Kbps to 64 Kbps

Network

Network Storage

• NAS (NFS, SMB/CIFS), ANR

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

API

• ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)

Simultaneous Live View

• Up to 20 channels

User/Host

• Up to 32 users (3 user levels: administrator, operator, and user)

Security

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Client

• HikCentral, iVMS-4200, Hik-Connect

Web Browser Compatibility

• IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

AI Open Platform

Model Specification

• Up to 4 models

• Model Type: Detection model, Classification model, Mixed model (detection and classification)

Image Settings

Day/Night Switch

• Day, night, auto, scheduled-switch

Image Enhancement

• BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

• 120 dB

Defog

• Optical defog

Image Stabilization

• EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

• Yes

Regional Focus

• Yes

Image Settings

• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

• Yes

Privacy Mask

• Up to 24 masks, mosaic mask, mask color configurable, rectangle region

SNR

• ≥ 52 dB

Interface

Ethernet Interface

• 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

• Built-in memory card slot, supports microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm

• 7 inputs, 2 outputs

Audio

• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%

• 1 output (line out), line level, output impedance: 600 Ω

RS-485

• Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event Detection

Basic Events

• Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception

Smart Events

• Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Smart Tracking

• Manual tracking, auto-tracking

Alarm Linkage

• Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning

Deep Learning Function

Perimeter Protection

• Line crossing, intrusion, region entrance, region exiting

• Supports alarm triggering by specified target types (human and vehicle)

General

Power

• 36 VDC ± 25%, max. 60 W

• 24 VAC ± 25%, max. 60 W

Operating Conditions

• Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity: ≤ 95%

Language Support

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Wiper

• Yes

Dimensions

• Ø 242 mm × 398.1 mm (Ø 9.53" × 15.67")

Weight

• Approx. 6 kg (13.2 lb.)

Approval

EMC

• CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)

• RCM (AS/NZS CISPR 32: 2015)

• IC VoC (ICES-003: Issue 6, 2019)

Safety

• UL (UL 62368-1)

• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

• CE-LVD (EN 62368-1:2014+A11:2017)

• BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

• CE-RoHS (2011/65/EU); WEEE (2012/19/EU)

• REACH (Regulation (EC) No 1907/2006)

Anti-Corrosion Protection

• NEMA 4X (NEMA 250-2018), C5

Protection

• IP67 Standard, 6000V Lightning Protection, Surge Protection, and Voltage Transient Protection

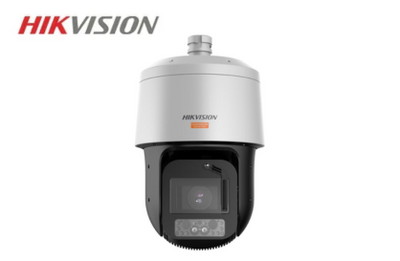

• 1/1.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• Water and dust resistant (IP67)
• Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
• Datasheet

Camera Overview

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

Minimum Illumination

• Color: 0.001 Lux @ (F1.2, AGC ON)

• B/W: 0.0005 Lux @ (F1.2, AGC ON)

• IR: 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Slow Shutter

• Yes

Day & Night

• IR Cut Filter: Yes

Zoom

• Optical: 42x

• Digital: 16x

Maximum Resolution

• 2560 × 1440

Lens

Focus

• Auto, semi-auto, manual

Focal Length

• 6.0 mm to 252 mm

Zoom Speed

• Approx. 5.4 s

Field of View (FOV)

• Horizontal: 58.8° to 1.97° (wide-tele)

• Vertical: 34.6° to 1.12° (wide-tele)

• Diagonal: 67.1° to 2.28° (wide-tele)

Aperture

• Max. F1.2

Illuminator

Supplement Light Type

• Hybrid

Supplement Light Range

• IR Distance: Up to 500 m

• White Light Distance: Up to 100 m

Smart Supplement Light

• Yes

PTZ (Pan/Tilt/Zoom)

Movement Range

• Pan: 360°

• Tilt: -20° to 90° (auto flip)

Pan Speed

• Configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

• Configurable from 0.1° to 120°/s; preset speed: 200°/s

Proportional Pan

• Yes

Presets

• 300

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

• Yes

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

• Yes

PTZ Status Display

• Yes

Preset Freezing

• Yes

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264/MJPEG

Video Bit Rate

• 32 Kbps to 16384 Kbps

H.264 Type

• Baseline Profile, Main Profile, High Profile

H.265 Type

• Main Profile

Scalable Video Coding (SVC)

• Supported for H.264 and H.265 encoding

Region of Interest (ROI)

• 8 fixed regions for each stream

Audio

Audio Compression

• G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC

Audio Bit Rate

• G.711: 64 Kbps

• G.722.1: 16 Kbps

• G.726: 16 Kbps

• MP2L2: 32 Kbps to 192 Kbps

• AAC: 16 Kbps to 64 Kbps

Network

Network Storage

• NAS (NFS, SMB/CIFS), ANR

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

API

• ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)

Simultaneous Live View

• Up to 20 channels

User/Host

• Up to 32 users (3 user levels: administrator, operator, and user)

Security

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Client

• HikCentral, iVMS-4200, Hik-Connect

Web Browser Compatibility

• IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

AI Open Platform

Model Specification

• Up to 4 models

• Model Type: Detection model, Classification model, Mixed model (detection and classification)

Image Settings

Day/Night Switch

• Day, night, auto, scheduled-switch

Image Enhancement

• BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

• 120 dB

Defog

• Optical defog

Image Stabilization

• EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

• Yes

Regional Focus

• Yes

Image Settings

• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

• Yes

Privacy Mask

• Up to 24 masks, mosaic mask, mask color configurable, rectangle region

SNR

• ≥ 52 dB

Interface

Ethernet Interface

• 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

• Built-in memory card slot, supports microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm

• 7 inputs, 2 outputs

Audio

• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%

• 1 output (line out), line level, output impedance: 600 Ω

RS-485

• Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event Detection

Basic Events

• Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception

Smart Events

• Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Smart Tracking

• Manual tracking, auto-tracking

Alarm Linkage

• Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning

Deep Learning Function

Perimeter Protection

• Line crossing, intrusion, region entrance, region exiting

• Supports alarm triggering by specified target types (human and vehicle)

General

Power

• 36 VDC ± 25%, max. 60 W

• 24 VAC ± 25%, max. 60 W

Operating Conditions

• Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity: ≤ 95%

Language Support

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Wiper

• Yes

Dimensions

• Ø 242 mm × 398.1 mm (Ø 9.53" × 15.67")

Weight

• Approx. 6 kg (13.2 lb.)

Approval

EMC

• CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)

• RCM (AS/NZS CISPR 32: 2015)

• IC VoC (ICES-003: Issue 6, 2019)

Safety

• UL (UL 62368-1)

• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

• CE-LVD (EN 62368-1:2014+A11:2017)

• BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

• CE-RoHS (2011/65/EU); WEEE (2012/19/EU)

• REACH (Regulation (EC) No 1907/2006)

Anti-Corrosion Protection

• NEMA 4X (NEMA 250-2018), C5

Protection

• IP67 Standard, 6000V Lightning Protection, Surge Protection, and Voltage Transient Protection
