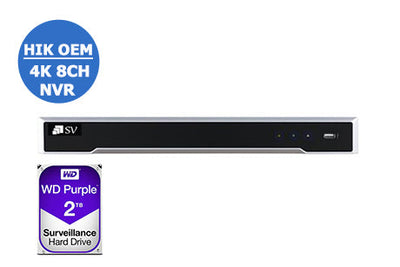

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
• 4TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
• 3TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
• 3TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

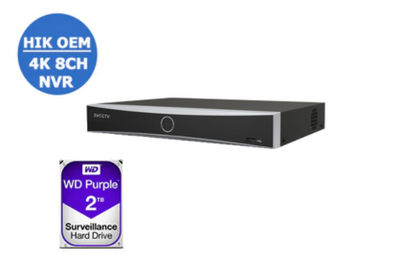

• 2TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

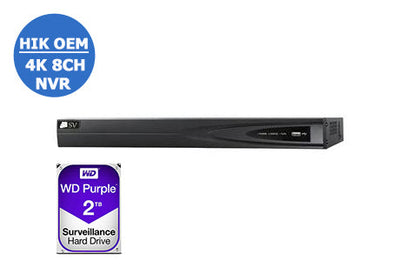

• 2TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• Up to 4-ch@8 MP decoding capacity
• Up to 40 Mbps incoming bandwidth

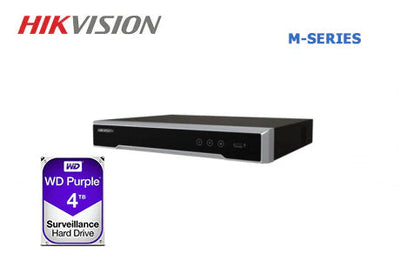

• With 4TB Hard Drive
• Datasheet

Video and Audio

IP Video Input: 4 channels, Up to 32 MP resolution
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps

HDMI Output:

• 8K (7680 × 4320)/30Hz
• 4K (3840 × 2160)/30Hz
• 2K (2560 × 1440)/60Hz
• 1920 × 1080/60 Hz

VGA Output: 1920 × 1080/60 Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: Not Applicable (NA)
Audio Output: 1 channel, RCA (Linear, 1 KΩ)
Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Dual-Stream Recording: Supported
• Decoding Format: H.265+/H.265/H.264+/H.264
• Decoding Capability:
  • 4 channels at 8 MP (30 fps)
  • 8 channels at 4 MP (30 fps)
  • 16 channels at 1080p (30 fps)
• Synchronous Playback: 4 channels
• Recording Resolution:
  • 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP
  • 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 60 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 16 TB per HDD
• Alarm In/Out: 4/1
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

General

• Power Supply: 48 VDC, 1.875 A
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight: ≤ 1.2 kg (without HDD, 2.6 lb.)

Certification

• CE
  • EN 55032:2015 + A1:2020
  • EN IEC61000-3-2:2019 + A1:2021
  • EN 61000-3-3:2013 + A1:2021
  • EN 50130-4:2011 + A1:2014
  • EN 55035:2017 + A11:2020

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• Up to 4-ch@8 MP decoding capacity
• Up to 40 Mbps incoming bandwidth
• With 4TB Hard Drive
• Datasheet

Video and Audio

IP Video Input: 4 channels, Up to 32 MP resolution
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps

HDMI Output:

• 8K (7680 × 4320)/30Hz
• 4K (3840 × 2160)/30Hz
• 2K (2560 × 1440)/60Hz
• 1920 × 1080/60 Hz

VGA Output: 1920 × 1080/60 Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: Not Applicable (NA)
Audio Output: 1 channel, RCA (Linear, 1 KΩ)
Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Dual-Stream Recording: Supported
• Decoding Format: H.265+/H.265/H.264+/H.264
• Decoding Capability:
  • 4 channels at 8 MP (30 fps)
  • 8 channels at 4 MP (30 fps)
  • 16 channels at 1080p (30 fps)
• Synchronous Playback: 4 channels
• Recording Resolution:
  • 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP
  • 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 60 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 16 TB per HDD
• Alarm In/Out: 4/1
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

General

• Power Supply: 48 VDC, 1.875 A
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight: ≤ 1.2 kg (without HDD, 2.6 lb.)

Certification

• CE
  • EN 55032:2015 + A1:2020
  • EN IEC61000-3-2:2019 + A1:2021
  • EN 61000-3-3:2013 + A1:2021
  • EN 50130-4:2011 + A1:2014
  • EN 55035:2017 + A11:2020
