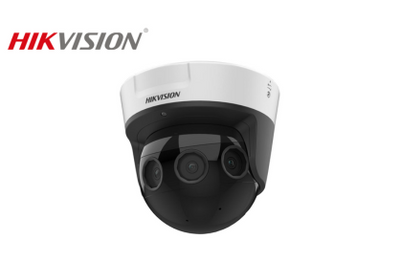

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40 °C
• Water and dust resistant (IP67) and vandal proof (IK10)
• Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution:
  • 2.8 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 1920 × 1080
      • ePTZ: 1920 × 1080
    • Panorama Mode: 3840 × 2160
    • Original Mode: 1920 × 1080
  • 6 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 2400 × 400
      • ePTZ: 1920 × 1080
    • Panorama Mode: 6480 × 1080
    • Original Mode: 1920 × 1080
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.2, AGC ON)
  • B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: 1/25 s to 1/100,000 s
• Day & Night: IR cut filter, blue glass module to reduce ghosting
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°

Lens

• Type: Fixed focal lens (2.8 mm and 6 mm optional, four lenses)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 180°, Vertical FOV 90°
  • 6 mm: Horizontal FOV 180°, Vertical FOV 25°
• Lens Mount: M16
• Focus: Manual, semi-auto
• Aperture: F1.4

Illuminator

• Type: IR (four LEDs)
• Range: Up to 20 m
• IR Wavelength: 850 nm

Video

Main Stream

• 2.8 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
    • 60Hz: 30fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

• 6 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (2400 × 400)
      • 60Hz: 30fps (2400 × 400)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600)
    • 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

Sub-Stream

• 2.8 mm:

  • Panorama Mode:
    • 50Hz: 25fps (1280 × 720, 640 × 360)
    • 60Hz: 30fps (1280 × 720, 640 × 360)

• 6 mm:

  • Panorama Mode:
    • 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240)
    • 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 65 Mbps

• Scalable Video Coding (SVC): Yes

• Target Cropping: Panorama mode only

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Bit Rate: 32–192 Kbps (MP2L2), 32 Kbps (PCM)
• Sampling Rate: 8/16/32/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, IGMP, IPv4/IPv6, and more
• Simultaneous Live View: Up to 20 channels
• Security: Password protection, HTTPS encryption, 802.1X, IP filtering, watermarking
• Storage: NAS (NFS, SMB/CIFS), ANR

Interface

• Ethernet: 1 RJ45 10/100/1000 Mbps port
• On-Board Storage: microSD/SDHC/SDXC, up to 256 GB
• Audio:
  • Input: 1 line-in (3.5 mm, max. 1 Vpp, 4.7 KΩ)
  • Output: 1 line-out (3.5 mm, max. 1 Vpp, 100 Ω)
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: 1 port (half duplex, supports Pelco protocols)

General

• Power:
  • 12 VDC, 1.6 A, max. 24 W
  • PoE: IEEE 802.3at
• Material: Aluminum alloy
• Dimensions: 189.5 × 207.6 × 206.6 mm (7.46" × 8.17" × 8.13")
• Weight: Approx. 3 kg (6.6 lb)

Certifications and Protection

• Approvals: FCC, CE, UL, BIS
• Environment: CE-RoHS, REACH, WEEE
• Protection: IK10, IP67

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40 °C
• Water and dust resistant (IP67) and vandal proof (IK10)
• Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution:
  • 2.8 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 1920 × 1080
      • ePTZ: 1920 × 1080
    • Panorama Mode: 3840 × 2160
    • Original Mode: 1920 × 1080
  • 6 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 2400 × 400
      • ePTZ: 1920 × 1080
    • Panorama Mode: 6480 × 1080
    • Original Mode: 1920 × 1080
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.2, AGC ON)
  • B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: 1/25 s to 1/100,000 s
• Day & Night: IR cut filter, blue glass module to reduce ghosting
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°

Lens

• Type: Fixed focal lens (2.8 mm and 6 mm optional, four lenses)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 180°, Vertical FOV 90°
  • 6 mm: Horizontal FOV 180°, Vertical FOV 25°
• Lens Mount: M16
• Focus: Manual, semi-auto
• Aperture: F1.4

Illuminator

• Type: IR (four LEDs)
• Range: Up to 20 m
• IR Wavelength: 850 nm

Video

Main Stream

• 2.8 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
    • 60Hz: 30fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

• 6 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (2400 × 400)
      • 60Hz: 30fps (2400 × 400)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600)
    • 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

Sub-Stream

• 2.8 mm:

  • Panorama Mode:
    • 50Hz: 25fps (1280 × 720, 640 × 360)
    • 60Hz: 30fps (1280 × 720, 640 × 360)

• 6 mm:

  • Panorama Mode:
    • 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240)
    • 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 65 Mbps

• Scalable Video Coding (SVC): Yes

• Target Cropping: Panorama mode only

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Bit Rate: 32–192 Kbps (MP2L2), 32 Kbps (PCM)
• Sampling Rate: 8/16/32/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, IGMP, IPv4/IPv6, and more
• Simultaneous Live View: Up to 20 channels
• Security: Password protection, HTTPS encryption, 802.1X, IP filtering, watermarking
• Storage: NAS (NFS, SMB/CIFS), ANR

Interface

• Ethernet: 1 RJ45 10/100/1000 Mbps port
• On-Board Storage: microSD/SDHC/SDXC, up to 256 GB
• Audio:
  • Input: 1 line-in (3.5 mm, max. 1 Vpp, 4.7 KΩ)
  • Output: 1 line-out (3.5 mm, max. 1 Vpp, 100 Ω)
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: 1 port (half duplex, supports Pelco protocols)

General

• Power:
  • 12 VDC, 1.6 A, max. 24 W
  • PoE: IEEE 802.3at
• Material: Aluminum alloy
• Dimensions: 189.5 × 207.6 × 206.6 mm (7.46" × 8.17" × 8.13")
• Weight: Approx. 3 kg (6.6 lb)

Certifications and Protection

• Approvals: FCC, CE, UL, BIS
• Environment: CE-RoHS, REACH, WEEE
• Protection: IK10, IP67

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40 °C
• Water and dust resistant (IP67) and vandal proof (IK10)
• Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution:
  • 2.8 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 1920 × 1080
      • ePTZ: 1920 × 1080
    • Panorama Mode: 3840 × 2160
    • Original Mode: 1920 × 1080
  • 6 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 2400 × 400
      • ePTZ: 1920 × 1080
    • Panorama Mode: 6480 × 1080
    • Original Mode: 1920 × 1080
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.2, AGC ON)
  • B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: 1/25 s to 1/100,000 s
• Day & Night: IR cut filter, blue glass module to reduce ghosting
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°

Lens

• Type: Fixed focal lens (2.8 mm and 6 mm optional, four lenses)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 180°, Vertical FOV 90°
  • 6 mm: Horizontal FOV 180°, Vertical FOV 25°
• Lens Mount: M16
• Focus: Manual, semi-auto
• Aperture: F1.4

Illuminator

• Type: IR (four LEDs)
• Range: Up to 20 m
• IR Wavelength: 850 nm

Video

Main Stream

• 2.8 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
    • 60Hz: 30fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

• 6 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (2400 × 400)
      • 60Hz: 30fps (2400 × 400)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600)
    • 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

Sub-Stream

• 2.8 mm:

  • Panorama Mode:
    • 50Hz: 25fps (1280 × 720, 640 × 360)
    • 60Hz: 30fps (1280 × 720, 640 × 360)

• 6 mm:

  • Panorama Mode:
    • 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240)
    • 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 65 Mbps

• Scalable Video Coding (SVC): Yes

• Target Cropping: Panorama mode only

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Bit Rate: 32–192 Kbps (MP2L2), 32 Kbps (PCM)
• Sampling Rate: 8/16/32/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, IGMP, IPv4/IPv6, and more
• Simultaneous Live View: Up to 20 channels
• Security: Password protection, HTTPS encryption, 802.1X, IP filtering, watermarking
• Storage: NAS (NFS, SMB/CIFS), ANR

Interface

• Ethernet: 1 RJ45 10/100/1000 Mbps port
• On-Board Storage: microSD/SDHC/SDXC, up to 256 GB
• Audio:
  • Input: 1 line-in (3.5 mm, max. 1 Vpp, 4.7 KΩ)
  • Output: 1 line-out (3.5 mm, max. 1 Vpp, 100 Ω)
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: 1 port (half duplex, supports Pelco protocols)

General

• Power:
  • 12 VDC, 1.6 A, max. 24 W
  • PoE: IEEE 802.3at
• Material: Aluminum alloy
• Dimensions: 189.5 × 207.6 × 206.6 mm (7.46" × 8.17" × 8.13")
• Weight: Approx. 3 kg (6.6 lb)

Certifications and Protection

• Approvals: FCC, CE, UL, BIS
• Environment: CE-RoHS, REACH, WEEE
• Protection: IK10, IP67

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40 °C
• Water and dust resistant (IP67) and vandal proof (IK10)
• Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
• Datasheet

Camera Specifications

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS
• Max. Resolution:
  • 2.8 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 1920 × 1080
      • ePTZ: 1920 × 1080
    • Panorama Mode: 3840 × 2160
    • Original Mode: 1920 × 1080
  • 6 mm:
    • Panorama+ePTZ Mode:
      • Panorama: 2400 × 400
      • ePTZ: 1920 × 1080
    • Panorama Mode: 6480 × 1080
    • Original Mode: 1920 × 1080
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.2, AGC ON)
  • B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: 1/25 s to 1/100,000 s
• Day & Night: IR cut filter, blue glass module to reduce ghosting
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°

Lens

• Type: Fixed focal lens (2.8 mm and 6 mm optional, four lenses)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 180°, Vertical FOV 90°
  • 6 mm: Horizontal FOV 180°, Vertical FOV 25°
• Lens Mount: M16
• Focus: Manual, semi-auto
• Aperture: F1.4

Illuminator

• Type: IR (four LEDs)
• Range: Up to 20 m
• IR Wavelength: 850 nm

Video

Main Stream

• 2.8 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
    • 60Hz: 30fps (3840 × 2160, 2560 × 1440, 1920 × 1080)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

• 6 mm:

  • Panorama+ePTZ Mode:
    • Panorama:
      • 50Hz: 25fps (2400 × 400)
      • 60Hz: 30fps (2400 × 400)
    • ePTZ:
      • 50Hz: 25fps (1920 × 1080, 1280 × 720)
      • 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama Mode:
    • 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600)
    • 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)
  • Original Mode:
    • 50Hz: 25fps (1920 × 1080)
    • 60Hz: 30fps (1920 × 1080)

Sub-Stream

• 2.8 mm:

  • Panorama Mode:
    • 50Hz: 25fps (1280 × 720, 640 × 360)
    • 60Hz: 30fps (1280 × 720, 640 × 360)

• 6 mm:

  • Panorama Mode:
    • 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240)
    • 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 65 Mbps

• Scalable Video Coding (SVC): Yes

• Target Cropping: Panorama mode only

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Bit Rate: 32–192 Kbps (MP2L2), 32 Kbps (PCM)
• Sampling Rate: 8/16/32/48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, IGMP, IPv4/IPv6, and more
• Simultaneous Live View: Up to 20 channels
• Security: Password protection, HTTPS encryption, 802.1X, IP filtering, watermarking
• Storage: NAS (NFS, SMB/CIFS), ANR

Interface

• Ethernet: 1 RJ45 10/100/1000 Mbps port
• On-Board Storage: microSD/SDHC/SDXC, up to 256 GB
• Audio:
  • Input: 1 line-in (3.5 mm, max. 1 Vpp, 4.7 KΩ)
  • Output: 1 line-out (3.5 mm, max. 1 Vpp, 100 Ω)
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: 1 port (half duplex, supports Pelco protocols)

General

• Power:
  • 12 VDC, 1.6 A, max. 24 W
  • PoE: IEEE 802.3at
• Material: Aluminum alloy
• Dimensions: 189.5 × 207.6 × 206.6 mm (7.46" × 8.17" × 8.13")
• Weight: Approx. 3 kg (6.6 lb)

Certifications and Protection

• Approvals: FCC, CE, UL, BIS
• Environment: CE-RoHS, REACH, WEEE
• Protection: IK10, IP67

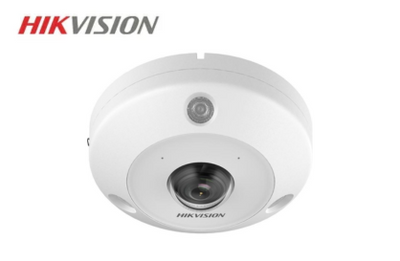

• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
• Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
• High resolution 9 MP: capturing clear images even when dewarped into 4-image PTZ mode
• Each image is clear and detailed
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 3024 × 3024

• Min. Illumination:

  • Color: 0.01 Lux @ (F2.25, AGC ON)

  • B/W: 0.005 Lux @ (F2.25, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 2 mm

• Focal Length & FOV: 2 mm, 360° panoramic view

• Iris Type: Fixed

• Aperture: F2.25

• Depth of Field: 0.2 m to ∞

DORI Distance

• Detect: 23.2 m

• Observe: 9.2 m

• Recognize: 4.6 m

• Identify: 2.3 m

Illuminator

• Supplement Light Type: IR

• Supplement Light Range: Up to 15 m

• Supplement Light Number: 3

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

HEOP (Hikvision Embedded Open Platform)

• Open Resources: Memory: 41 MB, Smart RAM: 180 MB

• Computing Power: 2 TOPS

• Open Capability: HEOP 2.0 OpendevSDK

• Deep Learning Structure: Caffe, TensorFlow, PyTorch

• Programming Language: C, C++

Video

• Main Stream (50 Hz: 25 fps / 60 Hz: 30 fps):

  • Fisheye View: 3024 × 3024, 2560 × 2560, 2048 × 2048

  • 180 Panorama View: 3072 × 2304, 2048 × 1536

  • 180 Dual Channel Panorama View: 3072 × 1152

  • Panorama View: 3072 × 2304, 2048 × 1536

  • 4PTZ View: 1600 × 1200

  • Fisheye + 3PTZ View: 2560 × 2560 / 2048 × 2048 / 1280 × 1280 (main) + 1600 × 1200 (PTZ)

  • 4PTZ Fusion View: 3200 × 2400, 2048 × 1536

• Sub-Stream:

  • Fisheye View: 720 × 720, 480 × 480

  • 180 Panorama View: 640 × 480, 320 × 240

  • 180 Dual Channel Panorama View: 640 × 480, 320 × 240

  • Panorama View: 640 × 360, 320 × 240

  • 4PTZ View: 640 × 480, 320 × 240

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• SVC: H.264 and H.265 encoding

• ROI: 4 fixed regions per stream

Fisheye Display

• Mount Type: Wall, table, ceiling

• Decoding Mode: Hardware and software decoding

• Display Modes: 20 total (fisheye view, 180° panorama, 360° panorama + PTZ, multiple PTZs, hemisphere, cylinder, etc.)

Audio

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Audio Bit Rate: 8 to 320 Kbps depending on codec

• Audio Sampling Rate: 8/16/32/48 kHz

• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP/SFTP, DHCP, DNS, RTP/RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, WebSocket, SIP

• Simultaneous Live View: Up to 20 channels

• API: ONVIF (Profile S, G, T), ISAPI, SDK, SIP support

• User/Host: Up to 32 users with 3 levels (admin/operator/user)

• Security Features: Password protection, HTTPS, 802.1X, watermark, IP filter, authentication methods, TPM 2.0 (FIPS 140-2 Level 2)

• Network Storage: NAS (NFS, SMB/CIFS), ANR support, Hikvision memory card encryption/health detection

• Client Software: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

• Web Browsers:

  • Plugin required: IE 10/11

  • Plugin free: Chrome 57+, Firefox 52+, Edge 89+, Safari 11+


• Image Parameters Switch: Yes

• Settings: Saturation, brightness, contrast, sharpness, white balance, AGC

• Day/Night Switch: Auto, schedule, alarm-triggered

• Wide Dynamic Range: Digital WDR

• Enhancements: BLC, HLC, 3D DNR, distortion correction, defog

• Privacy Mask: 8 programmable regions

• Picture Overlay: LOGO (128 × 128 bmp)

Interfaces

• Ethernet: 1 × RJ45 10/100 Mbps

• On-Board Storage: MicroSD/SDHC/SDXC up to 512 GB

• Built-in Microphone: 2

• Built-in Speaker: 1

• Audio I/O:

  • 1 input (line in, 3.5mm)

  • 1 output (line out, 3.5mm)

• Alarm I/O: 1 input, 1 output (max 24 VDC, 1 A)

• RS-485: 1 port (half duplex)

• Reset Key: Yes

Events

• Basic Events: Motion detection, video tampering, alarm I/O, network exceptions

• Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change, audio exception, defocus, object removal, unattended baggage

• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, email, trigger alarms/recordings/captures

Deep Learning

• Heat Map:

  • Visit and dwell time based

  • Space/time reports available

General

• Power Supply:

  • 12 VDC ± 20%, 0.8 A, max 9.6 W

  • PoE: IEEE 802.3af, Class 3, max 9.6 W

• Material: Metal

• Dimensions: Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3")

• Package Dimensions: 260 × 230 × 135 mm (10.2" × 9.1" × 5.3")

• Weight: Approx. 715 g (1.58 lb)

• Weight with Package: Approx. 1206 g (2.66 lb)

• Operating/Storage Conditions:

  • Temperature: -30 °C to 60 °C (-30 °F to 140 °F)

  • Humidity: 95% or less (non-condensing)

• Languages: 33 supported (including English, Russian, French, Spanish, Korean, etc.)

• Functions: Heartbeat, flash log, password reset via email, anti-banding, one-key reset

• Cable Length: 0.31 m (1.02 ft.)

Certifications

• EMC: CE-EMC, RCM, ICES-003, KC

• Safety: UL, CB, CE-LVD, BIS

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP67, IK10
