• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

IP Video Input

• Channels: 16-ch

• Maximum Resolution: Up to 32 MP

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Bandwidth

• Incoming: 256 Mbps

• Outgoing: 256 Mbps

Video Outputs

• HDMI Output:

  • 8K (7680 × 4320) @ 30 Hz

  • 4K (3840 × 2160) @ 60 Hz / 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

• VGA Output: 1920 × 1080 @ 60 Hz

• Video Output Mode: HDMI / VGA independent output

• CVBS Output:

  • 1-ch BNC (1.0 Vp-p, 75 Ω)

  • PAL: 704 × 576

  • NTSC: 704 × 480

Audio

• Audio Output: 1-ch RCA (Linear, 1 kΩ)

• Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ, via audio input)

• Audio Compression: G.711uLaw, G.711aLaw, G.722, G.726, AAC, MP2L2

Decoding & Recording

Decoding Format

• H.265+, H.265, H.264+, H.264

Recording Resolution

• 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP

• 1080p / UXGA / 720p / VGA

• 4CIF / DCIF / 2CIF / CIF / QCIF

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Playback & Performance

• Synchronous Playback: 16-ch

• Decoding Capability:

  • 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps)

  • 10-ch @ 8 MP (30 fps)

  • 20-ch @ 4 MP (30 fps)

  • 40-ch @ 1080p (30 fps)

• Dual-Stream Recording: Supported

• Stream Type: Video / Video & Audio

Network

• Remote Connections: Up to 128

• Network Interface:

  • 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
  NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP

• Camera Access Protocol: ONVIF (v2.5), RTSP

PoE

• PoE Ports: 16 × RJ-45 10/100 Mbps self-adaptive

• PoE Standard: IEEE 802.3af / 802.3at

• PoE Power Budget: ≤ 200 W

Interfaces & Storage

• SATA: 2 × SATA interfaces

• HDD Capacity: Up to 16 TB per disk

• Alarm I/O: 4 In / 1 Out

• USB Ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

General

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: ≤ 15 W (without HDD, PoE off)

• Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity: 10% to 90%

• Dimensions (W × D × H): 385 × 315 × 52 mm
  (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032:2015 + A1:2020

  • EN IEC 61000-3-2:2019 + A1:2021

  • EN 61000-3-3:2013 + A1:2019

  • EN 50130-4:2011 + A1:2014

  • EN 55035:2017 + A11:2020

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

IP Video Input

• Channels: 16-ch

• Maximum Resolution: Up to 32 MP

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Bandwidth

• Incoming: 256 Mbps

• Outgoing: 256 Mbps

Video Outputs

• HDMI Output:

  • 8K (7680 × 4320) @ 30 Hz

  • 4K (3840 × 2160) @ 60 Hz / 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

• VGA Output: 1920 × 1080 @ 60 Hz

• Video Output Mode: HDMI / VGA independent output

• CVBS Output:

  • 1-ch BNC (1.0 Vp-p, 75 Ω)

  • PAL: 704 × 576

  • NTSC: 704 × 480

Audio

• Audio Output: 1-ch RCA (Linear, 1 kΩ)

• Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ, via audio input)

• Audio Compression: G.711uLaw, G.711aLaw, G.722, G.726, AAC, MP2L2

Decoding & Recording

Decoding Format

• H.265+, H.265, H.264+, H.264

Recording Resolution

• 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP

• 1080p / UXGA / 720p / VGA

• 4CIF / DCIF / 2CIF / CIF / QCIF

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Playback & Performance

• Synchronous Playback: 16-ch

• Decoding Capability:

  • 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps)

  • 10-ch @ 8 MP (30 fps)

  • 20-ch @ 4 MP (30 fps)

  • 40-ch @ 1080p (30 fps)

• Dual-Stream Recording: Supported

• Stream Type: Video / Video & Audio

Network

• Remote Connections: Up to 128

• Network Interface:

  • 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
  NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP

• Camera Access Protocol: ONVIF (v2.5), RTSP

PoE

• PoE Ports: 16 × RJ-45 10/100 Mbps self-adaptive

• PoE Standard: IEEE 802.3af / 802.3at

• PoE Power Budget: ≤ 200 W

Interfaces & Storage

• SATA: 2 × SATA interfaces

• HDD Capacity: Up to 16 TB per disk

• Alarm I/O: 4 In / 1 Out

• USB Ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

General

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: ≤ 15 W (without HDD, PoE off)

• Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity: 10% to 90%

• Dimensions (W × D × H): 385 × 315 × 52 mm
  (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032:2015 + A1:2020

  • EN IEC 61000-3-2:2019 + A1:2021

  • EN 61000-3-3:2013 + A1:2019

  • EN 50130-4:2011 + A1:2014

  • EN 55035:2017 + A11:2020

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

IP Video Input

• Channels: 16-ch

• Maximum Resolution: Up to 32 MP

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Bandwidth

• Incoming: 256 Mbps

• Outgoing: 256 Mbps

Video Outputs

• HDMI Output:

  • 8K (7680 × 4320) @ 30 Hz

  • 4K (3840 × 2160) @ 60 Hz / 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

• VGA Output: 1920 × 1080 @ 60 Hz

• Video Output Mode: HDMI / VGA independent output

• CVBS Output:

  • 1-ch BNC (1.0 Vp-p, 75 Ω)

  • PAL: 704 × 576

  • NTSC: 704 × 480

Audio

• Audio Output: 1-ch RCA (Linear, 1 kΩ)

• Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ, via audio input)

• Audio Compression: G.711uLaw, G.711aLaw, G.722, G.726, AAC, MP2L2

Decoding & Recording

Decoding Format

• H.265+, H.265, H.264+, H.264

Recording Resolution

• 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP

• 1080p / UXGA / 720p / VGA

• 4CIF / DCIF / 2CIF / CIF / QCIF

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Playback & Performance

• Synchronous Playback: 16-ch

• Decoding Capability:

  • 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps)

  • 10-ch @ 8 MP (30 fps)

  • 20-ch @ 4 MP (30 fps)

  • 40-ch @ 1080p (30 fps)

• Dual-Stream Recording: Supported

• Stream Type: Video / Video & Audio

Network

• Remote Connections: Up to 128

• Network Interface:

  • 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
  NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP

• Camera Access Protocol: ONVIF (v2.5), RTSP

PoE

• PoE Ports: 16 × RJ-45 10/100 Mbps self-adaptive

• PoE Standard: IEEE 802.3af / 802.3at

• PoE Power Budget: ≤ 200 W

Interfaces & Storage

• SATA: 2 × SATA interfaces

• HDD Capacity: Up to 16 TB per disk

• Alarm I/O: 4 In / 1 Out

• USB Ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

General

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: ≤ 15 W (without HDD, PoE off)

• Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity: 10% to 90%

• Dimensions (W × D × H): 385 × 315 × 52 mm
  (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032:2015 + A1:2020

  • EN IEC 61000-3-2:2019 + A1:2021

  • EN 61000-3-3:2013 + A1:2019

  • EN 50130-4:2011 + A1:2014

  • EN 55035:2017 + A11:2020

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

IP Video Input

• Channels: 16-ch

• Maximum Resolution: Up to 32 MP

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Bandwidth

• Incoming: 256 Mbps

• Outgoing: 256 Mbps

Video Outputs

• HDMI Output:

  • 8K (7680 × 4320) @ 30 Hz

  • 4K (3840 × 2160) @ 60 Hz / 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

• VGA Output: 1920 × 1080 @ 60 Hz

• Video Output Mode: HDMI / VGA independent output

• CVBS Output:

  • 1-ch BNC (1.0 Vp-p, 75 Ω)

  • PAL: 704 × 576

  • NTSC: 704 × 480

Audio

• Audio Output: 1-ch RCA (Linear, 1 kΩ)

• Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ, via audio input)

• Audio Compression: G.711uLaw, G.711aLaw, G.722, G.726, AAC, MP2L2

Decoding & Recording

Decoding Format

• H.265+, H.265, H.264+, H.264

Recording Resolution

• 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP

• 1080p / UXGA / 720p / VGA

• 4CIF / DCIF / 2CIF / CIF / QCIF

Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.

Playback & Performance

• Synchronous Playback: 16-ch

• Decoding Capability:

  • 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps)

  • 10-ch @ 8 MP (30 fps)

  • 20-ch @ 4 MP (30 fps)

  • 40-ch @ 1080p (30 fps)

• Dual-Stream Recording: Supported

• Stream Type: Video / Video & Audio

Network

• Remote Connections: Up to 128

• Network Interface:

  • 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
  NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP

• Camera Access Protocol: ONVIF (v2.5), RTSP

PoE

• PoE Ports: 16 × RJ-45 10/100 Mbps self-adaptive

• PoE Standard: IEEE 802.3af / 802.3at

• PoE Power Budget: ≤ 200 W

Interfaces & Storage

• SATA: 2 × SATA interfaces

• HDD Capacity: Up to 16 TB per disk

• Alarm I/O: 4 In / 1 Out

• USB Ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

General

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: ≤ 15 W (without HDD, PoE off)

• Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity: 10% to 90%

• Dimensions (W × D × H): 385 × 315 × 52 mm
  (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032:2015 + A1:2020

  • EN IEC 61000-3-2:2019 + A1:2021

  • EN 61000-3-3:2013 + A1:2019

  • EN 50130-4:2011 + A1:2014

  • EN 55035:2017 + A11:2020

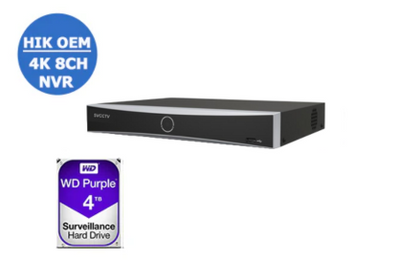

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
• 4TB Hard Drive
• Datasheet

Intelligent Analytics

• AI by Device:

  • Facial recognition
  • Perimeter protection
  • Motion detection 2.0

• AI by Camera:

  • Facial recognition
  • Perimeter protection
  • Throwing objects from building
  • Motion detection 2.0
  • ANPR
  • VCA

Facial Recognition

• Facial Detection and Analytics:

  • Face picture comparison
  • Human face capture
  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries
  • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP
• Face Picture Comparison
  • 4-ch

Motion Detection 2.0

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Perimeter Protection

• By Device:

  • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms

• By Camera:

  • All channels

Throwing Objects from Building

• By Camera:
  • All channels

Video and Audio

• IP Video Input:

  • 8-ch

• Incoming Bandwidth:

  • 80 Mbps

• Outgoing Bandwidth:

  • 80 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • 1600 × 1200/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• VGA Output:

  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz

• Video Output Mode:

  • HDMI/VGA simultaneous output
  • HDMI/VGA independent output

• CVBS Output:

  • N/A

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format:

  • H.265/H.265+/H.264+/H.264

• Recording Resolution:

  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback:

  • 8-ch

• Decoding Capability:

  • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

• Stream Type:

  • Video
  • Video & Audio

• Audio Compression:

  • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection:

  • 128

• API:

  • ONVIF (profile S/G)
  • SDK
  • ISAPI

• Compatible Browser:

  • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network Protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE Interface:

  • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

• SATA:

  • 1 SATA interface

• Capacity:

  • Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

• Alarm In/Out:

  • 4/1; N/A; N/A; N/A (4/1 is optional)

General

• GUI Language:

  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply:

  • 48 VDC, 1.875 A

• Consumption:

  • ≤ 10 W (without HDD, and PoE off)

• Working Temperature:

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity:

  • 10% to 90%

• Dimension (W × D × H):

  • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

• Weight:

  • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:

  • Part 15 Subpart B, ANSI C63.4-2014

• CE:

  • EN 55032: 2015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 50130-4
  • EN 55035: 2017

• Obtained Certification:

  • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
