Hikvision
Hikvision CCTV cameras, NVRs and surveillance kits. ColorVu full colour night vision, AcuSense AI detection, Smart Hybrid Light and 4K 8MP cameras.
Translation missing: en.products.product.regular_price
$919.00

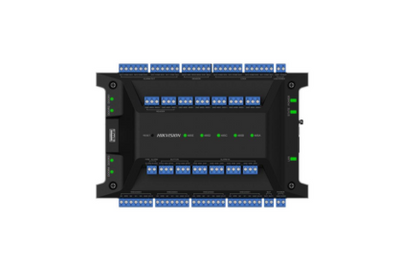

Access Controller
- Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 4
- Exit Button: 4
- Door Contact Input: 4
- Alarm Input: 8
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 4 doors
- Extended: Up to 128 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 8 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 12 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 4 for door status
- Battery: Charge and discharge
- Power Supply: 12 ± 15% VDC
- Power Consumption: ≤ 102 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Installation with guide rail
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Access Controller
- Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 4
- Exit Button: 4
- Door Contact Input: 4
- Alarm Input: 8
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 4 doors
- Extended: Up to 128 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 8 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 12 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 4 for door status
- Battery: Charge and discharge
- Power Supply: 12 ± 15% VDC
- Power Consumption: ≤ 102 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Installation with guide rail
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$919.00
Access Controller
- Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 4
- Exit Button: 4
- Door Contact Input: 4
- Alarm Input: 8
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 4 doors
- Extended: Up to 128 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 8 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 12 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 4 for door status
- Battery: Charge and discharge
- Power Supply: 12 ± 15% VDC
- Power Consumption: ≤ 102 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Installation with guide rail
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Access Controller
- Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 4
- Exit Button: 4
- Door Contact Input: 4
- Alarm Input: 8
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 4 doors
- Extended: Up to 128 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 8 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 12 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 4 for door status
- Battery: Charge and discharge
- Power Supply: 12 ± 15% VDC
- Power Consumption: ≤ 102 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Installation with guide rail
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$672.86

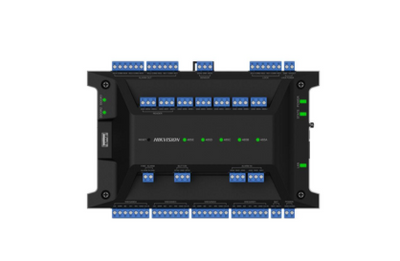

Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Operating System
- Linux
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 2 doors
- Extended: Up to 126 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 4 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 10 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 2 for door status
- Power Supply: 100 VAC to 240 VAC
- Battery: Charge and discharge
- Power Consumption: ≤ 72 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Wall mounting
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Operating System
- Linux
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 2 doors
- Extended: Up to 126 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 4 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 10 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 2 for door status
- Power Supply: 100 VAC to 240 VAC
- Battery: Charge and discharge
- Power Consumption: ≤ 72 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Wall mounting
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$79.00
Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Operating System
- Linux
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 2 doors
- Extended: Up to 126 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 4 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 10 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 2 for door status
- Power Supply: 100 VAC to 240 VAC
- Battery: Charge and discharge
- Power Consumption: ≤ 72 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Wall mounting
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Operating System
- Linux
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 2 doors
- Extended: Up to 126 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 4 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 10 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 2 for door status
- Power Supply: 100 VAC to 240 VAC
- Battery: Charge and discharge
- Power Consumption: ≤ 72 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Wall mounting
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$730.00
DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2604-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2604-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2604-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2604-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$668.57
DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2602-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2602-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

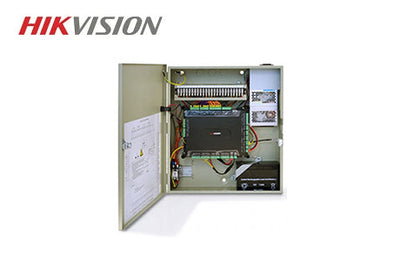

DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2602-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2602-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$668.57
DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2602-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2602-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is supplied in a locakable tampered housing complete with 6 Amp Power supply. battery not included.
Supports both 4 x Wiegand Card Readers (26 and 34 Bit) as well as 4 x RS485 encrypted Card Readers.
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
- The recognition and storage of card number with maximum 20 digits
- Massive storage with 100,000 cards information and 300,000
- Supports multi-door interlocking function (DS-K2602-G), anti-passback function, multi-card function, first card function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm,duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
- Short circuit attempts alarm and open circuit attempts alarm
- Supports zone alarm input
- Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
- Various indicators to show different device status
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2602-G Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$550.00

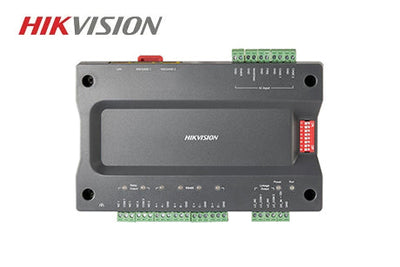

DS-K2210 Hikvision Master Lift Controller supports up to 128 floors’ permissions. It also supports TCP/IP communication. And RS-485 communication with the distributed elevator controller, the card reader.
Features
- Connectable with up to 2 Wiegand card readers or RS-485 card readers
- Connectable with up to 3 groups of distributed elevator controllers (DS-K2M0016A). Each group is connectable with up to 8 distributed elevator controllers (DS-K2M0016A)
- Supports 3 types of relays: Button, Call Elevator and Auto Button
- Up to 128 floors’ permissions can be controlled
- Supports adding 20,000 normal cards and saving 50,000 events
- Supports uploading events, saving offline events
- Save the data when powering off
- Get the floor No. through permission management to control the corresponding relays
- Supports up to 256 schedule template. Each schedule template supports up to 1 week plan and 4 holiday groups
- Supports 5 input terminals and 5 output terminals
- Event input and output
- Multiple authentication modes: Card, Fingerprint, Card and Fingerprint, Card and Password, Employee ID and Password, Super Password and Duress Code.
- Remote control via the web client and the iVMS-4200 client software
- Supports NTP time synchronization, manually time synchronization, auto time synchronization.
- Watchdog and Tamper-proof function
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2210 Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K2210 Hikvision Master Lift Controller supports up to 128 floors’ permissions. It also supports TCP/IP communication. And RS-485 communication with the distributed elevator controller, the card reader.
Features
- Connectable with up to 2 Wiegand card readers or RS-485 card readers
- Connectable with up to 3 groups of distributed elevator controllers (DS-K2M0016A). Each group is connectable with up to 8 distributed elevator controllers (DS-K2M0016A)
- Supports 3 types of relays: Button, Call Elevator and Auto Button
- Up to 128 floors’ permissions can be controlled
- Supports adding 20,000 normal cards and saving 50,000 events
- Supports uploading events, saving offline events
- Save the data when powering off
- Get the floor No. through permission management to control the corresponding relays
- Supports up to 256 schedule template. Each schedule template supports up to 1 week plan and 4 holiday groups
- Supports 5 input terminals and 5 output terminals
- Event input and output
- Multiple authentication modes: Card, Fingerprint, Card and Fingerprint, Card and Password, Employee ID and Password, Super Password and Duress Code.
- Remote control via the web client and the iVMS-4200 client software
- Supports NTP time synchronization, manually time synchronization, auto time synchronization.
- Watchdog and Tamper-proof function
Programmed and managed by either iVMS4200 Software or HikCentral
- DS-K2210 Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$290.00
DS-K1T804MF HIKVISION Single Door Stand Alone Access Control Terminal with Fingerprint Reader
Features
- Integrated management of access control and the attendance
- 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation: locally add person, card and fingerprint information
- Exports the swiping card data and the attendance report to the USB
- Up to 32 normal shifts and up to 32 man-hour shifts can be configured
- Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
- Generates the attendance report automatically and view the attendance data easily
- The doorbell can connect the third party bell
- Tamper alarm and duress alarm function
- It is available to connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
- Intelligent English input
- Supports the third party alarm input.
-
DS-K1T804MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T804MF HIKVISION Single Door Stand Alone Access Control Terminal with Fingerprint Reader
Features
- Integrated management of access control and the attendance
- 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation: locally add person, card and fingerprint information
- Exports the swiping card data and the attendance report to the USB
- Up to 32 normal shifts and up to 32 man-hour shifts can be configured
- Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
- Generates the attendance report automatically and view the attendance data easily
- The doorbell can connect the third party bell
- Tamper alarm and duress alarm function
- It is available to connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
- Intelligent English input
- Supports the third party alarm input.
-
DS-K1T804MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$290.00
DS-K1T804MF HIKVISION Single Door Stand Alone Access Control Terminal with Fingerprint Reader
Features
- Integrated management of access control and the attendance
- 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation: locally add person, card and fingerprint information
- Exports the swiping card data and the attendance report to the USB
- Up to 32 normal shifts and up to 32 man-hour shifts can be configured
- Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
- Generates the attendance report automatically and view the attendance data easily
- The doorbell can connect the third party bell
- Tamper alarm and duress alarm function
- It is available to connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
- Intelligent English input
- Supports the third party alarm input.
-
DS-K1T804MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T804MF HIKVISION Single Door Stand Alone Access Control Terminal with Fingerprint Reader
Features
- Integrated management of access control and the attendance
- 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation: locally add person, card and fingerprint information
- Exports the swiping card data and the attendance report to the USB
- Up to 32 normal shifts and up to 32 man-hour shifts can be configured
- Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
- Generates the attendance report automatically and view the attendance data easily
- The doorbell can connect the third party bell
- Tamper alarm and duress alarm function
- It is available to connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
- Intelligent English input
- Supports the third party alarm input.
-
DS-K1T804MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$3,114.28
Sold Out
DS-K1T671TM-3XF Face Recognition Access Control with Temperature Screening
- Supports Vanadium Oxide uncooled sensor to measure the target's temperature
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C
- Recognition distance: 0.5 to 1.5 m
- Fast temperature measurement mode: Detects face and takes temperature without identity authentication
- Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
- Face mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Displays temperature measurement results on the authentication page
- Triggers voice prompt when detecting abnormal temperature
- Configurable door status (open/close) when detecting abnormal temperature
- Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Supports 6 attendance status, including check-in, check out, break-in, break out, overtime in, overtime out
- Watchdog design and tamper function
- Audio prompt for authentication result
- NTP, manually time synchronization, and auto synchronization
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Specification forDS-K1T671TM-3XF
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T671TM-3XF Face Recognition Access Control with Temperature Screening
- Supports Vanadium Oxide uncooled sensor to measure the target's temperature
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C
- Recognition distance: 0.5 to 1.5 m
- Fast temperature measurement mode: Detects face and takes temperature without identity authentication
- Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
- Face mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Displays temperature measurement results on the authentication page
- Triggers voice prompt when detecting abnormal temperature
- Configurable door status (open/close) when detecting abnormal temperature
- Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Supports 6 attendance status, including check-in, check out, break-in, break out, overtime in, overtime out
- Watchdog design and tamper function
- Audio prompt for authentication result
- NTP, manually time synchronization, and auto synchronization
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Specification forDS-K1T671TM-3XF
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$3,114.28
DS-K1T671TM-3XF Face Recognition Access Control with Temperature Screening
- Supports Vanadium Oxide uncooled sensor to measure the target's temperature
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C
- Recognition distance: 0.5 to 1.5 m
- Fast temperature measurement mode: Detects face and takes temperature without identity authentication
- Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
- Face mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Displays temperature measurement results on the authentication page
- Triggers voice prompt when detecting abnormal temperature
- Configurable door status (open/close) when detecting abnormal temperature
- Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Supports 6 attendance status, including check-in, check out, break-in, break out, overtime in, overtime out
- Watchdog design and tamper function
- Audio prompt for authentication result
- NTP, manually time synchronization, and auto synchronization
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Specification forDS-K1T671TM-3XF
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T671TM-3XF Face Recognition Access Control with Temperature Screening
- Supports Vanadium Oxide uncooled sensor to measure the target's temperature
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C
- Recognition distance: 0.5 to 1.5 m
- Fast temperature measurement mode: Detects face and takes temperature without identity authentication
- Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
- Face mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Displays temperature measurement results on the authentication page
- Triggers voice prompt when detecting abnormal temperature
- Configurable door status (open/close) when detecting abnormal temperature
- Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Supports 6 attendance status, including check-in, check out, break-in, break out, overtime in, overtime out
- Watchdog design and tamper function
- Audio prompt for authentication result
- NTP, manually time synchronization, and auto synchronization
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Specification forDS-K1T671TM-3XF
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$1,141.43
DS-K1T671MF HIKVISION Face Recognition Terminal with Fingerprint Reader
Features
- 7-inch LCD touch screen
- 2 MP wide-angle dual-lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3 to 3 m
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Deep learning algorithm
- 5,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Imports card and user data to the device via TCP/IP communication
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Imports data to the device from the client software
- Manage, search and set device data after logging in the device locall
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- DS-K1T671MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T671MF HIKVISION Face Recognition Terminal with Fingerprint Reader
Features
- 7-inch LCD touch screen
- 2 MP wide-angle dual-lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3 to 3 m
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Deep learning algorithm
- 5,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Imports card and user data to the device via TCP/IP communication
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Imports data to the device from the client software
- Manage, search and set device data after logging in the device locall
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- DS-K1T671MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$1,070.00
DS-K1T671MF HIKVISION Face Recognition Terminal with Fingerprint Reader
Features
- 7-inch LCD touch screen
- 2 MP wide-angle dual-lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3 to 3 m
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Deep learning algorithm
- 5,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Imports card and user data to the device via TCP/IP communication
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Imports data to the device from the client software
- Manage, search and set device data after logging in the device locall
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- DS-K1T671MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T671MF HIKVISION Face Recognition Terminal with Fingerprint Reader
Features
- 7-inch LCD touch screen
- 2 MP wide-angle dual-lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3 to 3 m
- Suggested height for face recognition: between 1.4 m and 1.9 m
- Deep learning algorithm
- 5,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Imports card and user data to the device via TCP/IP communication
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Imports data to the device from the client software
- Manage, search and set device data after logging in the device locall
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- DS-K1T671MF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$616.00
Hikvision Intercom, Apartment Door Station, Compact with Camera, CSN Card Reader
- Camera resolution: 2 MP
- Network connectivity: Ethernet and Wi-Fi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX-C specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Hikvision Intercom, Apartment Door Station, Compact with Camera, CSN Card Reader
- Camera resolution: 2 MP
- Network connectivity: Ethernet and Wi-Fi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX-C specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$616.00
Hikvision Intercom, Apartment Door Station, Compact with Camera, CSN Card Reader
- Camera resolution: 2 MP
- Network connectivity: Ethernet and Wi-Fi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX-C specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Hikvision Intercom, Apartment Door Station, Compact with Camera, CSN Card Reader
- Camera resolution: 2 MP
- Network connectivity: Ethernet and Wi-Fi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX-C specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$405.00
Hikvision Intercom, Apartment Door Station, Compact Audio Only, CSN Card Reader
- Network connectivity: Ethernet and WiFi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX- specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Hikvision Intercom, Apartment Door Station, Compact Audio Only, CSN Card Reader
- Network connectivity: Ethernet and WiFi
- Output: 1x Relay & 1x Wiegand
- Weather rating: IP65
- Anti-vandal rating: IK09
- Power source: 12-24V DC
- Power consumption: 12W
- Card reader: CSN (Mifare)
- Dimensions: 177 H x 81 W x 24 D (mm)
-
DS-K1T502DBWX- specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$484.29
Sold Out
DS-K1T341AMF HIKVISION Face Recognition Terminal with Fingerprint Reader
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station
- Supports TCP/IP
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AMF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T341AMF HIKVISION Face Recognition Terminal with Fingerprint Reader
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station
- Supports TCP/IP
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AMF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$484.29
DS-K1T341AMF HIKVISION Face Recognition Terminal with Fingerprint Reader
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station
- Supports TCP/IP
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AMF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T341AMF HIKVISION Face Recognition Terminal with Fingerprint Reader
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station
- Supports TCP/IP
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AMF Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$440.00
DS-K1T341AMHIKVISION Face Recognition Terminal
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Max.3000 faces capacity and Max.3000 cards
- Supports TCP/IP
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, and main station
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AM Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T341AMHIKVISION Face Recognition Terminal
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Max.3000 faces capacity and Max.3000 cards
- Supports TCP/IP
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, and main station
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AM Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$440.00
DS-K1T341AMHIKVISION Face Recognition Terminal
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Max.3000 faces capacity and Max.3000 cards
- Supports TCP/IP
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, and main station
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AM Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1T341AMHIKVISION Face Recognition Terminal
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Max.3000 faces capacity and Max.3000 cards
- Supports TCP/IP
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, and main station
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
- DS-K1T341AM Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$242.00
DS-K1F820-F Hikvision Optical Fingerprint Enrollment Scanner Access Control, Fingerprint Recorder supports living fingerprint registration, and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
Features
- 508 dpi high-definition
- Supports the function of PnP (plug and play)
- Optical fingerprint sensor designed with scratch-resistant material
- Applies to Windows XP, Windows7, and Windows 10 operation system
- Supports configuration and operation via client software
- USB 2.0 communication standard for data transmission
- Power over USB
- Composite fingerprint images from triple collection
-
DS-K1F820-F Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1F820-F Hikvision Optical Fingerprint Enrollment Scanner Access Control, Fingerprint Recorder supports living fingerprint registration, and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
Features
- 508 dpi high-definition
- Supports the function of PnP (plug and play)
- Optical fingerprint sensor designed with scratch-resistant material
- Applies to Windows XP, Windows7, and Windows 10 operation system
- Supports configuration and operation via client software
- USB 2.0 communication standard for data transmission
- Power over USB
- Composite fingerprint images from triple collection
-
DS-K1F820-F Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$242.00
DS-K1F820-F Hikvision Optical Fingerprint Enrollment Scanner Access Control, Fingerprint Recorder supports living fingerprint registration, and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
Features
- 508 dpi high-definition
- Supports the function of PnP (plug and play)
- Optical fingerprint sensor designed with scratch-resistant material
- Applies to Windows XP, Windows7, and Windows 10 operation system
- Supports configuration and operation via client software
- USB 2.0 communication standard for data transmission
- Power over USB
- Composite fingerprint images from triple collection
-
DS-K1F820-F Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1F820-F Hikvision Optical Fingerprint Enrollment Scanner Access Control, Fingerprint Recorder supports living fingerprint registration, and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
Features
- 508 dpi high-definition
- Supports the function of PnP (plug and play)
- Optical fingerprint sensor designed with scratch-resistant material
- Applies to Windows XP, Windows7, and Windows 10 operation system
- Supports configuration and operation via client software
- USB 2.0 communication standard for data transmission
- Power over USB
- Composite fingerprint images from triple collection
-
DS-K1F820-F Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$144.00
DS-K1F100-D8E Hikvision Mifare CSN Card Enrolment Station, USB 2.0, D8E is a non-touch IC card enrollment station, used as a necessary non-touch card test machine by card issuers, chip suppliers, and testing organizations. The size of its PSAM card slot equals to that of two SIM cards. The card enrollment station can connect to PC or other
devices via USB interface. No-driver USB is applied to facilitate the installation and operation of the card enrollment station. The card enrollment station can be widely applied in various industries and situations, such as business, telecommunication, post, insurance, medical treatment, bank, gasoline station, parking lot, and so on.
Features
- Plug-and-play USB with no-driver technology
- 2 PSAM cassettes (standard configuration), same size with 2 SIM cards in total
- Supports on-line upgrade
- Supports various card types (Mifare card, CPU, PSAM, ID card, and EM card) with the card reading frequency 13.56 MHz and 125 KHz
- Well-defined API
- Adopt high-level encryption algorithm to ensure the security for data communication
- Provides general interface library supporting various operation systems and language development platform
- Supports online upgrading and updating
-
DS-K1F100-D8E Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
DS-K1F100-D8E Hikvision Mifare CSN Card Enrolment Station, USB 2.0, D8E is a non-touch IC card enrollment station, used as a necessary non-touch card test machine by card issuers, chip suppliers, and testing organizations. The size of its PSAM card slot equals to that of two SIM cards. The card enrollment station can connect to PC or other
devices via USB interface. No-driver USB is applied to facilitate the installation and operation of the card enrollment station. The card enrollment station can be widely applied in various industries and situations, such as business, telecommunication, post, insurance, medical treatment, bank, gasoline station, parking lot, and so on.
Features
- Plug-and-play USB with no-driver technology
- 2 PSAM cassettes (standard configuration), same size with 2 SIM cards in total
- Supports on-line upgrade
- Supports various card types (Mifare card, CPU, PSAM, ID card, and EM card) with the card reading frequency 13.56 MHz and 125 KHz
- Well-defined API
- Adopt high-level encryption algorithm to ensure the security for data communication
- Provides general interface library supporting various operation systems and language development platform
- Supports online upgrading and updating
-
DS-K1F100-D8E Specification
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
