Dahua CCTV cameras, NVRs and complete surveillance kits. WizSense, TIOC active deterrence, full colour and Pro AI series. Australian ANZ-certified models.
- > Made from aluminium alloy and features paint coating on the surface
- > Matches 7'' indoor monitor
- > Supports indoor monitors of multiple models, including model D, E, F, G, H, and K
| CAMERA BRACKETS | |
|---|---|
| TYPE | Desktop bracket |
| MATERIAL | Aluminium alloy |
| COLOUR | Silver |
| DIMENSION | 115.6mm x 139.8mm x 103.3mm(4.55'' x 5.50'' x 4.07'') (L x W x H) |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Made from aluminium alloy and features paint coating on the surface
- > Matches 7'' indoor monitor
- > Supports indoor monitors of multiple models, including model D, E, F, G, H, and K
| CAMERA BRACKETS | |
|---|---|
| TYPE | Desktop bracket |
| MATERIAL | Aluminium alloy |
| COLOUR | Silver |
| DIMENSION | 115.6mm x 139.8mm x 103.3mm(4.55'' x 5.50'' x 4.07'') (L x W x H) |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Made from aluminium alloy and features paint coating on the surface
- > Matches 7'' indoor monitor
- > Supports indoor monitors of multiple models, including model D, E, F, G, H, and K
| CAMERA BRACKETS | |
|---|---|
| TYPE | Desktop bracket |
| MATERIAL | Aluminium alloy |
| COLOUR | Silver |
| DIMENSION | 115.6mm x 139.8mm x 103.3mm(4.55'' x 5.50'' x 4.07'') (L x W x H) |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Made from aluminium alloy and features paint coating on the surface
- > Matches 7'' indoor monitor
- > Supports indoor monitors of multiple models, including model D, E, F, G, H, and K
| CAMERA BRACKETS | |
|---|---|
| TYPE | Desktop bracket |
| MATERIAL | Aluminium alloy |
| COLOUR | Silver |
| DIMENSION | 115.6mm x 139.8mm x 103.3mm(4.55'' x 5.50'' x 4.07'') (L x W x H) |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

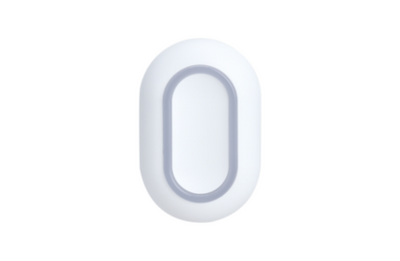

ARD821-W2(868)
Wireless Panic Button
-
Two-way RF communication
-
Multi-color LED indicators for various statuses
-
Supports cloud updates with automatic recovery on failure
-
Designed to prevent accidental presses
-
IP54-rated for dust and water resistance
Â
Functionality
-
Indicator Light: 1 LED for multiple statuses (pairing, communication, etc.)
-
Remote Update: Cloud update supported
-
Button: 1
-
Signal Strength Detection: Yes
-
Low Battery Detection: Yes
-
Battery Level Display: Visible on mobile app
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Communication Distance: Up to 1,200 m (3,937.01 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Technical
-
Operating Current: 28 mA
-
Test Mode: Yes
General
-
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor use)
-
Operating Humidity: 10% – 90% RH
-
Battery Type: CR2032
-
Battery Life: Approx. 3 years (based on twice weekly usage)
-
Installation: Wall mount or portable
-
Casing Material: PC + ABS
-
Protection Rating: IP54
Dimensions & Weight
-
Product Dimensions: 55 × 36 × 14.2 mm (2.17" × 1.42" × 0.56")
-
Packaging Dimensions: 95 × 59.5 × 30.5 mm (3.74" × 2.34" × 1.20")
-
Net Weight: 18 g (0.04 lb)
-
Gross Weight: 48 g (0.11 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-6:2017
-
EN 50131-5-3:2017
-
Security Grade: 2
-
Environmental Class: II
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD821-W2(868)
Wireless Panic Button
-
Two-way RF communication
-
Multi-color LED indicators for various statuses
-
Supports cloud updates with automatic recovery on failure
-
Designed to prevent accidental presses
-
IP54-rated for dust and water resistance
Â
Functionality
-
Indicator Light: 1 LED for multiple statuses (pairing, communication, etc.)
-
Remote Update: Cloud update supported
-
Button: 1
-
Signal Strength Detection: Yes
-
Low Battery Detection: Yes
-
Battery Level Display: Visible on mobile app
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Communication Distance: Up to 1,200 m (3,937.01 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Technical
-
Operating Current: 28 mA
-
Test Mode: Yes
General
-
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor use)
-
Operating Humidity: 10% – 90% RH
-
Battery Type: CR2032
-
Battery Life: Approx. 3 years (based on twice weekly usage)
-
Installation: Wall mount or portable
-
Casing Material: PC + ABS
-
Protection Rating: IP54
Dimensions & Weight
-
Product Dimensions: 55 × 36 × 14.2 mm (2.17" × 1.42" × 0.56")
-
Packaging Dimensions: 95 × 59.5 × 30.5 mm (3.74" × 2.34" × 1.20")
-
Net Weight: 18 g (0.04 lb)
-
Gross Weight: 48 g (0.11 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-6:2017
-
EN 50131-5-3:2017
-
Security Grade: 2
-
Environmental Class: II
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD821-W2(868)
Wireless Panic Button
-
Two-way RF communication
-
Multi-color LED indicators for various statuses
-
Supports cloud updates with automatic recovery on failure
-
Designed to prevent accidental presses
-
IP54-rated for dust and water resistance
Â
Functionality
-
Indicator Light: 1 LED for multiple statuses (pairing, communication, etc.)
-
Remote Update: Cloud update supported
-
Button: 1
-
Signal Strength Detection: Yes
-
Low Battery Detection: Yes
-
Battery Level Display: Visible on mobile app
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Communication Distance: Up to 1,200 m (3,937.01 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Technical
-
Operating Current: 28 mA
-
Test Mode: Yes
General
-
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor use)
-
Operating Humidity: 10% – 90% RH
-
Battery Type: CR2032
-
Battery Life: Approx. 3 years (based on twice weekly usage)
-
Installation: Wall mount or portable
-
Casing Material: PC + ABS
-
Protection Rating: IP54
Dimensions & Weight
-
Product Dimensions: 55 × 36 × 14.2 mm (2.17" × 1.42" × 0.56")
-
Packaging Dimensions: 95 × 59.5 × 30.5 mm (3.74" × 2.34" × 1.20")
-
Net Weight: 18 g (0.04 lb)
-
Gross Weight: 48 g (0.11 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-6:2017
-
EN 50131-5-3:2017
-
Security Grade: 2
-
Environmental Class: II
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD821-W2(868)
Wireless Panic Button
-
Two-way RF communication
-
Multi-color LED indicators for various statuses
-
Supports cloud updates with automatic recovery on failure
-
Designed to prevent accidental presses
-
IP54-rated for dust and water resistance
Â
Functionality
-
Indicator Light: 1 LED for multiple statuses (pairing, communication, etc.)
-
Remote Update: Cloud update supported
-
Button: 1
-
Signal Strength Detection: Yes
-
Low Battery Detection: Yes
-
Battery Level Display: Visible on mobile app
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Communication Distance: Up to 1,200 m (3,937.01 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Technical
-
Operating Current: 28 mA
-
Test Mode: Yes
General
-
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor use)
-
Operating Humidity: 10% – 90% RH
-
Battery Type: CR2032
-
Battery Life: Approx. 3 years (based on twice weekly usage)
-
Installation: Wall mount or portable
-
Casing Material: PC + ABS
-
Protection Rating: IP54
Dimensions & Weight
-
Product Dimensions: 55 × 36 × 14.2 mm (2.17" × 1.42" × 0.56")
-
Packaging Dimensions: 95 × 59.5 × 30.5 mm (3.74" × 2.34" × 1.20")
-
Net Weight: 18 g (0.04 lb)
-
Gross Weight: 48 g (0.11 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-6:2017
-
EN 50131-5-3:2017
-
Security Grade: 2
-
Environmental Class: II
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

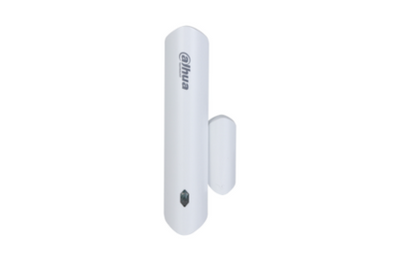

ARD324-W2(S)
Wireless Door Detector Plus
-
Displays ambient temperature and supports overheating alarm
-
Utilizes frequency hopping and two-way communication for stable performance
-
Supports cloud updates with automatic recovery on update failure
-
Equipped with jamming detection and encrypted communication
-
Detects tilt and shock events, triggering alarms accordingly
Â
Input/Output
-
Alarm Input:
1 (Normally Closed / Normally Open / Impulse Count)
Functionality
-
Indicator Light:
1 × Green alarm indicator -
Button:
1 × Power switch -
Remote Update:
Cloud update supported -
Low Battery Detection:
Yes -
Tamper Protection:
Yes -
Temperature Measuring Range:
Indoor: –15 °C to +65 °C (+5 °F to +149 °F) -
Measuring Accuracy:
±1 °C (±1.8 °F)
Technical
-
Sensors:
Triaxial accelerometer, reed switch -
Movement Distance:
< 40 mm (1.57") -
Shock Detection Sensitivity:
High, Normal, Low -
Tilt Detection:
Up to 25° -
Test Mode:
Supported -
Recommended Scenario:
Non-metal doors -
Operating Current:
12 µA -
Alarm Current:
2.3 mA
Wireless Communication
-
Carrier Frequency:
433.1 MHz – 434.6 MHz -
Communication Mechanism:
Two-way -
Communication Distance:
Up to 1000 m (3280.84 ft) in open space -
Encryption Mode:
AES128 -
Frequency Hopping:
Yes
General
-
Power Supply:
CR123A × 1 -
Battery Life (70% Efficiency):
-
3 years (External input: NO)
-
1.5 years (External input: NC)
-
-
Power Consumption:
104 mW -
Operating Temperature:
Indoor: –10 °C to +55 °C (+14 °F to +131 °F) -
Operating Humidity:
10% – 90% RH -
Storage Temperature:
–10 °C to +55 °C (+14 °F to +131 °F) -
Storage Humidity:
10% – 90% RH
Physical
-
Product Dimensions:
100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") -
Packaging Dimensions:
135.0 mm × 98.5 mm × 27.8 mm (5.32" × 3.87" × 1.09") -
Net Weight:
70 g (0.15 lb) -
Gross Weight:
115 g (0.25 lb) -
Installation Method:
Bracket mount -
Casing Material:
PC + ABS
Certifications
-
CE Certified
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD324-W2(S)
Wireless Door Detector Plus
-
Displays ambient temperature and supports overheating alarm
-
Utilizes frequency hopping and two-way communication for stable performance
-
Supports cloud updates with automatic recovery on update failure
-
Equipped with jamming detection and encrypted communication
-
Detects tilt and shock events, triggering alarms accordingly
Â
Input/Output
-
Alarm Input:
1 (Normally Closed / Normally Open / Impulse Count)
Functionality
-
Indicator Light:
1 × Green alarm indicator -
Button:
1 × Power switch -
Remote Update:
Cloud update supported -
Low Battery Detection:
Yes -
Tamper Protection:
Yes -
Temperature Measuring Range:
Indoor: –15 °C to +65 °C (+5 °F to +149 °F) -
Measuring Accuracy:
±1 °C (±1.8 °F)
Technical
-
Sensors:
Triaxial accelerometer, reed switch -
Movement Distance:
< 40 mm (1.57") -
Shock Detection Sensitivity:
High, Normal, Low -
Tilt Detection:
Up to 25° -
Test Mode:
Supported -
Recommended Scenario:
Non-metal doors -
Operating Current:
12 µA -
Alarm Current:
2.3 mA
Wireless Communication
-
Carrier Frequency:
433.1 MHz – 434.6 MHz -
Communication Mechanism:
Two-way -
Communication Distance:
Up to 1000 m (3280.84 ft) in open space -
Encryption Mode:
AES128 -
Frequency Hopping:
Yes
General
-
Power Supply:
CR123A × 1 -
Battery Life (70% Efficiency):
-
3 years (External input: NO)
-
1.5 years (External input: NC)
-
-
Power Consumption:
104 mW -
Operating Temperature:
Indoor: –10 °C to +55 °C (+14 °F to +131 °F) -
Operating Humidity:
10% – 90% RH -
Storage Temperature:
–10 °C to +55 °C (+14 °F to +131 °F) -
Storage Humidity:
10% – 90% RH
Physical
-
Product Dimensions:
100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") -
Packaging Dimensions:
135.0 mm × 98.5 mm × 27.8 mm (5.32" × 3.87" × 1.09") -
Net Weight:
70 g (0.15 lb) -
Gross Weight:
115 g (0.25 lb) -
Installation Method:
Bracket mount -
Casing Material:
PC + ABS
Certifications
-
CE Certified
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD324-W2(S)
Wireless Door Detector Plus
-
Displays ambient temperature and supports overheating alarm
-
Utilizes frequency hopping and two-way communication for stable performance
-
Supports cloud updates with automatic recovery on update failure
-
Equipped with jamming detection and encrypted communication
-
Detects tilt and shock events, triggering alarms accordingly
Â
Input/Output
-
Alarm Input:
1 (Normally Closed / Normally Open / Impulse Count)
Functionality
-
Indicator Light:
1 × Green alarm indicator -
Button:
1 × Power switch -
Remote Update:
Cloud update supported -
Low Battery Detection:
Yes -
Tamper Protection:
Yes -
Temperature Measuring Range:
Indoor: –15 °C to +65 °C (+5 °F to +149 °F) -
Measuring Accuracy:
±1 °C (±1.8 °F)
Technical
-
Sensors:
Triaxial accelerometer, reed switch -
Movement Distance:
< 40 mm (1.57") -
Shock Detection Sensitivity:
High, Normal, Low -
Tilt Detection:
Up to 25° -
Test Mode:
Supported -
Recommended Scenario:
Non-metal doors -
Operating Current:
12 µA -
Alarm Current:
2.3 mA
Wireless Communication
-
Carrier Frequency:
433.1 MHz – 434.6 MHz -
Communication Mechanism:
Two-way -
Communication Distance:
Up to 1000 m (3280.84 ft) in open space -
Encryption Mode:
AES128 -
Frequency Hopping:
Yes
General
-
Power Supply:
CR123A × 1 -
Battery Life (70% Efficiency):
-
3 years (External input: NO)
-
1.5 years (External input: NC)
-
-
Power Consumption:
104 mW -
Operating Temperature:
Indoor: –10 °C to +55 °C (+14 °F to +131 °F) -
Operating Humidity:
10% – 90% RH -
Storage Temperature:
–10 °C to +55 °C (+14 °F to +131 °F) -
Storage Humidity:
10% – 90% RH
Physical
-
Product Dimensions:
100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") -
Packaging Dimensions:
135.0 mm × 98.5 mm × 27.8 mm (5.32" × 3.87" × 1.09") -
Net Weight:
70 g (0.15 lb) -
Gross Weight:
115 g (0.25 lb) -
Installation Method:
Bracket mount -
Casing Material:
PC + ABS
Certifications
-
CE Certified
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARD324-W2(S)
Wireless Door Detector Plus
-
Displays ambient temperature and supports overheating alarm
-
Utilizes frequency hopping and two-way communication for stable performance
-
Supports cloud updates with automatic recovery on update failure
-
Equipped with jamming detection and encrypted communication
-
Detects tilt and shock events, triggering alarms accordingly
Â
Input/Output
-
Alarm Input:
1 (Normally Closed / Normally Open / Impulse Count)
Functionality
-
Indicator Light:
1 × Green alarm indicator -
Button:
1 × Power switch -
Remote Update:
Cloud update supported -
Low Battery Detection:
Yes -
Tamper Protection:
Yes -
Temperature Measuring Range:
Indoor: –15 °C to +65 °C (+5 °F to +149 °F) -
Measuring Accuracy:
±1 °C (±1.8 °F)
Technical
-
Sensors:
Triaxial accelerometer, reed switch -
Movement Distance:
< 40 mm (1.57") -
Shock Detection Sensitivity:
High, Normal, Low -
Tilt Detection:
Up to 25° -
Test Mode:
Supported -
Recommended Scenario:
Non-metal doors -
Operating Current:
12 µA -
Alarm Current:
2.3 mA
Wireless Communication
-
Carrier Frequency:
433.1 MHz – 434.6 MHz -
Communication Mechanism:
Two-way -
Communication Distance:
Up to 1000 m (3280.84 ft) in open space -
Encryption Mode:
AES128 -
Frequency Hopping:
Yes
General
-
Power Supply:
CR123A × 1 -
Battery Life (70% Efficiency):
-
3 years (External input: NO)
-
1.5 years (External input: NC)
-
-
Power Consumption:
104 mW -
Operating Temperature:
Indoor: –10 °C to +55 °C (+14 °F to +131 °F) -
Operating Humidity:
10% – 90% RH -
Storage Temperature:
–10 °C to +55 °C (+14 °F to +131 °F) -
Storage Humidity:
10% – 90% RH
Physical
-
Product Dimensions:
100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") -
Packaging Dimensions:
135.0 mm × 98.5 mm × 27.8 mm (5.32" × 3.87" × 1.09") -
Net Weight:
70 g (0.15 lb) -
Gross Weight:
115 g (0.25 lb) -
Installation Method:
Bracket mount -
Casing Material:
PC + ABS
Certifications
-
CE Certified
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

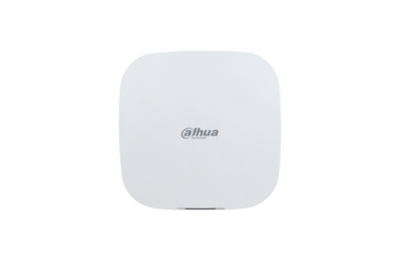

ARC3000H-FW2(868)
Alarm Hub
-
Supports up to 150 wireless peripherals: 6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras
-
Displays peripheral status: signal strength, battery level, temperature, program version
-
Network connection via wired, Wi-Fi, 4G, 3G, or GPRS
-
Dual SIM, single standby
-
Supports Automatic Network Replenishment (ANR)
-
Video linkage available through the mobile app
-
Frequency hopping and two-way communication ensure stable transmission
-
Supports cloud updates with automatic recovery from update failure
Â
Video Input
-
4-channel IPC
Input/Output
-
Wireless Zone
Supports up to 150 wireless peripherals:
6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras -
Port
1 × RJ-45 10M/100M Ethernet port -
Network Mode
Ethernet, Wi-Fi, and cellular network
(Supports dual SIM cards, only one active at a time)
Power & Indicators
-
Storage Battery
Built-in lithium battery (12-hour standby) -
Indicator Light
1 multi-status LED (alarm, arming, disarming, networking, malfunction) -
Buttons
1 × Reset
1 × Power
1 × AP -
Buzzer
Built-in
Functionality
-
Tamper Alarm: Yes
-
SMS Notifications: Yes (up to 5 phone numbers)
-
Calling Alarm: Yes (up to 5 phone numbers)
-
Video Linkage: Supported
-
Network Protocols: TCP/IP, PPTP, L2TP, DHCP, UPNP, NTP
-
Remote Upgrade: Cloud update
-
Arm/Disarm Methods: App, keyfob, schedule
-
Parameter Retention During Power Failure: Yes
-
User Management: App user sharing supported
-
Cache: Max. 50 entries (ANR)
-
Low Battery Alarm: Yes
-
Search Functions: Push messages, device status, firmware version, signal strength
-
Event Logs: Up to 5,000 entries
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Transmitter Power (EIRP): ≤25 mW
-
Communication Distance: Up to 2,000 m (6,561.68 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Wi-Fi
-
Standards: IEEE 802.11b/g/n
-
Frequency Range: 2400 – 2483.5 MHz
-
Transmit Power: ≤20 dBm @ 2400–2483.5 MHz
Cellular Network
-
Network Standards: GSM / WCDMA / LTE
-
Frequency Bands:
-
4G: FDD-LTE (B1/B3/B7/B8/B20), TDD-LTE (B38/B40/B41)
-
3G: WCDMA (B1/B5/B8)
-
2G: GSM 900 / 1800 MHz
-
-
Transmit Power (EIRP):
-
4G: 23 dBm ±2 dB
-
3G: 24 dBm (+1/–3 dB)
-
2G:
-
GSM900: 30 dBm ±3 dB
-
GSM1800: 33 dBm ±3 dB
-
-
General
-
Power Supply: 12 V DC, 1.5 A (optional EU/UK/US adapters)
-
Operating Temperature: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
-
Operating Humidity: 10% – 90% RH
-
Installation: Wall mount / Desktop
-
Casing Material: PC + ABS
-
Battery Life: 12-hour standby
Dimensions & Weight
-
Product Dimensions: 163.0 × 163.0 × 32.0 mm (6.42" × 6.42" × 1.26")
-
Packaging Dimensions: 219.0 × 187.0 × 91.0 mm (8.62" × 7.36" × 3.58")
-
Net Weight: 0.38 kg (0.84 lb)
-
Gross Weight: 0.8 kg (1.76 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-5-3:2017
-
EN 50131-6:2017
-
EN 50131-10:2014
-
EN 50136-2:2013
-
Security Grade: 2
-
Environmental Class: II
-
ATS Category: SP2 / DP2
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARC3000H-FW2(868)
Alarm Hub
-
Supports up to 150 wireless peripherals: 6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras
-
Displays peripheral status: signal strength, battery level, temperature, program version
-
Network connection via wired, Wi-Fi, 4G, 3G, or GPRS
-
Dual SIM, single standby
-
Supports Automatic Network Replenishment (ANR)
-
Video linkage available through the mobile app
-
Frequency hopping and two-way communication ensure stable transmission
-
Supports cloud updates with automatic recovery from update failure
Â
Video Input
-
4-channel IPC
Input/Output
-
Wireless Zone
Supports up to 150 wireless peripherals:
6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras -
Port
1 × RJ-45 10M/100M Ethernet port -
Network Mode
Ethernet, Wi-Fi, and cellular network
(Supports dual SIM cards, only one active at a time)
Power & Indicators
-
Storage Battery
Built-in lithium battery (12-hour standby) -
Indicator Light
1 multi-status LED (alarm, arming, disarming, networking, malfunction) -
Buttons
1 × Reset
1 × Power
1 × AP -
Buzzer
Built-in
Functionality
-
Tamper Alarm: Yes
-
SMS Notifications: Yes (up to 5 phone numbers)
-
Calling Alarm: Yes (up to 5 phone numbers)
-
Video Linkage: Supported
-
Network Protocols: TCP/IP, PPTP, L2TP, DHCP, UPNP, NTP
-
Remote Upgrade: Cloud update
-
Arm/Disarm Methods: App, keyfob, schedule
-
Parameter Retention During Power Failure: Yes
-
User Management: App user sharing supported
-
Cache: Max. 50 entries (ANR)
-
Low Battery Alarm: Yes
-
Search Functions: Push messages, device status, firmware version, signal strength
-
Event Logs: Up to 5,000 entries
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Transmitter Power (EIRP): ≤25 mW
-
Communication Distance: Up to 2,000 m (6,561.68 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Wi-Fi
-
Standards: IEEE 802.11b/g/n
-
Frequency Range: 2400 – 2483.5 MHz
-
Transmit Power: ≤20 dBm @ 2400–2483.5 MHz
Cellular Network
-
Network Standards: GSM / WCDMA / LTE
-
Frequency Bands:
-
4G: FDD-LTE (B1/B3/B7/B8/B20), TDD-LTE (B38/B40/B41)
-
3G: WCDMA (B1/B5/B8)
-
2G: GSM 900 / 1800 MHz
-
-
Transmit Power (EIRP):
-
4G: 23 dBm ±2 dB
-
3G: 24 dBm (+1/–3 dB)
-
2G:
-
GSM900: 30 dBm ±3 dB
-
GSM1800: 33 dBm ±3 dB
-
-
General
-
Power Supply: 12 V DC, 1.5 A (optional EU/UK/US adapters)
-
Operating Temperature: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
-
Operating Humidity: 10% – 90% RH
-
Installation: Wall mount / Desktop
-
Casing Material: PC + ABS
-
Battery Life: 12-hour standby
Dimensions & Weight
-
Product Dimensions: 163.0 × 163.0 × 32.0 mm (6.42" × 6.42" × 1.26")
-
Packaging Dimensions: 219.0 × 187.0 × 91.0 mm (8.62" × 7.36" × 3.58")
-
Net Weight: 0.38 kg (0.84 lb)
-
Gross Weight: 0.8 kg (1.76 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-5-3:2017
-
EN 50131-6:2017
-
EN 50131-10:2014
-
EN 50136-2:2013
-
Security Grade: 2
-
Environmental Class: II
-
ATS Category: SP2 / DP2
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARC3000H-FW2(868)
Alarm Hub
-
Supports up to 150 wireless peripherals: 6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras
-
Displays peripheral status: signal strength, battery level, temperature, program version
-
Network connection via wired, Wi-Fi, 4G, 3G, or GPRS
-
Dual SIM, single standby
-
Supports Automatic Network Replenishment (ANR)
-
Video linkage available through the mobile app
-
Frequency hopping and two-way communication ensure stable transmission
-
Supports cloud updates with automatic recovery from update failure
Â
Video Input
-
4-channel IPC
Input/Output
-
Wireless Zone
Supports up to 150 wireless peripherals:
6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras -
Port
1 × RJ-45 10M/100M Ethernet port -
Network Mode
Ethernet, Wi-Fi, and cellular network
(Supports dual SIM cards, only one active at a time)
Power & Indicators
-
Storage Battery
Built-in lithium battery (12-hour standby) -
Indicator Light
1 multi-status LED (alarm, arming, disarming, networking, malfunction) -
Buttons
1 × Reset
1 × Power
1 × AP -
Buzzer
Built-in
Functionality
-
Tamper Alarm: Yes
-
SMS Notifications: Yes (up to 5 phone numbers)
-
Calling Alarm: Yes (up to 5 phone numbers)
-
Video Linkage: Supported
-
Network Protocols: TCP/IP, PPTP, L2TP, DHCP, UPNP, NTP
-
Remote Upgrade: Cloud update
-
Arm/Disarm Methods: App, keyfob, schedule
-
Parameter Retention During Power Failure: Yes
-
User Management: App user sharing supported
-
Cache: Max. 50 entries (ANR)
-
Low Battery Alarm: Yes
-
Search Functions: Push messages, device status, firmware version, signal strength
-
Event Logs: Up to 5,000 entries
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Transmitter Power (EIRP): ≤25 mW
-
Communication Distance: Up to 2,000 m (6,561.68 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Wi-Fi
-
Standards: IEEE 802.11b/g/n
-
Frequency Range: 2400 – 2483.5 MHz
-
Transmit Power: ≤20 dBm @ 2400–2483.5 MHz
Cellular Network
-
Network Standards: GSM / WCDMA / LTE
-
Frequency Bands:
-
4G: FDD-LTE (B1/B3/B7/B8/B20), TDD-LTE (B38/B40/B41)
-
3G: WCDMA (B1/B5/B8)
-
2G: GSM 900 / 1800 MHz
-
-
Transmit Power (EIRP):
-
4G: 23 dBm ±2 dB
-
3G: 24 dBm (+1/–3 dB)
-
2G:
-
GSM900: 30 dBm ±3 dB
-
GSM1800: 33 dBm ±3 dB
-
-
General
-
Power Supply: 12 V DC, 1.5 A (optional EU/UK/US adapters)
-
Operating Temperature: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
-
Operating Humidity: 10% – 90% RH
-
Installation: Wall mount / Desktop
-
Casing Material: PC + ABS
-
Battery Life: 12-hour standby
Dimensions & Weight
-
Product Dimensions: 163.0 × 163.0 × 32.0 mm (6.42" × 6.42" × 1.26")
-
Packaging Dimensions: 219.0 × 187.0 × 91.0 mm (8.62" × 7.36" × 3.58")
-
Net Weight: 0.38 kg (0.84 lb)
-
Gross Weight: 0.8 kg (1.76 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-5-3:2017
-
EN 50131-6:2017
-
EN 50131-10:2014
-
EN 50136-2:2013
-
Security Grade: 2
-
Environmental Class: II
-
ATS Category: SP2 / DP2
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARC3000H-FW2(868)
Alarm Hub
-
Supports up to 150 wireless peripherals: 6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras
-
Displays peripheral status: signal strength, battery level, temperature, program version
-
Network connection via wired, Wi-Fi, 4G, 3G, or GPRS
-
Dual SIM, single standby
-
Supports Automatic Network Replenishment (ANR)
-
Video linkage available through the mobile app
-
Frequency hopping and two-way communication ensure stable transmission
-
Supports cloud updates with automatic recovery from update failure
Â
Video Input
-
4-channel IPC
Input/Output
-
Wireless Zone
Supports up to 150 wireless peripherals:
6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR cameras -
Port
1 × RJ-45 10M/100M Ethernet port -
Network Mode
Ethernet, Wi-Fi, and cellular network
(Supports dual SIM cards, only one active at a time)
Power & Indicators
-
Storage Battery
Built-in lithium battery (12-hour standby) -
Indicator Light
1 multi-status LED (alarm, arming, disarming, networking, malfunction) -
Buttons
1 × Reset
1 × Power
1 × AP -
Buzzer
Built-in
Functionality
-
Tamper Alarm: Yes
-
SMS Notifications: Yes (up to 5 phone numbers)
-
Calling Alarm: Yes (up to 5 phone numbers)
-
Video Linkage: Supported
-
Network Protocols: TCP/IP, PPTP, L2TP, DHCP, UPNP, NTP
-
Remote Upgrade: Cloud update
-
Arm/Disarm Methods: App, keyfob, schedule
-
Parameter Retention During Power Failure: Yes
-
User Management: App user sharing supported
-
Cache: Max. 50 entries (ANR)
-
Low Battery Alarm: Yes
-
Search Functions: Push messages, device status, firmware version, signal strength
-
Event Logs: Up to 5,000 entries
Wireless
-
Carrier Frequency: 868.0 MHz – 868.6 MHz
-
Transmitter Power (EIRP): ≤25 mW
-
Communication Distance: Up to 2,000 m (6,561.68 ft) in open space
-
Communication Mechanism: Two-way
-
Encryption: AES128
-
Frequency Hopping: Supported
Wi-Fi
-
Standards: IEEE 802.11b/g/n
-
Frequency Range: 2400 – 2483.5 MHz
-
Transmit Power: ≤20 dBm @ 2400–2483.5 MHz
Cellular Network
-
Network Standards: GSM / WCDMA / LTE
-
Frequency Bands:
-
4G: FDD-LTE (B1/B3/B7/B8/B20), TDD-LTE (B38/B40/B41)
-
3G: WCDMA (B1/B5/B8)
-
2G: GSM 900 / 1800 MHz
-
-
Transmit Power (EIRP):
-
4G: 23 dBm ±2 dB
-
3G: 24 dBm (+1/–3 dB)
-
2G:
-
GSM900: 30 dBm ±3 dB
-
GSM1800: 33 dBm ±3 dB
-
-
General
-
Power Supply: 12 V DC, 1.5 A (optional EU/UK/US adapters)
-
Operating Temperature: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
-
Operating Humidity: 10% – 90% RH
-
Installation: Wall mount / Desktop
-
Casing Material: PC + ABS
-
Battery Life: 12-hour standby
Dimensions & Weight
-
Product Dimensions: 163.0 × 163.0 × 32.0 mm (6.42" × 6.42" × 1.26")
-
Packaging Dimensions: 219.0 × 187.0 × 91.0 mm (8.62" × 7.36" × 3.58")
-
Net Weight: 0.38 kg (0.84 lb)
-
Gross Weight: 0.8 kg (1.76 lb)
Certifications
-
CE Certified
-
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
-
EN 50131-3:2009
-
EN 50131-5-3:2017
-
EN 50131-6:2017
-
EN 50131-10:2014
-
EN 50136-2:2013
-
Security Grade: 2
-
Environmental Class: II
-
ATS Category: SP2 / DP2
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Small size apartment door station
- > Supplemental lighting with white light
- > 2MP CMOS camera
- > Mechanical button with Braille
- > Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- > Door release via password and Mifare card
| OUTDOOR STATION | |
|---|---|
| RESOLUTION | 2MP |
| TECHNOLOGY | IP |
| POWER SUPPLY | DC 12V, PoE |
| PROTECTION | IP65, IK08 |
| MOUNT | Surface & Flush |
| MATERIAL | Alumimum |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Small size apartment door station
- > Supplemental lighting with white light
- > 2MP CMOS camera
- > Mechanical button with Braille
- > Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- > Door release via password and Mifare card
| OUTDOOR STATION | |
|---|---|
| RESOLUTION | 2MP |
| TECHNOLOGY | IP |
| POWER SUPPLY | DC 12V, PoE |
| PROTECTION | IP65, IK08 |
| MOUNT | Surface & Flush |
| MATERIAL | Alumimum |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 145mm x 134mm x 88mm
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | 145mm x 134mm x 88mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 145mm x 134mm x 88mm
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | 145mm x 134mm x 88mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 145mm x 134mm x 88mm
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | 145mm x 134mm x 88mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 145mm x 134mm x 88mm
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | 145mm x 134mm x 88mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 147mm x 410.4mm x 70mm(The highest point is 121mm)
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | Size: 147mm x 410.4mm x 70mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > Material: Metal
- > Size: 147mm x 410.4mm x 70mm(The highest point is 121mm)
- > Weight: 1 Kg
- > Surface mounted box
| CAMERA BRACKETS | |
|---|---|
| TYPE | Surface Mount |
| MATERIAL | Metal |
| COLOUR | Silver |
| DIMENSION | Size: 147mm x 410.4mm x 70mm |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

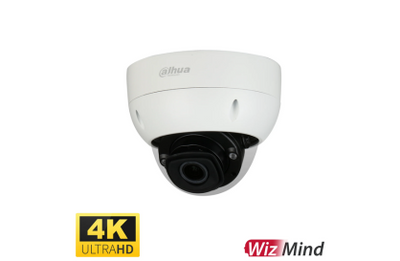

- > 8MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
- > Max outputs 8MP (3840x2160) @ 25 fps/30 fps
- > H.264&H.265 coding, high compression ration
- > Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
- > ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
- > Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
- > 24V AC/12V DC/PoE power supply
- > Three streams for two-channel HD video
- > IP67, IK10 protection grade
- > 12V DC power output, max. current 165mA , easy for installation
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 8MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
- > Max outputs 8MP (3840x2160) @ 25 fps/30 fps
- > H.264&H.265 coding, high compression ration
- > Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
- > ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
- > Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
- > 24V AC/12V DC/PoE power supply
- > Three streams for two-channel HD video
- > IP67, IK10 protection grade
- > 12V DC power output, max. current 165mA , easy for installation
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 8MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
- > Max outputs 8MP (3840x2160) @ 25 fps/30 fps
- > H.264&H.265 coding, high compression ration
- > Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
- > ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
- > Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
- > 24V AC/12V DC/PoE power supply
- > Three streams for two-channel HD video
- > IP67, IK10 protection grade
- > 12V DC power output, max. current 165mA , easy for installation
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 8MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
- > Max outputs 8MP (3840x2160) @ 25 fps/30 fps
- > H.264&H.265 coding, high compression ration
- > Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
- > ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
- > Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
- > 24V AC/12V DC/PoE power supply
- > Three streams for two-channel HD video
- > IP67, IK10 protection grade
- > 12V DC power output, max. current 165mA , easy for installation
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
- > Outputs max. 5MP (2592 x 1944)@20 fps , and supports 4MP (2688 x 1520)@25/30 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 50 m.
- > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Supports max. 256 G Micro SD card, built in MIC.
- > 12 VDC/PoE power supply, easy for installation.
- > ePoE; IP67 protection.
- > SMD 3.0
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â

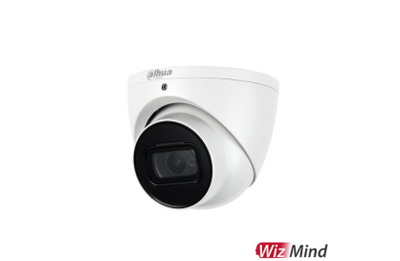

- Datasheet of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Installtion Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Dimension of DH-IPC-HDW5541TMP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
- > Outputs max. 5MP (2592 x 1944)@20 fps , and supports 4MP (2688 x 1520)@25/30 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 50 m.
- > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Supports max. 256 G Micro SD card, built in MIC.
- > 12 VDC/PoE power supply, easy for installation.
- > ePoE; IP67 protection.
- > SMD 3.0
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Installtion Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Dimension of DH-IPC-HDW5541TMP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
- > Outputs max. 5MP (2592 x 1944)@20 fps , and supports 4MP (2688 x 1520)@25/30 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 50 m.
- > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Supports max. 256 G Micro SD card, built in MIC.
- > 12 VDC/PoE power supply, easy for installation.
- > ePoE; IP67 protection.
- > SMD 3.0
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Installtion Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Dimension of DH-IPC-HDW5541TMP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
- > Outputs max. 5MP (2592 x 1944)@20 fps , and supports 4MP (2688 x 1520)@25/30 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 50 m.
- > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Supports max. 256 G Micro SD card, built in MIC.
- > 12 VDC/PoE power supply, easy for installation.
- > ePoE; IP67 protection.
- > SMD 3.0
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Installtion Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDW5541TMP-ASE-0280BPDF
- Dimension of DH-IPC-HDW5541TMP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.7 mm-13.5 mm motorized lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 40 m
- > Micro SD memory
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Vari-focal |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.7 mm-13.5 mm motorized lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 40 m
- > Micro SD memory
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Vari-focal |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.7 mm-13.5 mm motorized lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 40 m
- > Micro SD memory
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Vari-focal |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.7 mm-13.5 mm motorized lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 40 m
- > Micro SD memory
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Vari-focal |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.7 mm-13.5 mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 40 m
> Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â

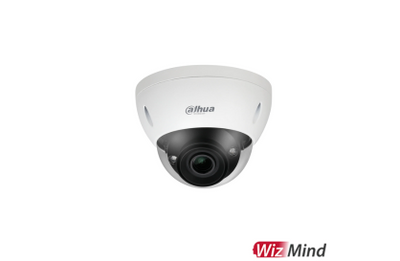

- Datasheet of DH-IPC-HDBW5541EP-ZEPDF
- Quick Start Guide of DH-IPC-HDBW5541EP-ZEPDF
- Installation Guide of DH-IPC-HDBW5541EP-ZEPDF
- Dimension of DH-IPC-HDBW5541EP-ZE
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.7 mm-13.5 mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 40 m
> Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541EP-ZEPDF
- Quick Start Guide of DH-IPC-HDBW5541EP-ZEPDF
- Installation Guide of DH-IPC-HDBW5541EP-ZEPDF
- Dimension of DH-IPC-HDBW5541EP-ZE
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.7 mm-13.5 mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 40 m
> Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541EP-ZEPDF
- Quick Start Guide of DH-IPC-HDBW5541EP-ZEPDF
- Installation Guide of DH-IPC-HDBW5541EP-ZEPDF
- Dimension of DH-IPC-HDBW5541EP-ZE
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.7 mm-13.5 mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 40 m
> Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541EP-ZEPDF
- Quick Start Guide of DH-IPC-HDBW5541EP-ZEPDF
- Installation Guide of DH-IPC-HDBW5541EP-ZEPDF
- Dimension of DH-IPC-HDBW5541EP-ZE
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.8 mm fixed lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 50 m
- > Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Installation Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Dimension of DH-IPC-HDBW5541RP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.8 mm fixed lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 50 m
- > Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Installation Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Dimension of DH-IPC-HDBW5541RP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.8 mm fixed lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 50 m
- > Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Installation Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Dimension of DH-IPC-HDBW5541RP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.7'' 5Megapixel progressive scan CMOS
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- > 20 fps@2592x1944, 50/60 fps@1080P (1920x1080)
- > WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- > Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- > 2.8 mm fixed lens
- > 1/1 Alarm in/out, 1/1 audio in/out
- > Max. IR LEDs Length 50 m
- > Micro SD memory, IP67, IK10
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZMIND SERIES |
| POE | ePOE |
Â
- Datasheet of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Quick Start Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Installation Guide of DH-IPC-HDBW5541RP-ASE-0280BPDF
- Dimension of DH-IPC-HDBW5541RP-ASE-0280B
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
