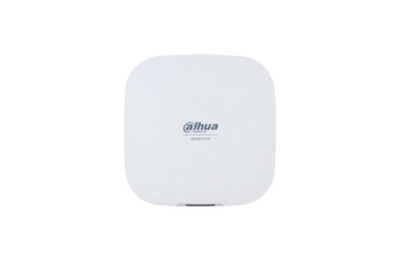

ARA43-W2
Alarm Repeater
- Connects up to 32 peripherals for expanded coverage.
- Two-way RF communication ensures reliable signal transmission.
- LED indicator displays device status.
- Supports manual and auto pairing, extending RF distance for your security system.
- Auto-switching dual antennas reduce blind spots.
- Cloud update with auto recovery in case of update failure.
- Built-in battery backup keeps the device running for over 35 hours during power failures.
Â
Specifications
Input/Output
- Wireless Zone: Supports up to 32 wireless peripherals
Port
- Storage Battery: Built-in lithium battery
- Indicator Light: 1 LED for pairing and working status
- Power Switch: 1 × power switch
Function
- Pairing Mode: Auto / Manual
- Tamper Alarm: Yes
- Remote Update: Cloud update
- Power Failure Protection: Retains configured parameters
- External Power Disconnection Detection: Yes
- Low Battery Alarm: Yes
- Signal Strength Detection: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Transmitter Power (EIRP): Limit 10 mW
- Communication Distance: Up to 1000 m (3280.84 ft) in open space
- Communication Mechanism: Two-way
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC, 1.5 A
- Battery Life: Standby time: 35 hours
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26")
- Packaging Dimensions: 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58")
- Installation: Wall mount / Desktop
- Net Weight: 0.32 kg (0.71 lb)
- Gross Weight: 0.74 kg (1.63 lb)
- Certifications: CE
- Casing Material: PC + ABS
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARA43-W2
Alarm Repeater
- Connects up to 32 peripherals for expanded coverage.
- Two-way RF communication ensures reliable signal transmission.
- LED indicator displays device status.
- Supports manual and auto pairing, extending RF distance for your security system.
- Auto-switching dual antennas reduce blind spots.
- Cloud update with auto recovery in case of update failure.
- Built-in battery backup keeps the device running for over 35 hours during power failures.
Â
Specifications
Input/Output
- Wireless Zone: Supports up to 32 wireless peripherals
Port
- Storage Battery: Built-in lithium battery
- Indicator Light: 1 LED for pairing and working status
- Power Switch: 1 × power switch
Function
- Pairing Mode: Auto / Manual
- Tamper Alarm: Yes
- Remote Update: Cloud update
- Power Failure Protection: Retains configured parameters
- External Power Disconnection Detection: Yes
- Low Battery Alarm: Yes
- Signal Strength Detection: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Transmitter Power (EIRP): Limit 10 mW
- Communication Distance: Up to 1000 m (3280.84 ft) in open space
- Communication Mechanism: Two-way
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC, 1.5 A
- Battery Life: Standby time: 35 hours
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26")
- Packaging Dimensions: 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58")
- Installation: Wall mount / Desktop
- Net Weight: 0.32 kg (0.71 lb)
- Gross Weight: 0.74 kg (1.63 lb)
- Certifications: CE
- Casing Material: PC + ABS
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

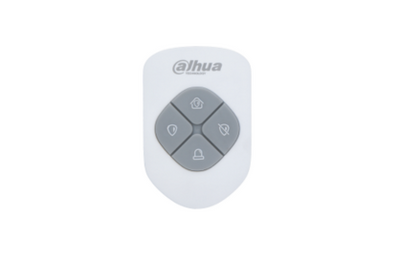

Wireless keyfob
- SOS emergency alarm.Â
- Frequency hopping function and two-way communication technology ensure communication stability.Â
- Cloud update and automatic recovery from update failure.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Wireless keyfob
- SOS emergency alarm.Â
- Frequency hopping function and two-way communication technology ensure communication stability.Â
- Cloud update and automatic recovery from update failure.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Wireless keyfob
- SOS emergency alarm.Â
- Frequency hopping function and two-way communication technology ensure communication stability.Â
- Cloud update and automatic recovery from update failure.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Wireless keyfob
- SOS emergency alarm.Â
- Frequency hopping function and two-way communication technology ensure communication stability.Â
- Cloud update and automatic recovery from update failure.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARA14-W2
Wireless Intercom Siren
- Two-way talk via RF transmission.
- High-decibel alarm sound for effective alerts.
- Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
- Configurable arming/disarming prompt sound and LED indicator.
- Supports panic button for emergency situations.
- Voice talk support through the app and SIP.
Specifications
Port
- Microphone: Yes
Video & Audio
- Two-way Audio: Yes
Function
- Button: 1 × panic button, 1 × power button
- Buzzer: Yes
- Remote Update: Cloud update
- Low Battery Detection: Yes
- Tamper: Yes
Technical
- LED Indicator: Red, blue, and green indicators
- Scenario: Indoor
-
Operating Current:
- Battery (3V): 1.5 A (Max), 20 µA (Standby)
- DC (12V): 0.4 A (Max), 1.5 mA (Standby)
- Sound and Light Alarm: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Communication Mechanism: Two-way
-
Communication Distance:
- Alarm transmission: 1200 m
- Intercom: 800 m
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC / 4 × CR123A battery
- Battery Model: CR123A
- Standby Time: 3 years (triggered once every 2 weeks, alarms for 120 sec)
- Power Consumption: 4.5 W (Max), 0.4 mW (Standby)
- Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × 1.40")
- Net Weight: 377 g (0.83 lb)
- Gross Weight: 507 g (1.12 lb)
- Installation: Wall mount
- Casing Material: PC + ABS
- Appearance Color: White
- Certifications: CE
- Anti-corrosion Level: Basic Protection
- Storage Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Storage Humidity: 10%–90% RH
- Packaging Dimensions: 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71")
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARA14-W2
Wireless Intercom Siren
- Two-way talk via RF transmission.
- High-decibel alarm sound for effective alerts.
- Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
- Configurable arming/disarming prompt sound and LED indicator.
- Supports panic button for emergency situations.
- Voice talk support through the app and SIP.
Specifications
Port
- Microphone: Yes
Video & Audio
- Two-way Audio: Yes
Function
- Button: 1 × panic button, 1 × power button
- Buzzer: Yes
- Remote Update: Cloud update
- Low Battery Detection: Yes
- Tamper: Yes
Technical
- LED Indicator: Red, blue, and green indicators
- Scenario: Indoor
-
Operating Current:
- Battery (3V): 1.5 A (Max), 20 µA (Standby)
- DC (12V): 0.4 A (Max), 1.5 mA (Standby)
- Sound and Light Alarm: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Communication Mechanism: Two-way
-
Communication Distance:
- Alarm transmission: 1200 m
- Intercom: 800 m
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC / 4 × CR123A battery
- Battery Model: CR123A
- Standby Time: 3 years (triggered once every 2 weeks, alarms for 120 sec)
- Power Consumption: 4.5 W (Max), 0.4 mW (Standby)
- Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × 1.40")
- Net Weight: 377 g (0.83 lb)
- Gross Weight: 507 g (1.12 lb)
- Installation: Wall mount
- Casing Material: PC + ABS
- Appearance Color: White
- Certifications: CE
- Anti-corrosion Level: Basic Protection
- Storage Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Storage Humidity: 10%–90% RH
- Packaging Dimensions: 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71")
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARA14-W2
Wireless Intercom Siren
- Two-way talk via RF transmission.
- High-decibel alarm sound for effective alerts.
- Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
- Configurable arming/disarming prompt sound and LED indicator.
- Supports panic button for emergency situations.
- Voice talk support through the app and SIP.
Specifications
Port
- Microphone: Yes
Video & Audio
- Two-way Audio: Yes
Function
- Button: 1 × panic button, 1 × power button
- Buzzer: Yes
- Remote Update: Cloud update
- Low Battery Detection: Yes
- Tamper: Yes
Technical
- LED Indicator: Red, blue, and green indicators
- Scenario: Indoor
-
Operating Current:
- Battery (3V): 1.5 A (Max), 20 µA (Standby)
- DC (12V): 0.4 A (Max), 1.5 mA (Standby)
- Sound and Light Alarm: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Communication Mechanism: Two-way
-
Communication Distance:
- Alarm transmission: 1200 m
- Intercom: 800 m
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC / 4 × CR123A battery
- Battery Model: CR123A
- Standby Time: 3 years (triggered once every 2 weeks, alarms for 120 sec)
- Power Consumption: 4.5 W (Max), 0.4 mW (Standby)
- Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × 1.40")
- Net Weight: 377 g (0.83 lb)
- Gross Weight: 507 g (1.12 lb)
- Installation: Wall mount
- Casing Material: PC + ABS
- Appearance Color: White
- Certifications: CE
- Anti-corrosion Level: Basic Protection
- Storage Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Storage Humidity: 10%–90% RH
- Packaging Dimensions: 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71")
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
ARA14-W2
Wireless Intercom Siren
- Two-way talk via RF transmission.
- High-decibel alarm sound for effective alerts.
- Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
- Configurable arming/disarming prompt sound and LED indicator.
- Supports panic button for emergency situations.
- Voice talk support through the app and SIP.
Specifications
Port
- Microphone: Yes
Video & Audio
- Two-way Audio: Yes
Function
- Button: 1 × panic button, 1 × power button
- Buzzer: Yes
- Remote Update: Cloud update
- Low Battery Detection: Yes
- Tamper: Yes
Technical
- LED Indicator: Red, blue, and green indicators
- Scenario: Indoor
-
Operating Current:
- Battery (3V): 1.5 A (Max), 20 µA (Standby)
- DC (12V): 0.4 A (Max), 1.5 mA (Standby)
- Sound and Light Alarm: Yes
Wireless
- Carrier Frequency: 433.1 MHz–434.6 MHz
- Communication Mechanism: Two-way
-
Communication Distance:
- Alarm transmission: 1200 m
- Intercom: 800 m
- Encryption Mode: AES128
- Frequency Hopping: Yes
General
- Power Supply: 12 VDC / 4 × CR123A battery
- Battery Model: CR123A
- Standby Time: 3 years (triggered once every 2 weeks, alarms for 120 sec)
- Power Consumption: 4.5 W (Max), 0.4 mW (Standby)
- Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity: 10%–90% RH
- Product Dimensions: 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × 1.40")
- Net Weight: 377 g (0.83 lb)
- Gross Weight: 507 g (1.12 lb)
- Installation: Wall mount
- Casing Material: PC + ABS
- Appearance Color: White
- Certifications: CE
- Anti-corrosion Level: Basic Protection
- Storage Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Storage Humidity: 10%–90% RH
- Packaging Dimensions: 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71")
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- Horizontal angle 15 and supports combination (2 brackets maximum)
| CAMERA BRACKETS | |
|---|---|
| TYPE | Horizontally inclined bracket |
| MATERIAL | PC + ABS |
| COLOUR | Black |
| DIMENSION | 49.63mm x 136.35mm x 16.57 mm (1.95'' x 5.37'' x 0.65'') |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- Horizontal angle 15 and supports combination (2 brackets maximum)
| CAMERA BRACKETS | |
|---|---|
| TYPE | Horizontally inclined bracket |
| MATERIAL | PC + ABS |
| COLOUR | Black |
| DIMENSION | 49.63mm x 136.35mm x 16.57 mm (1.95'' x 5.37'' x 0.65'') |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- Horizontal angle 15 and supports combination (2 brackets maximum)
| CAMERA BRACKETS | |
|---|---|
| TYPE | Horizontally inclined bracket |
| MATERIAL | PC + ABS |
| COLOUR | Black |
| DIMENSION | 49.63mm x 136.35mm x 16.57 mm (1.95'' x 5.37'' x 0.65'') |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- Horizontal angle 15 and supports combination (2 brackets maximum)
| CAMERA BRACKETS | |
|---|---|
| TYPE | Horizontally inclined bracket |
| MATERIAL | PC + ABS |
| COLOUR | Black |
| DIMENSION | 49.63mm x 136.35mm x 16.57 mm (1.95'' x 5.37'' x 0.65'') |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

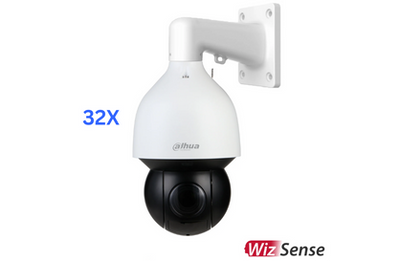

- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > Powerful 32x optical zoom
- > Max. 25/30 fps@4M
- > IR distance up to 150 m
- > Auto Tracking 3.0
- > Face Detection
- > SMD 4.0
- > Quick Pick
- > PoE+
- > IP67, IK10
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorised |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > Powerful 32x optical zoom
- > Max. 25/30 fps@4M
- > IR distance up to 150 m
- > Auto Tracking 3.0
- > Face Detection
- > SMD 4.0
- > Quick Pick
- > PoE+
- > IP67, IK10
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorised |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > Powerful 32x optical zoom
- > Max. 25/30 fps@4M
- > IR distance up to 150 m
- > Auto Tracking 3.0
- > Face Detection
- > SMD 4.0
- > Quick Pick
- > PoE+
- > IP67, IK10
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorised |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > Powerful 32x optical zoom
- > Max. 25/30 fps@4M
- > IR distance up to 150 m
- > Auto Tracking 3.0
- > Face Detection
- > SMD 4.0
- > Quick Pick
- > PoE+
- > IP67, IK10
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorised |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

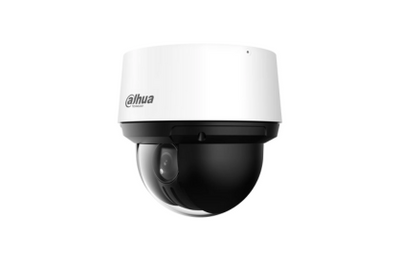

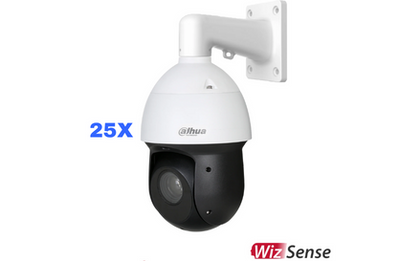

- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > 25x optical zoom
- > Starlight technology
- > Max. 25/30fps@4MP
- > IR distance up to 100m
- > Auto-tracking
- > Perimeter protection
- > Face detection
- > SMD 3.0
- > IP66
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > 25x optical zoom
- > Starlight technology
- > Max. 25/30fps@4MP
- > IR distance up to 100m
- > Auto-tracking
- > Perimeter protection
- > Face detection
- > SMD 3.0
- > IP66
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > 25x optical zoom
- > Starlight technology
- > Max. 25/30fps@4MP
- > IR distance up to 100m
- > Auto-tracking
- > Perimeter protection
- > Face detection
- > SMD 3.0
- > IP66
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' 4 Megapixel STARVIS CMOS
- > 25x optical zoom
- > Starlight technology
- > Max. 25/30fps@4MP
- > IR distance up to 100m
- > Auto-tracking
- > Perimeter protection
- > Face detection
- > SMD 3.0
- > IP66
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' STARVIS CMOS.
- > 25x optical zoom.
- > Starlight technology.
- > Max. 25/30fps@4M.
- > IR distance up to 100 m.
- > Perimeter protection.
- > Face detection.
- > Quick Pick.
- > SMD 4.0.
- > IP66.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 2MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' STARVIS CMOS.
- > 25x optical zoom.
- > Starlight technology.
- > Max. 25/30fps@4M.
- > IR distance up to 100 m.
- > Perimeter protection.
- > Face detection.
- > Quick Pick.
- > SMD 4.0.
- > IP66.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 2MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' STARVIS CMOS.
- > 25x optical zoom.
- > Starlight technology.
- > Max. 25/30fps@4M.
- > IR distance up to 100 m.
- > Perimeter protection.
- > Face detection.
- > Quick Pick.
- > SMD 4.0.
- > IP66.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 2MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 1/2.8'' STARVIS CMOS.
- > 25x optical zoom.
- > Starlight technology.
- > Max. 25/30fps@4M.
- > IR distance up to 100 m.
- > Perimeter protection.
- > Face detection.
- > Quick Pick.
- > SMD 4.0.
- > IP66.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 2MP |
| CAMERA STYLE | PTZ |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PTZ SERIES |
| POE | POE+ |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

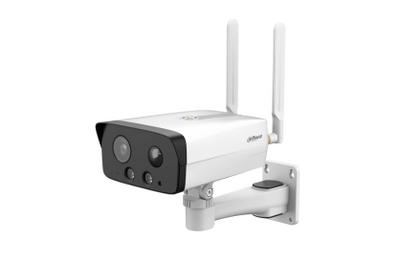

- > 4-MP 1/3'' CMOS image sensor, low luminance, and high definition image
- > Outputs max. 4 MP (2688 x 1520) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > Built-in warm light/IR LED
- > Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- > Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- > Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
- > Built-in 8 GB eMMC memory chip that protects key records from being lost
- > Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
- > IP67 protection
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Bullet |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | SPECIAL SERIES |
| POE | 12V DC |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 4-MP 1/3'' CMOS image sensor, low luminance, and high definition image
- > Outputs max. 4 MP (2688 x 1520) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > Built-in warm light/IR LED
- > Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- > Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- > Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
- > Built-in 8 GB eMMC memory chip that protects key records from being lost
- > Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
- > IP67 protection
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Bullet |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | SPECIAL SERIES |
| POE | 12V DC |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 4-MP 1/3'' CMOS image sensor, low luminance, and high definition image
- > Outputs max. 4 MP (2688 x 1520) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > Built-in warm light/IR LED
- > Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- > Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- > Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
- > Built-in 8 GB eMMC memory chip that protects key records from being lost
- > Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
- > IP67 protection
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Bullet |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | SPECIAL SERIES |
| POE | 12V DC |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 4-MP 1/3'' CMOS image sensor, low luminance, and high definition image
- > Outputs max. 4 MP (2688 x 1520) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > Built-in warm light/IR LED
- > Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- > Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- > Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
- > Built-in 8 GB eMMC memory chip that protects key records from being lost
- > Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
- > IP67 protection
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Bullet |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | SPECIAL SERIES |
| POE | 12V DC |
Â
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

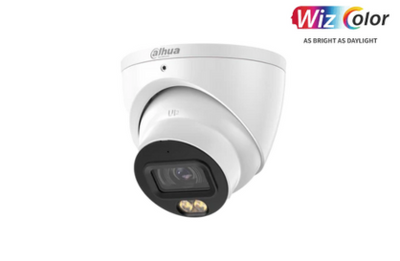

Product Specifications
- Image Sensor: 1/1.8'' CMOS, optimized for low luminance and high-definition output
-
Resolution & Frame Rate:
- Maximum: 5 MP (2960 × 1668) @ 20 fps
- Additional: 2688 × 1520 @ 25/30 fps
- Video Compression: H.265 codec, ensuring high compression and ultra-low bit rate
Features
-
Illumination:
- Built-in warm light with a maximum range of 30 m
-
Flexible Encoding Options:
- ROI, SMART H.264+/H.265+ for adaptive coding suitable for different bandwidth and storage environments
-
Image Enhancement:
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for enhanced monitoring across diverse scenes
Intelligent Monitoring & Detection
-
Smart Analytics:
- Intrusion and tripwire detection with accurate vehicle and human classification
-
Abnormality Detection:
- Motion detection, video tampering, audio detection
- Status alerts: No SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access, and voltage issues
Storage & Audio
- Storage: Supports Micro SD card up to 256 GB
- Audio: Built-in microphone
Power & Protection
- Power Supply: 12 VDC / PoE for easy installation
- Protection: IP67-rated for robust environmental resistance
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZCOLOR SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Product Specifications
- Image Sensor: 1/1.8'' CMOS, optimized for low luminance and high-definition output
-
Resolution & Frame Rate:
- Maximum: 5 MP (2960 × 1668) @ 20 fps
- Additional: 2688 × 1520 @ 25/30 fps
- Video Compression: H.265 codec, ensuring high compression and ultra-low bit rate
Features
-
Illumination:
- Built-in warm light with a maximum range of 30 m
-
Flexible Encoding Options:
- ROI, SMART H.264+/H.265+ for adaptive coding suitable for different bandwidth and storage environments
-
Image Enhancement:
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for enhanced monitoring across diverse scenes
Intelligent Monitoring & Detection
-
Smart Analytics:
- Intrusion and tripwire detection with accurate vehicle and human classification
-
Abnormality Detection:
- Motion detection, video tampering, audio detection
- Status alerts: No SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access, and voltage issues
Storage & Audio
- Storage: Supports Micro SD card up to 256 GB
- Audio: Built-in microphone
Power & Protection
- Power Supply: 12 VDC / PoE for easy installation
- Protection: IP67-rated for robust environmental resistance
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZCOLOR SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Product Specifications
- Image Sensor: 1/1.8'' CMOS, optimized for low luminance and high-definition output
-
Resolution & Frame Rate:
- Maximum: 5 MP (2960 × 1668) @ 20 fps
- Additional: 2688 × 1520 @ 25/30 fps
- Video Compression: H.265 codec, ensuring high compression and ultra-low bit rate
Features
-
Illumination:
- Built-in warm light with a maximum range of 30 m
-
Flexible Encoding Options:
- ROI, SMART H.264+/H.265+ for adaptive coding suitable for different bandwidth and storage environments
-
Image Enhancement:
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for enhanced monitoring across diverse scenes
Intelligent Monitoring & Detection
-
Smart Analytics:
- Intrusion and tripwire detection with accurate vehicle and human classification
-
Abnormality Detection:
- Motion detection, video tampering, audio detection
- Status alerts: No SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access, and voltage issues
Storage & Audio
- Storage: Supports Micro SD card up to 256 GB
- Audio: Built-in microphone
Power & Protection
- Power Supply: 12 VDC / PoE for easy installation
- Protection: IP67-rated for robust environmental resistance
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZCOLOR SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
Product Specifications
- Image Sensor: 1/1.8'' CMOS, optimized for low luminance and high-definition output
-
Resolution & Frame Rate:
- Maximum: 5 MP (2960 × 1668) @ 20 fps
- Additional: 2688 × 1520 @ 25/30 fps
- Video Compression: H.265 codec, ensuring high compression and ultra-low bit rate
Features
-
Illumination:
- Built-in warm light with a maximum range of 30 m
-
Flexible Encoding Options:
- ROI, SMART H.264+/H.265+ for adaptive coding suitable for different bandwidth and storage environments
-
Image Enhancement:
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for enhanced monitoring across diverse scenes
Intelligent Monitoring & Detection
-
Smart Analytics:
- Intrusion and tripwire detection with accurate vehicle and human classification
-
Abnormality Detection:
- Motion detection, video tampering, audio detection
- Status alerts: No SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access, and voltage issues
Storage & Audio
- Storage: Supports Micro SD card up to 256 GB
- Audio: Built-in microphone
Power & Protection
- Power Supply: 12 VDC / PoE for easy installation
- Protection: IP67-rated for robust environmental resistance
Â
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZCOLOR SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

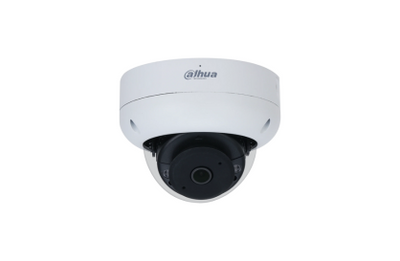

- > 4MP 1/2.7'' CMOS starlight-grade image sensor, low luminance, and high definition image.
- > Outputs 4 MP (2688 x 1520) @25/30 fps, and supports max. 5 MP (2880 x 1620) @20 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 15 m.
- > ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
- > 12 VDC/PoE power supply.
- > IP67, IK10 protection.
- > EPTZ: Enlarge and track the targets of intelligent alarms.
- > SMD 3.0.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
- DH-IPC-HDBW3466R-AS-P_datasheet_20220428PDF
- Dahua Dome Network Camera Installation Guide_V1.0.0PDF
- Dahua Dome Network Camera_Quick Start Guide_V1.0.0PDF
- Dahua Network Camera Web 5.0_Operation Manual_V1.0.4PDF
- Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 4MP 1/2.7'' CMOS starlight-grade image sensor, low luminance, and high definition image.
- > Outputs 4 MP (2688 x 1520) @25/30 fps, and supports max. 5 MP (2880 x 1620) @20 fps.
- > H.265 codec, high compression rate, ultra-low bit rate.
- > Built-in IR LED, and the max. illumination distance is 15 m.
- > ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
- > 12 VDC/PoE power supply.
- > IP67, IK10 protection.
- > EPTZ: Enlarge and track the targets of intelligent alarms.
- > SMD 3.0.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 4MP |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
- DH-IPC-HDBW3466R-AS-P_datasheet_20220428PDF
- Dahua Dome Network Camera Installation Guide_V1.0.0PDF
- Dahua Dome Network Camera_Quick Start Guide_V1.0.0PDF
- Dahua Network Camera Web 5.0_Operation Manual_V1.0.4PDF
- Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

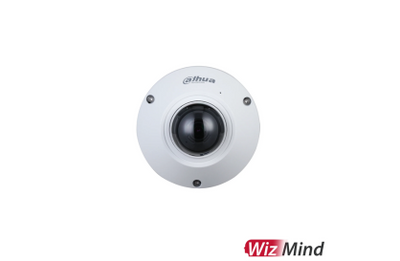

- > 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
- > Outputs max. 5MP (2592x1944) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- > Intelligent detection: Intrusion, tripwire, people counting in area
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- > 12V DC/PoE power supply, easy for installation
- > IP67, IK10 protection
- > Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Fisheye |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | PANORAMIC SERIES |
| POE | POE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
- > Outputs max. 5MP (2592x1944) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- > Intelligent detection: Intrusion, tripwire, people counting in area
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- > 12V DC/PoE power supply, easy for installation
- > IP67, IK10 protection
- > Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Fisheye |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | PANORAMIC SERIES |
| POE | POE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
- > Outputs max. 5MP (2592x1944) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- > Intelligent detection: Intrusion, tripwire, people counting in area
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- > 12V DC/PoE power supply, easy for installation
- > IP67, IK10 protection
- > Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Fisheye |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | PANORAMIC SERIES |
| POE | POE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- > 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
- > Outputs max. 5MP (2592x1944) @25/30 fps
- > H.265 codec, high compression rate, ultra-low bit rate
- > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- > 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- > Intelligent detection: Intrusion, tripwire, people counting in area
- > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- > 12V DC/PoE power supply, easy for installation
- > IP67, IK10 protection
- > Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MP |
| CAMERA STYLE | Fisheye |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | PANORAMIC SERIES |
| POE | POE |
Â
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
