Bullet Cameras
Outdoor bullet CCTV cameras for long-range surveillance.
Translation missing: en.products.product.regular_price
$22.00

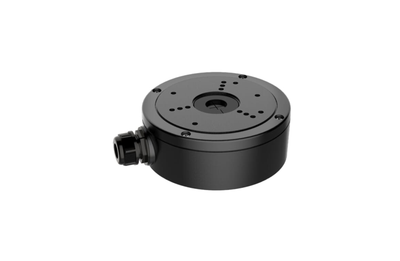

Junction box
- Junction Box
- Aluminum Alloy
- Hikvision Black
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision Black
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Junction box
- Junction Box
- Aluminum Alloy
- Hikvision Black
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision Black
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$24.29
Junction box
- Junction Box
- Aluminum Alloy
- Hikvision Black
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision Black
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Junction box
- Junction Box
- Aluminum Alloy
- Hikvision Black
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision Black
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$22.00

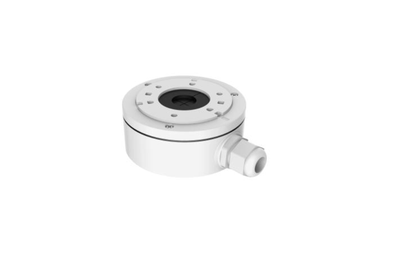

Junction box
- Junction Box
- Aluminum Alloy
- Hikvision White
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision White
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Junction box
- Junction Box
- Aluminum Alloy
- Hikvision White
- Dataheet
Parameters
-
Description: Junction Box for Dome (Bullet) Camera
-
Appearance: Hikvision White
-
Material: Aluminum Alloy
-
Dimension: 100 × 43.5 × 132.1 mm (3.94'' × 1.71'' × 5.20'')
-
Weight: Approx. 320 g (0.66 lb.)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$1,797.15

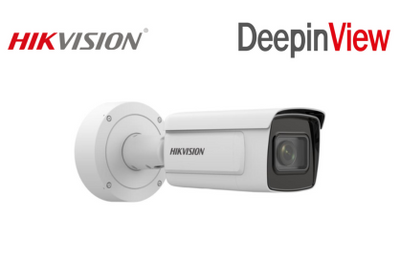

4k DeepinView Moto Varifocal Bullet Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
-
Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
-
Min. Illumination:
- Color: 0.002 Lux @ (F1.2, AGC ON)
- B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
-
Day & Night:
- IR cut filter
- Blue glass module to reduce ghost phenomenon
Lens
-
Aperture:
- 2.8 to 12 mm: F1.2 to F2.5
- 8 to 32 mm: F1.7 to F1.73
- Iris Type: P-iris
-
Focal Length & Field of View (FOV):
- 2.8 to 12 mm:
- Horizontal FOV: 112.3° to 41.2°
- Vertical FOV: 58° to 23.1°
- Diagonal FOV: 137.3° to 47.3°
- 8 to 32 mm:
- Horizontal FOV: 41.8° to 14.9°
- Vertical FOV: 22.92° to 8.48°
- Diagonal FOV: 48.7° to 17°
- 2.8 to 12 mm:
- Focus Modes: Auto, Semi-auto, Manual
DORI (Detect, Observe, Recognize, Identify)
-
Wide (2.8 to 12 mm):
- D: 87 m
- O: 34.5 m
- R: 17.4 m
- I: 8.7 m
-
Tele (8 to 32 mm):
- D: 218 m
- O: 86.5 m
- R: 43.6 m
- I: 21.8 m
Illuminator
- Type: IR
-
Range:
- 2.8 to 12 mm: 50 m
- 8 to 32 mm: 100 m
- Smart Supplement Light: Yes
- Wavelength: 850 nm
AI Open Platform
-
Model Specification:
- Supports up to 4 models
- Model types: detection, classification, mixed
Video
-
Main Stream Resolutions:
- 50 Hz: 25 fps
- 60 Hz: 30 fps
- Sub-Streams & Frame Rates: Multiple resolutions supported
- Compression: H.265+/H.265/H.264+/H.264/MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Encoding Features: ROI, SVC
Audio
- Bit Rate: 64 Kbps to 320 Kbps
- Compression: G.711, G.722.1, G.726, MP3, AAC-LC
- Sampling Rates: 8 kHz to 48 kHz
- Type: Mono
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, RTSP, etc.
- Simultaneous Live Views: Up to 20 channels
- API Support: ONVIF (Profiles S, G, T, M), SDK
Security
- Password protection, encryption (HTTPS, TLS 1.3), IP filtering, and more.
Interface
- Ethernet: 1 RJ45 10/100/1000 Mbps
- Audio: Line in/out
- Alarm: 2 inputs, 2 outputs
- On-Board Storage: Up to 1 TB (microSD)
- Video Output: Composite (for debugging)
General
-
Power:
- 12 VDC, PoE (IEEE 802.3at)
- Material: Aluminum alloy
- Dimensions: Ø144 mm × 347 mm (Without -Y)
- Weight: Approx. 1.95 kg (4.2 lb)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4k DeepinView Moto Varifocal Bullet Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
-
Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
-
Min. Illumination:
- Color: 0.002 Lux @ (F1.2, AGC ON)
- B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
-
Day & Night:
- IR cut filter
- Blue glass module to reduce ghost phenomenon
Lens
-
Aperture:
- 2.8 to 12 mm: F1.2 to F2.5
- 8 to 32 mm: F1.7 to F1.73
- Iris Type: P-iris
-
Focal Length & Field of View (FOV):
- 2.8 to 12 mm:
- Horizontal FOV: 112.3° to 41.2°
- Vertical FOV: 58° to 23.1°
- Diagonal FOV: 137.3° to 47.3°
- 8 to 32 mm:
- Horizontal FOV: 41.8° to 14.9°
- Vertical FOV: 22.92° to 8.48°
- Diagonal FOV: 48.7° to 17°
- 2.8 to 12 mm:
- Focus Modes: Auto, Semi-auto, Manual
DORI (Detect, Observe, Recognize, Identify)
-
Wide (2.8 to 12 mm):
- D: 87 m
- O: 34.5 m
- R: 17.4 m
- I: 8.7 m
-
Tele (8 to 32 mm):
- D: 218 m
- O: 86.5 m
- R: 43.6 m
- I: 21.8 m
Illuminator
- Type: IR
-
Range:
- 2.8 to 12 mm: 50 m
- 8 to 32 mm: 100 m
- Smart Supplement Light: Yes
- Wavelength: 850 nm
AI Open Platform
-
Model Specification:
- Supports up to 4 models
- Model types: detection, classification, mixed
Video
-
Main Stream Resolutions:
- 50 Hz: 25 fps
- 60 Hz: 30 fps
- Sub-Streams & Frame Rates: Multiple resolutions supported
- Compression: H.265+/H.265/H.264+/H.264/MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Encoding Features: ROI, SVC
Audio
- Bit Rate: 64 Kbps to 320 Kbps
- Compression: G.711, G.722.1, G.726, MP3, AAC-LC
- Sampling Rates: 8 kHz to 48 kHz
- Type: Mono
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, RTSP, etc.
- Simultaneous Live Views: Up to 20 channels
- API Support: ONVIF (Profiles S, G, T, M), SDK
Security
- Password protection, encryption (HTTPS, TLS 1.3), IP filtering, and more.
Interface
- Ethernet: 1 RJ45 10/100/1000 Mbps
- Audio: Line in/out
- Alarm: 2 inputs, 2 outputs
- On-Board Storage: Up to 1 TB (microSD)
- Video Output: Composite (for debugging)
General
-
Power:
- 12 VDC, PoE (IEEE 802.3at)
- Material: Aluminum alloy
- Dimensions: Ø144 mm × 347 mm (Without -Y)
- Weight: Approx. 1.95 kg (4.2 lb)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$25.00

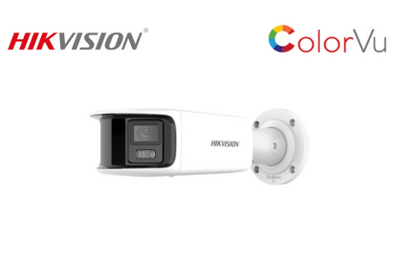

8 MP Panoramic ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
-
Min. Illumination:
- Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, dual lens (4 mm)
-
Focal Length & Field of View (FOV):
- 4 mm: Horizontal FOV: 180°, Vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.6 m to ∞
DORI
-
4 mm:
- Detection (D): 77 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
Illuminator
- Supplement Light Type: White Light
- Range: Up to 40 m
- Smart Supplement Light: Yes
Video
-
Main Stream:
-
WDR On:
- 50 Hz: 12.5 fps (5120 × 1440)
- 60 Hz: 15 fps (5120 × 1440)
-
WDR Off:
- 50/60 Hz: 20 fps (5120 × 1440)
-
WDR On:
-
Sub-Stream:
-
WDR On:
- 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
- 60 Hz: 15 fps (1920 × 536, 960 × 272)
-
WDR Off:
- 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
-
WDR On:
-
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
Audio
- Type: Mono sound
- Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- G.722.1: 16 Kbps
- MP3: 8 to 320 Kbps
- AAC-LC: 16 to 64 Kbps
- Sampling Rate: 8 kHz to 48 kHz
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, and more
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S/G/T), ISAPI, SDK
-
User/Host:
- Up to 32 users
- 3 levels: Administrator, Operator, User
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- Enhancements: BLC, HLC, 3D DNR
- Privacy Mask: 8 rectangular regions
Interface
- Ethernet: 1 RJ45 10/100 M self-adaptive Ethernet port
- On-Board Storage: MicroSD/SDHC/SDXC, up to 512 GB
-
Audio:
- Input: 1 (line-in), terminal block
- Output: 1 (line-out), terminal block
- Alarm: 1 input, 1 output
- Reset Key: Yes
Events
-
Basic Events:
- Motion detection, alarm input/output, exception
-
Smart Events:
- Line crossing, intrusion, region entrance/exiting
- Linkage: FTP, NAS, email notifications, alarm outputs, recording, capture, audible warnings, flashing lights
Power & Dimensions
-
Power:
- 12 VDC ± 25% or PoE (802.3af)
- Max Consumption: 12.5 W
- Material: Metal body and bracket
- Dimensions: 118.6 mm × 105.1 mm × 305.4 mm
- Weight: Approx. 3.1 lb (4.9 lb with package)
Environmental
-
Conditions:
- Operating: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
- Protection: IP67
Approvals
- EMC: FCC, CE, RCM, IC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, Reach
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
8 MP Panoramic ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
-
Min. Illumination:
- Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, dual lens (4 mm)
-
Focal Length & Field of View (FOV):
- 4 mm: Horizontal FOV: 180°, Vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.6 m to ∞
DORI
-
4 mm:
- Detection (D): 77 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
Illuminator
- Supplement Light Type: White Light
- Range: Up to 40 m
- Smart Supplement Light: Yes
Video
-
Main Stream:
-
WDR On:
- 50 Hz: 12.5 fps (5120 × 1440)
- 60 Hz: 15 fps (5120 × 1440)
-
WDR Off:
- 50/60 Hz: 20 fps (5120 × 1440)
-
WDR On:
-
Sub-Stream:
-
WDR On:
- 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
- 60 Hz: 15 fps (1920 × 536, 960 × 272)
-
WDR Off:
- 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
-
WDR On:
-
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
Audio
- Type: Mono sound
- Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- G.722.1: 16 Kbps
- MP3: 8 to 320 Kbps
- AAC-LC: 16 to 64 Kbps
- Sampling Rate: 8 kHz to 48 kHz
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, and more
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S/G/T), ISAPI, SDK
-
User/Host:
- Up to 32 users
- 3 levels: Administrator, Operator, User
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- Enhancements: BLC, HLC, 3D DNR
- Privacy Mask: 8 rectangular regions
Interface
- Ethernet: 1 RJ45 10/100 M self-adaptive Ethernet port
- On-Board Storage: MicroSD/SDHC/SDXC, up to 512 GB
-
Audio:
- Input: 1 (line-in), terminal block
- Output: 1 (line-out), terminal block
- Alarm: 1 input, 1 output
- Reset Key: Yes
Events
-
Basic Events:
- Motion detection, alarm input/output, exception
-
Smart Events:
- Line crossing, intrusion, region entrance/exiting
- Linkage: FTP, NAS, email notifications, alarm outputs, recording, capture, audible warnings, flashing lights
Power & Dimensions
-
Power:
- 12 VDC ± 25% or PoE (802.3af)
- Max Consumption: 12.5 W
- Material: Metal body and bracket
- Dimensions: 118.6 mm × 105.1 mm × 305.4 mm
- Weight: Approx. 3.1 lb (4.9 lb with package)
Environmental
-
Conditions:
- Operating: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
- Protection: IP67
Approvals
- EMC: FCC, CE, RCM, IC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, Reach
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$649.06
8 MP Panoramic ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
-
Min. Illumination:
- Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, dual lens (4 mm)
-
Focal Length & Field of View (FOV):
- 4 mm: Horizontal FOV: 180°, Vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.6 m to ∞
DORI
-
4 mm:
- Detection (D): 77 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
Illuminator
- Supplement Light Type: White Light
- Range: Up to 40 m
- Smart Supplement Light: Yes
Video
-
Main Stream:
-
WDR On:
- 50 Hz: 12.5 fps (5120 × 1440)
- 60 Hz: 15 fps (5120 × 1440)
-
WDR Off:
- 50/60 Hz: 20 fps (5120 × 1440)
-
WDR On:
-
Sub-Stream:
-
WDR On:
- 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
- 60 Hz: 15 fps (1920 × 536, 960 × 272)
-
WDR Off:
- 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
-
WDR On:
-
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
Audio
- Type: Mono sound
- Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- G.722.1: 16 Kbps
- MP3: 8 to 320 Kbps
- AAC-LC: 16 to 64 Kbps
- Sampling Rate: 8 kHz to 48 kHz
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, and more
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S/G/T), ISAPI, SDK
-
User/Host:
- Up to 32 users
- 3 levels: Administrator, Operator, User
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- Enhancements: BLC, HLC, 3D DNR
- Privacy Mask: 8 rectangular regions
Interface
- Ethernet: 1 RJ45 10/100 M self-adaptive Ethernet port
- On-Board Storage: MicroSD/SDHC/SDXC, up to 512 GB
-
Audio:
- Input: 1 (line-in), terminal block
- Output: 1 (line-out), terminal block
- Alarm: 1 input, 1 output
- Reset Key: Yes
Events
-
Basic Events:
- Motion detection, alarm input/output, exception
-
Smart Events:
- Line crossing, intrusion, region entrance/exiting
- Linkage: FTP, NAS, email notifications, alarm outputs, recording, capture, audible warnings, flashing lights
Power & Dimensions
-
Power:
- 12 VDC ± 25% or PoE (802.3af)
- Max Consumption: 12.5 W
- Material: Metal body and bracket
- Dimensions: 118.6 mm × 105.1 mm × 305.4 mm
- Weight: Approx. 3.1 lb (4.9 lb with package)
Environmental
-
Conditions:
- Operating: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
- Protection: IP67
Approvals
- EMC: FCC, CE, RCM, IC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, Reach
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
8 MP Panoramic ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
-
Min. Illumination:
- Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, dual lens (4 mm)
-
Focal Length & Field of View (FOV):
- 4 mm: Horizontal FOV: 180°, Vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.6 m to ∞
DORI
-
4 mm:
- Detection (D): 77 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
Illuminator
- Supplement Light Type: White Light
- Range: Up to 40 m
- Smart Supplement Light: Yes
Video
-
Main Stream:
-
WDR On:
- 50 Hz: 12.5 fps (5120 × 1440)
- 60 Hz: 15 fps (5120 × 1440)
-
WDR Off:
- 50/60 Hz: 20 fps (5120 × 1440)
-
WDR On:
-
Sub-Stream:
-
WDR On:
- 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
- 60 Hz: 15 fps (1920 × 536, 960 × 272)
-
WDR Off:
- 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
-
WDR On:
-
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
Audio
- Type: Mono sound
- Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- G.722.1: 16 Kbps
- MP3: 8 to 320 Kbps
- AAC-LC: 16 to 64 Kbps
- Sampling Rate: 8 kHz to 48 kHz
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, and more
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S/G/T), ISAPI, SDK
-
User/Host:
- Up to 32 users
- 3 levels: Administrator, Operator, User
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- Enhancements: BLC, HLC, 3D DNR
- Privacy Mask: 8 rectangular regions
Interface
- Ethernet: 1 RJ45 10/100 M self-adaptive Ethernet port
- On-Board Storage: MicroSD/SDHC/SDXC, up to 512 GB
-
Audio:
- Input: 1 (line-in), terminal block
- Output: 1 (line-out), terminal block
- Alarm: 1 input, 1 output
- Reset Key: Yes
Events
-
Basic Events:
- Motion detection, alarm input/output, exception
-
Smart Events:
- Line crossing, intrusion, region entrance/exiting
- Linkage: FTP, NAS, email notifications, alarm outputs, recording, capture, audible warnings, flashing lights
Power & Dimensions
-
Power:
- 12 VDC ± 25% or PoE (802.3af)
- Max Consumption: 12.5 W
- Material: Metal body and bracket
- Dimensions: 118.6 mm × 105.1 mm × 305.4 mm
- Weight: Approx. 3.1 lb (4.9 lb with package)
Environmental
-
Conditions:
- Operating: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
- Protection: IP67
Approvals
- EMC: FCC, CE, RCM, IC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, Reach
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$578.58

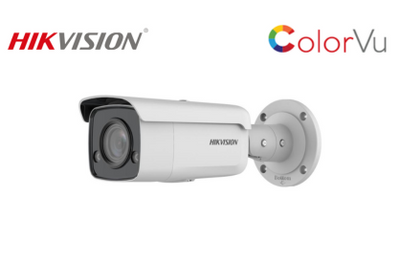

4 K ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- 24/7 colorful imaging
- Datasheet
Camera Specifications
Image Sensor
- 1/1.2" Progressive Scan CMOS
Max. Resolution
- 3840 × 2160
Min. Illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON)
- 0 Lux with Light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Focal Length & FOV
- 2.8 mm: Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124°
- 4 mm: Horizontal FOV 88°, Vertical FOV 47°, Diagonal FOV 104°
- 6 mm: Horizontal FOV 54°, Vertical FOV 30°, Diagonal FOV 62°
Iris Type
- Fixed
Aperture
- F1.0
Depth of Field
- 2.8 mm: 4.5 m to ∞
- 4 mm: 7 m to ∞
- 6 mm: 13 m to ∞
DORI
- 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 10 m
- 4 mm: D: 102 m, O: 41 m, R: 21 m, I: 11 m
- 6 mm: D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type
- White Light
Supplement Light Range
- Up to 60 m
Smart Supplement Light
- Yes
Video
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR/VBR
Scalable Video Coding (SVC)
- Yes
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
- Up to 32 users, 3 user levels (Administrator, Operator, User)
Security
- Password protection, HTTPS encryption, IP address filter, Security Audit Log, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in Required Live View: IE 10, IE 11
- Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
- Yes
Image Settings
- Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 130 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Supports microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset Key
- Yes
Event
Basic Event
- Motion detection (Human and Vehicle Classification), Video Tampering Alarm, Exception
Smart Event
- Line Crossing, Intrusion, Region Entrance, Region Exiting
Linkage
- Upload to FTP/Memory Card/NAS, Notify Surveillance Center, Trigger Record, Trigger Capture, Send Email
Deep Learning Function
- Face Capture: Yes
General
Power
- 12 VDC ± 25%, 0.7 A, Max. 8.5 W
- PoE: 802.3af, Class 3, 36 V to 57 V, Max. 9.5 W
Dimension
- Ø105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension
- 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight
- Approx. 1190 g (2.6 lb.)
With Package Weight
- Approx. 1700 g (3.7 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Language
- Supports 33 Languages
General Function
- Anti-Flicker, Heartbeat, Password Reset via Email, Pixel Counter
Approval
EMC
- FCC, CE-EMC, RCM, IC
Safety
- UL, CB, CE-LVD
Environment
- CE-RoHS, WEEE, Reach
Protection
- IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4 K ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- 24/7 colorful imaging
- Datasheet
Camera Specifications
Image Sensor
- 1/1.2" Progressive Scan CMOS
Max. Resolution
- 3840 × 2160
Min. Illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON)
- 0 Lux with Light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Focal Length & FOV
- 2.8 mm: Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124°
- 4 mm: Horizontal FOV 88°, Vertical FOV 47°, Diagonal FOV 104°
- 6 mm: Horizontal FOV 54°, Vertical FOV 30°, Diagonal FOV 62°
Iris Type
- Fixed
Aperture
- F1.0
Depth of Field
- 2.8 mm: 4.5 m to ∞
- 4 mm: 7 m to ∞
- 6 mm: 13 m to ∞
DORI
- 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 10 m
- 4 mm: D: 102 m, O: 41 m, R: 21 m, I: 11 m
- 6 mm: D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type
- White Light
Supplement Light Range
- Up to 60 m
Smart Supplement Light
- Yes
Video
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR/VBR
Scalable Video Coding (SVC)
- Yes
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
- Up to 32 users, 3 user levels (Administrator, Operator, User)
Security
- Password protection, HTTPS encryption, IP address filter, Security Audit Log, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in Required Live View: IE 10, IE 11
- Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
- Yes
Image Settings
- Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 130 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Supports microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset Key
- Yes
Event
Basic Event
- Motion detection (Human and Vehicle Classification), Video Tampering Alarm, Exception
Smart Event
- Line Crossing, Intrusion, Region Entrance, Region Exiting
Linkage
- Upload to FTP/Memory Card/NAS, Notify Surveillance Center, Trigger Record, Trigger Capture, Send Email
Deep Learning Function
- Face Capture: Yes
General
Power
- 12 VDC ± 25%, 0.7 A, Max. 8.5 W
- PoE: 802.3af, Class 3, 36 V to 57 V, Max. 9.5 W
Dimension
- Ø105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension
- 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight
- Approx. 1190 g (2.6 lb.)
With Package Weight
- Approx. 1700 g (3.7 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Language
- Supports 33 Languages
General Function
- Anti-Flicker, Heartbeat, Password Reset via Email, Pixel Counter
Approval
EMC
- FCC, CE-EMC, RCM, IC
Safety
- UL, CB, CE-LVD
Environment
- CE-RoHS, WEEE, Reach
Protection
- IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$578.58
4 K ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- 24/7 colorful imaging
- Datasheet
Camera Specifications
Image Sensor
- 1/1.2" Progressive Scan CMOS
Max. Resolution
- 3840 × 2160
Min. Illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON)
- 0 Lux with Light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Focal Length & FOV
- 2.8 mm: Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124°
- 4 mm: Horizontal FOV 88°, Vertical FOV 47°, Diagonal FOV 104°
- 6 mm: Horizontal FOV 54°, Vertical FOV 30°, Diagonal FOV 62°
Iris Type
- Fixed
Aperture
- F1.0
Depth of Field
- 2.8 mm: 4.5 m to ∞
- 4 mm: 7 m to ∞
- 6 mm: 13 m to ∞
DORI
- 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 10 m
- 4 mm: D: 102 m, O: 41 m, R: 21 m, I: 11 m
- 6 mm: D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type
- White Light
Supplement Light Range
- Up to 60 m
Smart Supplement Light
- Yes
Video
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR/VBR
Scalable Video Coding (SVC)
- Yes
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
- Up to 32 users, 3 user levels (Administrator, Operator, User)
Security
- Password protection, HTTPS encryption, IP address filter, Security Audit Log, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in Required Live View: IE 10, IE 11
- Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
- Yes
Image Settings
- Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 130 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Supports microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset Key
- Yes
Event
Basic Event
- Motion detection (Human and Vehicle Classification), Video Tampering Alarm, Exception
Smart Event
- Line Crossing, Intrusion, Region Entrance, Region Exiting
Linkage
- Upload to FTP/Memory Card/NAS, Notify Surveillance Center, Trigger Record, Trigger Capture, Send Email
Deep Learning Function
- Face Capture: Yes
General
Power
- 12 VDC ± 25%, 0.7 A, Max. 8.5 W
- PoE: 802.3af, Class 3, 36 V to 57 V, Max. 9.5 W
Dimension
- Ø105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension
- 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight
- Approx. 1190 g (2.6 lb.)
With Package Weight
- Approx. 1700 g (3.7 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Language
- Supports 33 Languages
General Function
- Anti-Flicker, Heartbeat, Password Reset via Email, Pixel Counter
Approval
EMC
- FCC, CE-EMC, RCM, IC
Safety
- UL, CB, CE-LVD
Environment
- CE-RoHS, WEEE, Reach
Protection
- IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4 K ColorVu Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- 24/7 colorful imaging
- Datasheet
Camera Specifications
Image Sensor
- 1/1.2" Progressive Scan CMOS
Max. Resolution
- 3840 × 2160
Min. Illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON)
- 0 Lux with Light
Shutter Time
- 1/3 s to 1/100,000 s
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Focal Length & FOV
- 2.8 mm: Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124°
- 4 mm: Horizontal FOV 88°, Vertical FOV 47°, Diagonal FOV 104°
- 6 mm: Horizontal FOV 54°, Vertical FOV 30°, Diagonal FOV 62°
Iris Type
- Fixed
Aperture
- F1.0
Depth of Field
- 2.8 mm: 4.5 m to ∞
- 4 mm: 7 m to ∞
- 6 mm: 13 m to ∞
DORI
- 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 10 m
- 4 mm: D: 102 m, O: 41 m, R: 21 m, I: 11 m
- 6 mm: D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type
- White Light
Supplement Light Range
- Up to 60 m
Smart Supplement Light
- Yes
Video
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR/VBR
Scalable Video Coding (SVC)
- Yes
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
- Up to 32 users, 3 user levels (Administrator, Operator, User)
Security
- Password protection, HTTPS encryption, IP address filter, Security Audit Log, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in Required Live View: IE 10, IE 11
- Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
- Yes
Image Settings
- Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 130 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Supports microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset Key
- Yes
Event
Basic Event
- Motion detection (Human and Vehicle Classification), Video Tampering Alarm, Exception
Smart Event
- Line Crossing, Intrusion, Region Entrance, Region Exiting
Linkage
- Upload to FTP/Memory Card/NAS, Notify Surveillance Center, Trigger Record, Trigger Capture, Send Email
Deep Learning Function
- Face Capture: Yes
General
Power
- 12 VDC ± 25%, 0.7 A, Max. 8.5 W
- PoE: 802.3af, Class 3, 36 V to 57 V, Max. 9.5 W
Dimension
- Ø105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension
- 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight
- Approx. 1190 g (2.6 lb.)
With Package Weight
- Approx. 1700 g (3.7 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Language
- Supports 33 Languages
General Function
- Anti-Flicker, Heartbeat, Password Reset via Email, Pixel Counter
Approval
EMC
- FCC, CE-EMC, RCM, IC
Safety
- UL, CB, CE-LVD
Environment
- CE-RoHS, WEEE, Reach
Protection
- IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$486.78

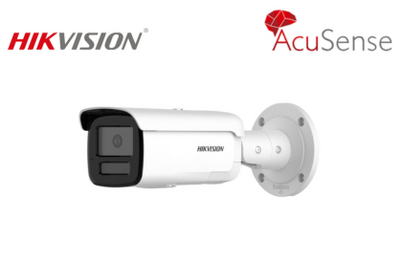

4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens (Options: 2.8 mm, 4 mm, 6 mm)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal FOV 110°, Vertical FOV 58°, Diagonal FOV 134°
- 4 mm: Horizontal FOV 88°, Vertical FOV 50°, Diagonal FOV 100°
- 6 mm: Horizontal FOV 59°, Vertical FOV 34°, Diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
- 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
- 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator
- Supplement Light Type: IR
- Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video Specifications
-
Main Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (Other resolutions)
-
Sub-Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (1280 × 720 to 640 × 360)
- 60 Hz: 30 fps (1280 × 720 to 640 × 360)
-
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
-
Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265
- Region of Interest (ROI): 1 fixed region for main and sub-stream
Audio Specifications
- Type: Mono sound
- Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- AAC-LC: 16 to 64 Kbps
- MP3: 8 to 320 Kbps
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, etc.
- Simultaneous Live View: Up to 6 channels
- API Support: ONVIF (Profile S/G/T), ISAPI, SDK
- Security Features: Password protection, HTTPS encryption, watermark, IP filtering, etc.
- Network Storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support
Image Settings
- Features: Mirror, privacy mask, brightness, contrast, sharpness, etc.
- Wide Dynamic Range (WDR): 120 dB
- Privacy Mask: 4 regions
Interface
- Ethernet: 1 RJ45 10M/100M port
- Storage: Built-in microSD card slot (Up to 512 GB)
- Audio I/O: 1 input, 1 output
- Alarm I/O: 1 input, 1 output
General
-
Power:
- 12 VDC ± 25%, max. 14 W
- PoE (802.3at): 42.5 V to 57 V, max. 17 W
-
Dimensions:
- Camera: 286.7 mm × 93.3 mm × 91.2 mm
- Package: 386 mm × 156 mm × 155 mm
- Weight: Approx. 1130 g (Camera), 1654 g (With package)
- Operating Conditions: -30°C to 60°C, humidity ≤ 95%
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens (Options: 2.8 mm, 4 mm, 6 mm)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal FOV 110°, Vertical FOV 58°, Diagonal FOV 134°
- 4 mm: Horizontal FOV 88°, Vertical FOV 50°, Diagonal FOV 100°
- 6 mm: Horizontal FOV 59°, Vertical FOV 34°, Diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
- 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
- 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator
- Supplement Light Type: IR
- Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video Specifications
-
Main Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (Other resolutions)
-
Sub-Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (1280 × 720 to 640 × 360)
- 60 Hz: 30 fps (1280 × 720 to 640 × 360)
-
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
-
Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265
- Region of Interest (ROI): 1 fixed region for main and sub-stream
Audio Specifications
- Type: Mono sound
- Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- AAC-LC: 16 to 64 Kbps
- MP3: 8 to 320 Kbps
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, etc.
- Simultaneous Live View: Up to 6 channels
- API Support: ONVIF (Profile S/G/T), ISAPI, SDK
- Security Features: Password protection, HTTPS encryption, watermark, IP filtering, etc.
- Network Storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support
Image Settings
- Features: Mirror, privacy mask, brightness, contrast, sharpness, etc.
- Wide Dynamic Range (WDR): 120 dB
- Privacy Mask: 4 regions
Interface
- Ethernet: 1 RJ45 10M/100M port
- Storage: Built-in microSD card slot (Up to 512 GB)
- Audio I/O: 1 input, 1 output
- Alarm I/O: 1 input, 1 output
General
-
Power:
- 12 VDC ± 25%, max. 14 W
- PoE (802.3at): 42.5 V to 57 V, max. 17 W
-
Dimensions:
- Camera: 286.7 mm × 93.3 mm × 91.2 mm
- Package: 386 mm × 156 mm × 155 mm
- Weight: Approx. 1130 g (Camera), 1654 g (With package)
- Operating Conditions: -30°C to 60°C, humidity ≤ 95%
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$486.78
4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens (Options: 2.8 mm, 4 mm, 6 mm)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal FOV 110°, Vertical FOV 58°, Diagonal FOV 134°
- 4 mm: Horizontal FOV 88°, Vertical FOV 50°, Diagonal FOV 100°
- 6 mm: Horizontal FOV 59°, Vertical FOV 34°, Diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
- 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
- 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator
- Supplement Light Type: IR
- Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video Specifications
-
Main Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (Other resolutions)
-
Sub-Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (1280 × 720 to 640 × 360)
- 60 Hz: 30 fps (1280 × 720 to 640 × 360)
-
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
-
Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265
- Region of Interest (ROI): 1 fixed region for main and sub-stream
Audio Specifications
- Type: Mono sound
- Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- AAC-LC: 16 to 64 Kbps
- MP3: 8 to 320 Kbps
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, etc.
- Simultaneous Live View: Up to 6 channels
- API Support: ONVIF (Profile S/G/T), ISAPI, SDK
- Security Features: Password protection, HTTPS encryption, watermark, IP filtering, etc.
- Network Storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support
Image Settings
- Features: Mirror, privacy mask, brightness, contrast, sharpness, etc.
- Wide Dynamic Range (WDR): 120 dB
- Privacy Mask: 4 regions
Interface
- Ethernet: 1 RJ45 10M/100M port
- Storage: Built-in microSD card slot (Up to 512 GB)
- Audio I/O: 1 input, 1 output
- Alarm I/O: 1 input, 1 output
General
-
Power:
- 12 VDC ± 25%, max. 14 W
- PoE (802.3at): 42.5 V to 57 V, max. 17 W
-
Dimensions:
- Camera: 286.7 mm × 93.3 mm × 91.2 mm
- Package: 386 mm × 156 mm × 155 mm
- Weight: Approx. 1130 g (Camera), 1654 g (With package)
- Operating Conditions: -30°C to 60°C, humidity ≤ 95%
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens (Options: 2.8 mm, 4 mm, 6 mm)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal FOV 110°, Vertical FOV 58°, Diagonal FOV 134°
- 4 mm: Horizontal FOV 88°, Vertical FOV 50°, Diagonal FOV 100°
- 6 mm: Horizontal FOV 59°, Vertical FOV 34°, Diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
- 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
- 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator
- Supplement Light Type: IR
- Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video Specifications
-
Main Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (3840 × 2160 to 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (Other resolutions)
-
Sub-Stream (Resolution & Frame Rate):
- 50 Hz: 25 fps (1280 × 720 to 640 × 360)
- 60 Hz: 30 fps (1280 × 720 to 640 × 360)
-
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080 to 640 × 360)
-
Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- Scalable Video Coding (SVC): H.264 and H.265
- Region of Interest (ROI): 1 fixed region for main and sub-stream
Audio Specifications
- Type: Mono sound
- Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
-
Bit Rate:
- G.711: 64 Kbps
- AAC-LC: 16 to 64 Kbps
- MP3: 8 to 320 Kbps
- Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, etc.
- Simultaneous Live View: Up to 6 channels
- API Support: ONVIF (Profile S/G/T), ISAPI, SDK
- Security Features: Password protection, HTTPS encryption, watermark, IP filtering, etc.
- Network Storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support
Image Settings
- Features: Mirror, privacy mask, brightness, contrast, sharpness, etc.
- Wide Dynamic Range (WDR): 120 dB
- Privacy Mask: 4 regions
Interface
- Ethernet: 1 RJ45 10M/100M port
- Storage: Built-in microSD card slot (Up to 512 GB)
- Audio I/O: 1 input, 1 output
- Alarm I/O: 1 input, 1 output
General
-
Power:
- 12 VDC ± 25%, max. 14 W
- PoE (802.3at): 42.5 V to 57 V, max. 17 W
-
Dimensions:
- Camera: 286.7 mm × 93.3 mm × 91.2 mm
- Package: 386 mm × 156 mm × 155 mm
- Weight: Approx. 1130 g (Camera), 1654 g (With package)
- Operating Conditions: -30°C to 60°C, humidity ≤ 95%
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$435.72
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$435.72
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$435.72
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$435.72
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$435.72
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera
Image Sensor:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type:
Fixed focal lens (2.8, 4, and 6 mm optional)
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
- 4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
- 6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
DORI Distance:
- 2.8 mm: Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m
- 4 mm: Detect: 99.4 m, Observe: 39.4 m, Recognize: 19.9 m, Identify: 9.9 m
- 6 mm: Detect: 140.0 m, Observe: 55.6 m, Recognize: 28.0 m, Identify: 14.0 m
Illuminator
Supplement Light Type:
IR
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Video
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz & 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream supported under certain settings.
Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline/Main/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main and sub-stream
Target Cropping:
Yes
Network
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S/G/T), ISAPI, SDK
User/Host:
- Up to 32 users
- User levels: Administrator, Operator, User
Security:
Password protection, HTTPS encryption, IP address filter, Security Audit Log, and more.
Network Storage:
- MicroSD/SDHC/SDXC card (up to 256 GB)
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Hikvision memory card with encryption and health detection supported.
Image Parameters Switch:
Yes
Image Settings:
Adjustable (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):
120 dB
Signal-to-Noise Ratio (SNR):
≥ 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Interface
Ethernet:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
Built-in microSD slot (up to 256 GB)
Reset Key:
Yes
Event
Basic Events:
Motion detection (human and vehicle classification), video tampering, exceptions
Smart Events:
Line crossing, intrusion, region entrance/exit detection, scene change detection
Linkage Methods:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture
Deep Learning Function
Face Capture:
Yes
General
Power:
- -2I: 12 VDC ± 25% (max. 7.5 W), PoE (802.3af, Class 3, max. 9 W)
- -4I: 12 VDC ± 25% (max. 10.5 W), PoE (802.3af, Class 3, max. 12 W)
Dimension:
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight:
- Camera: Approx. 1270 g (2.8 lb.)
- With Package: Approx. 1510 g (3.3 lb.)
Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% (non-condensing)
Language Support:
33 languages
General Features:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, pixel counter
Approvals
EMC:
FCC, CE-EMC, RCM, KC
Safety:
UL, CB, CE-LVD
Environmental:
CE-RoHS, WEEE, Reach
Protection:
IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.15
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.15
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.15
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.15
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$411.18
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$411.18
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
4K AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
-
Water and dust resistant (IP67)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 111°, Vertical 59°, Diagonal 131°
- 4 mm: Horizontal 87°, Vertical 47°, Diagonal 102°
- 6 mm: Horizontal 51°, Vertical 28°, Diagonal 60°
- Mount: M12
- Iris: Fixed
- Aperture: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89.2 m
- Observation: 35.4 m
- Recognition: 17.8 m
- Identification: 8.9 m
-
4 mm:
- Detection: 99.4 m
- Observation: 39.4 m
- Recognition: 19.9 m
- Identification: 9.9 m
-
6 mm:
- Detection: 140.0 m
- Observation: 55.6 m
- Recognition: 28.0 m
- Identification: 14.0 m
Illuminator
- Supplement Light Type: IR
-
Supplement Light Range:
- -2I: Up to 60 m
- -4I: Up to 80 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Note: Third stream is supported under certain settings.
-
Video Compression:
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Third: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline/Main/High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR/VBR
-
Scalable Video Coding (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main and sub-stream
-
Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users (Administrator, Operator, User levels)
-
Security:
- Password protection, HTTPS encryption
- IP address filtering, Security Audit Log
- TLS 1.1/1.2, WSSE and digest authentication
Storage
- Network Storage: MicroSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Compatibility: Supports Hikvision memory card for encryption and health detection.
-
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Adjustable via client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Signal-to-Noise Ratio (SNR): ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet: 1 RJ45 10 M/100 M self-adaptive port
- On-Board Storage: Micro SD slot (up to 256 GB)
- Reset Key: Yes
Event
-
Basic:
- Motion detection (human and vehicle classification)
- Video tampering alarm, exception
-
Smart:
- Line crossing, intrusion, region entrance/exit detection (human and vehicle triggers)
- Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording or capture
General
-
Power:
-
-2I:
- 12 VDC ± 25%, Max 7.5 W
- PoE: IEEE 802.3af, Class 3, Max 9 W
-
-4I:
- 12 VDC ± 25%, Max 10.5 W
- PoE: IEEE 802.3af, Class 3, Max 12 W
-
-2I:
-
Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
-
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
-
Weight: Approx. 1270 g (2.8 lb.)
Approval
- EMC: FCC, CE-EMC, RCM, KC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.30
6 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Type: Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- Type: IR
Supplement Light Range
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- Wavelength: 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Audio Specifications
Audio Type
- Type: Mono sound
Audio Compression
- Formats: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-
Range: 64 Kbps (G.711ulaw/G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
- 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Environment Noise Filtering
- Yes
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
3 user levels: Administrator, Operator, User
Security
- Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic/digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Supports high-end Hikvision memory cards with encryption and health detection
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Built-in Microphone
- Yes
Built-in Speaker
- Max. power consumption: 2 W
Max. sound pressure: 97 dB at 10 cm
Audio Input/Output
- Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ
- Output: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, mono sound
Reset Key
- Yes
Alarm
- 1 input, 1 output (max. 24 VAC/VDC, 1A)
Event & Deep Learning Features
Basic Events
- Motion detection (with alarm triggering by specified target types like human and vehicle), video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance and exit detection (with alarm triggering by specified target types), scene change detection
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, capture, alarm output, audible warning, strobe light
Deep Learning Function
- Face Capture: Yes
General Specifications
Power
- 12 VDC ± 25% (0.88 A, max. 10.5 W)
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Connector: Ø5.5 mm coaxial power plug, reverse polarity protection
Material
- Not specified
Dimensions
- Camera: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Camera: Approx. 1155 g (2.5 lb.)
- With Package: Approx. 1659 g (3.7 lb.)
Operating Conditions
- Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Humidity: 95% or less (non-condensing)
Language
- 33 languages supported
Approvals
EMC
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
- IC: ICES-003: Issue 7
Safety
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- REACH: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
6 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Type: Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- Type: IR
Supplement Light Range
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- Wavelength: 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Audio Specifications
Audio Type
- Type: Mono sound
Audio Compression
- Formats: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-
Range: 64 Kbps (G.711ulaw/G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
- 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Environment Noise Filtering
- Yes
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
3 user levels: Administrator, Operator, User
Security
- Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic/digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Supports high-end Hikvision memory cards with encryption and health detection
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Built-in Microphone
- Yes
Built-in Speaker
- Max. power consumption: 2 W
Max. sound pressure: 97 dB at 10 cm
Audio Input/Output
- Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ
- Output: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, mono sound
Reset Key
- Yes
Alarm
- 1 input, 1 output (max. 24 VAC/VDC, 1A)
Event & Deep Learning Features
Basic Events
- Motion detection (with alarm triggering by specified target types like human and vehicle), video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance and exit detection (with alarm triggering by specified target types), scene change detection
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, capture, alarm output, audible warning, strobe light
Deep Learning Function
- Face Capture: Yes
General Specifications
Power
- 12 VDC ± 25% (0.88 A, max. 10.5 W)
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Connector: Ø5.5 mm coaxial power plug, reverse polarity protection
Material
- Not specified
Dimensions
- Camera: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Camera: Approx. 1155 g (2.5 lb.)
- With Package: Approx. 1659 g (3.7 lb.)
Operating Conditions
- Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Humidity: 95% or less (non-condensing)
Language
- 33 languages supported
Approvals
EMC
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
- IC: ICES-003: Issue 7
Safety
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- REACH: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$407.30
6 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Type: Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- Type: IR
Supplement Light Range
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- Wavelength: 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Audio Specifications
Audio Type
- Type: Mono sound
Audio Compression
- Formats: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-
Range: 64 Kbps (G.711ulaw/G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
- 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Environment Noise Filtering
- Yes
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
3 user levels: Administrator, Operator, User
Security
- Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic/digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Supports high-end Hikvision memory cards with encryption and health detection
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Built-in Microphone
- Yes
Built-in Speaker
- Max. power consumption: 2 W
Max. sound pressure: 97 dB at 10 cm
Audio Input/Output
- Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ
- Output: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, mono sound
Reset Key
- Yes
Alarm
- 1 input, 1 output (max. 24 VAC/VDC, 1A)
Event & Deep Learning Features
Basic Events
- Motion detection (with alarm triggering by specified target types like human and vehicle), video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance and exit detection (with alarm triggering by specified target types), scene change detection
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, capture, alarm output, audible warning, strobe light
Deep Learning Function
- Face Capture: Yes
General Specifications
Power
- 12 VDC ± 25% (0.88 A, max. 10.5 W)
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Connector: Ø5.5 mm coaxial power plug, reverse polarity protection
Material
- Not specified
Dimensions
- Camera: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Camera: Approx. 1155 g (2.5 lb.)
- With Package: Approx. 1659 g (3.7 lb.)
Operating Conditions
- Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Humidity: 95% or less (non-condensing)
Language
- 33 languages supported
Approvals
EMC
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
- IC: ICES-003: Issue 7
Safety
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- REACH: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
6 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Type: Fixed focal lens (2.8 mm, 4 mm, and 6 mm options)
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Type: Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- Type: IR
Supplement Light Range
- -2I: Up to 60 m
- -4I: Up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- Wavelength: 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Audio Specifications
Audio Type
- Type: Mono sound
Audio Compression
- Formats: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-
Range: 64 Kbps (G.711ulaw/G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
- 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Environment Noise Filtering
- Yes
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
3 user levels: Administrator, Operator, User
Security
- Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic/digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Supports high-end Hikvision memory cards with encryption and health detection
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
SNR
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Built-in Microphone
- Yes
Built-in Speaker
- Max. power consumption: 2 W
Max. sound pressure: 97 dB at 10 cm
Audio Input/Output
- Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ
- Output: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, mono sound
Reset Key
- Yes
Alarm
- 1 input, 1 output (max. 24 VAC/VDC, 1A)
Event & Deep Learning Features
Basic Events
- Motion detection (with alarm triggering by specified target types like human and vehicle), video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance and exit detection (with alarm triggering by specified target types), scene change detection
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, capture, alarm output, audible warning, strobe light
Deep Learning Function
- Face Capture: Yes
General Specifications
Power
- 12 VDC ± 25% (0.88 A, max. 10.5 W)
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Connector: Ø5.5 mm coaxial power plug, reverse polarity protection
Material
- Not specified
Dimensions
- Camera: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Camera: Approx. 1155 g (2.5 lb.)
- With Package: Approx. 1659 g (3.7 lb.)
Operating Conditions
- Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Humidity: 95% or less (non-condensing)
Language
- 33 languages supported
Approvals
EMC
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
- IC: ICES-003: Issue 7
Safety
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- REACH: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
Translation missing: en.products.product.regular_price
$322.86
6 MP AcuSense Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Fixed focal lens, with 2.8 mm, 4 mm, and 6 mm options
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- IR
Supplement Light Range
- -2I: up to 60 m
- -4I: up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
(Third stream supported under certain settings)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264 (Third stream supported under certain settings)
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
- 3 user levels: Administrator, Operator, User
Security
- Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), Watermark, IP address filter, basic/digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Memory card encryption and health detection supported with high-end Hikvision memory card
Client & Web Browser
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Live View (Plugin Required): IE10+
- Plugin-Free Live View: Chrome 57.0+, Firefox 52.0+
- Local Service: Chrome 57.0+, Firefox 52.0+
Image Settings
Image Parameters
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or web browser)
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
Signal-to-Noise Ratio (SNR)
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Reset Key
- Yes
Event & Deep Learning Features
Basic Events
- Motion detection, video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance/exiting detection, scene change detection
(Support for alarm triggering by specified target types: human and vehicle)
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
- Face Capture
General Specifications
Power
-
-2I: 12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, max. 9 W -
-4I: 12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, max. 12 W
Dimension
- Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension
- 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Approx. 1085 g (2.4 lb.)
Weight with Package
- Approx. 1604 g (3.5 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup & Operating Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Language Support
- 33 languages including English, Russian, French, German, Spanish, Chinese, Japanese, Korean, and more
Approval & Compliance
EMC Certifications
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
Safety Certifications
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental Compliance
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
6 MP AcuSense Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/2.4" Progressive Scan CMOS
Max. Resolution
- Resolution: 3200 × 1800
Min. Illumination
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
Shutter Time
- Range: 1/3 s to 1/100,000 s
Day & Night
- Feature: IR cut filter
Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
Lens Type
- Fixed focal lens, with 2.8 mm, 4 mm, and 6 mm options
Focal Length & FOV
-
2.8 mm:
- Horizontal FOV: 105°
- Vertical FOV: 55°
- Diagonal FOV: 127°
-
4 mm:
- Horizontal FOV: 78°
- Vertical FOV: 38°
- Diagonal FOV: 96°
-
6 mm:
- Horizontal FOV: 51°
- Vertical FOV: 26°
- Diagonal FOV: 59°
Lens Mount
- Type: M12
Iris Type
- Fixed
Aperture
- Type: F1.6
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection (D): 76 m
- Observation (O): 30 m
- Recognition (R): 15 m
- Identification (I): 7 m
-
4 mm:
- Detection (D): 115 m
- Observation (O): 45 m
- Recognition (R): 23 m
- Identification (I): 11 m
-
6 mm:
- Detection (D): 164 m
- Observation (O): 65 m
- Recognition (R): 32 m
- Identification (I): 16 m
Illuminator Specifications
Supplement Light Type
- IR
Supplement Light Range
- -2I: up to 60 m
- -4I: up to 80 m
Smart Supplement Light
- Yes
IR Wavelength
- 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
(Third stream supported under certain settings)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264 (Third stream supported under certain settings)
Video Bit Rate
- 32 Kbps to 16 Mbps
H.264 Type
- Baseline Profile, Main Profile, High Profile
H.265 Type
- Main Profile
Bit Rate Control
- CBR, VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Network Specifications
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
- Up to 32 users
- 3 user levels: Administrator, Operator, User
Security
- Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), Watermark, IP address filter, basic/digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Memory card encryption and health detection supported with high-end Hikvision memory card
Client & Web Browser
Client Software
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Live View (Plugin Required): IE10+
- Plugin-Free Live View: Chrome 57.0+, Firefox 52.0+
- Local Service: Chrome 57.0+, Firefox 52.0+
Image Settings
Image Parameters
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or web browser)
Day/Night Switch
- Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
- 120 dB
Signal-to-Noise Ratio (SNR)
- ≥ 52 dB
Image Enhancement
- BLC, HLC, 3D DNR
Privacy Mask
- 4 programmable polygon privacy masks
Physical Interface
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, supports microSD/microSDHC/microSDXC cards (up to 512 GB)
Reset Key
- Yes
Event & Deep Learning Features
Basic Events
- Motion detection, video tampering alarm, exception detection
Smart Events
- Line crossing detection, intrusion detection, region entrance/exiting detection, scene change detection
(Support for alarm triggering by specified target types: human and vehicle)
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
- Face Capture
General Specifications
Power
-
-2I: 12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, max. 9 W -
-4I: 12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, max. 12 W
Dimension
- Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension
- 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
- Approx. 1085 g (2.4 lb.)
Weight with Package
- Approx. 1604 g (3.5 lb.)
Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup & Operating Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Language Support
- 33 languages including English, Russian, French, German, Spanish, Chinese, Japanese, Korean, and more
Approval & Compliance
EMC Certifications
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- KC: KN32: 2015, KN35: 2015
Safety Certifications
- UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental Compliance
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
Protection
- IP Rating: IP67 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
