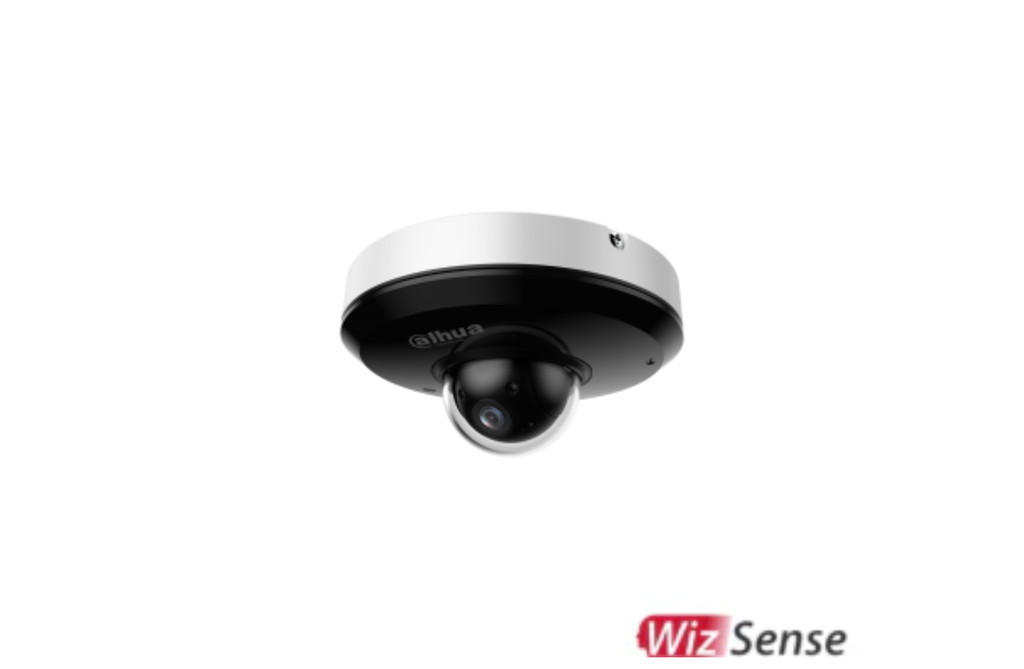

Dahua 4MP 4x Starlight IR WizSense Network PTZ Camera

Dahua 4MP 4x Starlight IR WizSense Network PTZ Camera
$369.00

4MP 4× Starlight IR WizSense Network PTZ Camera

Key Features

  • 1/2.8" 4 MP CMOS image sensor

  • 4× optical zoom

  • Starlight low-light technology

  • Max. 25/30 fps @ 4 MP

  • IR illumination up to 20 m

  • Perimeter protection (IVS)

  • Face detection

  • SMD 3.0

  • Built-in microphone

  • IP66 weatherproof, IK08 vandal-resistant

  • Datasheet

Camera

Image Sensor

  • Sensor Type: 1/2.8" CMOS

  • Effective Pixels: 4 MP

  • Max. Resolution: 2560 (H) × 1440 (V)

  • Scanning System: Progressive

  • Electronic Shutter: 1 s–1/30,000 s

  • ROM: 256 MB

  • RAM: 512 MB

Minimum Illumination

  • Color: 0.005 lux @ F1.8 (30 IRE)

  • B/W: 0.0005 lux @ F1.8 (30 IRE)

  • 0 lux (IR on)

Illumination

  • IR Distance: Up to 20 m (65.62 ft)

  • IR LEDs: 3

  • IR Control: Manual / SmartIR / Off

Lens

  • Focal Length: 2.8 mm–12 mm

  • Optical Zoom: 4×

  • Max. Aperture: F1.8–F2.7

  • Field of View:

    • Horizontal: 96.9°–31.6°

    • Vertical: 51.4°–17.8°

    • Diagonal: 116.2°–36.4°

  • Focus Control: Auto / Semi-auto / Manual

  • Close Focus Distance: 0.2 m–0.5 m

  • Iris Control: Fixed

DORI Performance (EN-62676-4)

  • Detect: 240 m (787.40 ft)

  • Observe: 94.8 m (311.02 ft)

  • Recognize: 48 m (157.48 ft)

  • Identify: 24 m (78.74 ft)

DORI values do not represent intelligent function distances.

PTZ

  • Pan Range: 0°–355°

  • Tilt Range: 5°–90°

Speed

  • Manual Pan: 0.1°/s–70°/s

  • Manual Tilt: 0.1°/s–30°/s

  • Preset Pan: 0.1°/s–80°/s

  • Preset Tilt: 0.1°/s–40°/s

Functions

  • Presets: 300

  • Tours: 8 (up to 32 presets per tour)

  • Power-off Memory: Yes

  • Idle Motion: Preset / Tour

  • PTZ Protocol: DH-SD

  • PTZ Lock: Yes

Intelligent Functions

IVS (Perimeter Protection)

  • Tripwire

  • Intrusion

  • Crossing fence

  • Loitering detection

  • Abandoned/missing object

  • Fast moving

  • Parking detection

  • People gathering

  • Human classification

Face Detection

  • Face detection, snapshot, enhancement

  • Face cutout: Face / one-inch photo

  • Capture modes: Real-time / Quality priority

People Counting

  • Line crossing counting

  • Area counting

  • Queue management

  • Reporting supported for line crossing only

SMD

  • SMD 3.0 supported

Video

Compression

  • H.264H / H.264B / H.264

  • H.265

  • Smart H.264+ / Smart H.265+

  • MJPEG (sub-stream)

Streaming

  • Triple stream

Resolution

  • 4M (2560 × 1440)

  • 3M (2304 × 1296)

  • 1080p, 1.3M, 720p

  • D1, VGA, CIF

Frame Rate

  • Main Stream: up to 25/30 fps

  • Sub Stream 1: D1/VGA/CIF @ 25/30 fps

  • Sub Stream 2: 720p @ 25/30 fps

Bit Rate

  • Control: CBR / VBR

  • H.264: 96 Kbps–14,848 Kbps

  • H.265: 38 Kbps–8,960 Kbps

Image Processing

  • Day/Night: ICR / Electronic (Color / B/W / Auto)

  • WDR: 120 dB

  • BLC / HLC: Supported

  • White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp

  • Gain Control: Auto / Manual / Gain Priority

  • Noise Reduction: 2D NR / 3D NR

  • Motion Detection: Yes

  • ROI: Yes

  • EIS: Supported

  • Defog: Electronic

  • Digital Zoom: 16×

  • Image Rotation: 180°

  • S/N Ratio: ≥55 dB

  • Privacy Masking: Up to 24 areas (8 per view, 8 colors)

Audio

  • Compression: PCM, G.711A/U, G.726, MPEG-2 Layer II, G.722.1

  • Audio I/O: 1 in / 1 out

  • Built-in Mic: Yes (shared with audio input)

Network

  • Ethernet: RJ-45 (10/100 Base-T)

  • Protocols: IPv4/IPv6, TCP/IP, HTTP/HTTPS, RTSP, RTP, FTP, NTP, SNMP, QoS, DHCP, DDNS, ONVIF, and more

  • Interoperability: ONVIF (Profile S/G/T), CGI, SDK

  • Max Users: 20 (64 Mbps total bandwidth)

Storage

  • Micro SD Card: Up to 512 GB

  • Network Storage: FTP / SFTP / NAS

Software & Compatibility

  • Web Browsers: IE9+, Chrome 41+, Firefox 52+, Safari 10+

  • Management Software: DMSS, DSS Pro

  • Mobile App: iOS / Android

Alarm & Events

  • Alarm Actions: Snapshot, recording, email, preset, tour

  • Events: Motion, tampering, audio detection, network disconnection, IP conflict, SD card status

Power

  • Power Supply: 12 VDC ±10%, 2 A

  • PoE: IEEE 802.3af

  • Power Consumption:

    • Typical: 4 W

    • Max: 13 W (IR on)

Environment

  • Operating Temperature: –30 °C to +60 °C

  • Operating Humidity: ≤95%

  • Protection: IP66, IK08, TVS 6000 V lightning protection, surge & transient protection

Physical

  • Dimensions: 65.7 mm × Ø128.0 mm

  • Net Weight: 0.5 kg

  • Gross Weight: 0.7 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
