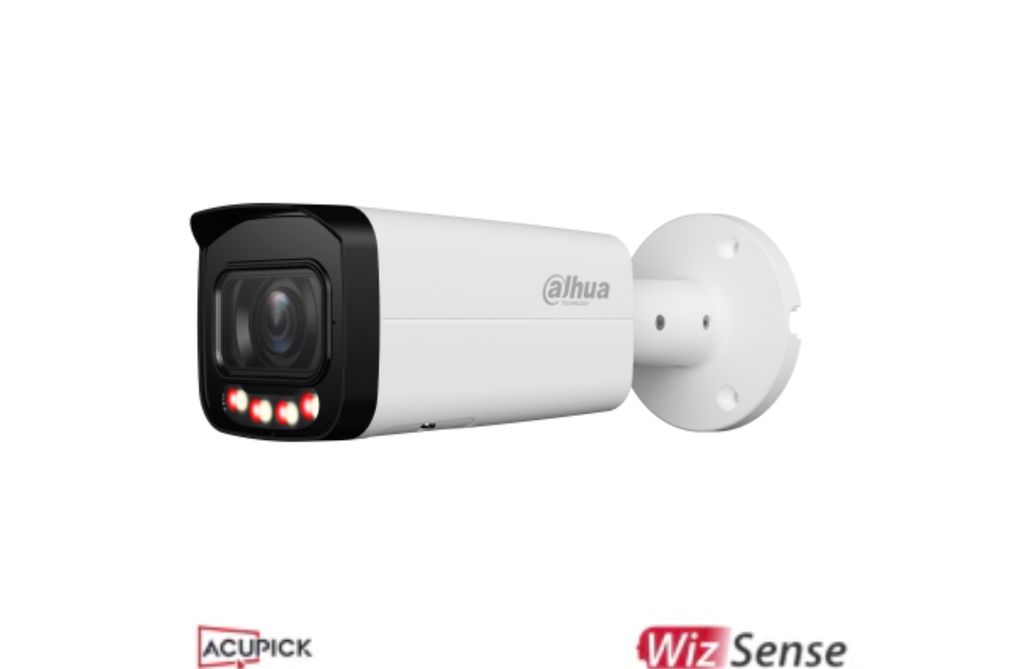

Dahua 8MP Smart Dual Light Vari-focal Bullet WizSense Network Camera

Dahua 8MP Smart Dual Light Vari-focal Bullet WizSense Network Camera
Regular price $360.00

8MP Smart Dual Light Vari-focal Bullet WizSense Network Camera

Key Features

  • 8 MP 1/2.7" CMOS image sensor with low-luminance performance

  • Maximum resolution: 3840 × 2160 at 25/30 fps

  • H.265 video compression with ultra-low bit rate

  • Built-in multi-core dual light (IR + warm light), illumination distance up to 60 m

  • Smart Codec: Smart H.265+ / Smart H.264+

  • AI coding: AI H.265 / AI H.264

  • SMD 4.0 with human and vehicle classification

  • Supports AI SSA (Scene Self-Adaptation)

  • Intelligent perimeter protection

  • Supports Micro SD card up to 512 GB

  • 12 VDC or PoE power supply

  • IP67 weather protection

  • Datasheet

Camera

  • Image sensor: 1/2.7" CMOS

  • Scanning system: Progressive

  • Maximum resolution: 3840 (H) × 2160 (V)

  • ROM: 256 MB

  • RAM: 1 GB

  • Electronic shutter: Auto / Manual, 1/3 s to 1/100,000 s

  • Minimum illumination:

    • 0.007 lux @ F1.4 (Color, 30 IRE)

    • 0.0007 lux @ F1.4 (B/W, 30 IRE)

    • 0 lux (illuminator on)

  • S/N ratio: >56 dB


Illumination

  • IR illumination distance: up to 60 m

  • Warm light illumination distance: up to 60 m

  • Illuminator control: Auto / Manual

  • Illuminators: 4 × multi-core (IR + warm light)


Lens

  • Lens type: Motorized vari-focal

  • Lens mount: φ14

  • Focal length: 2.7 mm to 13.5 mm

  • Maximum aperture: F1.4

  • Field of view:

    • Horizontal: 114° to 32°

    • Vertical: 58° to 17°

    • Diagonal: 138° to 36°

  • Iris control: Fixed

  • Close focus distance: 0.1 m


Angle Adjustment

  • Pan: 0° to 360°

  • Tilt: 0° to 90°

  • Rotation: 0° to 360°


DORI Performance

  • Wide end (2.7 mm):

    • Detect: 85.3 m

    • Observe: 34.0 m

    • Recognize: 17.1 m

    • Identify: 8.5 m

  • Tele end (13.5 mm):

    • Detect: 280.0 m

    • Observe: 112.0 m

    • Recognize: 56.0 m

    • Identify: 28.0 m

  • DORI values are based on EN-62676-4 and do not represent intelligent analytics distances


Intelligence

  • Perimeter protection: intrusion and tripwire with human and vehicle classification

  • SMD: SMD 4.0

  • AcuPick: deep-learning based target search for people and motor vehicles

  • AI SSA: automatic image parameter optimisation based on scene conditions

  • Smart search: works with Smart NVR for refined intelligent search and event extraction


Video

  • Video compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

  • Smart codec: Smart H.265+, Smart H.264+

  • AI coding: AI H.265, AI H.264

  • Frame rate:

    • Main stream: 3840 × 2160 at 1–25/30 fps

    • Sub stream: 1920 × 1080 at 1–25/30 fps

    • Third stream: 1920 × 1080 at 1–25/30 fps

  • Stream capability: 3 streams

  • Supported resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

  • Bit rate control: VBR, CBR, ABR

  • Video bit rate:

    • H.264: 3 kbps to 16,384 kbps

    • H.265: 3 kbps to 16,384 kbps


Image Features

  • Day/Night mode: Auto (ICR), Color, B/W

  • Wide dynamic range: 120 dB

  • BLC and HLC supported

  • 3D noise reduction

  • Electronic image stabilisation (EIS)

  • Region of interest: up to 4 areas

  • Smart illumination and smart dual light

  • Defog supported

  • AFSA supported

  • Image rotation: 0°, 90°, 180°, 270°

  • Mirror mode supported

  • Privacy masking: up to 8 areas


Audio

  • Built-in microphone

  • Audio compression: G.711a, G.711Mu, PCM, G.726, G.723


Alarm & Events

  • Alarm input: 1 channel (wet contact, 3–5 VDC)

  • Alarm output: 1 channel (wet contact, 12 VDC)

  • Event types: motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, defocus detection, voltage detection, SMD events, SD card events, network and security exceptions


Network

  • Network port: RJ-45 (10/100 Base-T)

  • ONVIF: Profile S, G, T and M

  • Supported protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, QoS, UPnP, Multicast, P2P

  • Maximum simultaneous users: 20

  • SDK and API supported


Storage

  • Micro SD card support up to 512 GB

  • FTP, SFTP and NAS storage supported


Power

  • Power supply: 12 VDC or PoE (802.3af)

  • Power consumption:

    • Typical: 3.8 W (12 VDC), 5.3 W (PoE)

    • Maximum: 9.9 W (12 VDC), 12.5 W (PoE)

  • Dual power backup supported


Environment

  • Operating temperature: –30 °C to +60 °C

  • Operating humidity: ≤95% RH (non-condensing)

  • Storage temperature: –40 °C to +60 °C

  • Storage humidity: ≤95% RH (non-condensing)

  • Ingress protection: IP67


Physical

  • Casing material: Metal

  • Dimensions: 238.5 × 90.7 × 90.7 mm

  • Net weight: 835 g

  • Gross weight: 1090 g

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
