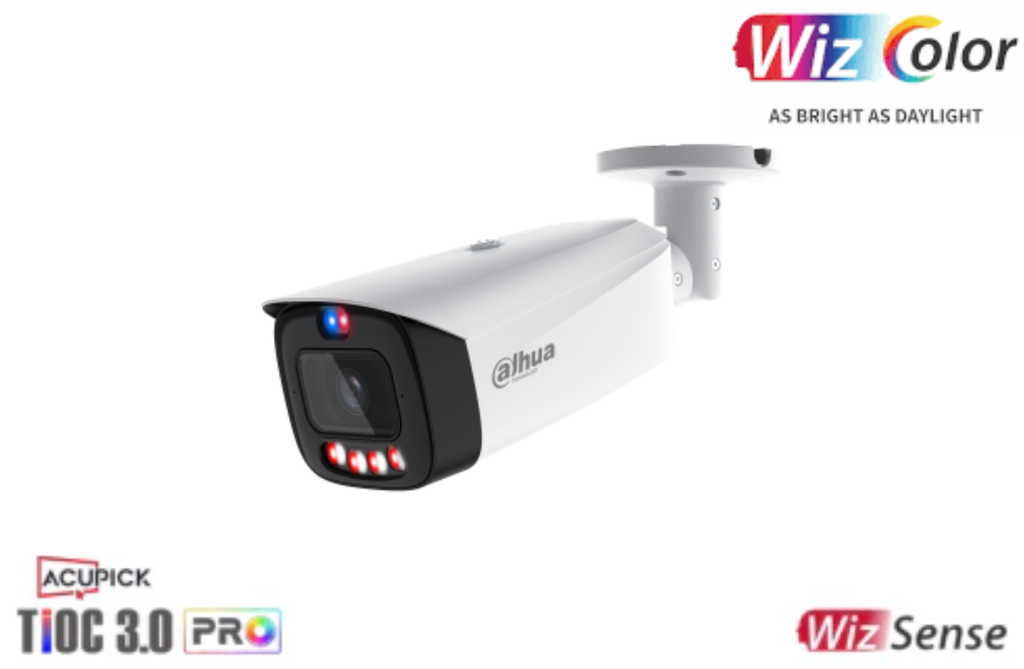

Dahua 8MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera

Dahua 8MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera
Regular price $378.00

8MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera

Key Features

  • 8 MP 1/1.8" CMOS image sensor with ultra-low illumination

  • Maximum resolution: 3840 × 2160 at 25/30 fps

  • H.265 / H.264 video compression with Smart Codec (AI H.265 / AI H.264)

  • Built-in multi-core dual light (IR + warm light), illumination distance up to 50 m

  • Sound and light active deterrence with red and blue warning lights

  • SMD 4.0 with human and vehicle classification

  • AI SSA (Scene Self-Adaptation)

  • One-tap arming and disarming

  • Built-in dual microphones and speaker with two-way audio

  • Supports Micro SD card up to 512 GB

  • IP67 weather protection

  • Datasheet

Camera

  • Image sensor: 1/1.8" CMOS

  • Scanning system: Progressive

  • Electronic shutter: Auto / Manual, 1/3 s to 1/100,000 s

  • Minimum illumination:

    • 0.0004 lux @ F1.0 (Color, 30 IRE)

    • 0.0002 lux @ F1.0 (B/W, 30 IRE)

    • 0 lux (illuminator on)

  • S/N ratio: >56 dB


Illumination

  • IR illumination distance: up to 50 m

  • Warm light illumination distance: up to 50 m

  • Illuminator control: Auto / Manual

  • Illuminators: 4 × multi-core (IR + warm light)


Lens

  • Lens type: Fixed-focal

  • Lens mount: M16

  • Focal length options: 2.8 mm, 3.6 mm

  • Maximum aperture: F1.0

  • Field of view:

    • 2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°

    • 3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°

  • Close focus distance:

    • 2.8 mm: 3.2 m

    • 3.6 mm: 4.4 m


Angle Adjustment

  • Pan: 0° to 360°

  • Tilt: 0° to 90°

  • Rotation: 0° to 360°


DORI Performance

  • 2.8 mm lens:

    • Detect: 82.0 m

    • Observe: 32.8 m

    • Recognize: 16.4 m

    • Identify: 8.2 m

  • 3.6 mm lens:

    • Detect: 100.0 m

    • Observe: 40.2 m

    • Recognize: 20.0 m

    • Identify: 10.0 m

  • DORI values are based on EN-62676-4 and do not represent intelligent analytics distances


Intelligence

  • Perimeter protection: intrusion, tripwire, stay detection, loitering detection (human and vehicle classification)

  • Face detection (full image): face capture, snapshot optimisation, face enhancement, face angle filtering, multiple snapshot strategies

  • SMD: SMD 4.0

  • Smart search: works with Smart NVR for refined event search

  • AcuPick: deep-learning based target search for people and motor vehicles

  • AI SSA: automatic image optimisation based on scene conditions


Video

  • Video compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

  • AI coding: AI H.265, AI H.264, Smart H.265+, Smart H.264+

  • Frame rate:

    • Main stream: 3840 × 2160 at 1–25/30 fps

    • Sub stream: 1920 × 1080 at 1–25/30 fps

    • Third stream: 1920 × 1080 at 1–25/30 fps

  • Stream capability: 3 streams

  • Supported resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

  • Bit rate control: VBR, CBR, ABR

  • Video bit rate:

    • H.264: 3 kbps to 16,384 kbps

    • H.265: 3 kbps to 16,384 kbps


Image Features

  • Day/Night mode: Auto (ICR), Color, B/W

  • Wide dynamic range: 120 dB

  • BLC and HLC supported

  • 3D noise reduction

  • Smart dual light and smart illumination

  • Defog supported

  • Image rotation: 0°, 90°, 180°, 270°

  • Privacy masking: up to 8 areas

  • Region of interest: up to 4 areas

  • Lens distortion correction supported


Audio

  • Built-in dual microphones

  • Built-in speaker with maximum sound level of 110 dB at 10 cm

  • Two-way audio supported

  • Audio compression: PCM, G.711a, G.711Mu, G.726, G.723


Alarm & Events

  • Alarm input: 1 channel (wet contact, 3–5 VDC)

  • Alarm output: 1 channel (wet contact, 12 VDC)

  • Event types: motion detection, video tampering, intrusion, tripwire, stay detection, loitering detection, face detection, audio detection, scene changing, voltage detection, SMD events, SD card events, network and security exceptions


Network

  • Network port: RJ-45 (10/100 Base-T)

  • ONVIF: Profile S, G, T and M

  • Supported protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, FTP, SMTP, DHCP, DNS, NTP, SNMP, QoS, UPnP, P2P, Bonjour, Multicast

  • Maximum simultaneous users: 20

  • SDK and API supported


Storage

  • Micro SD card support up to 512 GB

  • FTP, SFTP and NAS storage supported


Power

  • Power supply: 12 VDC or PoE+ (802.3at)

  • Power consumption:

    • Typical: 4.3 W (12 VDC), 6.2 W (PoE)

    • Maximum: 11.8 W (12 VDC), 15.1 W (PoE)

  • Dual power backup supported


Environment

  • Operating temperature: –40 °C to +60 °C

  • Operating humidity: ≤95% RH (non-condensing)

  • Ingress protection: IP67


Physical

  • Casing material: Metal and plastic

  • Dimensions: 288.4 × 94.4 × 84.7 mm

  • Net weight: 1.0 kg

  • Gross weight: 1.3 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
