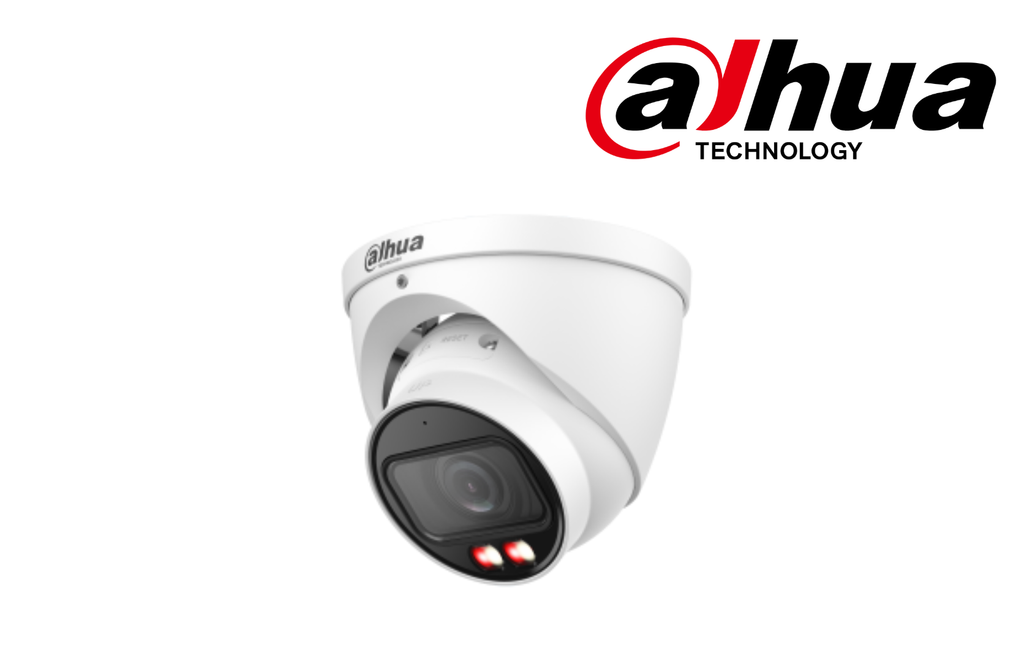

Dahua IPC-HDW3867T-ZS-IL-ANZ 8MP Smart Dual Light Vari-focal Eyeball WizSense Network…
Regular price
$344.40
8MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
Overview
-
8 MP 1/2.7" CMOS image sensor with low luminance and high-definition imaging
-
Maximum resolution 8 MP (3840 × 2160) at 25/30 fps
-
H.265 / H.264 video compression with ultra-low bitrate
-
Built-in multi-core Smart Dual Light (IR + warm light)
-
IR illumination up to 50 m
-
Warm light illumination up to 40 m
-
-
Advanced encoding: ROI, Smart H.264+/H.265+, AI H.264/H.265
-
Image enhancements: rotation mode, 120 dB WDR, 3D NR, HLC, BLC, digital watermarking
-
Intelligent monitoring: intrusion, tripwire with human/vehicle classification
-
Abnormality detection: motion detection, video tampering, scene changing, audio detection, SD card exceptions, network exceptions, illegal access, voltage detection
-
Storage: supports Micro SD up to 512 GB
-
Built-in microphone
-
Power via 12 VDC or PoE (802.3af)
-
IP67 weather protection
-
SMD 4.0 and AI SSA
-
SMD zones can be configured within warm light areas for alarm triggering
- Datasheet
Camera
-
Image Sensor: 1/2.7" CMOS
-
Max. Resolution: 3840 (H) × 2160 (V)
-
Scanning System: Progressive
-
Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s
-
Min. Illumination:
-
0.007 lux @ F1.4 (Color, 30 IRE)
-
0.0007 lux @ F1.4 (B/W, 30 IRE)
-
0 lux (Illuminator on)
-
-
S/N Ratio: > 56 dB
-
ROM: 256 MB
-
RAM: 1 GB
Illumination
-
IR Distance: Up to 50 m (164.04 ft)
-
Warm Light Distance: Up to 40 m (131.23 ft)
-
Illuminator Control: Auto / Manual
-
Illuminator Quantity: 4 (multi-core IR + warm light)
Angle Adjustment
-
Pan: 0° – 360°
-
Tilt: 0° – 78°
-
Rotation: 0° – 360°
Lens
-
Lens Type: Motorized vari-focal
-
Lens Mount: φ14
-
Focal Length: 2.7 mm – 13.5 mm
-
Max. Aperture: F1.4
-
Iris Control: Fixed
-
Close Focus Distance: 0.1 m (0.33 ft)
Field of View
-
Horizontal: 114° – 32°
-
Vertical: 58° – 17°
-
Diagonal: 138° – 36°
DORI Performance
-
Wide (W):
-
Detect: 85.3 m (279.86 ft)
-
Observe: 34.0 m (111.55 ft)
-
Recognize: 17.1 m (56.10 ft)
-
Identify: 8.5 m (27.89 ft)
-
-
Tele (T):
-
Detect: 280.0 m (918.64 ft)
-
Observe: 112.0 m (367.45 ft)
-
Recognize: 56.0 m (183.73 ft)
-
Identify: 28.0 m (91.86 ft)
-
DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.
Intelligent Functions
-
IVS (Perimeter Protection): Tripwire, intrusion with accurate human and vehicle classification
-
SMD: SMD 4.0
-
AcuPick: AI-based target search for people and motor vehicles (with compatible back-end devices)
-
AI SSA: Intelligent scene self-adaptation using deep learning
-
Smart Search: Works with Smart NVR for intelligent event extraction and event video merging
Video
-
Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
-
Smart Codec: Smart H.265+ / Smart H.264+
-
AI Coding: AI H.265 / AI H.264
-
Video Frame Rate:
-
Main Stream: 3840 × 2160 @ 1–25/30 fps
-
Sub Stream: 1920 × 1080 @ 1–25/30 fps
-
Third Stream: 1920 × 1080 @ 1–25/30 fps
-
-
Stream Capability: 3 streams
-
Supported Resolutions:
-
8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728)
-
4M (2688 × 1520 / 2560 × 1440), 3M (2304 × 1296)
-
1080p, 720p, D1, VGA, CIF
-
-
Bit Rate Control: VBR / CBR / ABR
-
Video Bit Rate:
-
H.264: 3 kbps – 16,384 kbps
-
H.265: 3 kbps – 16,384 kbps
-
-
Day/Night Mode: Auto (ICR) / Color / B/W
-
WDR: 120 dB
-
BLC / HLC: Supported
-
Scene Self-adaptation (SSA): Yes
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Motion Detection: On/Off (4 rectangular areas)
-
Image Stabilization: Electronic Image Stabilization (EIS)
-
Region of Interest: 4 configurable areas
-
Smart Illumination: Yes
-
Smart Dual Light: Yes
-
Defog: Yes
-
AFSA: Yes
-
Image Rotation: 0° / 90° / 180° / 270° (90°/270° supported at 2688 × 1520 and below)
-
Mirror: Supported
-
Privacy Masking: 8 areas
Audio
-
Built-in Microphone: Yes, built-in mic
-
Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723
Alarm
-
Alarm Events: No SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene change, audio detection, voltage detection, defocus detection, SMD, safety exceptions
Network
-
Network Port: RJ-45 (10/100 Base-T)
-
SDK / API: Supported
-
Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
-
Interoperability: ONVIF Profile S / G / T / M, CGI
-
Max Users: 20 (total bandwidth 64 Mbps)
Storage
-
Storage Methods: Micro SD (up to 512 GB), FTP, SFTP, NAS
Software & Access
-
Browser: IE11, Chrome, Firefox
-
Management Software: SmartPSS Lite, DSS, DMSS
-
Mobile Client: iOS, Android
Cyber Security
-
Video encryption, firmware encryption, configuration encryption
-
Digest, WSSE, account lockout, security logs
-
IP/MAC filtering
-
X.509 certificate generation/import
-
Syslog, HTTPS, 802.1x
-
Trusted boot, trusted execution, trusted upgrade
Certification
-
CE-LVD: EN 62368-1
-
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
-
Power Supply: 12 VDC / PoE (802.3af)
-
Dual Power Backup: If adapter and PoE are connected, disconnect one source — device continues operating (no restart)
-
Power Consumption:
-
Basic: 3.7 W (12 VDC), 4.5 W (PoE)
-
Max (H.265 / WDR / warm light / intelligence on): 8.2 W (12 VDC), 9.8 W (PoE)
-
Environment & Physical
-
Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
-
Operating Humidity: ≤ 95% RH, non-condensing
-
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
-
Storage Humidity: ≤ 95% RH, non-condensing
-
Protection Rating: IP67
-
Casing: Metal
-
Dimensions: 108.3 mm × Φ122.0 mm
-
Net Weight: 690 g
-
Gross Weight: 920 g
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
