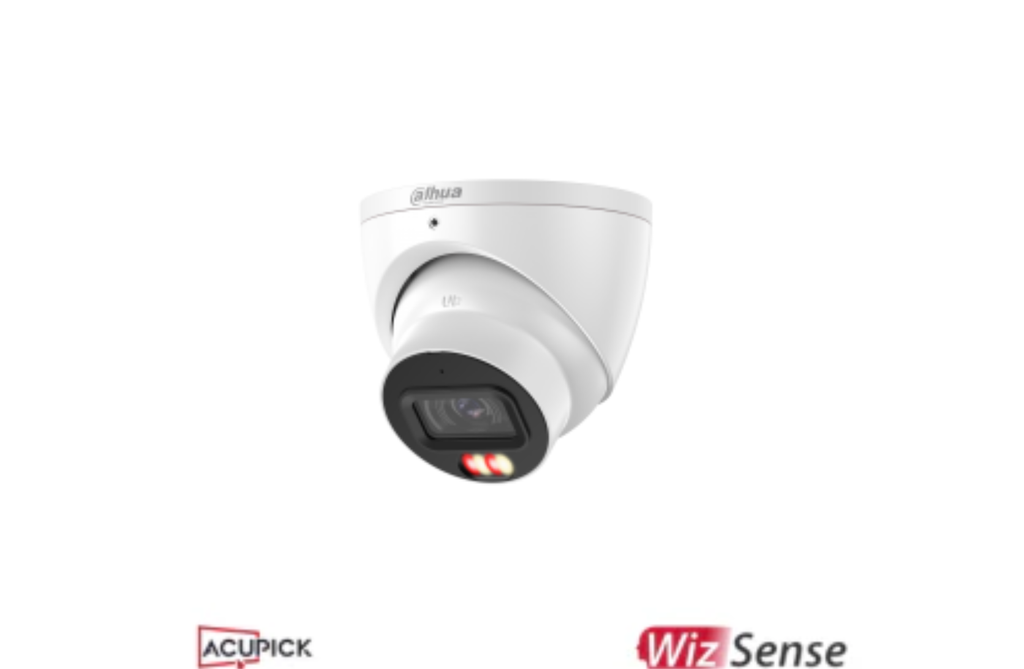

Dahua IPC-HDW3667EM-S-IL-ANZ 6MP Smart Dual Light Fixed-focal Eyeball WizSense Network…

Regular price $224.71
Price includes GST · Fast delivery from VIC
In stock
Manufacturer warrantyGenuine, authorised stock
Fast deliveryDispatched from VIC

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera Overview 6 MP 1/2.7" CMOS image sensor with low luminance and high-definition imaging · Maximum resolution 6 MP (3288 × 1850) at 25/30 fps · H.265 / H.264 video compression with...

See full specifications ↓
1300 003 978Speak to a security expert

Available to order online

  • OnlineIn stock
  • In-storeOut of stock

Orders are dispatched from Victoria.

Call 1300 003 978 to check availability.

Buy this product
Add professional installation — request a quote
  • Genuine products with manufacturer warranty
  • Fast delivery – dispatched from VIC
  • Expert support: 1300 003 978 · Mon–Fri 9am–6pm
  • Secure checkout
American Express Apple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

Overview

  • 6 MP 1/2.7" CMOS image sensor with low luminance and high-definition imaging

  • Maximum resolution 6 MP (3288 × 1850) at 25/30 fps

  • H.265 / H.264 video compression with ultra-low bitrate

  • Built-in multi-core dual light (IR + warm light) with up to 30 m illumination

  • Supports SMD 4.0 and AI SSA

  • Supports Micro SD card up to 512 GB

  • Built-in microphone

  • Power via 12 VDC or PoE (802.3af)

  • IP67 weather protection

  • Datasheet

Key Features

  • Smart Dual Light with adaptive IR and warm light switching

  • Intelligent perimeter protection with human and vehicle classification

  • Flexible encoding with Smart H.264+/H.265+ and AI H.264/H.265

  • Wide dynamic range (120 dB WDR) for complex lighting environments

  • SMD detection zones can be configured within warm light areas for alarm triggering


Camera

  • Image Sensor: 1/2.7" CMOS

  • Max. Resolution: 3288 (H) × 1850 (V)

  • Scanning System: Progressive

  • Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

  • Min. Illumination:

    • 0.005 lux @ F1.4 (Color, 30 IRE)

    • 0.0005 lux @ F1.4 (B/W, 30 IRE)

    • 0 lux (Illuminator on)

  • S/N Ratio: > 56 dB

  • ROM: 256 MB

  • RAM: 1 GB


Illumination

  • IR Distance: Up to 30 m (98.43 ft)

  • Warm Light Distance: Up to 30 m (98.43 ft)

  • Illuminator Type: Multi-core (IR + warm light)

  • Illuminator Control: Auto / Manual

  • Illuminator Quantity: 2


Angle Adjustment

  • Pan: 0° – 360°

  • Tilt: 0° – 80°

  • Rotation: 0° – 360°


Lens

  • Lens Type: Fixed-focal

  • Lens Mount: M12

  • Focal Length Options: 2.8 mm, 3.6 mm

  • Max. Aperture: F1.4

  • Iris Control: Fixed


Field of View

  • 2.8 mm: Horizontal 110°, Vertical 58°, Diagonal 132°

  • 3.6 mm: Horizontal 86°, Vertical 49°, Diagonal 100°


Close Focus Distance

  • 2.8 mm: 1.4 m (4.59 ft)

  • 3.6 mm: 1.9 m (6.23 ft)


DORI Performance

  • 2.8 mm:

    • Detect: 84.8 m

    • Observe: 33.9 m

    • Recognize: 17.0 m

    • Identify: 8.5 m

  • 3.6 mm:

    • Detect: 98.7 m

    • Observe: 39.5 m

    • Recognize: 19.7 m

    • Identify: 9.9 m

DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.


Intelligent Functions

  • IVS (Perimeter Protection): Intrusion, tripwire with accurate human and vehicle classification

  • SMD: SMD 4.0

  • AcuPick: AI-based target search for people and motor vehicles

  • AI SSA: Intelligent scene self-adaptation

  • Smart Search: Works with Smart NVR for intelligent event extraction and playback


Video

  • Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

  • AI Coding: AI H.265, AI H.264 (Smart H.264+ / H.265+)

  • Video Frame Rate:

    • Main Stream: 3288 × 1850 @ 1–25/30 fps

    • Sub Stream: 1920 × 1080 @ 1–25/30 fps

    • Third Stream: 1920 × 1080 @ 1–25/30 fps

  • Streaming Capability: 3 streams

  • Bit Rate Control: VBR / CBR / ABR

  • Video Bit Rate:

    • H.264: 3 kbps – 16,384 kbps

    • H.265: 3 kbps – 16,384 kbps



  • Day/Night Mode: Auto (ICR) / Color / B/W

  • WDR: 120 dB

  • BLC / HLC: Supported

  • White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

  • Gain Control: Auto / Manual

  • Noise Reduction: 3D NR

  • Motion Detection: On/Off (4 rectangular areas)

  • Region of Interest: 4 configurable areas

  • Smart Illumination: Yes

  • Smart Dual Light: Yes

  • Defog: Yes

  • Image Rotation: 0° / 90° / 180° / 270°

  • Mirror: Supported

  • Privacy Masking: 8 areas

  • LDC: Supported


Audio

  • Built-in Microphone: Yes

  • Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723


Alarm

  • Alarm Events: Motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, SD card exceptions, network exceptions, illegal access


Network

  • Network Port: RJ-45 (10/100 Base-T)

  • SDK / API: Supported

  • Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, QoS, NTP, SNMP, UPnP, P2P

  • Interoperability: ONVIF Profile S / G / T / M, CGI

  • Max Users: 20 (total bandwidth 64 Mbps)


Storage

  • Storage Media: Micro SD card (up to 512 GB), FTP, SFTP, NAS


Software & Access

  • Browser: IE11, Chrome, Firefox

  • Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

  • Mobile Client: iOS, Android


Security

  • Security Features: Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate support, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade


Power

  • Power Supply: 12 VDC / PoE (802.3af)

  • Dual Power Backup: Device continues operating if one power source is disconnected

  • Power Consumption:

    • Basic: 3.7 W (12 VDC), 5.3 W (PoE)

    • Max: 7.4 W (12 VDC), 9.5 W (PoE)


Environment

  • Operating Temperature: –40 °C to +60 °C

  • Operating Humidity: ≤ 95% RH, non-condensing

  • Storage Temperature: –40 °C to +60 °C

  • Storage Humidity: ≤ 95% RH, non-condensing


Physical

  • Protection Rating: IP67

  • Casing Material: Metal

  • Dimensions: 105.5 mm × Φ122.0 mm

  • Net Weight: 0.53 kg

  • Gross Weight: 0.71 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

General

BrandDahua
Model / SKUDH-IPC-HDW3667EM-S-IL-ANZ
