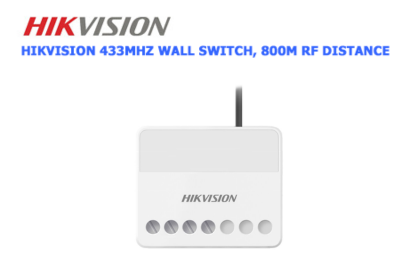

Hikvision Ax Pro Wall Switch
Regular price
$68.00
Wall Switch
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show status of device and replay on/off display
- Small case design, which can be put into hiding places easily
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
- Datasheet
Software Features
-
Scenario Setting: By Alarm, By Operation, By Fault, By Schedule, By Manual
-
Learning Button: 1 (for registration)
Hardware Features
-
Serial Port: 1 (for debugging)
Electrical Characteristics
-
Power Supply: AC 100V – 240V, 50/60 Hz
-
Operating Humidity: 10% ~ 90%
-
Operating Temperature: -10 °C ~ +55 °C
Wireless Transmission
-
RF Frequency: 433 MHz
-
RF Method: Two-way communication
-
RF Modulation: 2GFSK
-
RF Distance: 800 m
-
Wireless Security: AES-128
Display
-
LED Status Indicators:
-
Register/Signal: Green/Red
-
Power: Green
-
Relay Status: Blue
-
General
-
Installation Method: Wall mounting or inside 86 box
-
Dimensions (W × H × D): 38 × 25 × 18 mm
-
Shell Material: Plastic
-
Color: White
-
Weight: 31.5 g
Device Management
-
Relay Output: 1 (NO/NC, AC 100~240V, Max 13A)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
