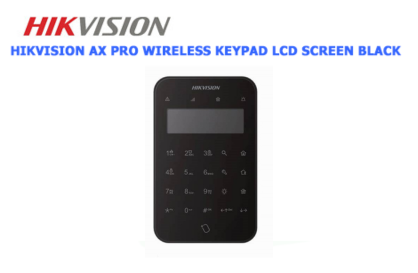

Hikvision DS-PK1-LT-WB-BLK Ax Pro Wireless LCD Keypad Black
Regular price
$201.00
Wireless LCD Keypad
- 433MHz two-way wireless communication
- LCD screen and LED to indicate system status
- System configuration through LCD screen
- Multiple operations like stay/away arm, disarm, silent alarm, output control
- One-Push fire alarm, panic alarm, and medical alarm
- Full touch key design with LED backlight
- Fully remote configurable through App
- Datasheet
Hardware Features
-
Tag Reader Built-In: Supported
-
Serial Ports: 3
-
Tamper-Proof: Supported (Front and Rear)
-
Buzzer: Supported
-
Power Switch: Power On/Off
Electrical Characteristics
-
Battery Type: Four CR123 Batteries
-
Battery Life Span: Up to 2 Years (Standby Time)
-
Power Consumption:
-
Quiescent Current: 80μA
-
Max Current: 300mA
-
Voltage: 3V
-
-
Operation Temperature: -10°C to +55°C
-
Operation Humidity: 10% to 90%
Wireless Transmission
-
RF Frequency: 433 MHz
-
RF Modulation: 2GFSK
-
RF Distance: 800m (Open Area)
-
Wireless Technology: Tri-X Wireless Technology
Display & Input
-
Numeric Keys:
-
Number Keys: 0–9
-
Function Keys: *, #, Query, Away Arm, Stay Arm, Disarm, Output, Project, Right, Left
-
-
LED Indicators:
-
Fault: Orange
-
Enrollment/Signal: Red/Green
-
Arm: Blue
-
Disarm: Green
-
Alarm: Red
-
General
-
Installation Method: Wall Mounting
-
Dimensions (W × H × D): 174.63 × 109.62 × 25.25 mm
-
Weight:
-
With Batteries: 348g
-
Without Batteries: 282g
-
-
Color: White
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
