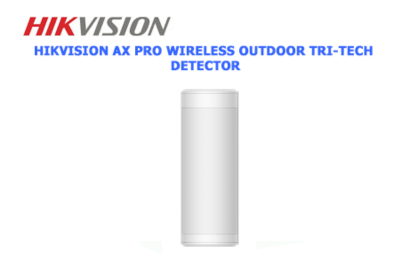

Hikvision Ax Pro Wireless Triple Signal Detector
Regular price
$281.70
Wireless Triple Signal Detector
- 90°@180° adjustable coverage
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
- Datasheet
Detection Performance
-
Detection Method: Passive Infrared; Microwave
-
Detection Range: 15 m
-
Detection Angle: 90° @ 180° adjustable
-
Detection Zones: 92
-
Detectable Speed: 0.3–2 m/s
-
Sensitivity: Auto; Low
-
White Light Filter: 10,000 lux
-
Microwave Frequency: 24GHz (24.15–24.25GHz)
-
Pet Immunity: 40Kg
-
Digital Temperature Compensation: Support
-
Anti-masking: Support
-
Adaptable Coverage: Support (Pattern mask included)
Features
-
Digital Processing: Tri-Signal Logic
-
Sealed Optics: Support
-
Tamper Protection: Front; Rear
-
Environment Temperature Indicator: Support
-
Signal Strength Indicator: Support
-
Anti-Sway Analytics: Support
Interface
-
Power Switch: Yes
-
Power Up Enrolling: Yes
-
LED Indicator:
-
Green (Top PIR)
-
Red (Microwave)
-
Orange (Bottom PIR)
-
Green + Orange (Mask)
-
Blue (Alarm)
-
Transmission
-
Transmission Technology: Tri-X Wireless
-
Transmission Method: Two-Way RF Wireless
-
Transmission Frequency: 433MHz
-
Transmission Security: AES-128 Encryption
-
Transmission Range (Free Space): 1 Km
-
Frequency Hopping: Support
-
Enrolling Method: Power Up, Remote ID, QR Code
Electrical Characteristics
-
Standard Battery Life: Up to 5 years (standby time)
-
Note: Battery life may be significantly reduced at low temperatures
-
-
Power Supply: Battery Powered
-
Battery Type: CR123A × 5
-
Typical Voltage: 3V
General
-
Operation Temperature: -25°C to 60°C (-13°F to 140°F)
-
Storage Temperature: -25°C to 60°C (-13°F to 140°F)
-
Operation Humidity: 10% to 90%
-
IP Rating: IP65
-
Dimensions (W × H × D): 75 mm × 202 mm × 73 mm
-
Weight: 600g
-
Mounting Height: 0.8 to 1.2 m
-
Mounting Method: Wall
-
Application Scenario: Outdoor
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
