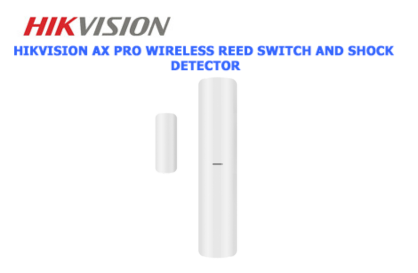

Hikvision Ax Pro Wireless Magnet Shock Detector

Hikvision Ax Pro Wireless Magnet Shock Detector
Regular price $68.00

Wireless Magnet Shock Detector

  • Magnetic contact combined with shock and tilt detection
  • 2 wired inputs extension
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
  • Datasheet



Category Feature Details
Detection Performance Detection Method Opening Contact; Shock Sensor
Detection Gap 43mm Max
Sensitivity Shock Detection: High, Normal, Low Tilt Detection: Up to 25°
Feature Digital Processing Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface Alarm Input Normally Closed; Normally Open; Impulse Count
Power Switch Power Up Enrolling
LED Indicator Green (MC), Orange (Tilt), Red (Shock), Blue (Alarm)
Transmission Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1Km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics Standard Battery Life Up to 3 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 1
Typical Voltage 3V
General Operation Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operation Humidity 10% to 90%
Dimension (W × H × D) - Main Unit 22.5mm × 103mm × 23.2mm
Dimension (W × H × D) - Magnet Unit 13mm × 34.4mm × 11.4mm
Weight 60g
Application Scenario Indoor

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
