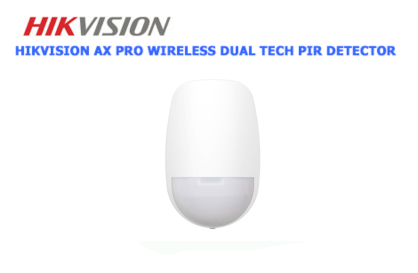

Hikvision Ax Pro Wireless Dual-Tech Detector

Hikvision Ax Pro Wireless Dual-Tech Detector
Regular price $4.50

Wireless Dual-Tech Detector

  • 3D optics including creep-zone protection, full coverage without dead angle
  • 24G microwave to prevent wall penetration
  • Digital temperature compensation
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission
  • Datasheet



Detection Performance

  • Detection Method: Passive Infrared / Microwave

  • Detection Range: 12 m

  • Detection Angle: 85.9°

  • Detection Zones: 52

  • Detectable Speed: 0.3 – 2 m/s

  • Sensitivity: High / Auto / Pet

  • Pet Immunity: Up to 30 kg

  • White Light Filter: 6500 lux

  • Microwave Frequency: 24 GHz (24.15 – 24.25 GHz)

  • Digital Temperature Compensation: Supported

  • Creep Zone Protection: Supported

  • Feature - Digital Processing: Supported

  • Sealed Optics: Supported


Support

  • Tamper Protection: Front / Rear

  • Environment Temperature Indicator: Supported

  • Signal Strength Indicator: Supported


Interface

  • Power Switch: Power Up Enrolling

  • LED Indicator:

    • Green (PIR)

    • Red (Microwave)

    • Blue (Alarm)


Transmission

  • Transmission Technology: Tri-X Wireless

  • Transmission Method: Two-Way RF Wireless

  • Transmission Frequency: 433 MHz

  • Transmission Security: AES-128 Encryption

  • Transmission Range (Free Space): 1.2 km

  • Frequency Hopping: Supported

  • Enrolling Method: Power Up / Remote ID / QR Code


Electrical Characteristics

  • Standard Battery Life: Up to 5 years (standby time)

  • Power Supply: Battery Powered

  • Battery Type: CR123A × 2

  • Typical Voltage: 3 V


General

  • Operating Temperature: -10°C to 55°C (14°F to 131°F)

  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

  • Operating Humidity: 10% to 90%

  • Dimensions (W × H × D): 65.5 mm × 103 mm × 48.5 mm

  • Weight: 141 g

  • Mounting Height: 1.8 to 2.4 m

  • Mounting Method: Wall

  • Application Scenario: Indoor

  • Bracket: Optional Wall & Ceiling Accessory

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
