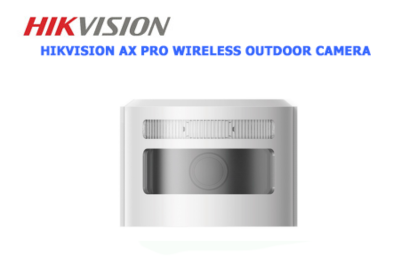

Hikvision Ax Pro RF Camera Module
Regular price
$281.70
RF Camera Module
- 1/2.7" Progressive Scan CMOS
- 2.0 mm fixed lens
- 3D Digital Noise Reduction
- Easy Installation
- The direction of the Angle can be adjusted to fit the TT Detector's Angle
- Protection Level IP66
- Datasheet
Detection Performance
-
Detection Method: Video Verification
Feature
-
Digital Noise Reduction: 3D
Optics
-
Focal Length: 2.0 mm @ F2.25
Video
-
Field of View:
-
Horizontal: 137.2°
-
Vertical: 80.1°
-
-
Image Type: JPEG
-
Resolution Options:
-
640 × 480
-
320 × 240
-
160 × 120
-
-
Fill Light: Infrared Light
-
Fill Light Range: 15 m
-
Day/Night Switch: Auto
Interface
-
Communication Interface: 1 × 12-Bit Data Interface
Electrical Characteristics
-
Power Supply: 3 VDC
-
Power Consumption: 1200 mA
General
-
Operating Temperature: -25°C to 60°C (-13°F to 140°F)
-
Storage Temperature: -25°C to 60°C (-13°F to 140°F)
-
Operating Humidity: 10% to 90%
-
IP Rating: IP66
-
Dimensions (W × H × D): 74.1 mm × 72.35 mm × 53 mm
-
Weight: 155 g
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
