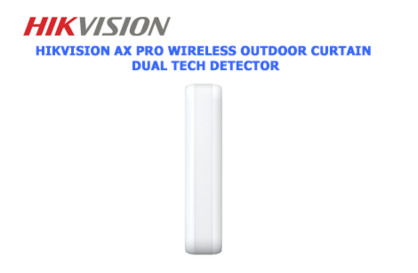

Hikvision Ax Pro Wireless Dual-Tech AM Curtain Detector
Regular price
$140.00
Wireless Dual-Tech AM Curtain Detector
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Directional detection support
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
- Datasheet
Detection Performance
-
Detection Method: Passive Infrared / Microwave
-
Detection Range:
-
Wall mount: 10 m
-
Ceiling mount: 5 m
-
-
Detection Angle: 5°
-
Detection Zones: 32
-
Detectable Speed: 0.3 – 2 m/s
-
Sensitivity: Auto / Pet
-
White Light Filter: 6500 lux
-
Microwave Frequency: 24 GHz (24.15 – 24.25 GHz)
-
Pet Immunity:
-
Wall mount: 12 kg
-
Ceiling mount: None
-
-
Digital Temperature Compensation: Supported
-
Creep Zone Protection: Supported
-
Anti-masking: Supported
-
Feature - Digital Processing: Supported
-
Sealed Optics: Supported
Support
-
Tamper Protection: Front / Rear
-
Environment Temperature Indicator: Supported
-
Signal Strength Indicator: Supported
-
Directional Detection: Supported
Interface
-
Power Switch: Power Up Enrolling
-
LED Indicator:
-
Green (PIR)
-
Red (Microwave)
-
Green + Orange (Mask)
-
Blue (Alarm)
-
Transmission
-
Transmission Technology: Tri-X Wireless
-
Transmission Method: Two-Way RF Wireless
-
Transmission Frequency: 433 MHz
-
Transmission Security: AES-128 Encryption
-
Transmission Range (Free Space): 1 km
-
Frequency Hopping: Supported
-
Enrolling Method: Power Up / Remote ID / QR Code
Electrical Characteristics
-
Standard Battery Life: Up to 5 years (standby time)
Note: Battery life may be significantly reduced at low temperatures.
-
Power Supply: Battery Powered
-
Battery Type: CR123A × 2
-
Typical Voltage: 3 V
General
-
Operating Temperature: -25°C to 60°C (-13°F to 140°F)
-
Storage Temperature: -25°C to 60°C (-13°F to 140°F)
-
Operating Humidity: 10% to 90%
-
IP Rating: IP65
-
Dimensions (W × H × D): 29.2 mm × 134.4 mm × 39.5 mm
-
Weight: 120 g
-
Mounting Height: 2 m to 3.5 m
-
Mounting Method: Wall / Ceiling
-
Application Scenario: Indoor / Outdoor
-
Bracket: L-shaped adapter included
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
