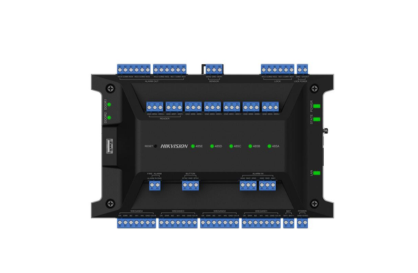

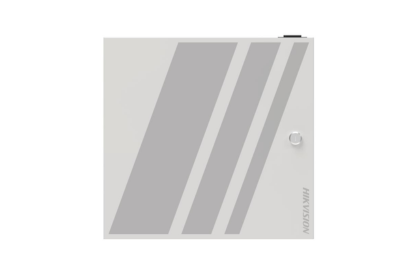

HIKVISION Access Controller
Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System Parameters
Operating System
- Linux
Network
- Wired Network: 1, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface: 1
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 4
- Tamper: 1
-
RS-485: 7
- 2 for card reader
- 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
- USB: 1 (USB 2.0)
- Fire Interface: 1
Capacity
- User Capacity: 100,000
- Fingerprint Capacity: 10,000
- Card Capacity: 200,000
- Event Capacity: 600,000
-
Linked Door Capacity:
- Self: 2 doors
- Extended: Up to 126 doors (connected with 62 access modules)
-
Linked Card Reader Capacity:
- 4 RS-485 card readers (OSDP protocol)
- 4 Wiegand card readers
Authentication
- Fingerprint Recognition Duration: ＜ 1 s
General
-
Indicator: 10 indicators
- 1 for power status
- 1 for running status
- 1 for wired network status
- 5 for RS-485 status
- 2 for door status
- Power Supply: 100 VAC to 240 VAC
- Battery: Charge and discharge
- Power Consumption: ≤ 72 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0% to 90% (Non-condensing)
- Installation: Wall mounting
Language Support
- English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Functionality
- Configuration via Web Browser: Supported
- Multi-Factor Authentication: Supported
- First Person In: Supported
- Anti-Passback: Supported (32 routes, 64 card readers each)
- Multi-Door Interlocking: Supported (32 groups, 32 doors each)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
