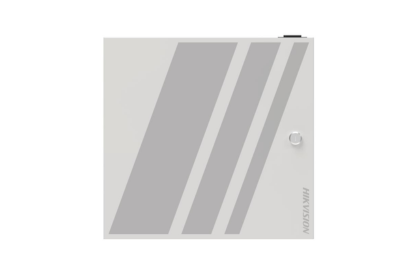

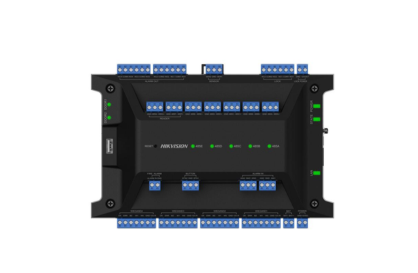

HIKVISION Access Controller

Regular price $79.00
Price includes GST · Fast delivery from VIC
In stock
Manufacturer warrantyGenuine, authorised stock
Fast deliveryDispatched from VIC
  • Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
  • Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
  • Web configuration management. All configurations can be realized via web without software application
  • Supports professional access control applications such as multi-door interlocking and anti-passback
  • Supports backup battery access. Charging and discharging are available
  • It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
  • Datasheet
See full specifications ↓
1300 003 978Speak to a security expert

Available to order online

  • OnlineIn stock
  • In-storeOut of stock

Orders are dispatched from Victoria.

Call 1300 003 978 to check availability.

Buy this product
Add professional installation — request a quote
  • Genuine products with manufacturer warranty
  • Fast delivery – dispatched from VIC
  • Expert support: 1300 003 978 · Mon–Fri 9am–6pm
  • Secure checkout
American Express Apple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa

Access Controller

  • Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
  • Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
  • Web configuration management. All configurations can be realized via web without software application
  • Supports professional access control applications such as multi-door interlocking and anti-passback
  • Supports backup battery access. Charging and discharging are available
  • It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
  • Datasheet



System Parameters

Operating System

  • Linux

Network

  • Wired Network: 1, 10/100/1000 Mbps self-adaptive

Interface

  • Network Interface: 1
  • Lock Control: 2
  • Exit Button: 2
  • Door Contact Input: 2
  • Alarm Input: 4
  • Alarm Output: 4
  • Tamper: 1
  • RS-485: 7
    • 2 for card reader
    • 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
  • Wiegand: 4 (standard 26/34 input, supports custom Wiegand settings)
  • USB: 1 (USB 2.0)
  • Fire Interface: 1

Capacity

  • User Capacity: 100,000
  • Fingerprint Capacity: 10,000
  • Card Capacity: 200,000
  • Event Capacity: 600,000
  • Linked Door Capacity:
    • Self: 2 doors
    • Extended: Up to 126 doors (connected with 62 access modules)
  • Linked Card Reader Capacity:
    • 4 RS-485 card readers (OSDP protocol)
    • 4 Wiegand card readers

Authentication

  • Fingerprint Recognition Duration: < 1 s

General

  • Indicator: 10 indicators
    • 1 for power status
    • 1 for running status
    • 1 for wired network status
    • 5 for RS-485 status
    • 2 for door status
  • Power Supply: 100 VAC to 240 VAC
  • Battery: Charge and discharge
  • Power Consumption: ≤ 72 W
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 0% to 90% (Non-condensing)
  • Installation: Wall mounting

Language Support

  • English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian

Functionality

  • Configuration via Web Browser: Supported
  • Multi-Factor Authentication: Supported
  • First Person In: Supported
  • Anti-Passback: Supported (32 routes, 64 card readers each)
  • Multi-Door Interlocking: Supported (32 groups, 32 doors each)

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

General

BrandHIKVISION
Model / SKUDS-K2702X
