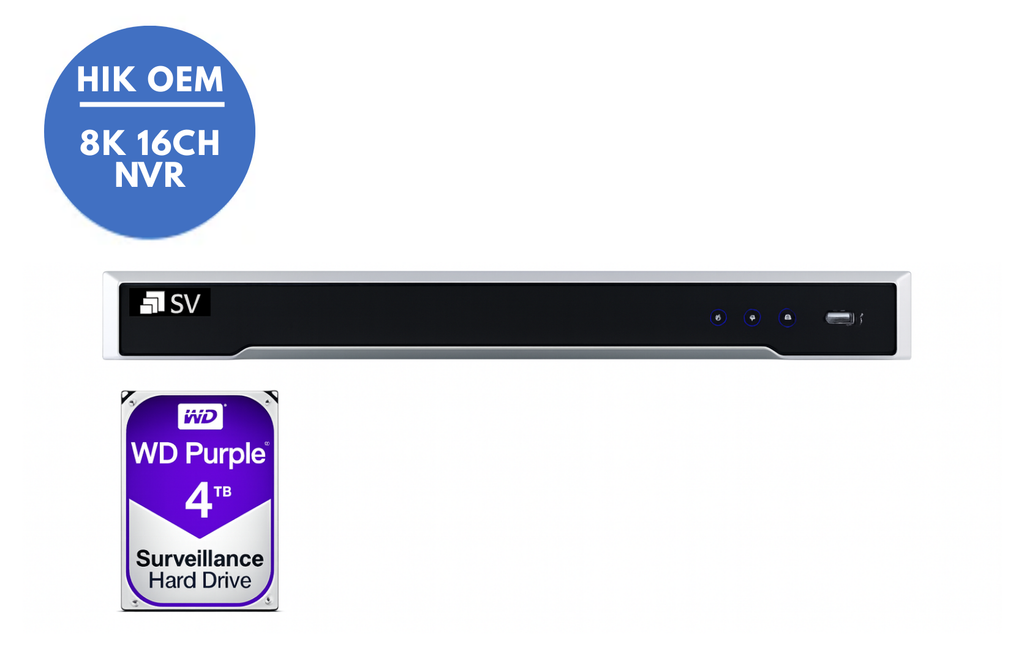

HIKVISION HIK OEM Easy IP Plug & Play 16-ch 1U 16 POE 8K NVR
Regular price
$1,300.00
16-ch 1U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
- Datasheet
Video & Audio
IP Video Input
-
Channels: 16-ch
-
Maximum Resolution: Up to 32 MP
Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.
Bandwidth
-
Incoming: 256 Mbps
-
Outgoing: 256 Mbps
Video Outputs
-
HDMI Output:
-
8K (7680 × 4320) @ 30 Hz
-
4K (3840 × 2160) @ 60 Hz / 30 Hz
-
2K (2560 × 1440) @ 60 Hz
-
1920 × 1080 @ 60 Hz
-
-
VGA Output: 1920 × 1080 @ 60 Hz
-
Video Output Mode: HDMI / VGA independent output
-
CVBS Output:
-
1-ch BNC (1.0 Vp-p, 75 Ω)
-
PAL: 704 × 576
-
NTSC: 704 × 480
-
Audio
-
Audio Output: 1-ch RCA (Linear, 1 kΩ)
-
Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ, via audio input)
-
Audio Compression: G.711uLaw, G.711aLaw, G.722, G.726, AAC, MP2L2
Decoding & Recording
Decoding Format
-
H.265+, H.265, H.264+, H.264
Recording Resolution
-
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP
-
1080p / UXGA / 720p / VGA
-
4CIF / DCIF / 2CIF / CIF / QCIF
Note: After Ultra HD Resolution Mode is enabled, the NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.
Playback & Performance
-
Synchronous Playback: 16-ch
-
Decoding Capability:
-
2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps)
-
10-ch @ 8 MP (30 fps)
-
20-ch @ 4 MP (30 fps)
-
40-ch @ 1080p (30 fps)
-
-
Dual-Stream Recording: Supported
-
Stream Type: Video / Video & Audio
Network
-
Remote Connections: Up to 128
-
Network Interface:
-
1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet
-
-
Network Protocols:
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP -
Camera Access Protocol: ONVIF (v2.5), RTSP
PoE
-
PoE Ports: 16 × RJ-45 10/100 Mbps self-adaptive
-
PoE Standard: IEEE 802.3af / 802.3at
-
PoE Power Budget: ≤ 200 W
Interfaces & Storage
-
SATA: 2 × SATA interfaces
-
HDD Capacity: Up to 16 TB per disk
-
Alarm I/O: 4 In / 1 Out
-
USB Ports:
-
Front: 1 × USB 2.0
-
Rear: 1 × USB 3.0
-
General
-
Power Supply: 100–240 VAC, 50–60 Hz
-
Power Consumption: ≤ 15 W (without HDD, PoE off)
-
Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)
-
Operating Humidity: 10% to 90%
-
Dimensions (W × D × H): 385 × 315 × 52 mm
(15.2" × 12.4" × 2.0") -
Weight: ≤ 3 kg (without HDD)
Certifications
-
FCC: Part 15 Subpart B, ANSI C63.4-2014
-
CE:
-
EN 55032:2015 + A1:2020
-
EN IEC 61000-3-2:2019 + A1:2021
-
EN 61000-3-3:2013 + A1:2019
-
EN 50130-4:2011 + A1:2014
-
EN 55035:2017 + A11:2020
-
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
