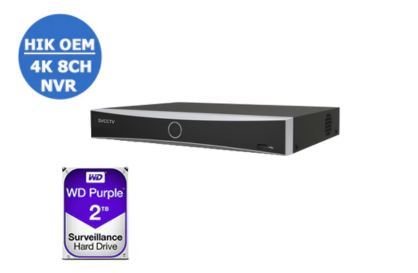

HIKVISION HIK OEM Easy IP Plug & Play 4K 8CH NVR

HIKVISION HIK OEM Easy IP Plug & Play 4K 8CH NVR
Regular price $500.00

8-ch PoE 1U K Series AcuSense 4K NVR

  • Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs
  • 2TB Hard Drive
  • Datasheet



Intelligent Analytics

  • AI by Device:

    • Facial recognition
    • Perimeter protection
    • Motion detection 2.0
  • AI by Camera:

    • Facial recognition
    • Perimeter protection
    • Throwing objects from building
    • Motion detection 2.0
    • ANPR
    • VCA

Facial Recognition

  • Facial Detection and Analytics:

    • Face picture comparison
    • Human face capture
    • Face picture search
  • Face Picture Library:

    • Up to 16 face picture libraries
    • Total of up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

  • 1-ch, 8 MP
  • Face Picture Comparison
    • 4-ch

Motion Detection 2.0

  • By Device:

    • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
    • 4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
    • All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
  • By Camera:

    • All channels

Perimeter Protection

  • By Device:

    • 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
  • By Camera:

    • All channels

Throwing Objects from Building

  • By Camera:
    • All channels

Video and Audio

  • IP Video Input:

    • 8-ch
  • Incoming Bandwidth:

    • 80 Mbps
  • Outgoing Bandwidth:

    • 80 Mbps
  • HDMI Output:

    • 1-ch, 4K (3840 × 2160)/30 Hz
    • 2K (2560 × 1440)/60 Hz
    • 1920 × 1080/60 Hz
    • 1600 × 1200/60 Hz
    • 1280 × 1024/60 Hz
    • 1280 × 720/60 Hz
  • VGA Output:

    • 1-ch, 1920 × 1080/60 Hz
    • 1280 × 1024/60 Hz
    • 1280 × 720/60 Hz
  • Video Output Mode:

    • HDMI/VGA simultaneous output
    • HDMI/VGA independent output
  • CVBS Output:

    • N/A
  • Audio Output:

    • 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio:

    • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

  • Decoding Format:

    • H.265/H.265+/H.264+/H.264
  • Recording Resolution:

    • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
  • Synchronous Playback:

    • 8-ch
  • Decoding Capability:

    • AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)
    • AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)
  • Stream Type:

    • Video
    • Video & Audio
  • Audio Compression:

    • G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

  • Remote Connection:

    • 128
  • API:

    • ONVIF (profile S/G)
    • SDK
    • ISAPI
  • Compatible Browser:

    • IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol:

    • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface:

    • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE Interface:

    • 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

  • Power Supply:

    • 48 VDC, 1.875 A
  • Consumption:

    • ≤ 10 W (without HDD, and PoE off)

Auxiliary Interface

  • SATA:

    • 1 SATA interface
  • Capacity:

    • Up to 10 TB capacity for each HDD
  • USB Interface:

    • Front panel: 1 × USB 2.0
    • Rear panel: 1 × USB 2.0
  • Alarm In/Out:

    • 4/1; N/A; N/A; N/A (4/1 is optional)

General

  • GUI Language:

    • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
  • Power Supply:

    • 48 VDC, 1.875 A
  • Consumption:

    • ≤ 10 W (without HDD, and PoE off)
  • Working Temperature:

    • -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity:

    • 10% to 90%
  • Dimension (W × D × H):

    • 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")
  • Weight:

    • ≤ 1 kg (without HDD, 2.2 lb.)

Certification

  • FCC:

    • Part 15 Subpart B, ANSI C63.4-2014
  • CE:

    • EN 55032: 2015
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 50130-4
    • EN 55035: 2017
  • Obtained Certification:

    • CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
