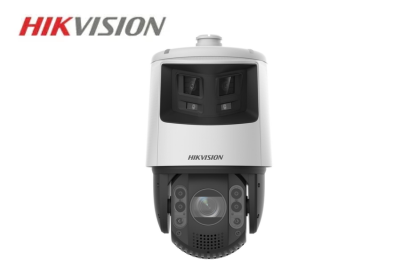

Hikvision TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome
TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome
- Panoramic channel supports image stitching, with 180° horizontal field of view
- High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
- Secures an expansive area with 32 × optical zoom and 16 × digital zoom
- AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
- Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
- Active strobe light and audio alarm to warn intruders off
- Smart-linkage between panoramic channel and PTZ channel
- Datasheet
Camera Specifications
Image Sensor:
-
Panoramic Channel: 1/2.5" Progressive Scan CMOS
-
PTZ Channel: 1/2.8" Progressive Scan CMOS
Max. Resolution:
-
Panoramic Channel: 3632 × 1632
-
PTZ Channel: 2560 × 1440
Min. Illumination:
-
PTZ Channel: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
-
Panoramic Channel: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed: 1 s to 1/30,000 s
Day & Night: IR cut filter
Zoom: 32× optical, 16× digital
Slow Shutter: Yes
HLC: Yes
3D DNR: Yes
Lens Specifications
Focal Length:
-
Panoramic Channel: 2.8 mm
-
PTZ Channel: 5.9 mm to 188.8 mm
FOV:
-
Panoramic Channel: Horizontal field of view: 180° ±10°, Vertical field of view: 80° ±5°
-
PTZ Channel: Horizontal field of view: 60.2° to 2.3°
Focus: Auto, Semi-auto, Manual
Aperture:
-
Panoramic Channel: F1.0
-
PTZ Channel: Max. F1.5
Zoom Speed:
-
Panoramic Channel: No
-
PTZ Channel: Approx. 5.6 s
Illuminator
Supplement Light Range:
-
IR Distance: Up to 200 m
-
White Light Distance:
-
Panoramic Channel: 30 m
-
PTZ Specifications
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90°
Pan Speed: Configurable from 0.1° to 160°/s, Preset speed: 240°/s
Tilt Speed: Configurable from 0.1° to 120°/s, Preset speed: 200°/s
Proportional Pan: Yes
Presets: 300
Preset Freezing: Yes
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Park Action: Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan
3D Positioning: Yes
PTZ Status Display: Yes
Scheduled Task: Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Aux output, Dome adjust
Power-off Memory: Yes
Video Specifications
Main Stream:
-
PTZ Channel:
-
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
-
Panoramic Channel:
-
50 Hz: 25 fps (3632 × 1632, 3680 × 1656)
-
60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
-
Sub-Stream:
-
PTZ Channel:
-
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
-
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
-
Panoramic Channel:
-
50 Hz: 25 fps (1200 × 536, 960 × 432)
-
60 Hz: 30 fps (1200 × 536, 960 × 432)
-
Third Stream:
-
PTZ Channel:
-
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
-
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
-
Panoramic Channel: No
Video Compression:
-
Main stream: H.265+/H.265/H.264+/H.264
-
Sub-stream: H.265/H.264/MJPEG
-
Third stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16384 Kbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC): Yes
Region of Interest (ROI): Fixed region
Audio Specifications
Audio Compression:
-
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio Bit Rate:
-
32 to 192 Kbps (MP2L2)
-
16 to 64 Kbps (AAC-LC)
-
8 to 320 Kbps (MP3)
Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering: Yes
Network Specifications
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP
Simultaneous Live View: 20
API: ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
User/Host: 32
Network Storage: NAS (NFS, SMB/CIFS), Auto network replenishment (ANR)
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser: IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge 79.0.309.65+
Image Settings
Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness
Day/Night Switch: Day, night, auto, schedule
Wide Dynamic Range (WDR):
-
Panoramic Channel: Digital WDR
-
PTZ Channel: 120 dB
SNR: > 52 dB
Defog: Yes
Image Stabilization: Yes
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus: Yes
Regional Exposure: Yes
Interface
Ethernet Interface: 1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio:
-
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%
-
1 output (line out), line level, output impedance: 600 Ω
Alarm: 2 input(s), 1 output(s)
Reset: Yes
Event Specifications
Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
Linkage:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing
Smart Tracking: Manual tracking, auto-tracking
Smart Linkage: Panorama linkage, tracking takeover, track in turn
Deep Learning Function
Face Capture:
Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
Regional People Counting: Yes
General Specifications
Power: 24 VAC, Max. 60 W, Hi-PoE
Dimension: Ø222.3 mm × 387.2 mm (Ø8.75" × 15.2")
Weight: Approx. 6 kg (13.23 lb.)
Material: ADC12, Plastic, PC+10% GF
Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function: Mirror, watermark, password protection, IP address filter
Demist: Yes
Approval
Protection: IP66 (IEC 60529-2013)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
