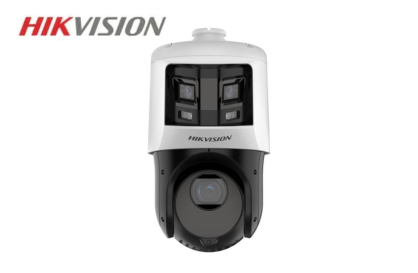

Hikvision TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome
TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome
- Captures a large area and great details at the same time
- High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Expansive night view with up to 100 m IR distance & 30 m white light
- Supports 12V DC & PoE+
- Focuses on human and vehicle targets classification based on deep learning
- Datasheet
Camera Overview
Image Sensor
-
Bullet Channel: 1/2.5" Progressive Scan CMOS
-
PTZ Channel: 1/2.8" Progressive Scan CMOS
Maximum Resolution
-
Bullet Channel: 3632 × 1632
-
PTZ Channel: 2560 × 1440
Minimum Illumination
-
Bullet Channel: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light
-
PTZ Channel:
-
Color: 0.005 Lux @ (F1.6, AGC ON)
-
B/W: 0.001 Lux @ (F1.6, AGC ON)
-
0 Lux with IR
-
Shutter Speed
-
1 s to 1/30,000 s
Day & Night
-
ICR (Infrared Cut Filter Removal)
Zoom
-
PTZ Channel: 25 × optical, 16 × digital
Slow Shutter
-
Yes
Lens
Focal Length
-
Bullet Channel: 2.8 mm
-
PTZ Channel: 4.8 to 120 mm, 25 × optical
Field of View (FOV)
-
Bullet Channel:
-
Horizontal: 180±10°
-
Vertical: 80±5°
-
-
PTZ Channel:
-
Horizontal: 55° to 2.4° (wide-tele)
-
Vertical: 33° to 1.4° (wide-tele)
-
Diagonal: 61.5° to 2.8° (wide-tele)
-
Focus
-
Semi-auto, manual, auto
Aperture
-
Bullet Channel: F1.0
-
PTZ Channel: F1.6
Zoom Speed
-
PTZ Channel: Approx. 3.6 s
Illuminator
Supplement Light Type
-
PTZ Channel: IR
-
Bullet Channel: White Light
Supplement Light Range
-
PTZ Channel: Up to 100 m
-
Bullet Channel: Up to 30 m
Smart Supplement Light
-
Yes
PTZ (Pan/Tilt/Zoom)
Movement Range
-
Pan: 360°
-
Tilt: -15° to 90° (auto flip)
Pan Speed
-
Configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
-
Configurable from 0.1° to 80°/s; preset speed: 80°/s
Proportional Pan
-
Yes
Presets
-
300
Preset Freezing
-
Yes
Patrol Scan
-
8 patrols, up to 32 presets for each patrol
Pattern Scan
-
4 pattern scans
Park Action
-
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning
-
Yes
PTZ Status Display
-
Yes
Scheduled Task
-
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memory
-
Yes
Video
Main Stream
-
Bullet Channel:
-
50 Hz: 25 fps (3632 × 1632, 3680 × 1656)
-
60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
-
-
PTZ Channel:
-
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
-
Bullet Channel:
-
50 Hz: 25 fps (1200 × 536, 960 × 432)
-
60 Hz: 30 fps (1200 × 536, 960 × 432)
-
-
PTZ Channel:
-
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
-
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
-
PTZ Channel:
-
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
-
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
-
H.265, H.264, MJPEG
Video Bit Rate
-
32 kbps to 16384 kbps
H.264 Type
-
Baseline profile, main profile, high profile
H.265 Type
-
Main profile
Scalable Video Coding (SVC)
-
Supported for H.264 and H.265 encoding
Region of Interest (ROI)
-
8 fixed regions for each stream
Audio
Audio Compression
-
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio Bit Rate
-
MP2L2: 16 kHz, 32 kHz, 48 kHz
-
AAC-LC: 16 kHz, 32 kHz, 48 kHz
-
PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
-
MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Audio Sampling Rate
-
MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps
-
AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps
-
MP3: 8 Kbps, 16 Kbps, 24 Kbps, 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 160 Kbps, 192 Kbps, 224 Kbps, 256 Kbps, 320 Kbps
Environment Noise Filtering
-
Yes
Network
Protocols
-
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View
-
20
API
-
ISAPI, SDK, ISUP, ONVIF
User/Host
-
32
Security
-
Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Network Storage
-
NAS (NFS, SMB/CIFS), ANR
Client
-
iVMS-4200, Hik-Connect
Web Browser Compatibility
-
IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+
Image Settings
-
Sharpness, saturation, brightness, contrast
Day/Night Switch
-
Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)
-
120 dB
Signal-to-Noise Ratio (SNR)
-
≥ 52 dB
Defog
-
Digital defog
Image Stabilization
-
EIS
Image Enhancement
-
BLC, HLC, 3D DNR
Privacy Mask
-
Bullet Channel: 8 programmable polygon privacy masks
-
PTZ Channel: 24 programmable polygon privacy masks (mask color or mosaic configurable)
Regional Focus
-
Yes
Regional Exposure
-
Yes
Interface
Ethernet Interface
-
RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage
-
Built-in memory card slot, supports Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio
-
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
-
1 audio output, line level, impedance: 600 Ω
Alarm
-
1 alarm input, 1 alarm output
Reset
-
Yes
Event Detection
Basic Events
-
PTZ Channel: Motion detection, video tampering alarm
-
Bullet & PTZ Channels: Alarm input and output, exception events (IP address conflict, HDD full, illegal login, HDD error, network disconnected, abnormal reboot)
Smart Events
-
Bullet & PTZ Channels: Audio exception detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage
-
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, PTZ actions (preset, patrol scan, pattern scan)
Smart Linkage
-
Panorama Linkage
Deep Learning Functions
-
Face Capture: Detects up to 5 faces simultaneously, supports detecting, tracking, capturing, grading, selecting faces in motion, and outputs the best face picture
-
Regional People Counting: Yes
General Specifications
Power
-
12VDC, PoE+
Dimensions
-
Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Weight
-
Approx. 2.4 kg (13.2 lb.)
Material
-
ADC12
Operating Conditions
-
Temperature: -30℃ to 65℃ (-22°F to 149°F)
-
Humidity: < 90% RH
Demist
-
Demist by heating the glass
Power Consumption and Current
-
Max. 24 W, including Max. 2.6 W for heater and Max. 11 W for supplement light
Protection
-
IP66 Standard, 6000 V Lightning Protection, Surge Protection, and Voltage Transient Protection
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
