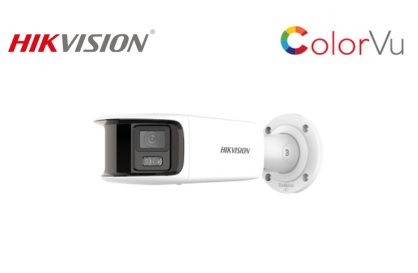

HIKVISION 8 MP Panoramic ColorVu Fixed Bullet Network Camera

Regular price $649.06
Price includes GST · Free shipping over $99
In stock
Manufacturer warrantyGenuine, authorised stock
Dispatched from VICFree shipping over $99
  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)
  • Datasheet
See full specifications ↓
1300 003 978Speak to a security expert

Available to order online

  • OnlineIn stock
  • In-storeOut of stock

Orders are dispatched from Victoria.

Call 1300 003 978 to check availability.

Buy this product
Add professional installation — request a quote
  • Genuine products with manufacturer warranty
  • Free shipping on orders over $99
  • Expert support: 1300 003 978 · Mon–Fri 9am–6pm
  • Secure checkout
American Express Apple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa

8 MP Panoramic ColorVu Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)
  • Datasheet



Camera Specifications


Image Sensor

  • Type: 2 × 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 5120 × 1440
  • Min. Illumination:
    • Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time

  • 1/3 s to 1/100,000 s

Angle Adjustment

  • Pan: 0° to 355°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

  • Lens Type: Fixed focal lens, dual lens (4 mm)
  • Focal Length & Field of View (FOV):
    • 4 mm: Horizontal FOV: 180°, Vertical FOV: 44°
  • Lens Mount: M16
  • Iris Type: Fixed
  • Aperture: F1.0
  • Depth of Field: 3.6 m to ∞

DORI

  • 4 mm:
    • Detection (D): 77 m
    • Observation (O): 30 m
    • Recognition (R): 15 m
    • Identification (I): 7 m

Illuminator

  • Supplement Light Type: White Light
  • Range: Up to 40 m
  • Smart Supplement Light: Yes

Video

  • Main Stream:
    • WDR On:
      • 50 Hz: 12.5 fps (5120 × 1440)
      • 60 Hz: 15 fps (5120 × 1440)
    • WDR Off:
      • 50/60 Hz: 20 fps (5120 × 1440)
  • Sub-Stream:
    • WDR On:
      • 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
      • 60 Hz: 15 fps (1920 × 536, 960 × 272)
    • WDR Off:
      • 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
  • Video Compression:
    • Main Stream: H.265+/H.265/H.264+/H.264
    • Sub-Stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream

Audio

  • Type: Mono sound
  • Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Bit Rate:
    • G.711: 64 Kbps
    • G.722.1: 16 Kbps
    • MP3: 8 to 320 Kbps
    • AAC-LC: 16 to 64 Kbps
  • Sampling Rate: 8 kHz to 48 kHz
  • Noise Filtering: Yes

Network

  • Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, and more
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S/G/T), ISAPI, SDK
  • User/Host:
    • Up to 32 users
    • 3 levels: Administrator, Operator, User


  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • Enhancements: BLC, HLC, 3D DNR
  • Privacy Mask: 8 rectangular regions

Interface

  • Ethernet: 1 RJ45 10/100 M self-adaptive Ethernet port
  • On-Board Storage: MicroSD/SDHC/SDXC, up to 512 GB
  • Audio:
    • Input: 1 (line-in), terminal block
    • Output: 1 (line-out), terminal block
  • Alarm: 1 input, 1 output
  • Reset Key: Yes

Events

  • Basic Events:
    • Motion detection, alarm input/output, exception
  • Smart Events:
    • Line crossing, intrusion, region entrance/exiting
  • Linkage: FTP, NAS, email notifications, alarm outputs, recording, capture, audible warnings, flashing lights

Power & Dimensions

  • Power:
    • 12 VDC ± 25% or PoE (802.3af)
    • Max Consumption: 12.5 W
  • Material: Metal body and bracket
  • Dimensions: 118.6 mm × 105.1 mm × 305.4 mm
  • Weight: Approx. 3.1 lb (4.9 lb with package)

Environmental

  • Conditions:
    • Operating: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
  • Protection: IP67

Approvals

  • EMC: FCC, CE, RCM, IC
  • Safety: UL, CB, CE-LVD
  • Environment: CE-RoHS, WEEE, Reach

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

General

BrandHIKVISION
Model / SKUDS-2CD2T87G2P-LSU/SL
