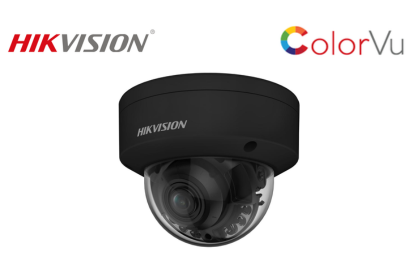

HIKVISION DS-2CD2787G2HT-LIZS 8 MP Smart Hybrid Light with ColorVu Motorized Varifocal…
8 MP Smart Hybrid Light with ColorVu Motorized Varifocal Dome Network Camera
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong backlight due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 75°
- Rotate: 0° to 355°
Lens
Type
- Varifocal, motorized lens (2.8 to 12 mm)
Focal Length & Field of View (FOV)
- Horizontal: 112.3° to 41.2°
- Vertical: 58.1° to 23.1°
- Diagonal: 137.4° to 47.3°
Aperture: Max. F1.2
Iris Type: Fixed
Depth of Field: 1 m to ∞
DORI (Detection, Observation, Recognition, Identification)
- Wide: Detection: 87 m, Observation: 35 m, Recognition: 17 m, Identification: 9 m
- Tele: Detection: 216 m, Observation: 86 m, Recognition: 43 m, Identification: 22 m
Illuminator
Supplement Light
- Type: IR, White Light
- Range: Up to 40 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
Main Stream
- 50 Hz: Up to 25 fps (3840 × 2160)
- 60 Hz: Up to 24 fps (3840 × 2160)
Sub-Stream
- Up to 30 fps for resolutions like 1280 × 720
Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
Bit Rate Control: CBR/VBR
Region of Interest (ROI): 1 fixed region
Audio
Compression:
- G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Bit Rate:
- 64 Kbps (G.711ulaw/G.711alaw)
- 16 Kbps (G.722.1/G.726)
- 8 to 320 Kbps (MP3)
Environment Noise Filtering: Yes
Network
Protocols:
- TCP/IP, ICMP, HTTP, HTTPS, FTP, RTP, RTSP, and more
Simultaneous Live View: Up to 6 channels
Security: Password protection, HTTPS encryption, IP filtering
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Image Settings:
- Rotate mode, saturation, brightness, contrast, sharpness, gain
- Adjustable via software or browser
Enhancements: BLC, HLC, 3D DNR
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon masks
Interface
Ethernet:
- 1 RJ45 10M/100M self-adaptive port
Storage:
- Built-in memory card slot, supports microSD/microSDHC/microSDXC (up to 512 GB)
Audio:
- 1 input (line in)
- 1 output (line out)
Alarm:
- 1 input, 1 output
Reset Key: Yes
Event & Smart Features
Basic Events: Motion detection, tampering alarm, exception
Smart Events: Scene change detection
Deep Learning Features: Face capture, perimeter protection
General
Power Supply:
- 12 VDC ± 25% or PoE (IEEE 802.3af, Class 3)
Material: Metal
Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Dimensions: Ø141 mm × 112 mm (Ø5.55" × 4.41")
Weight: Approx. 820 g
Certifications
- EMC: CE-EMC, RCM, IC
- Safety: UL, CB, CE-LVD
- Environment: CE-RoHS, WEEE
Protection: IP67, IK10
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
