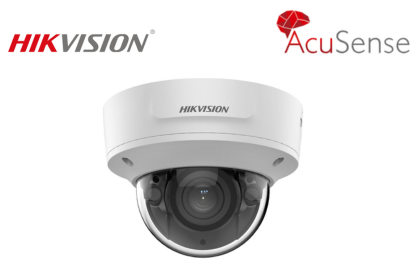

HIKVISION DS-2CD2766G2-IZS 6 MP AcuSense Motorized Varifocal Dome Network Camera

HIKVISION DS-2CD2766G2-IZS 6 MP AcuSense Motorized Varifocal Dome Network Camera
Regular price $420.81

6 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 6 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Datasheet



Camera Specifications

Camera

  • Image Sensor: 1/2.4" Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination:
    • Color: 0.003 Lux @ (F1.4, AGC ON)
    • B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment:
    • Pan: 0° to 355°
    • Tilt: 0° to 75°
    • Rotate: 0° to 355°

Lens

  • Type: Varifocal, motorized (2.8 to 12 mm)
  • Focal Length & FOV:
    • 2.8 to 12 mm
    • Horizontal FOV: 106° to 35°
    • Vertical FOV: 56° to 20°
    • Diagonal FOV: 127° to 41°
  • Lens Mount: Ø14
  • Iris Type: Fixed
  • Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

  • Wide (2.8 mm):
    • D: 68 m, O: 27 m, R: 13 m, I: 7 m
  • Tele (12 mm):
    • D: 200 m, O: 79 m, R: 40 m, I: 20 m

Illuminator

  • Supplement Light Type: IR
  • Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream:
    • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream:
    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Compression:
    • Main Stream: H.265+/H.265/H.264+/H.264
    • Sub-Stream: H.265/H.264/MJPEG
    • Third Stream: H.265/H.264

Audio

  • Type: Mono sound
  • Compression:
    • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Bit Rate:
    • 64 Kbps (G.711ulaw/G.711alaw)
    • 16 Kbps (G.722.1/G.726)
    • 32–192 Kbps (MP2L2)
    • 8–320 Kbps (MP3)
    • 16–64 Kbps (AAC-LC)
  • Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

Security

  • Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, watermarking, RTP/RTSP over HTTPS, and more.

Storage

  • On-Board: microSD card (up to 512 GB)
  • Network Storage: NAS (NFS, SMB/CIFS), ANR


  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Masking: 4 programmable masks

Interface

  • Ethernet: 1 RJ45 10M/100M port
  • Audio Input/Output: 1 input, 1 output (3.5 mm connectors)
  • Alarm: 1 input, 1 output

Events

  • Basic Events: Motion detection, video tampering, exception
  • Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change detection

General

  • Power:
    • 12 VDC ± 25%, 0.88 A (max 10.5 W)
    • PoE: IEEE 802.3af, Class 3 (max 12.5 W)
  • Dimensions: Ø153.5 mm × 133.1 mm
  • Weight: Approx. 1110 g (2.4 lb.)

Approval

  • EMC: FCC, CE-EMC, RCM, KC
  • Safety: UL, CB, CE-LVD
  • Environmental: CE-RoHS, WEEE, Reach
  • Protection: IP66, IK10

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty


6 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 6 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Datasheet



Camera Specifications

Camera

  • Image Sensor: 1/2.4" Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination:
    • Color: 0.003 Lux @ (F1.4, AGC ON)
    • B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment:
    • Pan: 0° to 355°
    • Tilt: 0° to 75°
    • Rotate: 0° to 355°

Lens

  • Type: Varifocal, motorized (2.8 to 12 mm)
  • Focal Length & FOV:
    • 2.8 to 12 mm
    • Horizontal FOV: 106° to 35°
    • Vertical FOV: 56° to 20°
    • Diagonal FOV: 127° to 41°
  • Lens Mount: Ø14
  • Iris Type: Fixed
  • Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

  • Wide (2.8 mm):
    • D: 68 m, O: 27 m, R: 13 m, I: 7 m
  • Tele (12 mm):
    • D: 200 m, O: 79 m, R: 40 m, I: 20 m

Illuminator

  • Supplement Light Type: IR
  • Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream:
    • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream:
    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Compression:
    • Main Stream: H.265+/H.265/H.264+/H.264
    • Sub-Stream: H.265/H.264/MJPEG
    • Third Stream: H.265/H.264

Audio

  • Type: Mono sound
  • Compression:
    • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Bit Rate:
    • 64 Kbps (G.711ulaw/G.711alaw)
    • 16 Kbps (G.722.1/G.726)
    • 32–192 Kbps (MP2L2)
    • 8–320 Kbps (MP3)
    • 16–64 Kbps (AAC-LC)
  • Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

Security

  • Password protection, HTTPS encryption, 802.1X authentication, IP address filtering, watermarking, RTP/RTSP over HTTPS, and more.

Storage

  • On-Board: microSD card (up to 512 GB)
  • Network Storage: NAS (NFS, SMB/CIFS), ANR


  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Masking: 4 programmable masks

Interface

  • Ethernet: 1 RJ45 10M/100M port
  • Audio Input/Output: 1 input, 1 output (3.5 mm connectors)
  • Alarm: 1 input, 1 output

Events

  • Basic Events: Motion detection, video tampering, exception
  • Smart Events: Line crossing, intrusion detection, region entrance/exiting, scene change detection

General

  • Power:
    • 12 VDC ± 25%, 0.88 A (max 10.5 W)
    • PoE: IEEE 802.3af, Class 3 (max 12.5 W)
  • Dimensions: Ø153.5 mm × 133.1 mm
  • Weight: Approx. 1110 g (2.4 lb.)

Approval

  • EMC: FCC, CE-EMC, RCM, KC
  • Safety: UL, CB, CE-LVD
  • Environmental: CE-RoHS, WEEE, Reach
  • Protection: IP66, IK10

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
